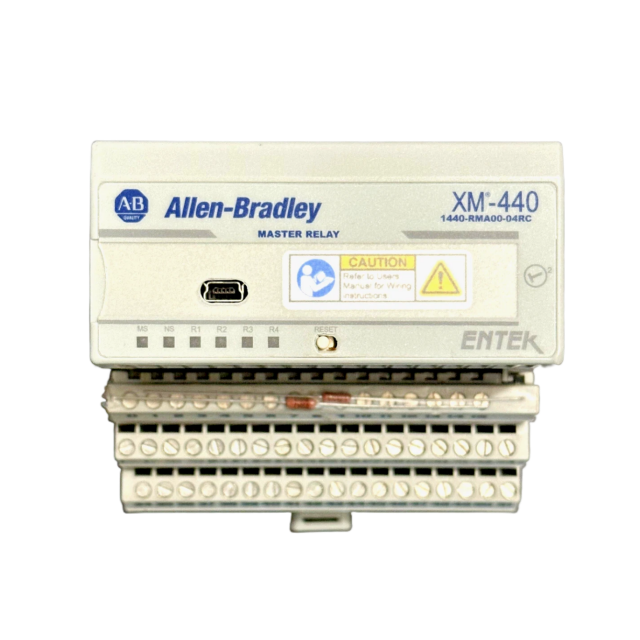

Allen Bradley 1440: Integrated Machinery Health and Protection
The Precision of Integrated Vibration Monitoring
In high-stakes industrial environments, the difference between a routine maintenance check and a catastrophic mechanical failure often comes down to milliseconds of data. The Allen Bradley 1440 series, known as the Dynamix 1440, is a sophisticated machinery protection and condition monitoring system designed specifically for the Logix architecture.
Unlike standalone vibration monitors that require complex gateways and proprietary software, the 1440 series integrates directly into the EtherNet/IP network. This allows plant engineers to monitor the health of rotating assets—such as turbines, compressors, and high-speed pumps—within the same Studio 5000 environment used for process control. As a global supplier and manufacturing partner, we provide the fully vetted Allen Bradley 1440 hardware required to safeguard your most critical capital investments.
The Dynamix 1440 Architecture: Distributed Intelligence
The Allen Bradley 1440 system is built on a distributed platform that brings high-fidelity signal processing closer to the machine. By placing the monitoring modules on the machine skid, facilities can drastically reduce the cost of specialized coaxial cabling while improving signal-to-noise ratios.
The 1440-VIM (Vibration Input Module): The core of the system is the Vibration Input Module. This dual-channel device is capable of processing signals from a variety of sensors, including accelerometers, velocity transducers, and eddy current displacement probes. It performs real-time FFT (Fast Fourier Transform) analysis and triggers safety relays if vibration thresholds are exceeded.
The 1440-TBS (Terminal Base): To ensure maximum uptime, the 1440-VIM utilizes a specialized terminal base. This base allows for "Removal and Insertion Under Power" (RIUP), enabling maintenance teams to swap modules without interrupting the signal path or the safety loop of adjacent devices.
Logix Integration: Because the 1440 series is a native EtherNet/IP device, it provides "Add-On Profiles" (AOP) for the Logix controllers. This means that vibration data, including overall levels and spectral bands, are available as standard tags for HMI visualization and historical logging without custom driver development.
Strategic Reliability for Global Procurement
For procurement officers and reliability managers in 2026, the challenge lies in maintaining legacy assets while upgrading to "Industry 4.0" standards. We bridge this gap by supplying rigorously tested Allen Bradley 1440 modules that meet stringent Western technical specifications.
Every module we provide undergoes comprehensive communication and load-testing to ensure it meets original factory calibrations. By securing your supply chain with our verified 1440 components, you minimize lead times, reduce Mean Time to Repair (MTTR), and ensure your facility complies with API 670 machinery protection standards.
Allen Bradley 1440 Technical & Operational FAQs
1. Can the 1440-VIM module monitor two different types of sensors simultaneously?
Yes. Each Allen Bradley 1440 VIM has two independent channels. You can configure one channel for an accelerometer (100 mV/g) to monitor high-frequency bearing noise and the second channel for a proximity probe (-18 V DC) to monitor shaft displacement, provided they share a common ground reference.
2. How does the Dynamix 1440 handle "Safety Trips" differently than a standard PLC?
While the PLC can trigger a shutdown based on data from the network, the Allen Bradley 1440 VIM features local "on-board" logic. If a critical vibration limit is reached, the module can trigger its local relays in less than 100 ms, operating independently of the PLC's scan time to ensure immediate machinery protection.
3. What is the most common cause of "Module Identity" faults in Studio 5000?
This is typically caused by a firmware revision mismatch. If your Studio 5000 project is configured for a specific major revision (e.g., Rev 3.001) and the physical Allen Bradley 1440 module is a different revision, the controller will reject the connection. You must either update the module firmware using ControlFLASH or adjust the "Electronic Keying" in the software.
4. Why is my 1440-VIM reporting a "Transducer OK" fault?
The module constantly monitors the bias voltage of the connected sensor. If an accelerometer cable is cut or the proximity probe power supply fails, the bias voltage will drift outside the expected range (typically 2 V to 18 V). The "OK" fault prevents the system from triggering a false trip due to a failed sensor.
5. Is a special network bridge required to connect 1440 modules to a ControlLogix rack?
No. The Allen Bradley 1440 series communicates over standard EtherNet/IP. You can connect multiple 1440 modules to a standard industrial switch and bring the data directly into a ControlLogix or CompactLogix processor via an Ethernet bridge module (like the 1756-EN2T).
