In the modern industrial landscape, where "uptime" is the primary metric of success, the Bently Nevada 3500 stands as the world’s most advanced and reliable machinery protection system (MPS). While its predecessor, the 3300, set the standard for analog reliability, the 3500 series introduced a new era of digital intelligence, high-speed data acquisition, and unparalleled system flexibility.

As a premier manufacturer and global supplier, we provide the complete Bently Nevada vibration ecosystem, ensuring that your critical rotating assets—from massive steam turbines to high-speed centrifugal compressors—are protected by a system that is as smart as it is rugged.

The Bently Nevada 3500 is not merely an alarm system; it is a sophisticated diagnostic platform. It is designed to provide continuous, online monitoring of vibration, position, speed, and other critical parameters.

Fully compliant with API 670 standards and SIL 2 certified for safety-instrumented functions, the 3500 system provides the deterministic protection required to prevent catastrophic mechanical failures while offering the data depth needed for predictive maintenance.

Modular Excellence: The 3500/05 Rack and 3500/22 TDI

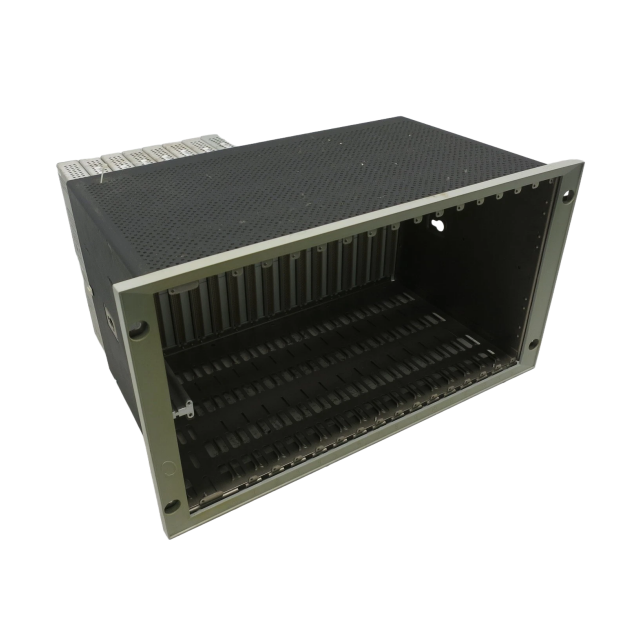

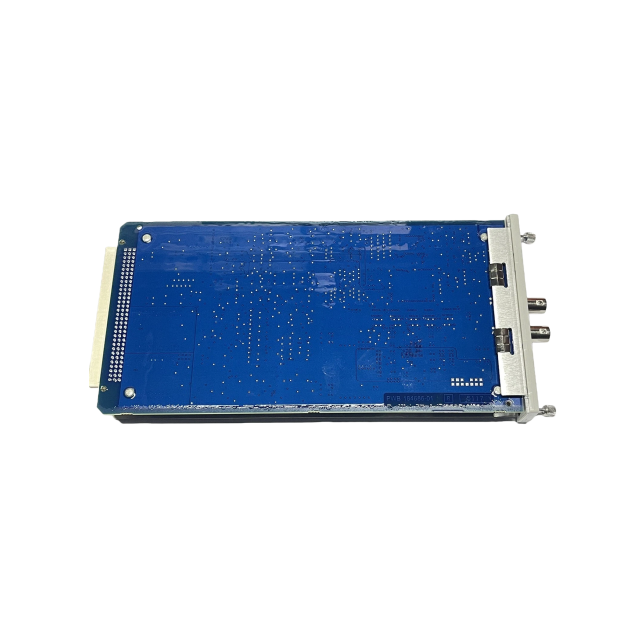

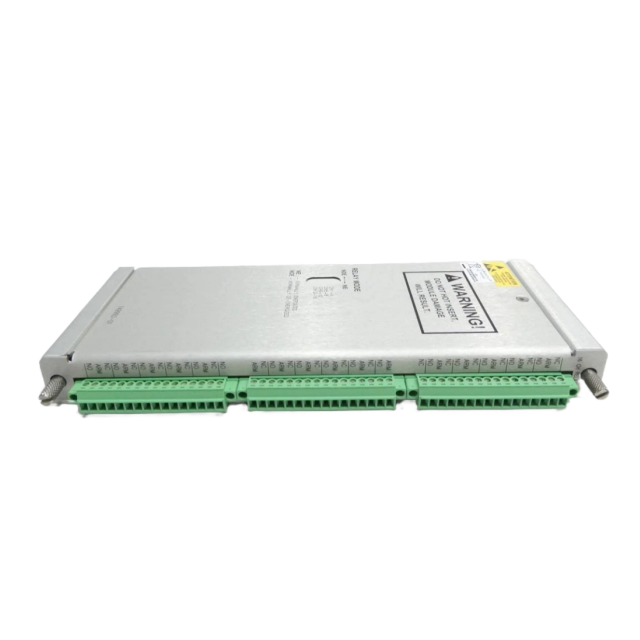

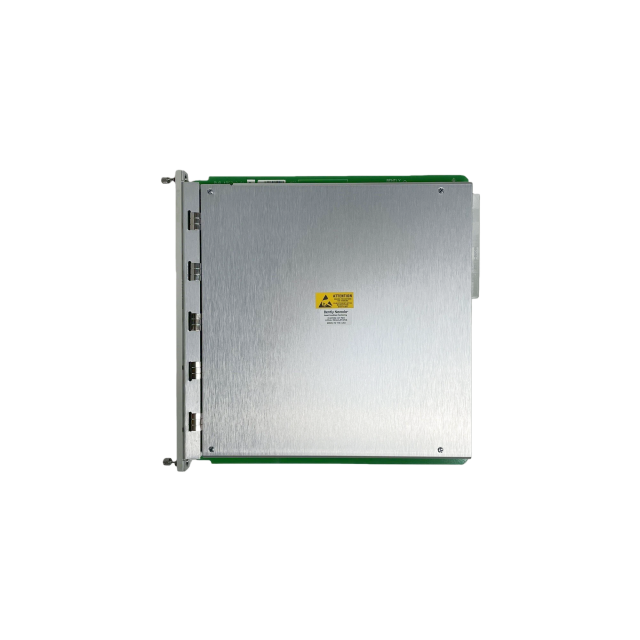

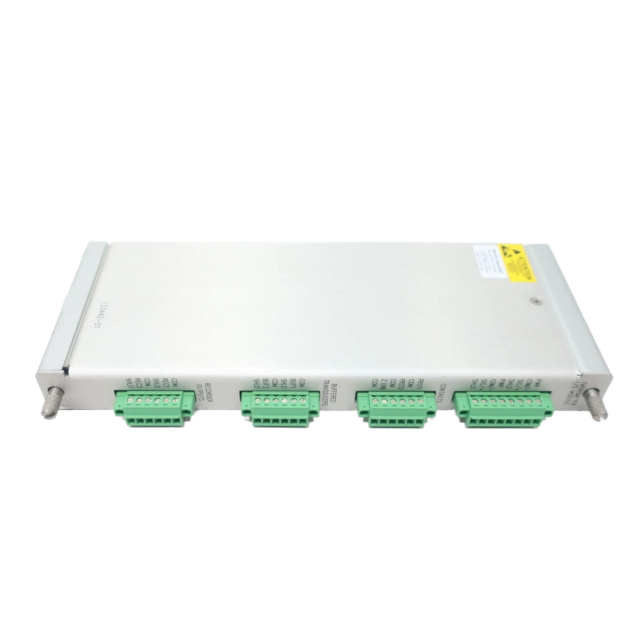

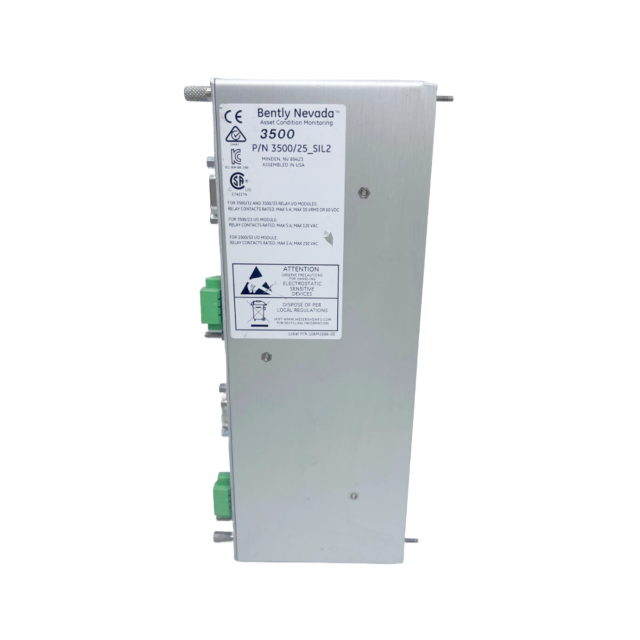

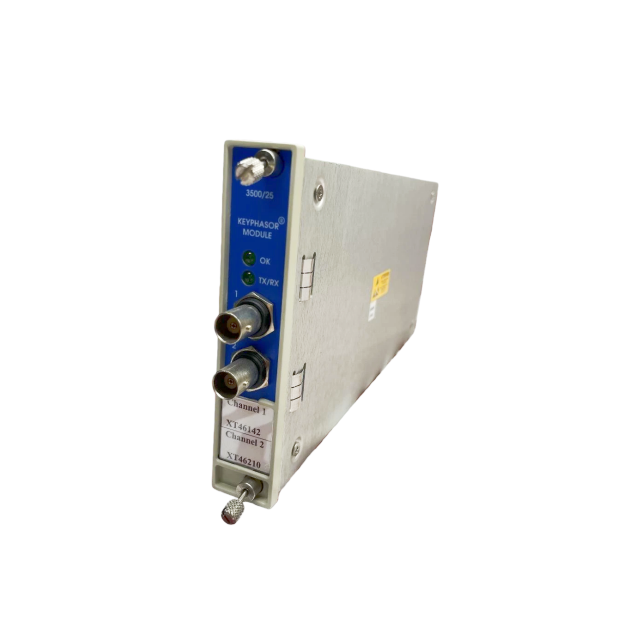

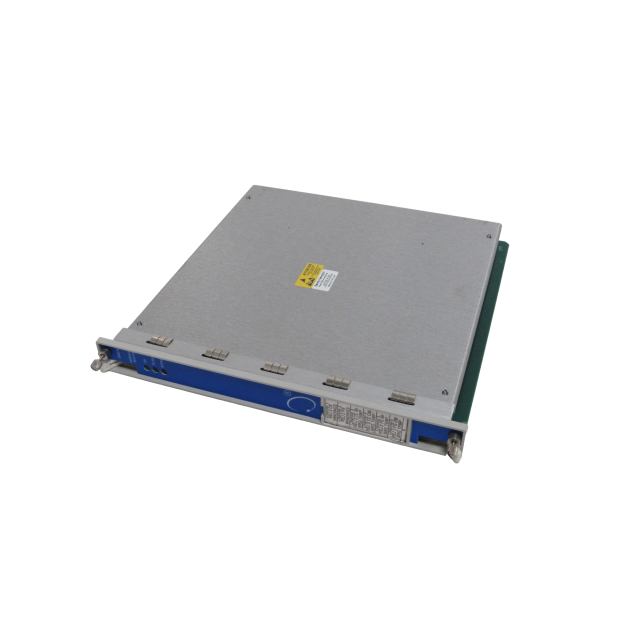

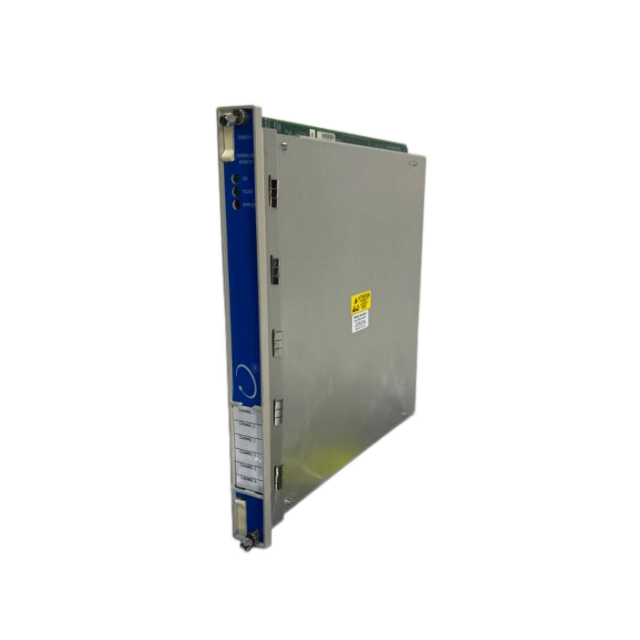

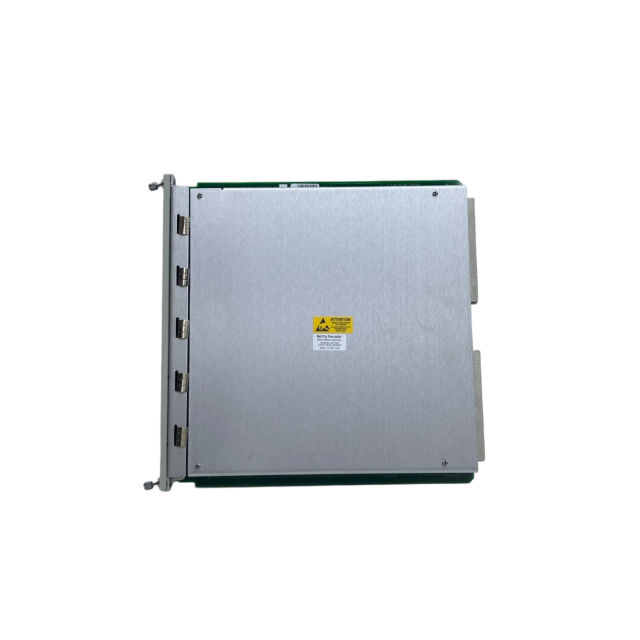

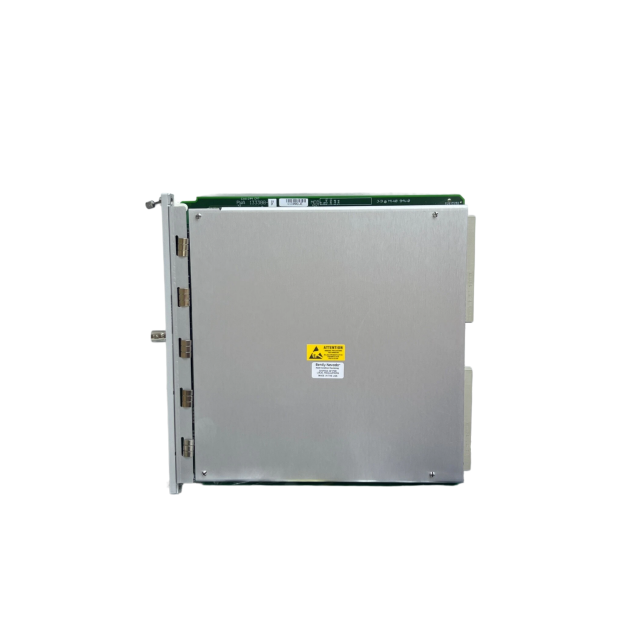

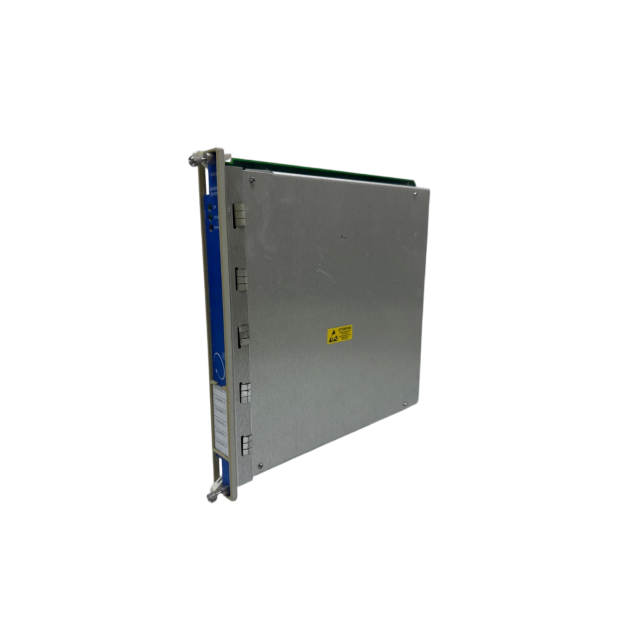

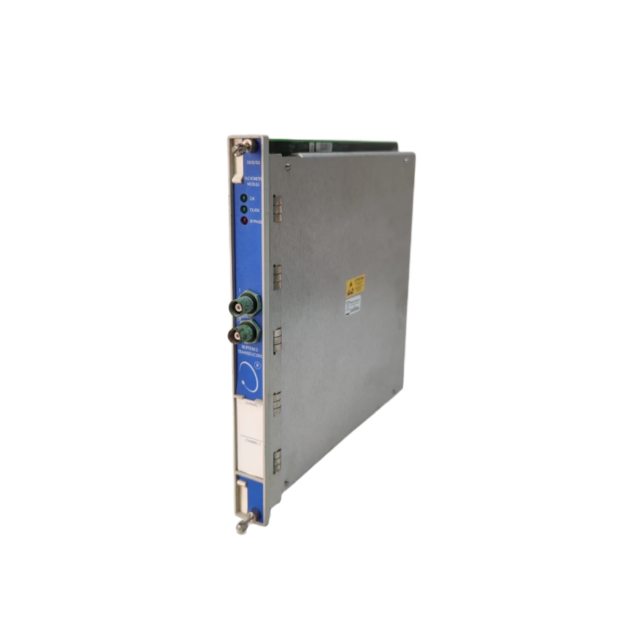

The heart of the Bently Nevada Vibration Monitoring System is its modular 19-inch rack (3500/05), which can house up to 14 individual monitoring modules. This scalability allows plants to customize their protection strategy for each machine train.

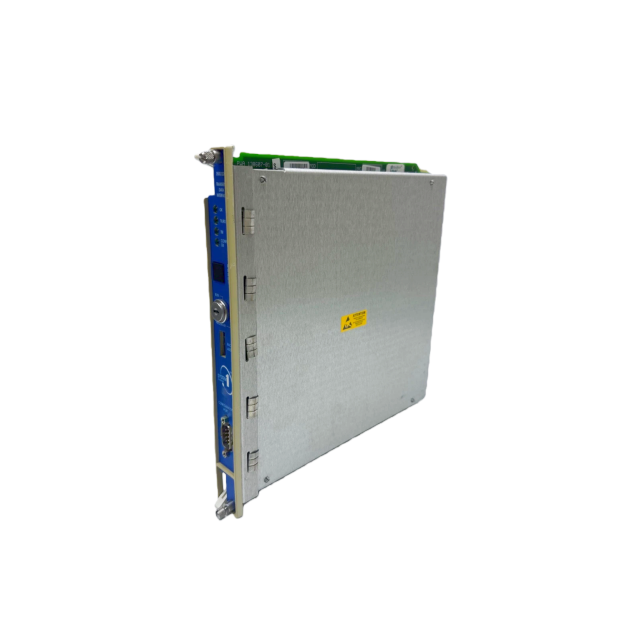

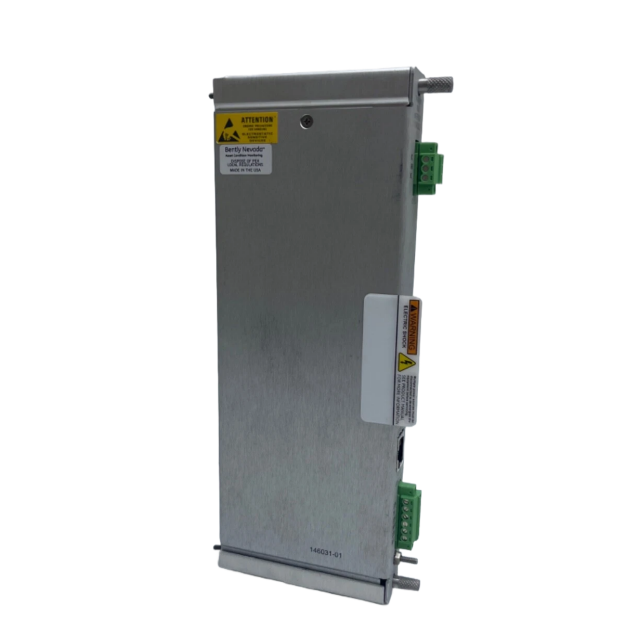

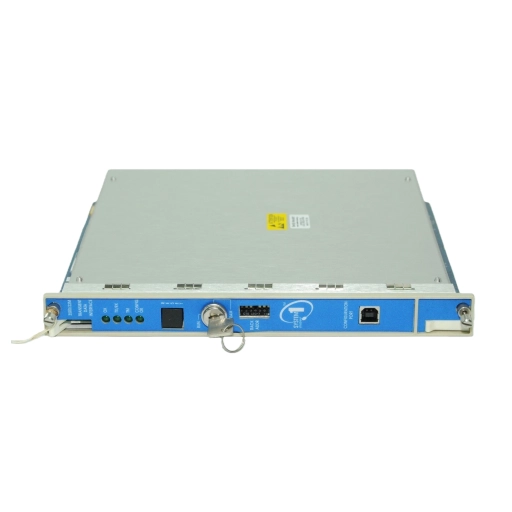

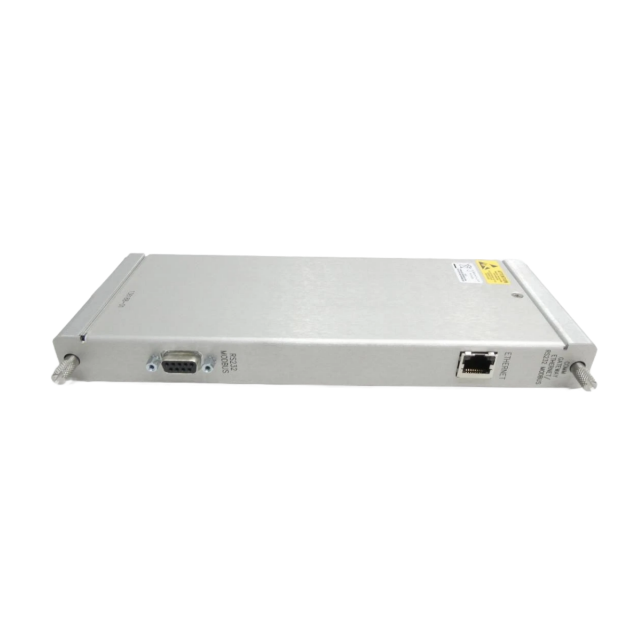

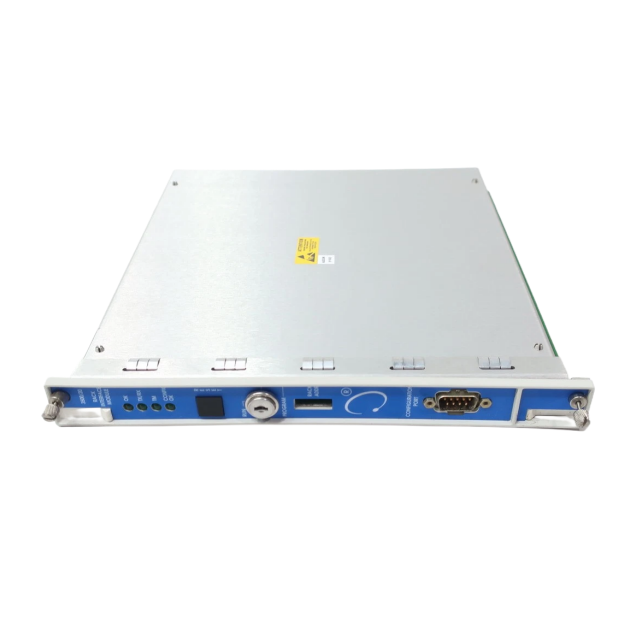

3500/22 Transient Data Interface (TDI): This is the communication hub of the system. Unlike legacy systems, the TDI captures both static and highly detailed transient data (startup/shutdown waveforms). This data is seamlessly integrated with Bently Nevada’s System 1 software, allowing engineers to "see" inside the machine with high-resolution orbit plots and spectrum analysis.

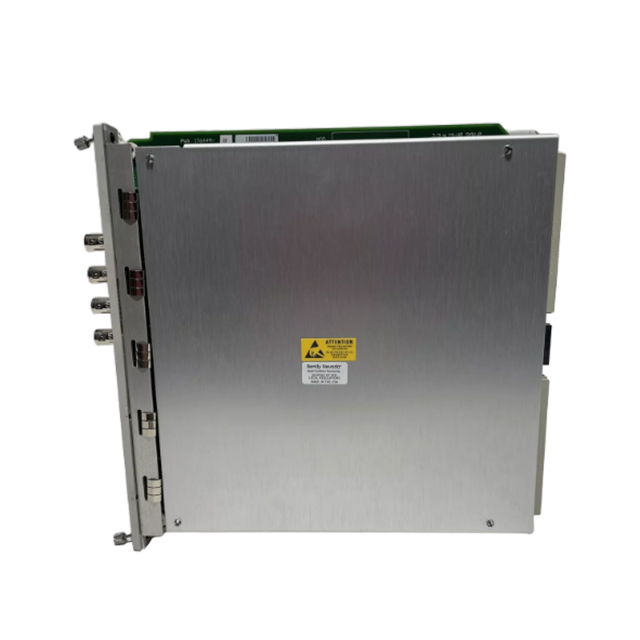

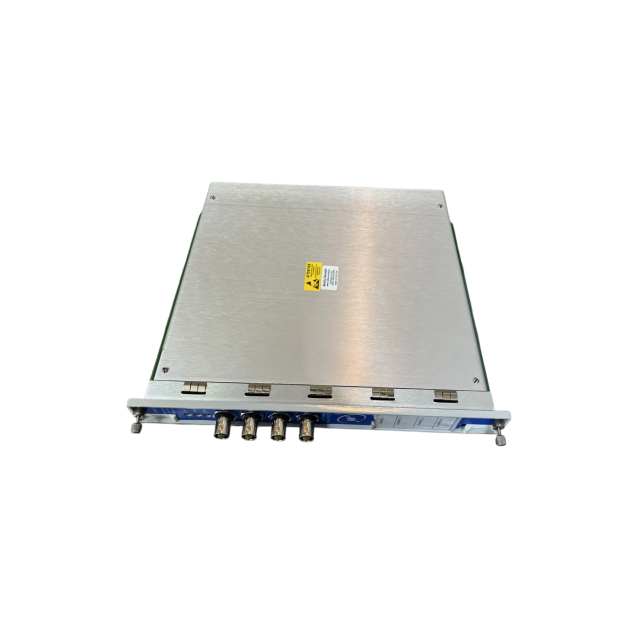

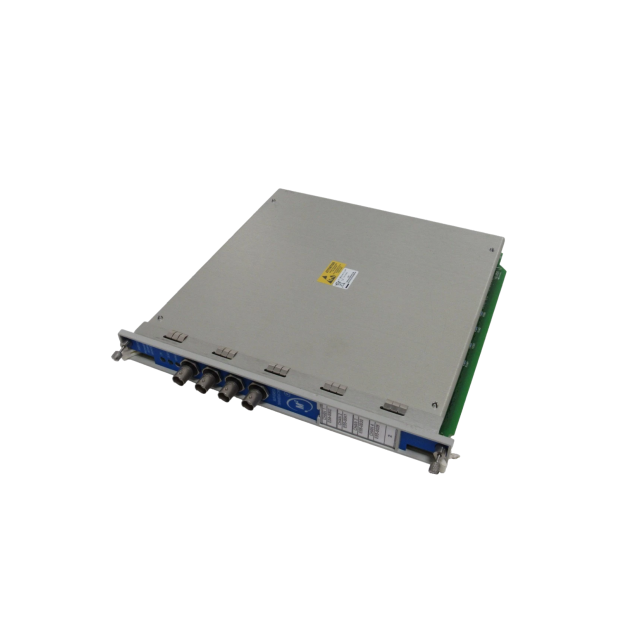

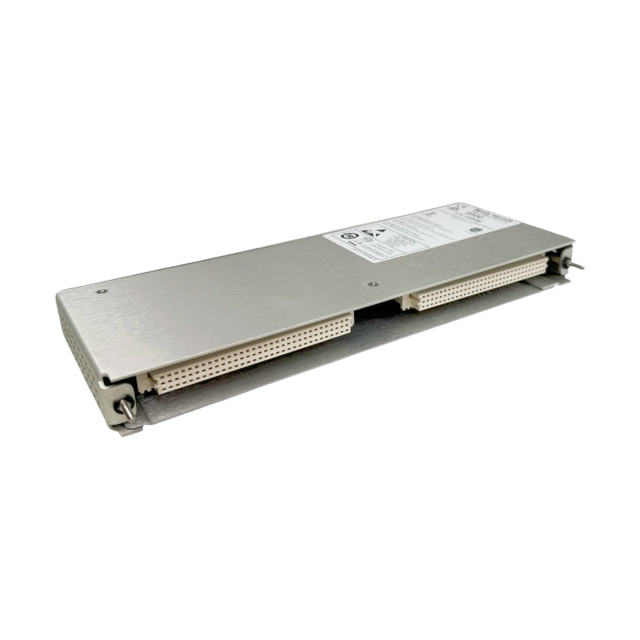

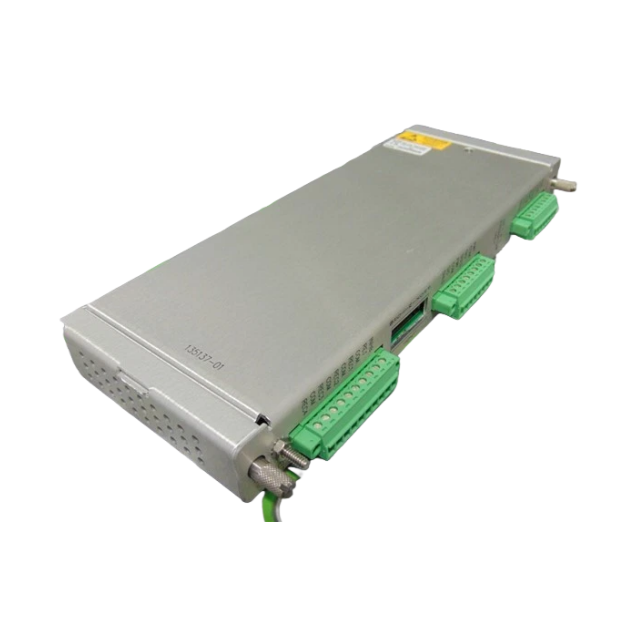

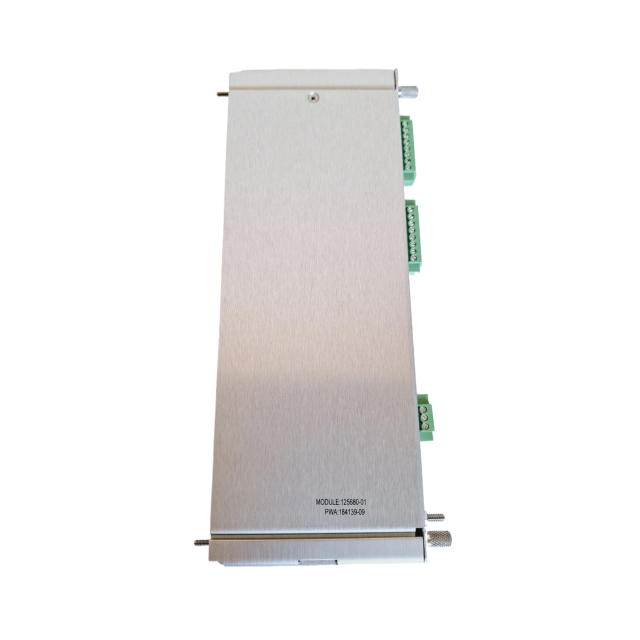

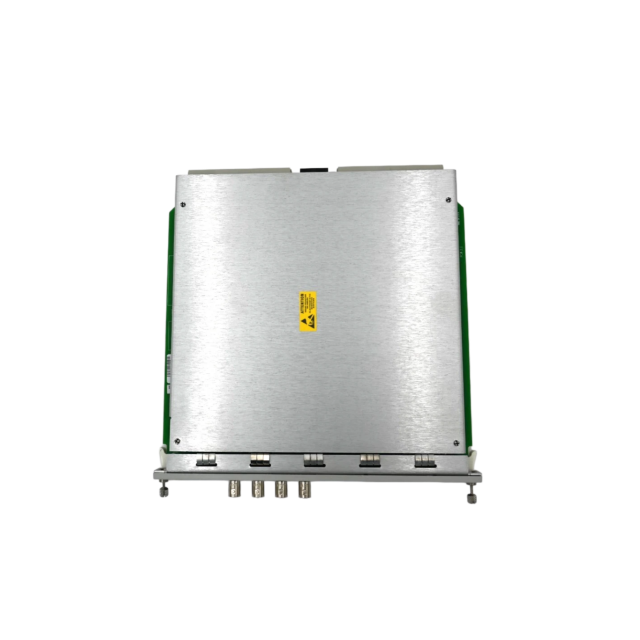

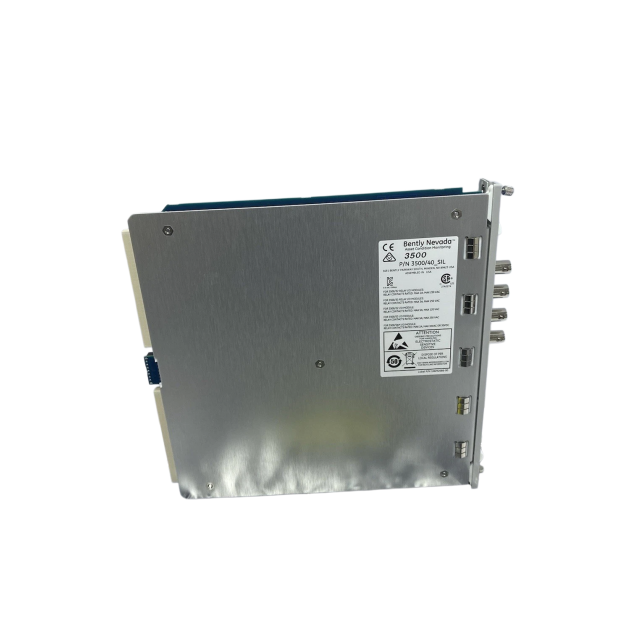

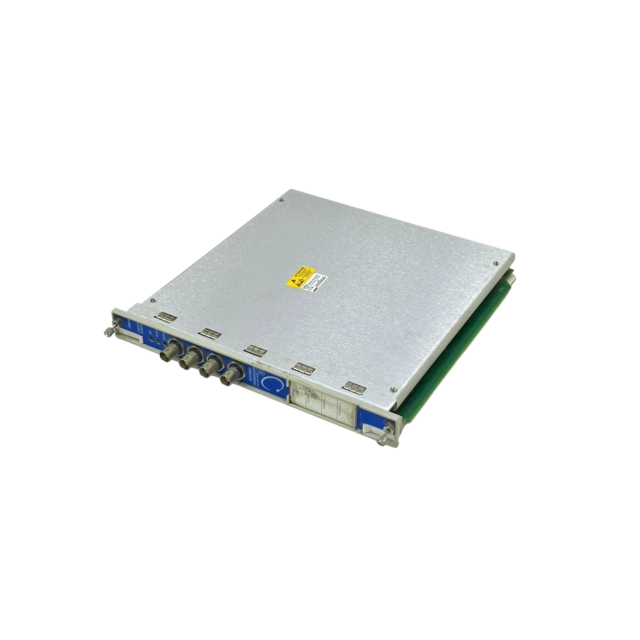

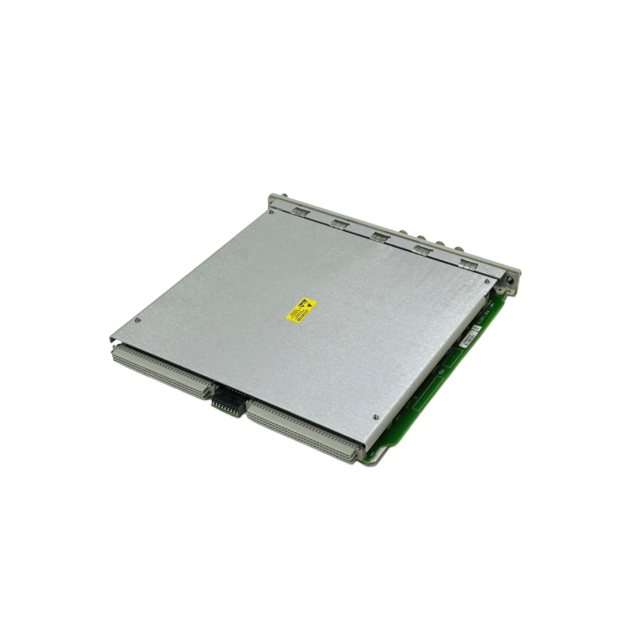

3500/42M Proximitor Monitor: A four-channel monitor that accepts signals from proximity transducers. It provides high-fidelity signal conditioning, delivering a linear output of $200\text{ mV/mil}$ ($7.87\text{ V/mm}$) for precise vibration and thrust measurements.

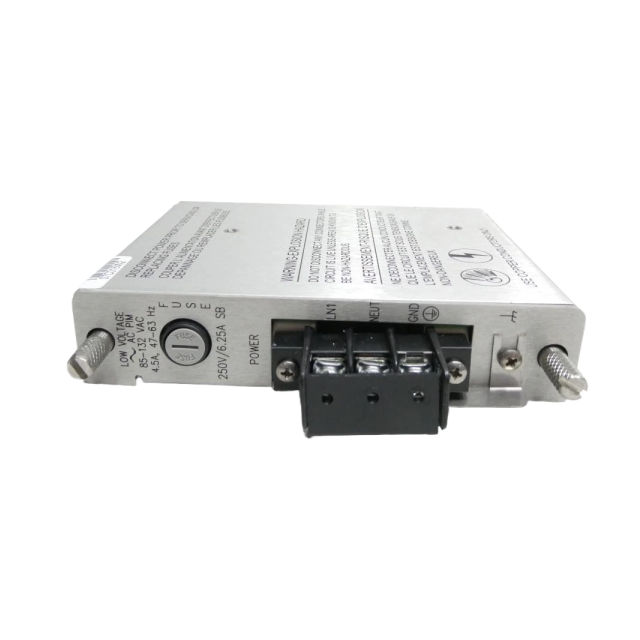

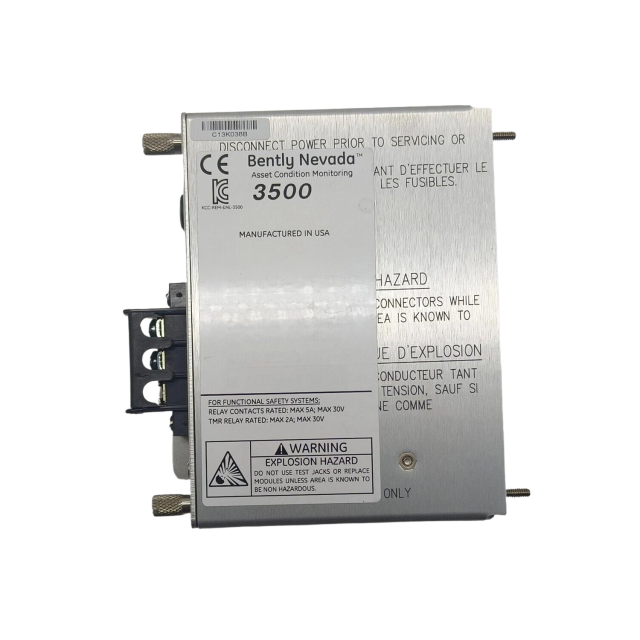

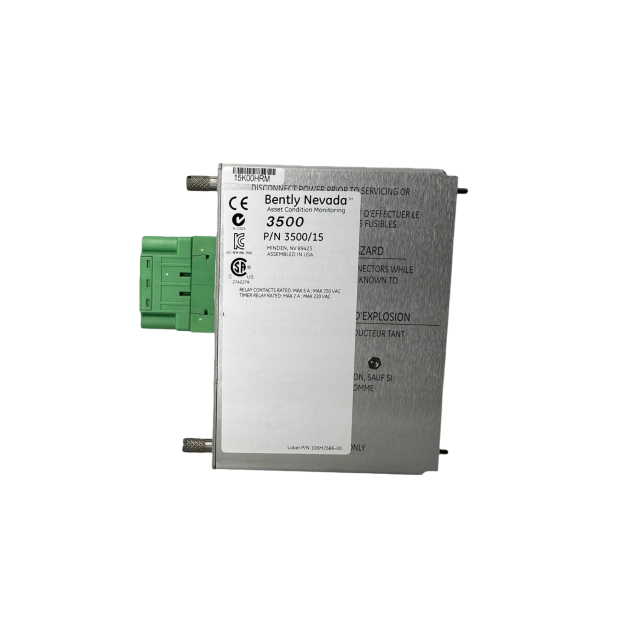

Redundant Power Supplies (3500/15): To ensure zero downtime, the 3500 supports dual, redundant power supplies. If one fails, the other assumes the full load without a millisecond of interruption, ensuring your machinery protection remains active 24/7.

Strategic Lifecycle and Supply Chain Support

In capital-intensive industries like power generation and oil and gas, the Bently Nevada 3500 represents a significant long-term investment. As your trusted global supplier, we specialize in providing both active components and hard-to-find modules for older 3500 revisions.

Every module we supply undergoes rigorous diagnostic testing to ensure it meets original factory specifications for electromagnetic compatibility and thermal resilience. By choosing us as your partner, you reduce your Mean Time to Repair (MTTR), protect your facility from unplanned outages, and ensure your Bentley Nevada vibration monitoring strategy is future-proofed against the challenges of 2026 and beyond.

Bently Nevada 3500 Technical Troubleshooting FAQs

1. Why is my 3500/22 TDI "OK" LED flashing instead of staying solid green?

A flashing "OK" LED typically indicates that the module is in a "Not Configuration" state or that a configuration download is in progress. If the LED flashes and the system is not being configured, it may indicate an internal memory fault or a mismatch between the hardware revision and the software configuration in the 3500 Rack Configuration software.

2. Can I hot-swap a 3500/42M monitor while the machine is running?

Yes, the Bently Nevada 3500 is designed for high availability and supports hot-swapping. However, you must ensure that the "Rack Alarm Inhibit" is active or that the specific relay logic for that module is bypassed to prevent a spurious machine trip during the physical removal or insertion of the module.

3. What causes a "Configuration Mismatch" error in the 3500 rack?

This error occurs when the physical modules in the rack do not match the software configuration stored in the 3500/22 TDI. This often happens if a module is replaced with a different part number or revision. The configuration must be updated and re-downloaded to the rack using the configuration software to clear the fault.

4. How do I verify the integrity of the -24VDC transducer power?

The 3500 monitors provide the -24VDC power required for proximitor sensors. If you suspect a power issue, measure the voltage at the "PWR" and "COM" terminals on the back of the rack for that specific channel. If the voltage is significantly lower than -24V, the monitor's internal power regulator may be failing, or there may be a short circuit in the field wiring.

5. Is the Bently Nevada 3500 compatible with older 3300 series proximity probes?

Yes, the Bently Nevada Vibration Monitoring System 3500 is generally backward compatible with 3300 and 7200 series proximity probes, provided the correct scale factor (e.g.,$200\text{ mV/mil}$) is selected in the software configuration. However, for the best resolution and linearity, upgrading to the 3300 XL series probes is recommended.
