High-Bandwidth Control for Large-Scale Industrial Infrastructure
When industrial processes demand the highest level of data throughput, memory capacity, and processing speed, the PACSystems RX7i IC698 stands as the premier solution in the GE automation lineup. Designed as the high-end sibling to the RX3i, the GE RX7i is built on a VME64-standard backplane, providing a massive 64-bit data bus that is essential for complex, mid-to-high-end applications. As a leading manufacturer and global supplier, we provide the robust IC698 hardware necessary to drive power generation, chemical processing, and large-scale water treatment facilities that cannot afford a single millisecond of latency.
The defining characteristic of the RX7i is its sheer "horsepower." While smaller PLCs struggle with large-scale tag databases or high-speed communication overhead, the RX7i utilizes a high-speed Pentium-class microprocessor and a vast memory map. This allows the system to manage thousands of I/O points while simultaneously handling multiple communication protocols—including Ethernet, GENIUS, and Profibus—without degrading the logic scan time.
The Foundation of Stability: The IC698CHS009 Chassis

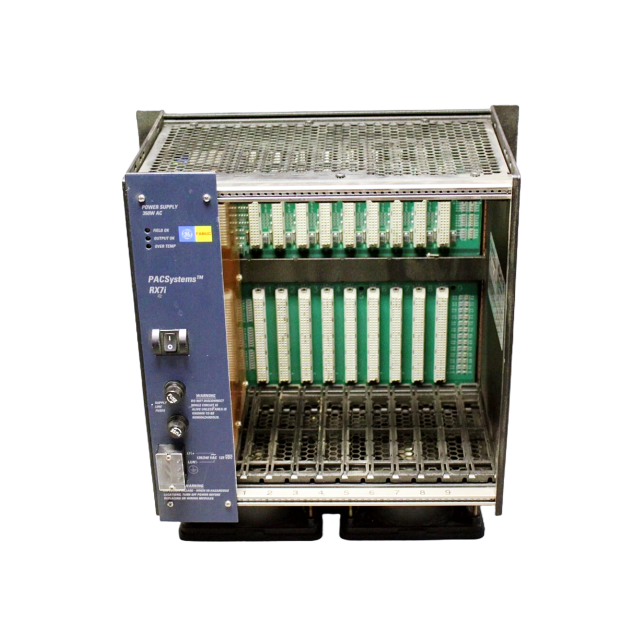

Every high-performance control system requires a stable physical and electrical foundation. The IC698CHS009 is the standard 9-slot universal backplane for the RX7i series. Unlike standard PLC racks, this VME-based chassis provides the high-bandwidth inter-module communication required for advanced motion control and high-resolution analog processing.
Scalability: With nine slots available, engineers can mix and match processing power, specialized network interfaces, and high-density I/O cards to tailor the system to the specific needs of the facility.
Strategic Lifecycle Support for the RX7i Ecosystem
In the capital-intensive world of heavy industry, a "rip and replace" upgrade strategy is rarely feasible. The PACSystems RX7i was engineered with a migration-friendly mindset, allowing users of legacy GE Fanuc Series 90-70 systems to upgrade their processing power while retaining much of their existing I/O investment.
As your trusted global supplier, we specialize in providing both the latest IC698 components and hard-to-find legacy modules. By maintaining a robust inventory of the GE RX7i series and the IC698CHS009 chassis, we help you avoid the pitfalls of forced obsolescence. We ensure your maintenance teams have immediate access to the high-performance hardware required to reduce Mean Time to Repair (MTTR) and protect your critical infrastructure from unplanned downtime.
GE PACSystems RX7i Technical Troubleshooting FAQs
1. What is the main advantage of the IC698 RX7i over the RX3i system?
The RX7i is built on a VME64 backplane, offering significantly higher bandwidth and more slots (up to 17 in some versions) compared to the RX3i. It is specifically designed for very large applications that require massive memory for data logging, complex math, or managing multiple high-speed communication networks simultaneously.
2. Why is my IC698 CPU showing a "Backplane Communication" error in the IC698CHS009 chassis?
This error often points to a seating issue or a bent pin on the high-density VME connector. Because the RX7i uses a 64-bit bus, even a single compromised pin can disrupt the data flow. If the module is properly seated and the error persists, the backplane of the IC698CHS009 may have sustained electrical damage from a power surge.
3. Can I use Series 90-70 I/O modules in a PACSystems RX7i rack?
Yes. One of the primary design goals of the GE RX7i was to provide a migration path for 90-70 users. The RX7i can control existing 90-70 I/O racks via a bus transmitter/receiver setup, allowing you to upgrade to the high-speed IC698 CPU while keeping your field wiring and I/O modules intact.
4. How do I troubleshoot a "Battery Low" or "Memory Lost" alarm on the RX7i?
The RX7i CPU uses a lithium battery to retain the program and variables during power-off states. If the battery fails, the program may be lost upon a power cycle. If the "BAT" LED is red, replace the battery immediately while the system is powered on to prevent memory loss. For permanent protection, ensure your hardware configuration is saved to the non-volatile flash memory.
5. What causes the "System Temp" alarm on a fully loaded IC698CHS009 chassis?
