In the world of high-speed rotating machinery, silence is rarely golden—it is often a sign of a costly, unplanned outage. The Bently Nevada 3300 Vibration Monitoring System has served for decades as the definitive standard for machinery protection in power plants, refineries, and petrochemical facilities worldwide.

Even in an era of digital twins and AI-driven analytics, the 3300 system remains a cornerstone of industrial reliability, providing the deterministic, real-time protection required to prevent catastrophic failure in turbines, compressors, and large pumps. As a specialized manufacturer and global supplier, we provide the critical components and legacy modules necessary to maintain these robust systems, ensuring your facility’s most valuable assets remain safe and productive.

A Modular Architecture Built for Reliability

The Bently Nevada 3300 is a rack-based system that utilizes a modular design, allowing for tailored monitoring solutions based on the specific mechanical requirements of the machine train. The system is designed to continuously monitor vibration, position, speed, and temperature, providing both local displays for operators and relay outputs for automated machinery trips.

Continuous Monitoring & Protection: Unlike portable "walk-around" data collectors, the Bently Nevada Vibration Monitoring System provides 24/7 surveillance. If a shaft wipe or bearing failure begins to manifest, the 3300 system detects the change in milliseconds, triggering alarms or automatic shutdowns before permanent damage occurs.

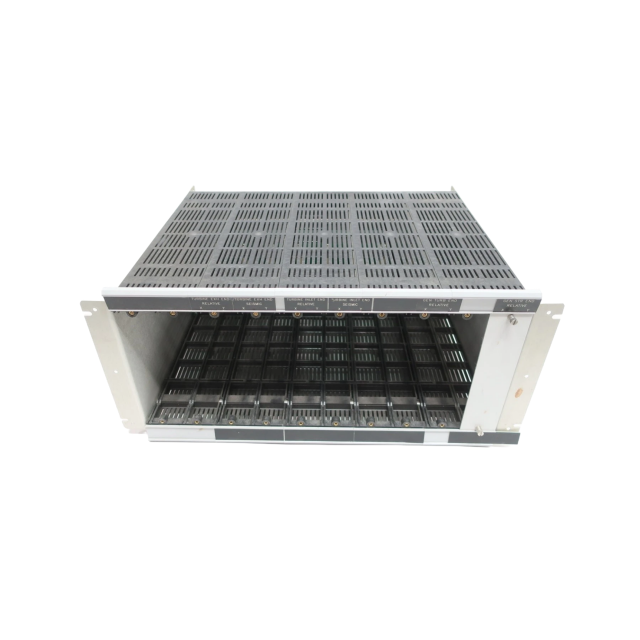

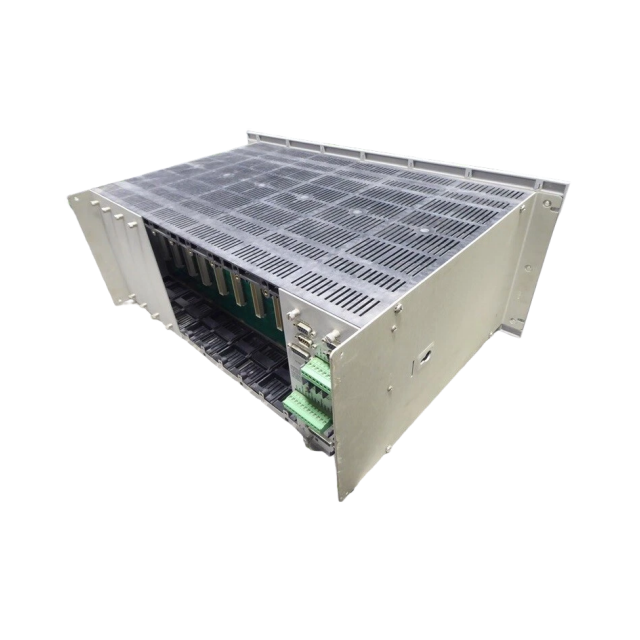

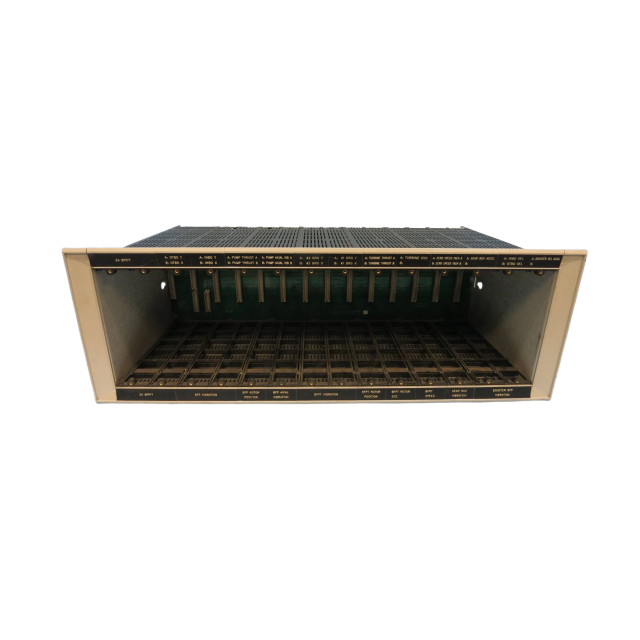

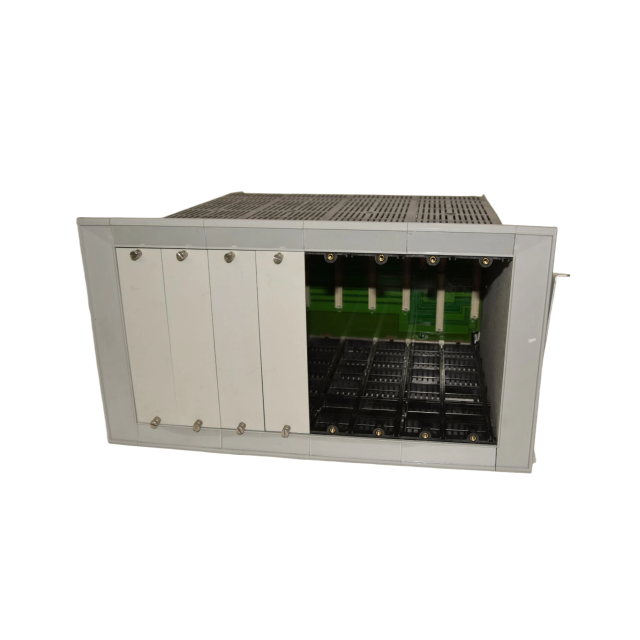

The 3300 Rack (e.g., 3300/10): The physical foundation of the system, providing the power distribution and communication backplane for the individual monitors. Racks are available in various sizes to accommodate anything from a single motor to a complex multi-case steam turbine.

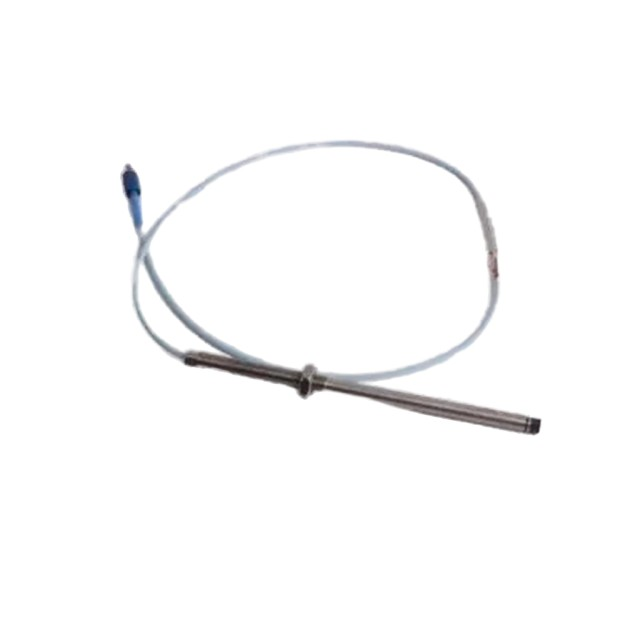

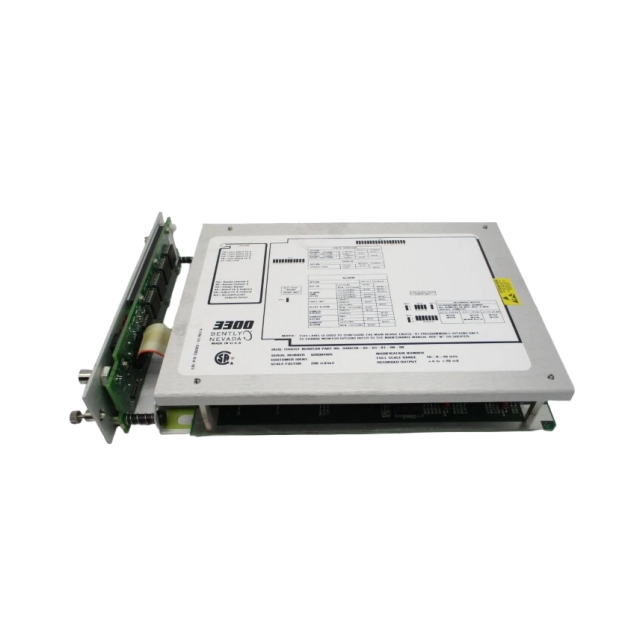

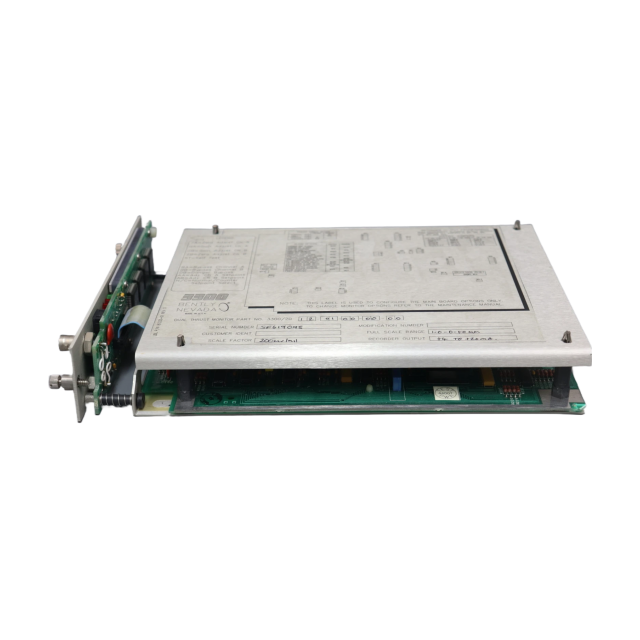

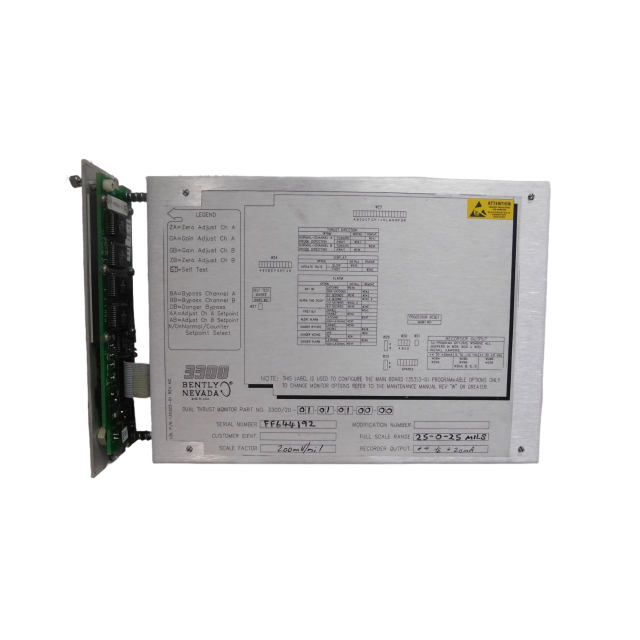

Specialized Monitoring Modules: From the 3300/15 Dual Vibration Monitor to the 3300/20 Thrust Position Monitor, each card is engineered for high-fidelity signal conditioning. These modules interface directly with proximity probes and transducers to provide a linear, accurate representation of mechanical health.

Strategic Support for Legacy Infrastructure

For many plant managers, the Bently Nevada 3300 is the "trusted veteran" of the control room. While the newer 3500 series offers advanced networking, the 3300 remains favored for its simplicity, durability, and lack of complex software overhead. However, as original equipment manufacturers shift focus toward newer platforms, securing high-quality, fully tested replacement modules becomes a significant operational challenge.

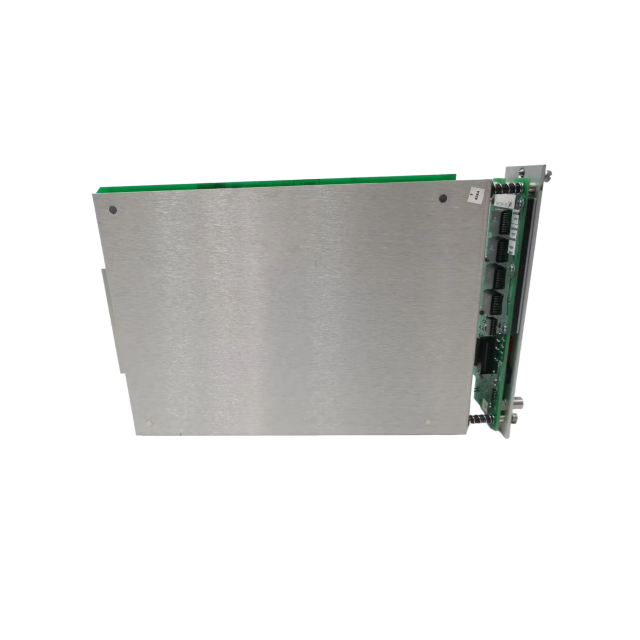

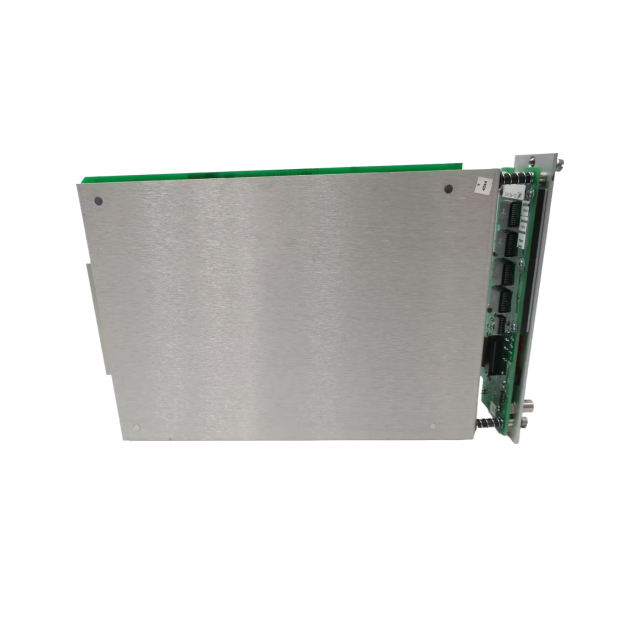

We act as your strategic supply partner, maintaining a comprehensive inventory of the Bently Nevada vibration ecosystem. Every module—whether it is a 3300/12 Power Supply or a 3300/55 Dual Velocity Monitor—undergoes rigorous quality assurance to verify it meets original electromagnetic and mechanical specifications. By sourcing through our global network, you protect your facility from forced obsolescence and ensure that your proven machinery protection system continues to safeguard your production for years to come.

Bently Nevada 3300 Technical Troubleshooting FAQs

1. Why is the "OK" LED extinguished on my 3300 vibration monitor?

The "OK" LED indicates that the monitor's internal diagnostics have verified the integrity of the transducer circuit. If it is dark, the monitor has detected a fault such as a broken field wire, a failed proximity probe, or a disconnected extension cable. Check the DC voltage at the monitor’s terminals; if the voltage is outside the standard -2V to -18V range (for a proximitor system), the problem lies in the field wiring or sensor.

2. Can I use 3300 XL Proximitor sensors with a standard 3300 monitoring rack?

Yes, the 3300 XL sensors are generally backward compatible with the Bently Nevada 3300 monitors, provided the scale factor (typically 200 mV/mil) is matched. However, you must ensure that the extension cable and probe are also from the XL series to maintain the system's accuracy and linearity.

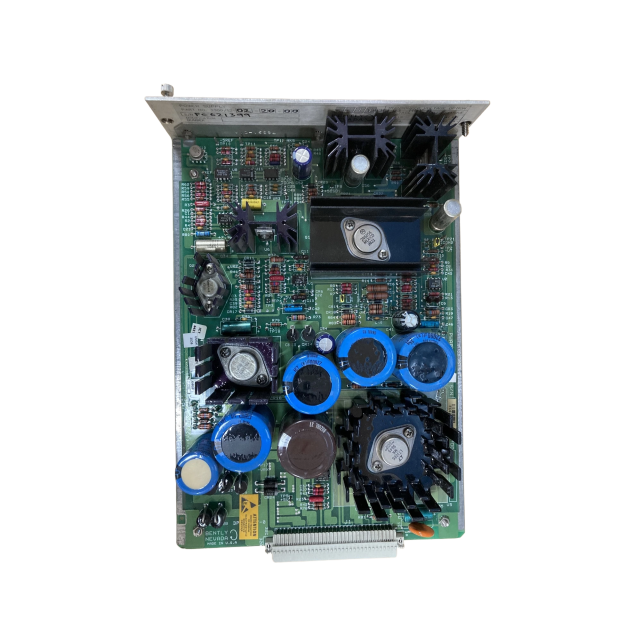

3. What causes a "Not OK" status on my 3300/12 Power Supply module?

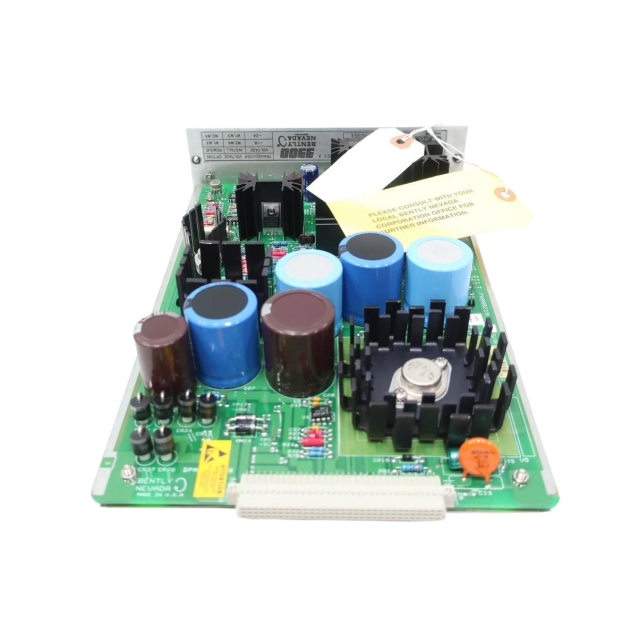

The 3300/12 power supply monitors the health of the rack’s backplane voltages. A "Not OK" status typically indicates that one of the internal DC rails (usually +5V or ±15V) has dropped below its tolerance level. This is often caused by aging electrolytic capacitors or a short circuit in one of the other modules in the rack. Try removing modules one by one to see if the power supply recovers.

4. How do I troubleshoot a "First Out" alarm on the 3300 system?

The "First Out" feature is designed to identify which monitor in the rack was the first to trigger an alarm during a multi-event machine trip. If the First Out LED is blinking, check the relay status on that specific module. This is critical for post-event forensics to determine if the trip was caused by a genuine mechanical issue or a localized sensor fault.

5. Is the Bently Nevada 3300 system compatible with modern SCADA platforms?

While the 3300 is an analog-focused system, it can be integrated into modern SCADA or DCS platforms using the 4-20mA proportional outputs available on the back of the rack. This allows you to log vibration trends and view real-time data on your HMI while still relying on the 3300’s dedicated hardware relays for critical machinery protection.
