In the demanding world of power generation, oil and gas, and heavy industry, the "health" of a rotating asset isn't just a metric—it’s a prerequisite for operational survival. The Vibro-Meter VM600 platform is an industry-leading machinery protection and condition monitoring system designed to safeguard high-value assets such as steam and gas turbines, centrifugal compressors, and large pumps. At the heart of this system lies the MPC4 (Machinery Protection Card), a high-performance module that provides real-time processing of vibration, speed, and dynamic pressure signals. As a specialized manufacturer and global supplier, we provide the VM600 MPC4 and supporting rack components to ensure your facility meets the rigorous safety requirements of API 670 and SIL 2 standards.

The MPC4: Processing Intelligence for the VM 600

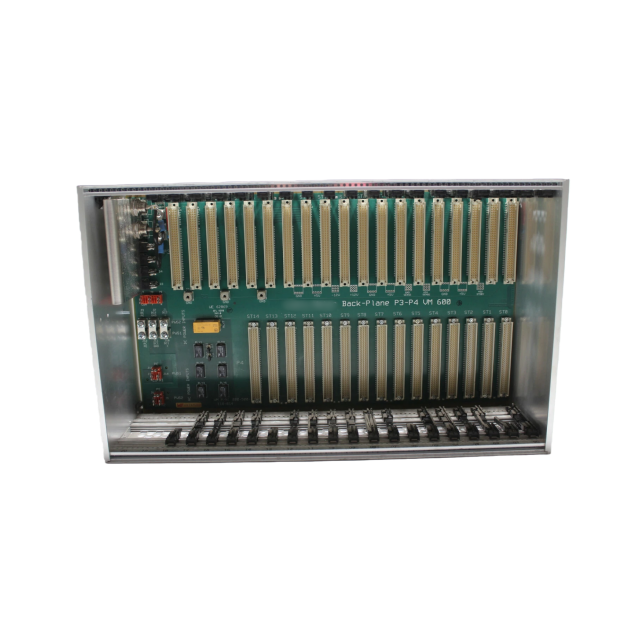

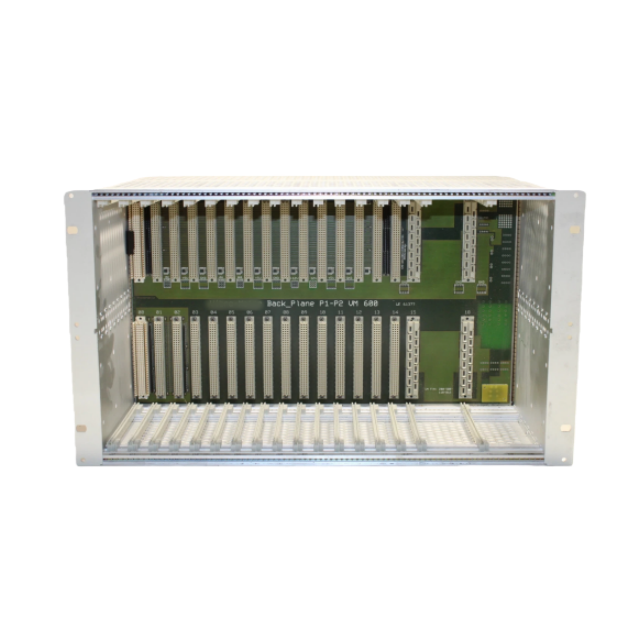

The vm600 mpc4 is a versatile, 4-channel processing card that fits into the ABE040 or ABE042 rack assemblies. It serves as the primary "logic solver" for machinery protection, acting on raw data with sub-millisecond latency to trigger safety shutdowns before mechanical failure can occur.

Four-Channel Versatility: Each MPC4 can monitor four dynamic signal channels (vibration or pressure) and two auxiliary speed (tachometer) channels. This density allows for comprehensive $X-Y$ radial vibration monitoring and axial thrust measurements within a single module.

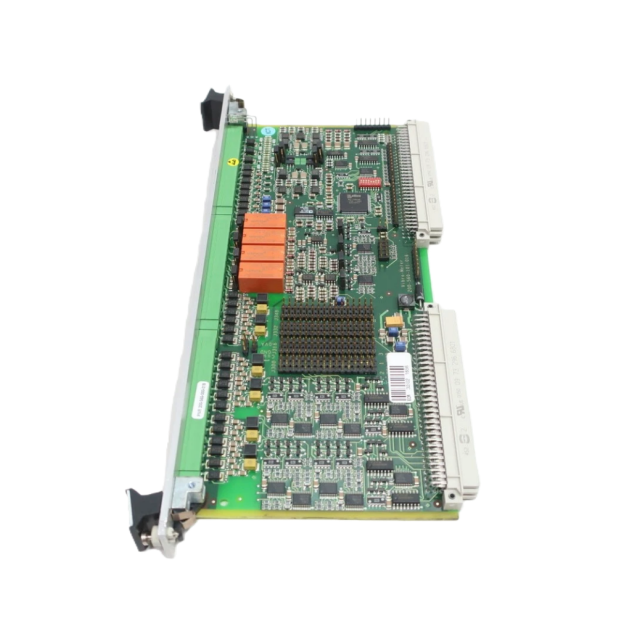

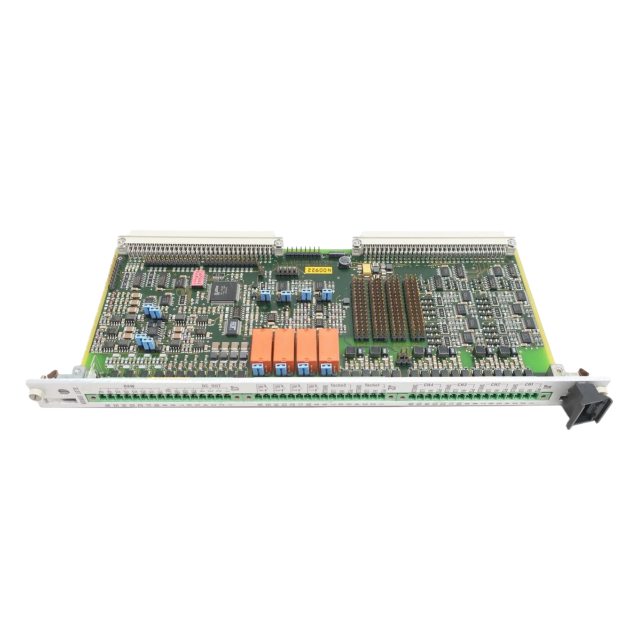

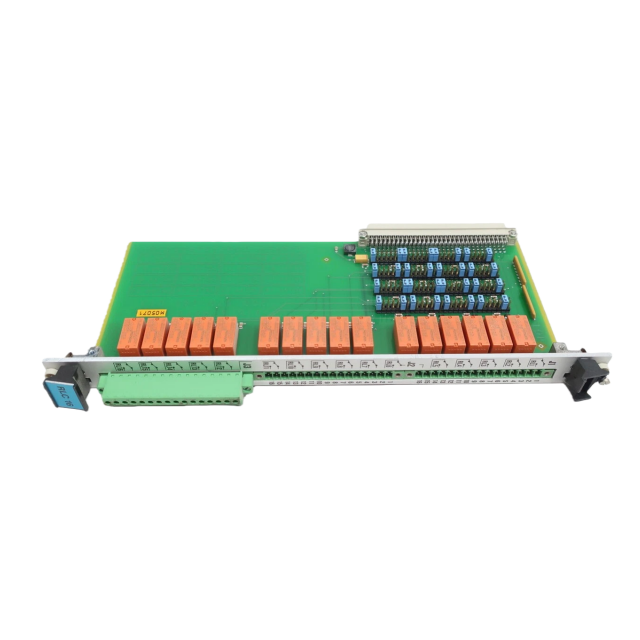

The IOC4T Interface: Every MPC4 works in tandem with an IOC4T (Input/Output Card), which handles the physical terminal connections and houses the critical safety relays. This separation of processing and I/O ensures that electrical faults in the field do not compromise the processing integrity of the MPC4.

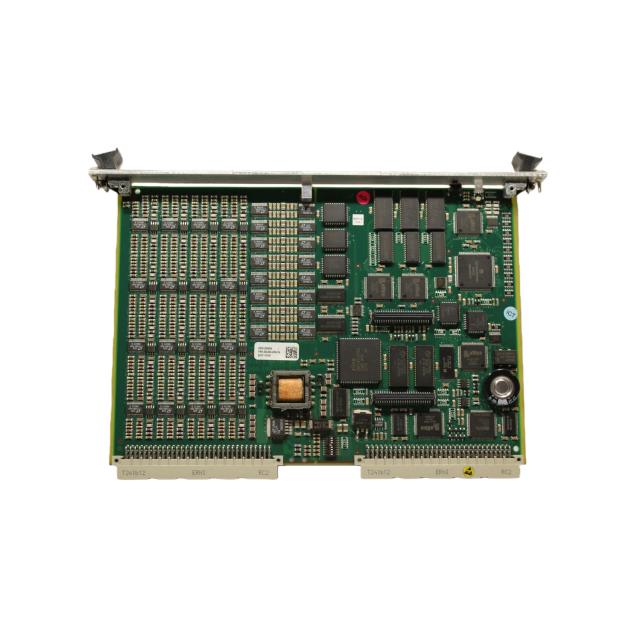

Dual-Path Functionality: The VM 600 architecture is unique in its ability to support both "Protection" (safety shutdowns via the MPC4) and "Condition Monitoring" (deep-dive data analysis via the CMC16 card) within the same rack. This provides reliability engineers with a holistic view of the machine’s life cycle.

Advanced Diagnostics: Utilizing the VibroSight® software suite, the MPC4 provides high-resolution data for orbit plots, Bode plots, and shaft centerline analysis. This allows maintenance teams to transition from reactive repairs to a sophisticated, condition-based maintenance strategy.

Strategic Reliability for Global Operations

For procurement officers and maintenance managers in the European and American markets, maintaining a Vibro-Meter system in 2026 requires a partner who understands the nuances of safety-critical electronics. An unplanned outage due to a failed protection card can cost a facility millions in lost production. We bridge the gap by providing fully tested, factory-calibrated VM600 MPC4

Vibro-Meter VM600 Technical FAQs

1. What is the difference between an MPC4 and a CMC16 card?

The VM600 MPC4 is a protection card; its primary job is to trigger relays for machine trips based on safety limits (API 670). The CMC16 is a condition monitoring card; it is used for complex data acquisition and spectral analysis (FFTs) to predict future failures, but it generally does not have the authority to trip the machine.

2. Why is my MPC4 showing a "Slot Fault" or "VMEbus Error"?

This is often related to the rack's backplane communication. Ensure the MPC4 is firmly seated and that the rack address switches on the card are correctly configured. If the error persists, it may indicate a conflict with the CPUM (Central Processing Unit Module) or a physical issue with the VMEbus pins.

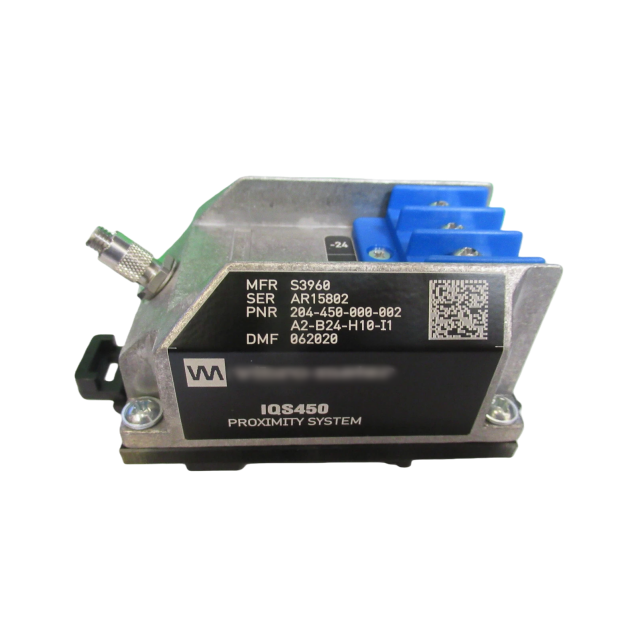

3. How do I configure the "OK Limits" for a proximity probe on the MPC4?

The "OK Limits" define the window of DC voltage (typically 2 V DC to 18 V DC) where the sensor is considered healthy. If the gap voltage from your Vibro-Meter probe drifts outside this window due to a loose mounting or a broken cable, the MPC4 will flag a channel fault to prevent a false trip.

4. Can the MPC4 be used in a SIL 2 safety loop?

Yes. When configured in a redundant "1-out-of-2" or "2-out-of-3" voting architecture using multiple VM600 MPC4 cards and the appropriate IOC4T relay cards, the system is certified for use in Safety Instrumented Systems (SIS) up to SIL 2 levels.

5. How do I resolve "Crosstalk" issues between vibration channels?

If you see phantom signals on adjacent channels, check the shielding and grounding of your field cables at the IOC4T terminal. The vm 600 system requires a clean, single-point ground. Ensure that the sensor shields are not grounded at the machine end, as this creates ground loops that interfere with the high-sensitivity 100 mV/g or 8 V/mm signals.
