In the competitive landscape of European and American manufacturing, minimizing cabinet footprint while maximizing processing power and modularity is the ultimate engineering objective. The B&R X20 System represents a masterclass in slice-based, decentralized control architecture.

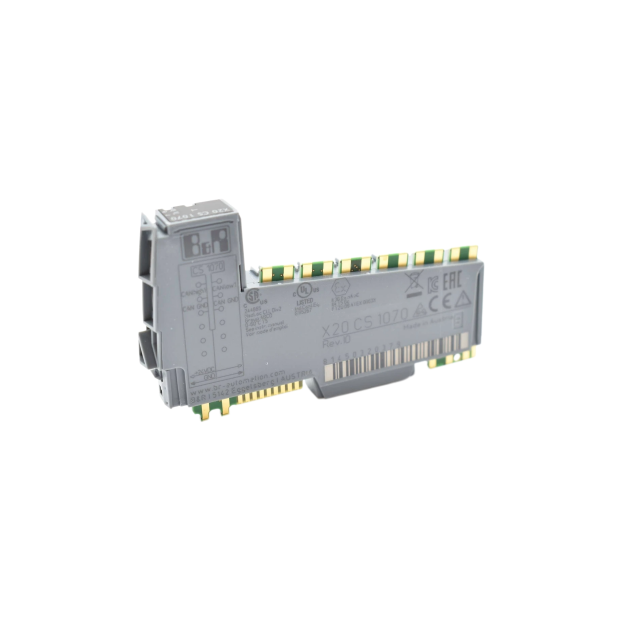

Unlike rigid, monolithic PLC racks, the X20 ecosystem is built on a unique three-part design that separates the terminal block, the bus module, and the electronic core. As a specialized global supplier of industrial automation components, we provide the complete portfolio of B&R Module hardware—from advanced motion controllers to robust I/O slices—ensuring your facility can scale its control infrastructure with absolute precision and minimal downtime.

The Three-Piece Architecture: Foundation and Power

The brilliance of the X20 system lies in its mechanical foundation, which allows for pre-wiring and rapid, tool-free maintenance.

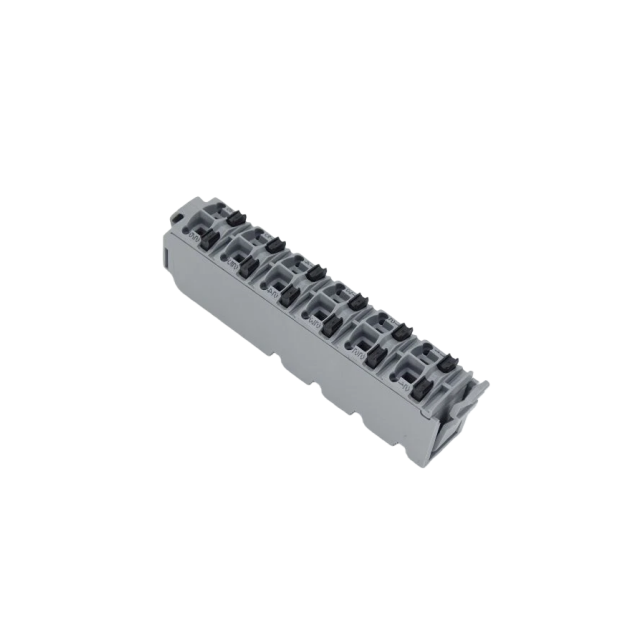

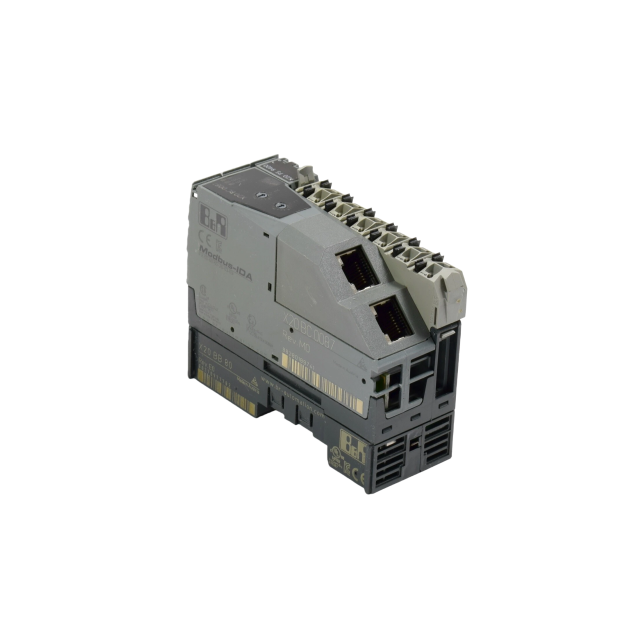

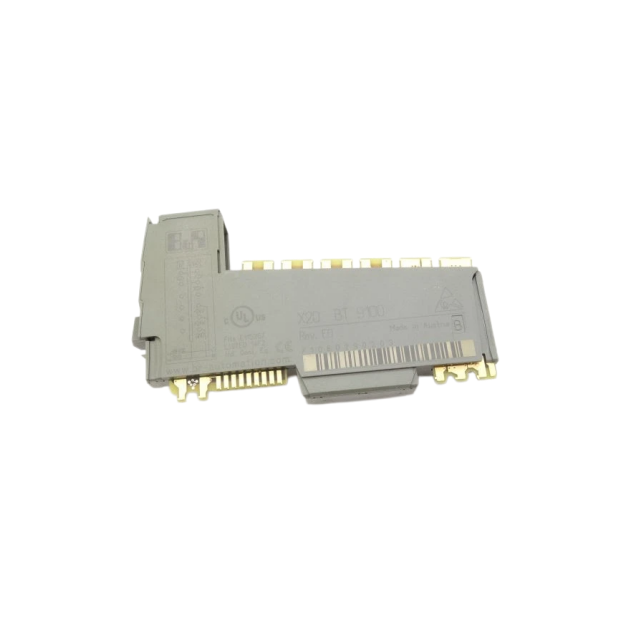

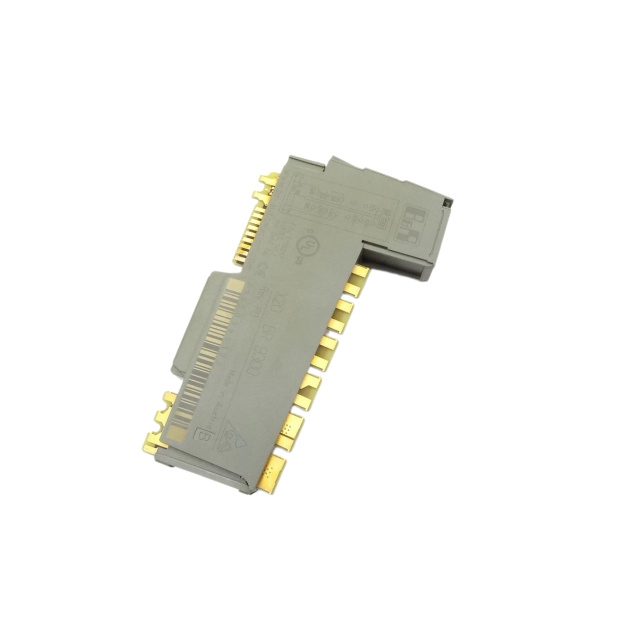

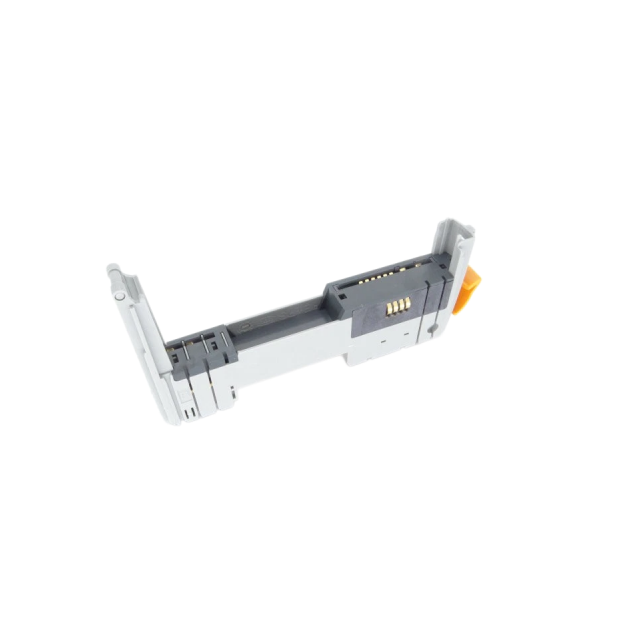

The Mechanical Base: Every standard I/O slice requires an X20TB12 terminal block for external wiring and an X20BB80 bus module to establish the backplane connection. This design supports "hot-swapping," allowing technicians to replace the electronic module without disturbing the field wiring or the communication bus.

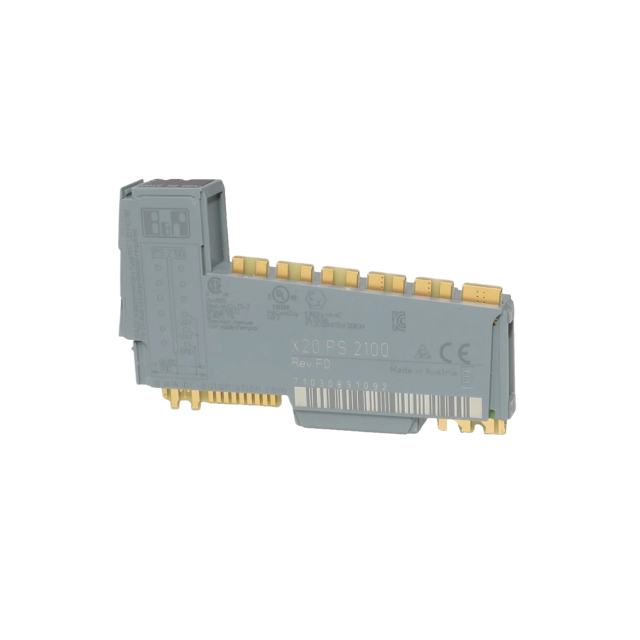

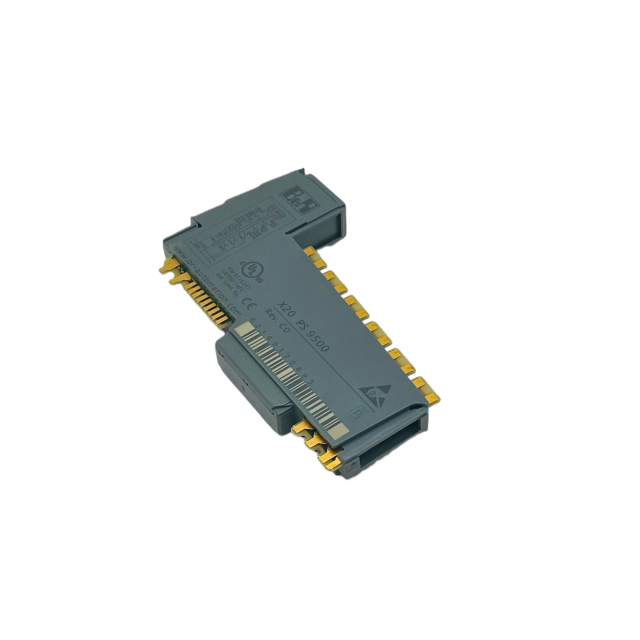

System Power: The X20PS2100 is a critical power supply module that provides power to both the internal X2X Link backplane and the external I/O sensors. Strategically placing these power supplies across the rack ensures stable voltage distribution as your I/O count expands.

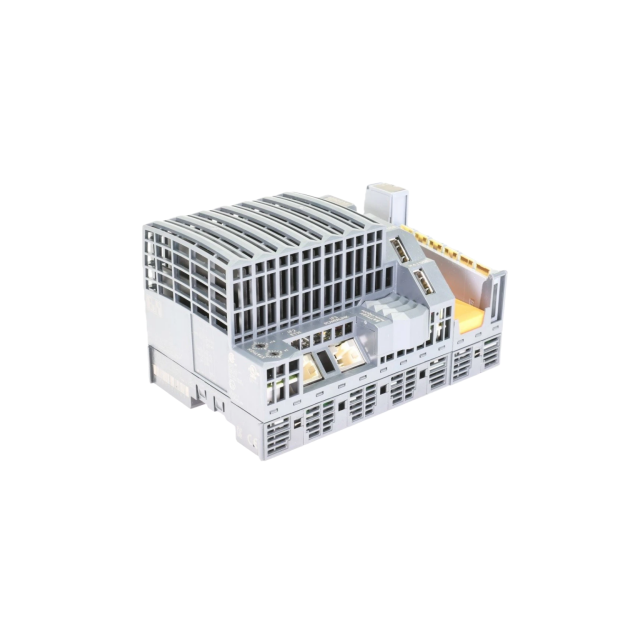

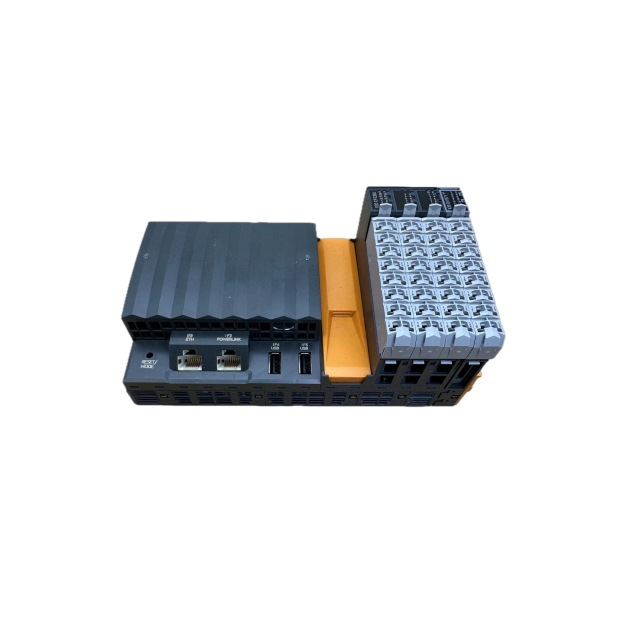

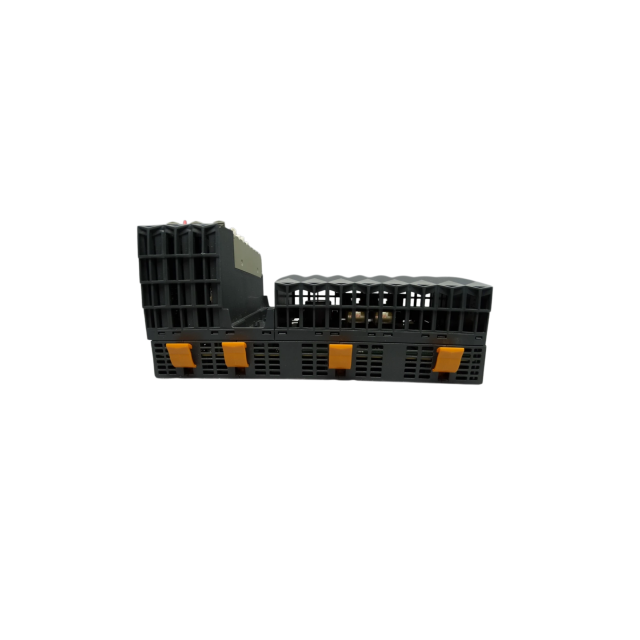

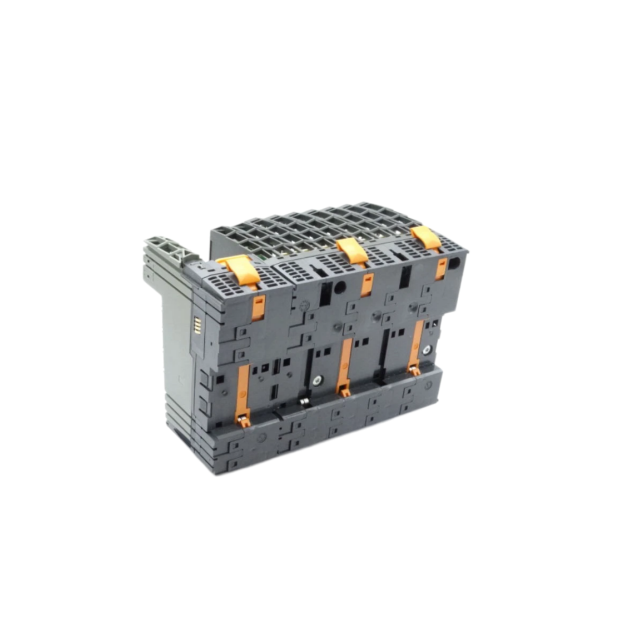

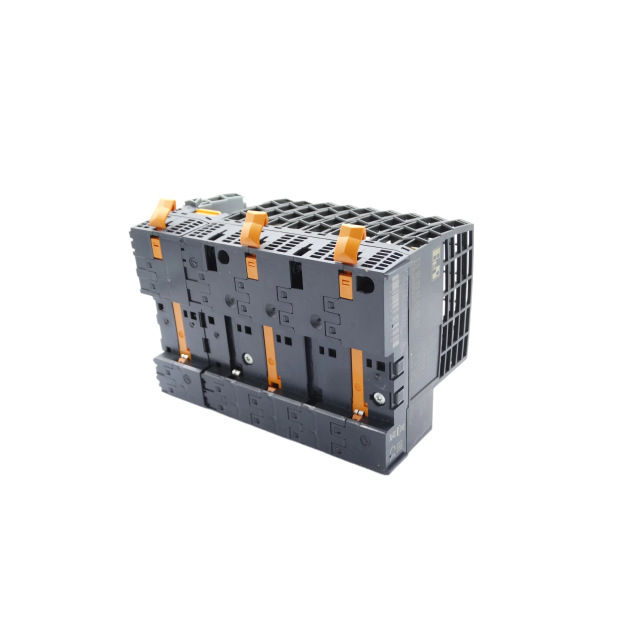

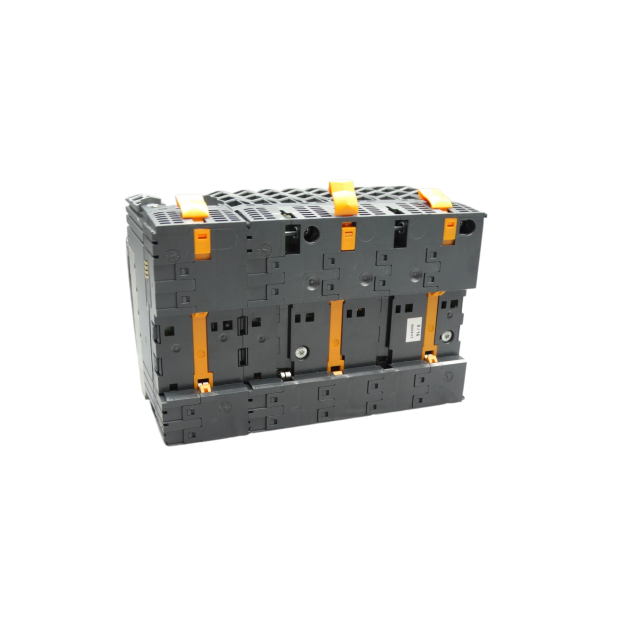

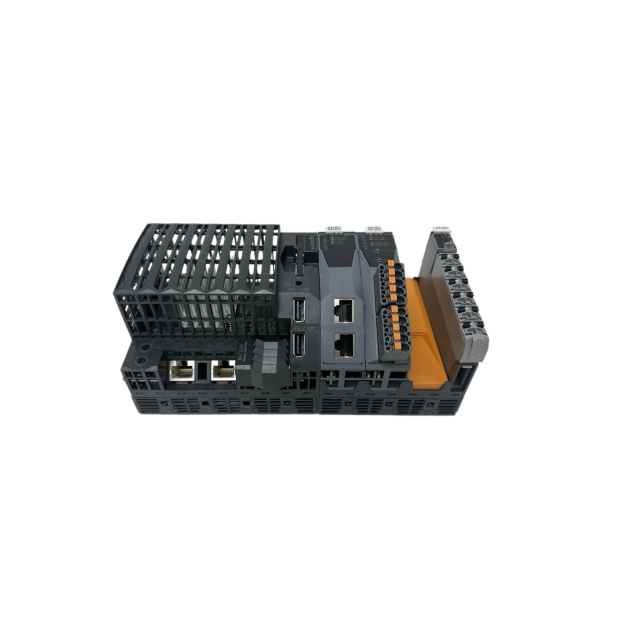

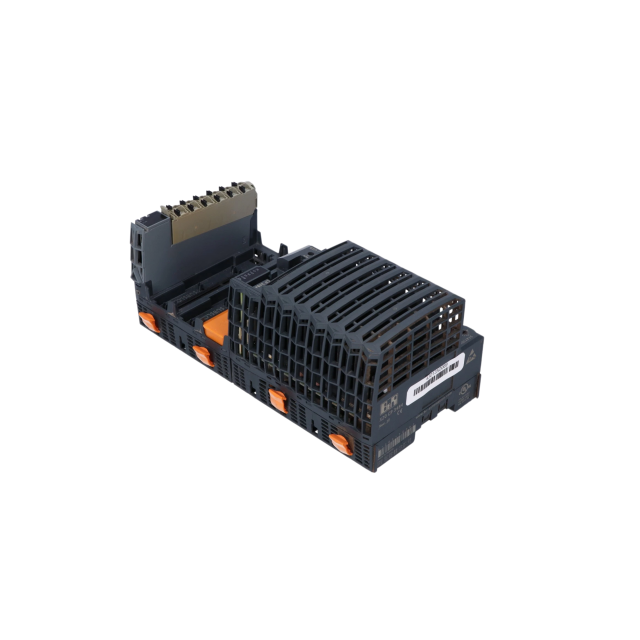

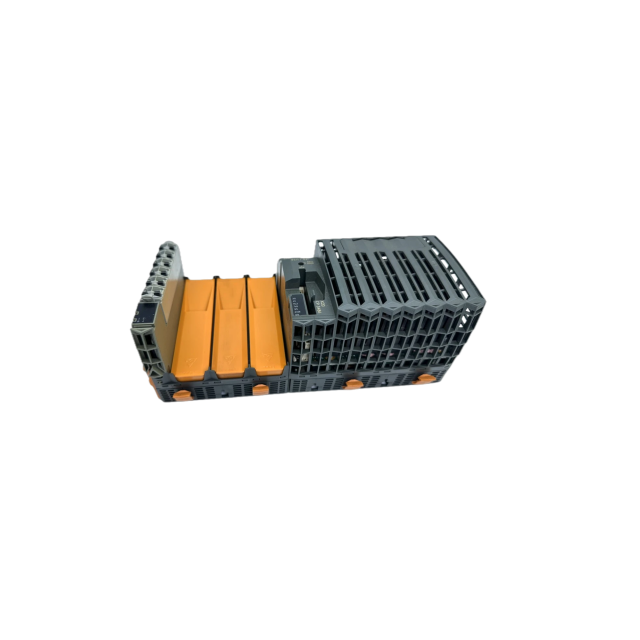

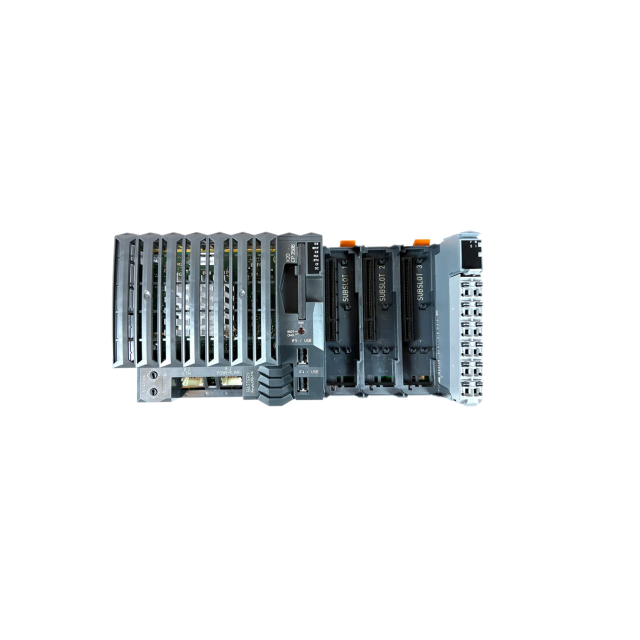

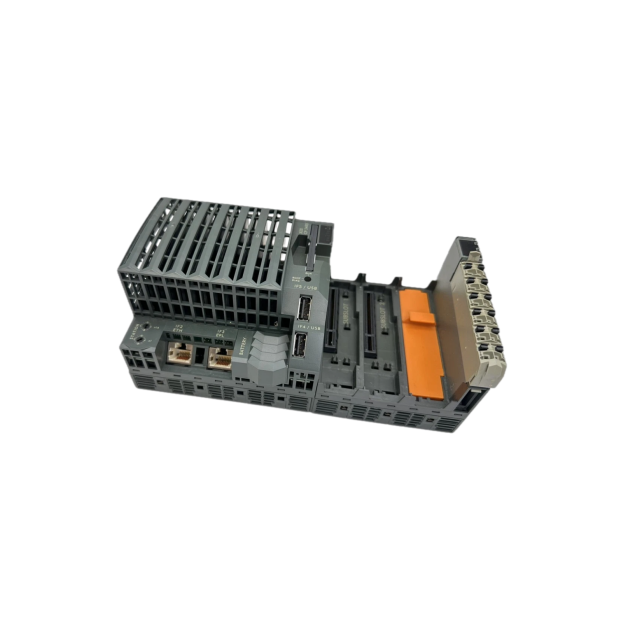

The Control Core: At the heart of complex stations is the X20CP1484 CPU. This compact controller delivers high-speed deterministic processing, integrated Ethernet, and seamless connectivity to the broader factory network, making it ideal for data-intensive manufacturing environments.

Comprehensive I/O and Integrated Motion

The X20 portfolio provides a highly granular approach to machine control, allowing you to tailor your I/O exactly to your process requirements.

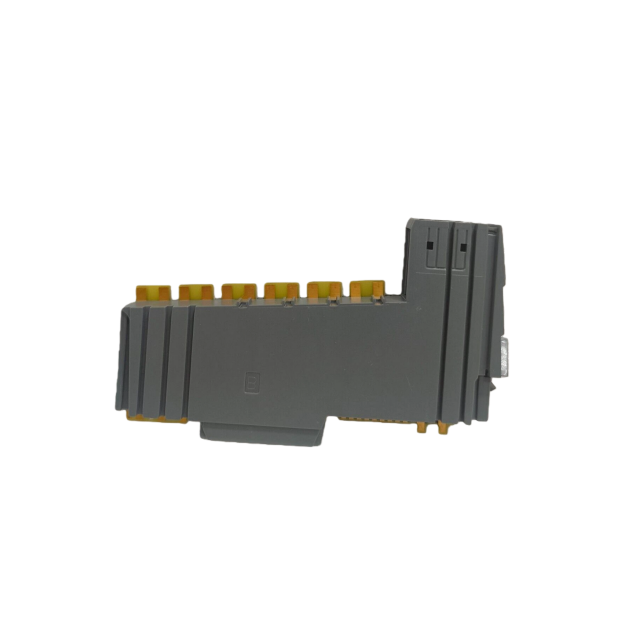

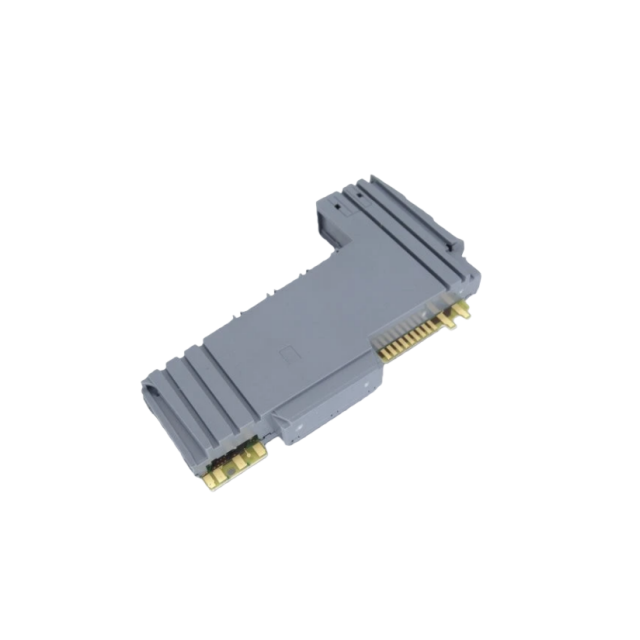

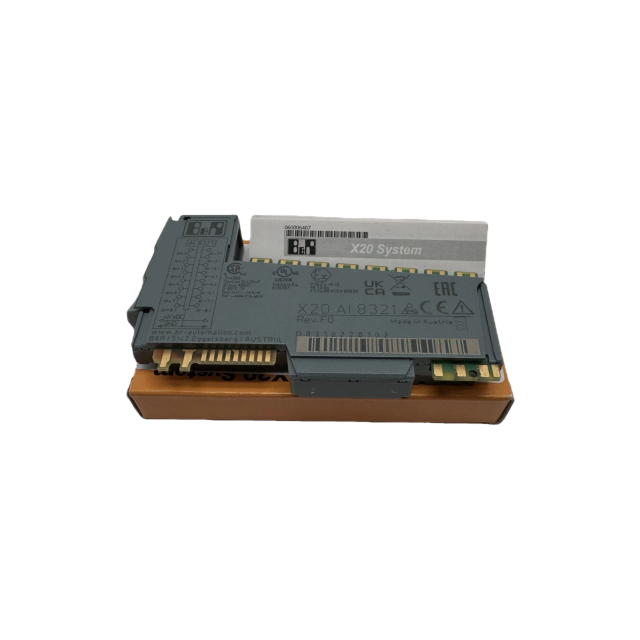

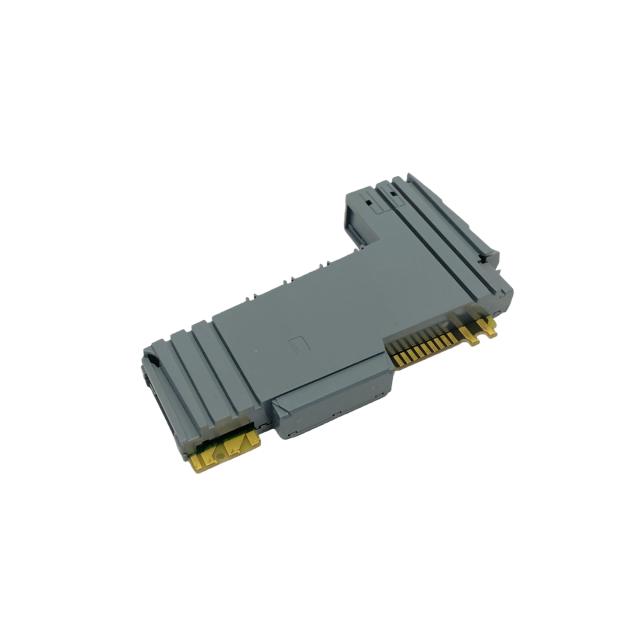

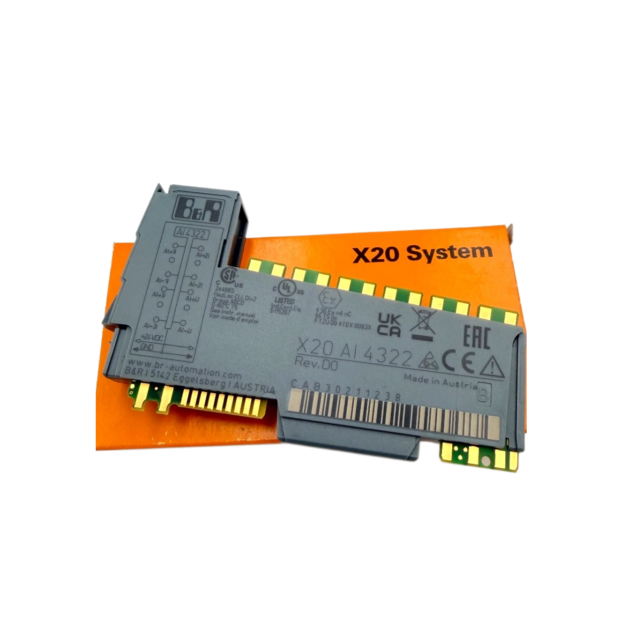

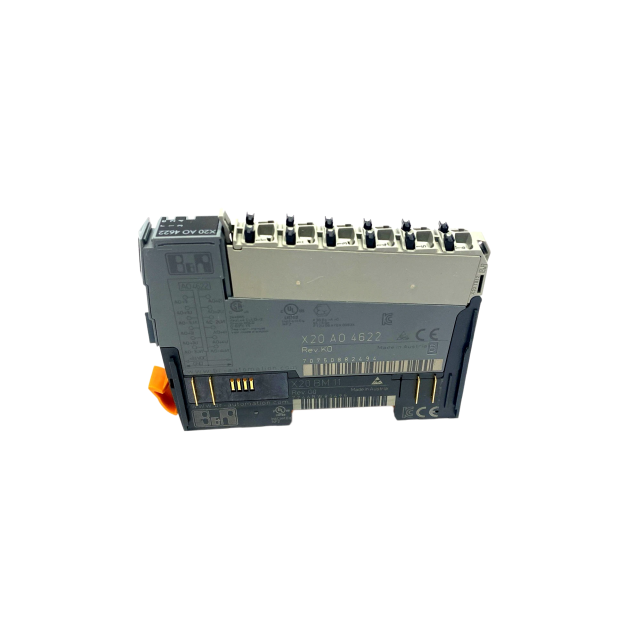

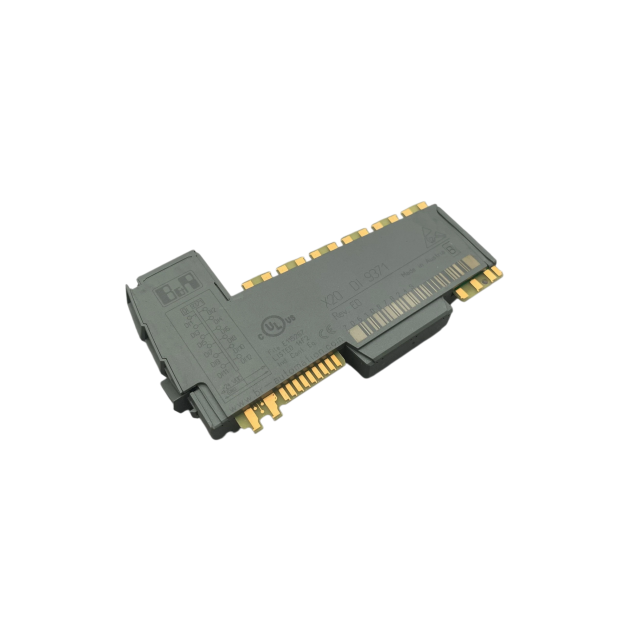

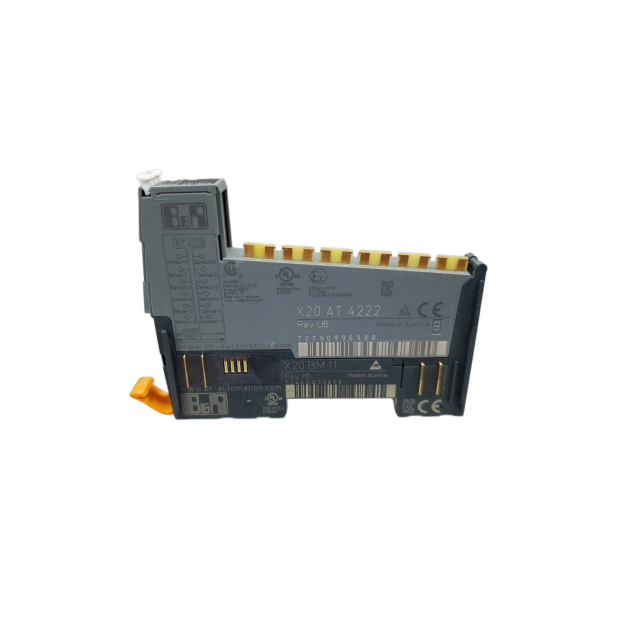

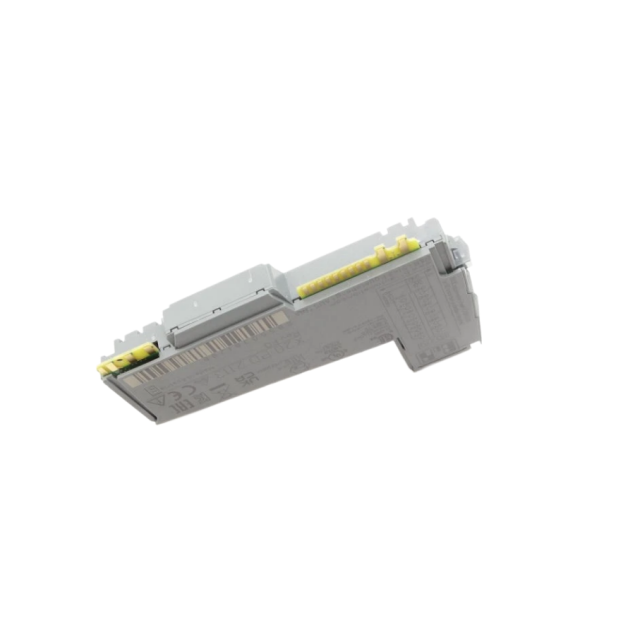

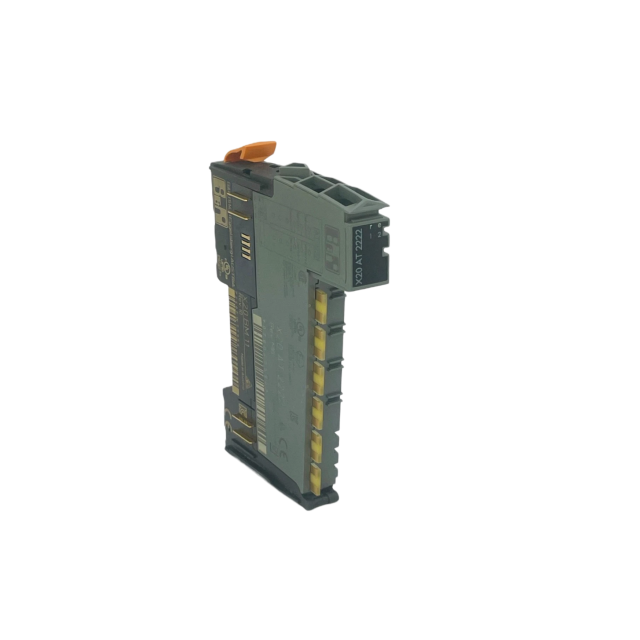

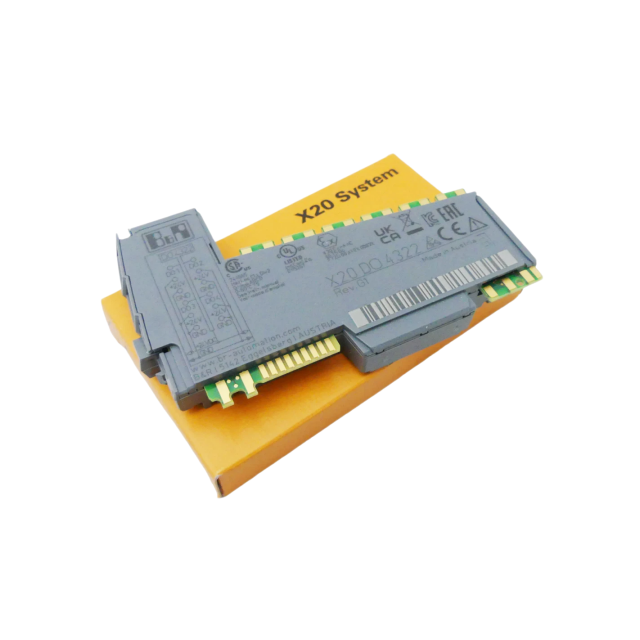

Standard and Precision I/O: For everyday sensor and actuator control, the X20DI6371 (digital input) and X20DO6322 (digital output) modules deliver high-density, high-speed switching. When precise variable control is required—such as in flow or temperature regulation—the X20AI8321 (analog input) and X20AO2622 (analog output) modules provide 16-bit resolution for flawless process accuracy.

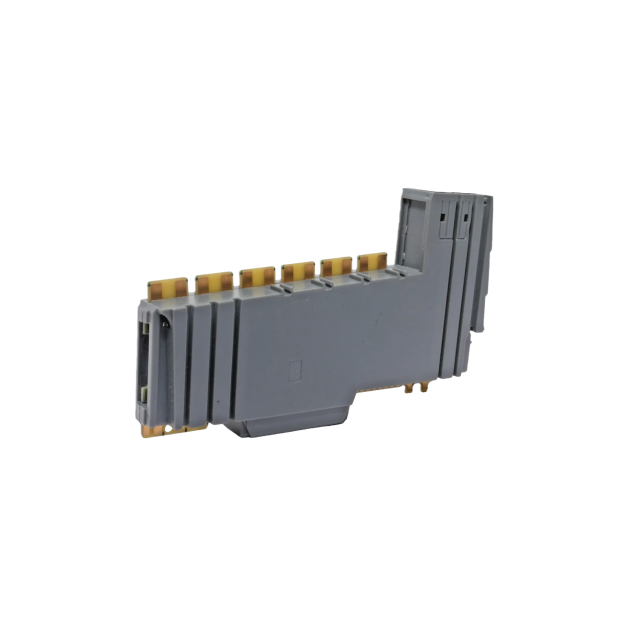

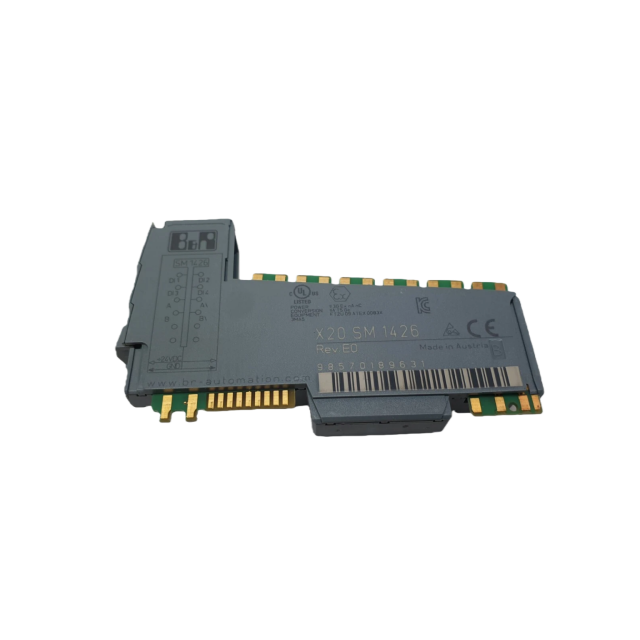

Decentralized Motion Control: B&R eliminates the need for massive external drives by bringing motion control directly onto the I/O rack. The X20SM1426 stepper motor module and the X20DC2396 DC motor module provide direct, integrated control for small motors, perfect for format adjustments, packaging feed mechanisms, and precision lab equipment.

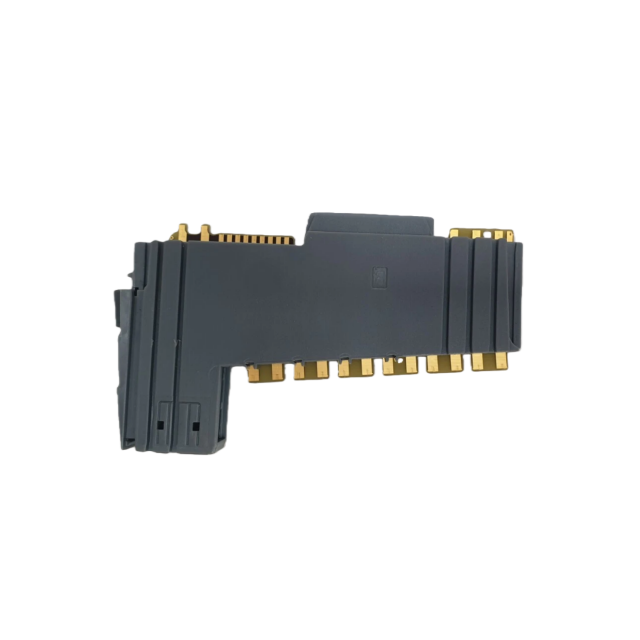

Integrated Safety: Machine safety is paramount. The X20DS4389 safe digital input module integrates directly into the standard rack, utilizing the openSAFETY protocol over the X2X Link to achieve SIL 3 / PL e safety ratings without requiring a separate, hardwired safety network.

By securing your supply chain with our verified B&R inventory, procurement teams can confidently manage system lifecycles, ensuring that both legacy expansions and new OEM machine builds are executed flawlessly.

B&R X20 System Technical & Operational FAQs

1. How does the three-part assembly (X20TB12, X20BB80, Electronic Module) benefit maintenance?

The three-part design separates the physical field wiring (X20TB12) and the communication backplane (X20BB80) from the active electronics. If an electronic module fails, a technician can slide it out and snap a new one in without unwiring a single sensor or dropping communication to the adjacent modules on the DIN rail.

2. When is it necessary to add an X20PS2100 power supply to the rack?

You must add an X20PS2100 whenever the power consumption of the connected modules exceeds the output of the CPU or the previous power supply. B&R Automation Studio software will automatically calculate the power budget of your X2X Link bus and alert you during the hardware configuration phase if an additional PS module is required to prevent a voltage drop.

3. Can I run a closed-loop stepper system using the X20SM1426 module?

Yes. The X20SM1426 stepper motor module features integrated encoder inputs. By wiring an incremental encoder back to the module, you can configure it within Automation Studio to operate in a closed-loop control mode, preventing stall conditions and ensuring exact positioning.

4. What safety features does the X20DS4389 provide over a standard input module?

Unlike a standard module like the X20DI6371, the X20DS4389 is a certified safe input module. It features internal redundancy, cross-circuit monitoring, and OSSD (Output Signal Switching Device) pulse testing. It is specifically designed to read emergency stops, light curtains, and safety gates, communicating this data via the openSAFETY protocol to a SafeLOGIC controller.

5. Why are the LEDs on my X20DO6322 module flashing red?

A flashing red "e" (error) LED on an X20DO6322 (or other digital output modules) typically indicates a localized fault such as a short circuit or an overload condition on one of the output channels. The module is equipped with electronic short-circuit protection; you must remove the physical short in the field wiring and acknowledge the error in the software to reset the channel.
