In the world of heavy rotating machinery—turbines, compressors, motors, and pumps—vibration is the first indicator of potential catastrophe. The Bently Nevada 3300 XL series is the globally recognized industry standard for proximity transducer systems.

Engineered to provide high-precision measurements of vibration and position, the 3300 XL system is essential for protecting multi-million dollar assets in power plants, refineries, and industrial manufacturing facilities. As a specialized distributor, we provide the complete range of 3300 XL components, including the foundational 3300 XL proximitor, sensors, and extension cables, ensuring your machinery protection systems (MPS) remain accurate and reliable.

Precision Engineering: The 3300 XL 8mm System

The most widely deployed configuration is the Bently Nevada 3300 XL 8mm system. This eddy-current sensor system is designed to measure the distance between the probe tip and a conductive target (usually a steel shaft). It consists of three integrated components that must be electrically matched for linear accuracy:

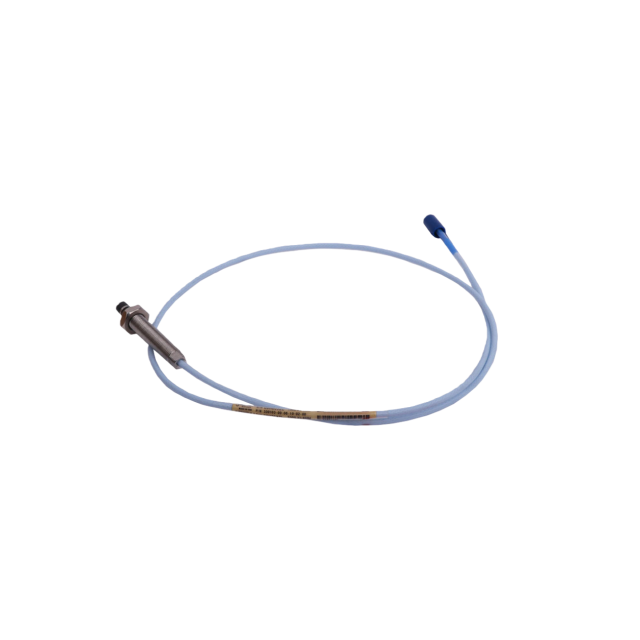

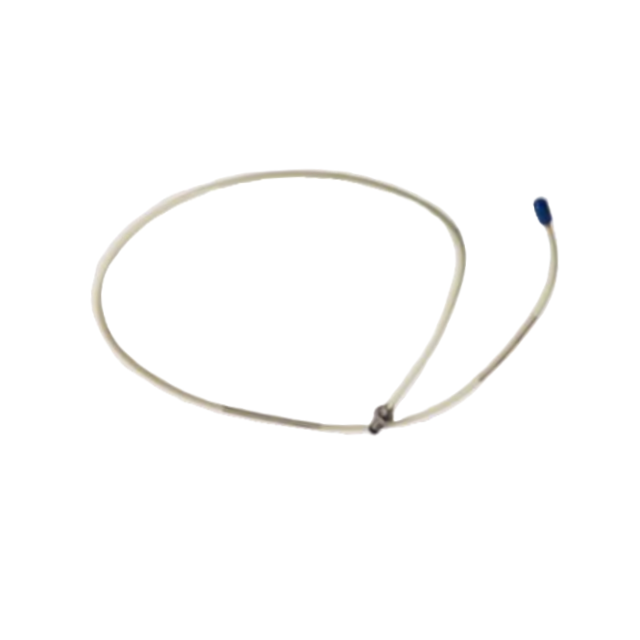

3300 XL 8mm Probe: A ruggedized sensor capable of withstanding the extreme temperatures and high-pressure environments found inside bearing housings.

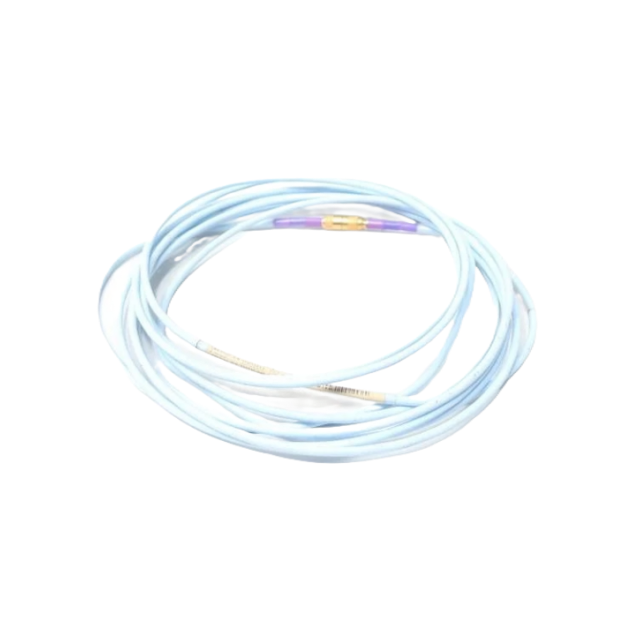

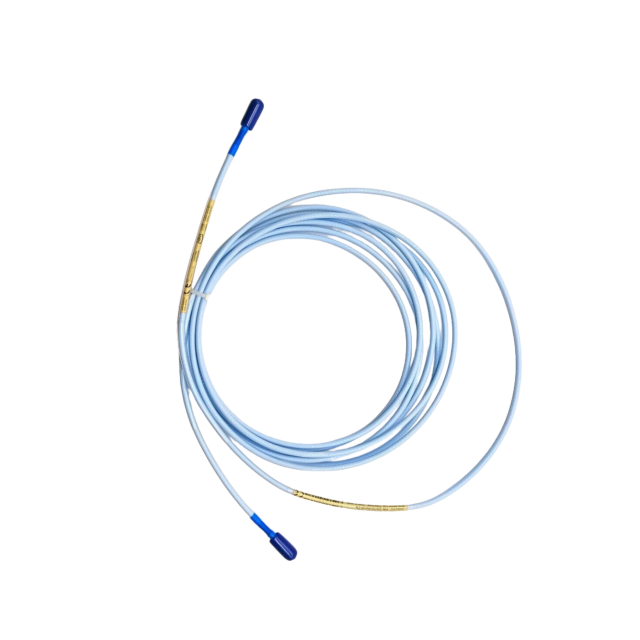

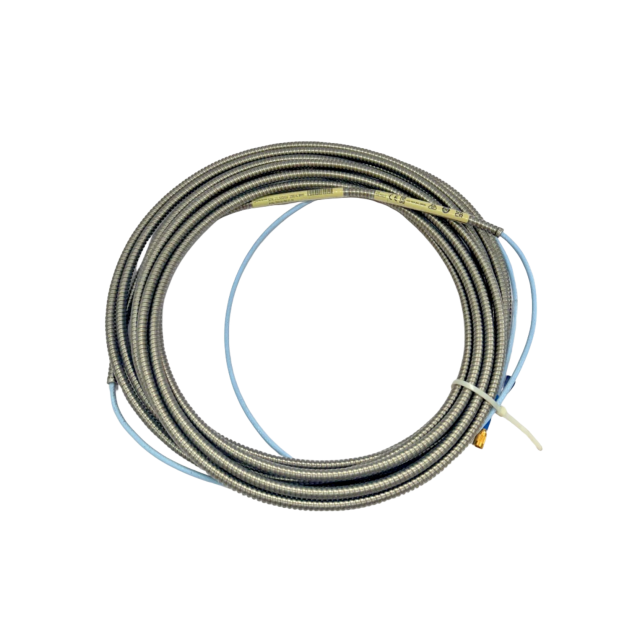

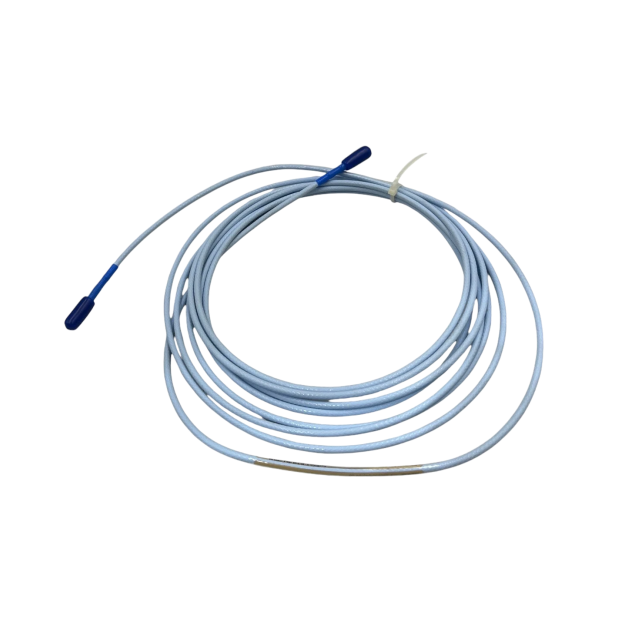

Extension Cable: Available in various lengths, these cables utilize specialized connectors and shielding to prevent signal degradation over distance.

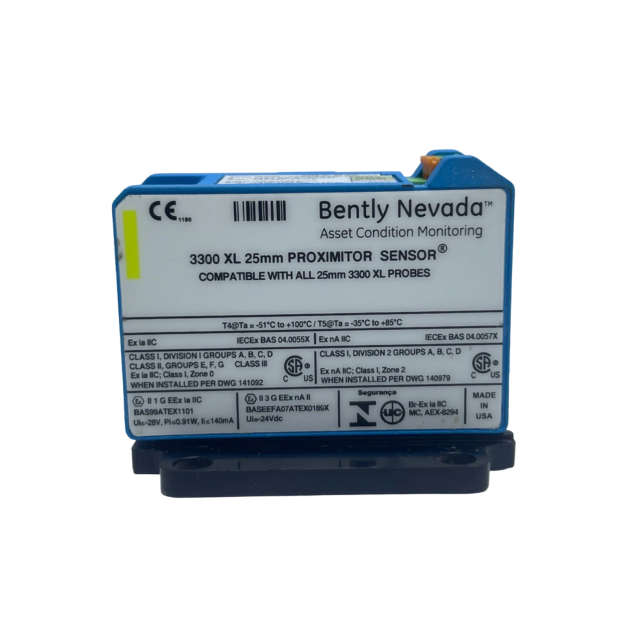

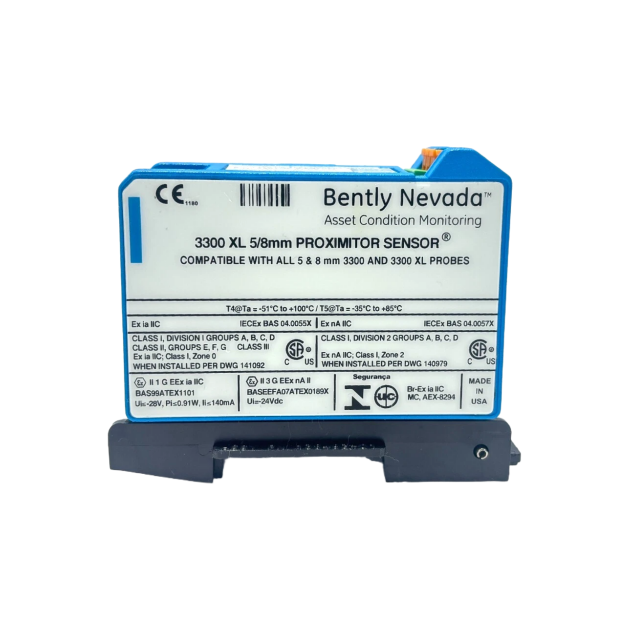

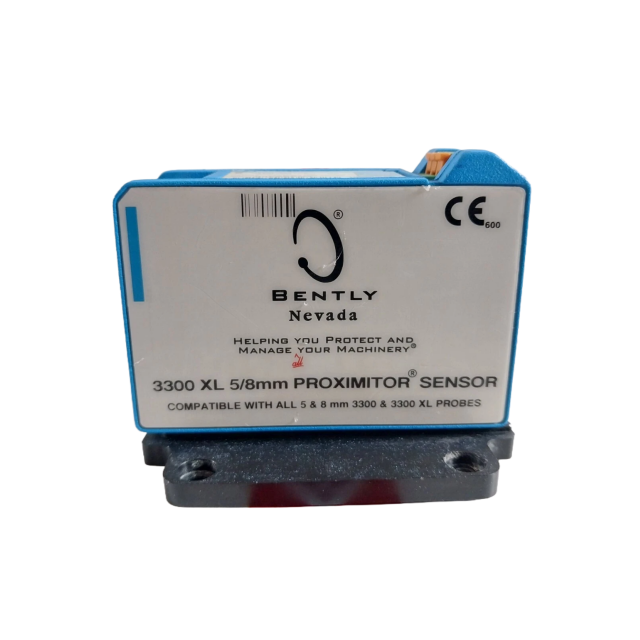

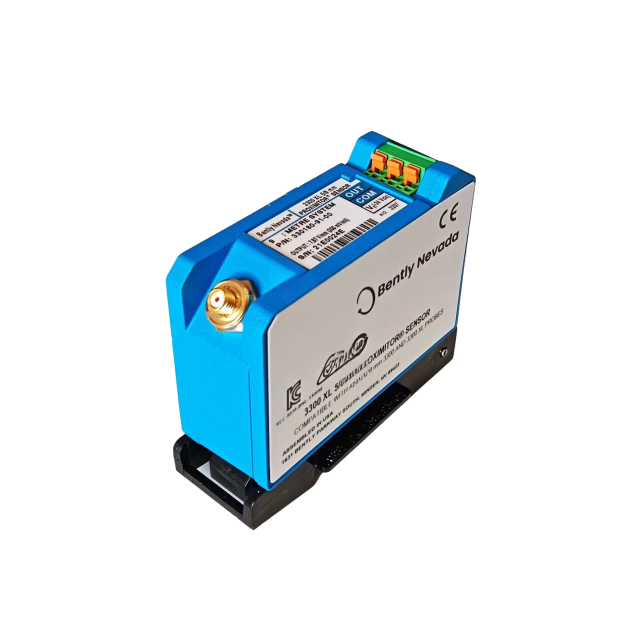

Proximitor Sensor (e.g., Bently Nevada 330130): The electronic "brain" of the system. It supplies the RF signal to the probe and conditions the return signal into a linear voltage output (typically 200 mV/mil or 7.87 V/mm) that can be read by a monitoring rack like the Bently Nevada 3500.

Reliability Through the Bently Nevada 330130

The Bently Nevada 330130 is a specific 3300 XL Proximitor model known for its exceptional linearity and temperature stability. Unlike legacy systems, the 3300 XL series is designed with advanced RFI/EMI shielding, making it highly resistant to the electrical noise generated by modern variable frequency drives (VFDs) and high-voltage equipment. By choosing authentic 3300 XL components, you ensure that your vibration data is a true reflection of machine health, preventing the "false trips" or "missed events" that can devastate operational budgets.

Strategic Asset Protection and Global Supply

In high-stakes industries, downtime is not just expensive—it’s a risk to facility safety. When a proximitor fails or a probe is damaged during a turnaround, every hour of delay counts. We serve as your strategic partner, maintaining a robust inventory of the Bently Nevada 3300 XL ecosystem.

Every component we distribute is fully vetted to meet original performance specifications, ensuring seamless integration with your existing 3500 or 2300 monitoring racks. By securing a reliable supply of these critical sensors, you optimize your predictive maintenance programs and extend the lifecycle of your most valuable rotating assets.

Bently Nevada 3300 XL Technical Troubleshooting FAQs

1. Why is my Proximitor outputting a constant 24V or 0V signal?

A -24V output (or "Full Scale" rail) usually indicates an open circuit, such as a broken extension cable or a disconnected probe. Conversely, a 0V signal often points to a short circuit in the wiring or a probe tip that is physically touching the shaft. Always check the physical connections and use a multimeter to verify the resistance of the probe and cable before replacing the 3300 XL proximitor.

2. Can I mix a 3300 XL 8mm probe with a 5mm or 11mm Proximitor?

No. Proximity systems are tuned as a matched set. Using an 8mm probe with an 11mm Proximitor will result in non-linear data and incorrect vibration readings. For accurate machinery protection, the probe diameter and the Proximitor’s calibrated target material (typically AISI 4140 steel) must match exactly.

3. What does "Gap Voltage" mean, and why is it critical for my 330130 Proximitor?

Gap voltage is the DC voltage measured at the Proximitor output that represents the physical distance between the probe tip and the shaft. For the Bently Nevada 330130, the standard linear range is between -2.0V and -18.0V. If your gap is set outside this range, the vibration signal will be distorted or "clipped," leading to inaccurate alarms.

4. How does the 3300 XL system handle electromagnetic interference (EMI)?

The Bently Nevada 3300 XL series features significantly improved shielding compared to the legacy 3300 and 7200 series. The Proximitor housing is designed to be DIN-rail mounted in a grounded metal enclosure, and the extension cables are double-shielded to ensure that electrical noise from nearby motors or power lines does not interfere with the sensitive millivolt vibration signals.

5. Are the 3300 XL 8mm components backward compatible with the older 3300 5mm systems?

While there is some physical similarity, 3300 XL components are generally not interchangeable with older non-XL 3300 components due to different electrical characteristics and connector designs. It is always recommended to upgrade the entire transducer string (Probe, Cable, and Proximitor) to the XL standard to ensure full system linearity and technical support.
