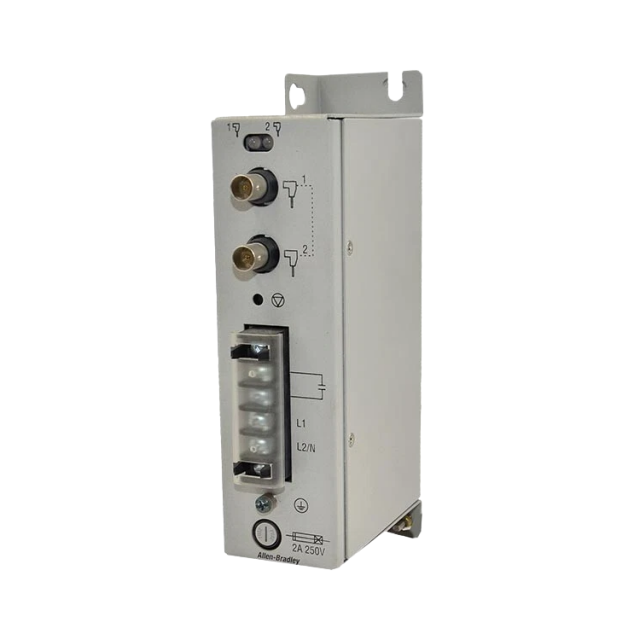

Allen Bradley 178X: The Communication and Processing Core
Bridging Legacy Excellence and Modern Connectivity
In the architecture of a sophisticated industrial plant, if the I/O modules are the hands, the Allen Bradley 178X series represents the nervous system and the primary intelligence. This category encompasses two of the most critical pillars in the history of Rockwell Automation: the 1785 PLC-5 processors and the 1784 communication interface cards.
Even in 2026, these components remain vital for the continued operation of large-scale manufacturing and critical infrastructure across the globe. As a specialized manufacturer and global supplier, we provide fully tested and verified Allen Bradley 178X hardware, ensuring that facilities can maintain their proven control strategies while managing the transition to modern Ethernet-based networks.
The Processing Power of the 1785 Series
The 1785 PLC-5 processor is the "brain" that drives the 1771 I/O system. Renowned for its industrial-grade durability, the PLC-5 was designed to operate in environments that would cause standard electronics to fail.
Scale and Flexibility: From the compact PLC-5/11 to the high-capacity PLC-5/80, the 1785 series offers a range of memory and I/O capacities to suit everything from simple machine control to complex, multi-chassis plant-wide systems.
Communication Interfaces: The 1784 and 1788 Series
While the processor handles the logic, the 1784 and 1788 series provide the essential links between the control system and the outside world.
1784 Programming Interfaces: Cards such as the 1784-PCMK, PKTX, and U2DHP are the primary tools used by maintenance engineers to connect programming terminals (PCs) to the legacy DH+ and RIO networks. Without these interfaces, troubleshooting and software updates on legacy platforms would be impossible.
1788 Gateway Modules: As plants modernize, the 1788 series acts as a bridge. These modules—such as the 1788-EN2DNR or 1788-CN2FF—allow legacy DeviceNet or Foundation Fieldbus segments to communicate with modern ControlLogix processors over EtherNet/IP, protecting your existing field-level investments.
Strategic Reliability and Supply Assurance
For procurement teams in the European and American energy and manufacturing sectors, the Allen Bradley 178X series represents a critical supply chain node. An interface card failure or a processor fault can bring an entire production line to a standstill.
We specialize in providing "new-surplus" and fully remanufactured 178X components that meet or exceed original OEM specifications. Every processor and communication card undergoes comprehensive loop-back testing and memory verification to ensure 100% operational readiness upon arrival.
Allen Bradley 178X Technical & Operational FAQs
1. Can a 1785 PLC-5 processor be programmed using modern Studio 5000 software?
No. The 1785 series requires RSLogix 5 software. While Studio 5000 is used for modern Logix-based controllers, RSLogix 5 remains the standard for the PLC-5. However, you can bridge the two environments using 1788 or 1756-DHRIO modules to allow data sharing between legacy and modern systems.
2. How do I resolve driver issues with 1784-PKTX cards on modern Windows 10 or 11 PCs?
The 1784-PKTX is a legacy PCI card. Modern 64-bit operating systems often lack native drivers for this hardware. Most engineers resolve this by using a dedicated "Legacy PC" running Windows 7 (32-bit) or by utilizing the 1784-U2DHP, a USB-to-DH+ converter that is compatible with modern 64-bit drivers.
3. What is the significance of the "Battery" LED on a 1785 processor?
If the red "BATT" LED illuminates on your 1785 PLC-5, the internal lithium battery is low. You must replace the battery while the processor is powered up to prevent losing the program stored in the volatile RAM. If the battery dies while the power is off, the processor will lose its program and revert to factory defaults.
4. What is the maximum distance for a DH+ network using 1784 interface cards?
The distance for Data Highway Plus depends on the baud rate. At 57.6 kbps, a DH+ network can extend up to 3,048 meters (10,000 feet) using the standard "Blue Hose" twinaxial cable. At the higher 230.4 kbps rate, the maximum distance is reduced to approximately 762 meters (2,500 feet).
5. Is the 1788-EN2DNR gateway a direct replacement for a DeviceNet scanner?
Not exactly. The 1788-EN2DNR acts as a linking device. It allows a modern EtherNet/IP-based controller (like a ControlLogix) to "own" and control a legacy DeviceNet network. This is an ideal solution for migrating your central control logic without having to rewire your existing field devices.
