Proximity Probes, Sensors & Transducer Systems

Proximity Probes, Sensors & Transducer Systems — High-Precision Condition Monitoring

Proximity probes and sensor transducer systems provide non-contact measurement of shaft displacement, vibration, position, and clearance in rotating machinery. They are core components of condition monitoring and predictive maintenance on turbines, compressors, pumps, generators, motors, fans, and critical process equipment. This category covers eddy-current proximity probes, capacitive sensors, and matched transducer/driver systems, with options for extended temperature, ruggedized housings, shielded cables, and multiple output formats (e.g., 4–20 mA, voltage, buffered dynamic signals).

Key Features & Advantages

• Non-contact & high resolution for micrometer-level displacement and vibration.

• Wide bandwidth to capture slow thermal drift and high-frequency vibration.

• Excellent linearity & repeatability for stable long-term trending.

• Harsh-environment ratings (IP66/67 options, extended temperature).

• Shielded, low-noise cabling and secure connectors to minimize interference.

• Flexible outputs compatible with condition monitoring systems and PLC/DCS.

• Calibration traceability and documentation for regulated industries.

Sensor Types & When to Use Them

• Eddy-Current (Inductive) Probes — Best for conductive metallic targets; shaft vibration, rotor run-out, bearing clearance, thrust position.

• Capacitive Sensors — High precision on non-metallic or coated targets; position and gap measurement in clean environments.

• Magnetic/Hall Sensors — Ferromagnetic targets; gear-tooth counting, speed/RPM, proximity switching.

• Optical/Laser Sensors — Non-metallic targets, alignment, fine displacement in clean, controlled conditions.

Typical Applications

• Rotating Equipment: turbines, compressors, pumps, gearboxes, blowers, fans.

• Power & Energy: gas/steam turbines, generators, wind turbines.

• Oil & Gas / Petrochemical: critical trains, expanders, process compressors.

• Metals & Mining: mills, rolls, spindles, conveyors.

• Aerospace & Automotive Test: engines, dynos, rigs, lab instrumentation.

• General Industry: machine tools, paper, water/wastewater, HVAC drives.

Selection Guide

• Measurement range & linearity: match expected displacement/vibration with adequate headroom (2–3×).

• Bandwidth/frequency response: ensure coverage for both low-speed drift and high-speed vibration harmonics.

• Environment & protection: temperature rating, IP protection, chemical exposure, EMC noise.

• Target material & surface: conductive vs. non-conductive, curvature, surface finish.

• Cable & connector strategy: integral vs. detachable, length, shield type, routing constraints.

• Signal interface: dynamic buffered output, 4–20 mA trend, voltage, proximity switch output.

• Mounting & alignment: thread size, bracket options, tip clearance, mechanical robustness.

• Documentation & compliance: calibration report, material certs, traceability, industry standards.

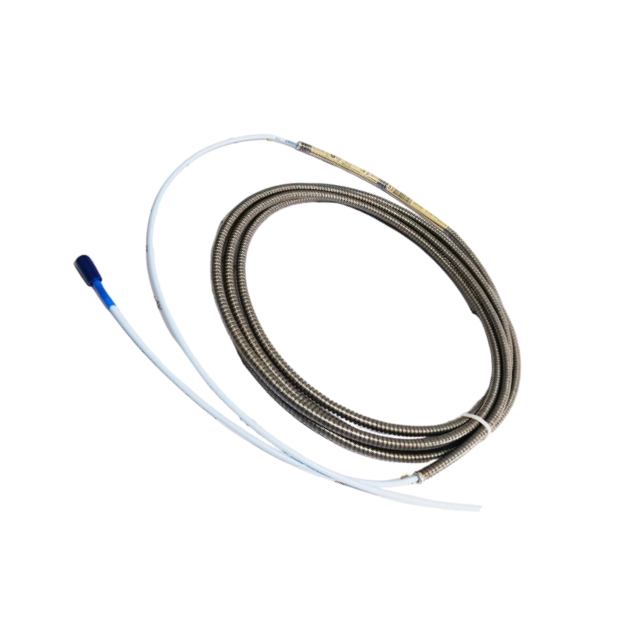

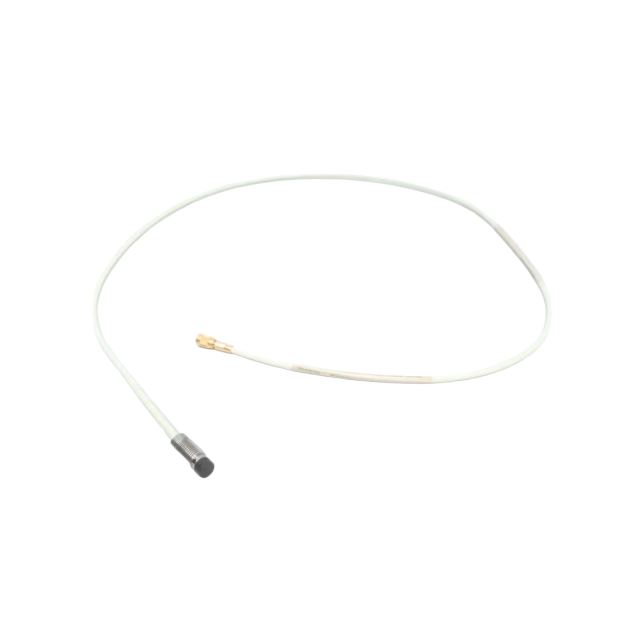

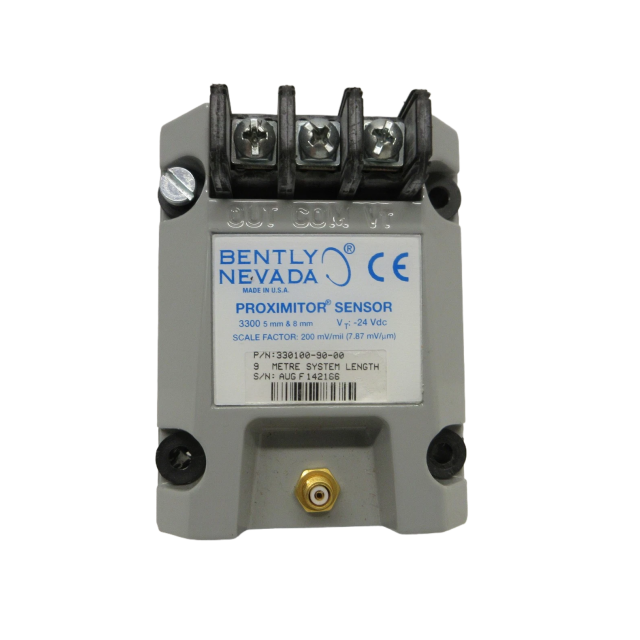

Popular/Representative Models

Technical Highlights

• Precision linearity with factory calibration for predictable scaling.

• Low-noise electronics and shielded architecture for stable signal under EMI.

• Robust, field-proven construction for high vibration and harsh media.

• Multiple tip sizes & threads to suit tight or retrofitted installations.

• Extended temperature options for hot sections and cold starts.

• Interchangeable cabling (where applicable) for easier maintenance.

• Documentation package: calibration certificate, wiring diagrams, installation guides.

Installation & Best Practices (Quick Tips)

• Maintain proper tip clearance and orient probe normal to target surface.

• Use the matched cable and driver to ensure calibration integrity.

• Route cables away from high-power lines; maintain proper shielding/grounding.

• Verify linearity over operating range; re-check after thermal soak.

• Record baseline phase and amplitude for trend analysis in the CMS.

• Implement strain relief on connectors and avoid tight bend radii.

FAQ

Q1: What is a proximity probe and how does it differ from a proximity switch?

A proximity probe provides a continuous analog signal proportional to displacement or vibration; a proximity switch outputs binary on/off based on a threshold.

Q2: How does an eddy-current proximity sensor work?

It induces eddy currents in a conductive target; changes in distance alter the coil impedance, which the transducer converts to a calibrated displacement signal.

Q3: How do I choose the measurement range?

Select a range 2–3× the maximum expected displacement/vibration to keep the signal within the linear region.

Q4: What is the right bandwidth for vibration monitoring?

Choose a system covering both low-frequency drift (e.g., 0.1–1 Hz) and high-frequency components (several kHz) relevant to your machine speed and fault modes.

Q5: Can cable length affect accuracy?

Yes. Most proximity systems are calibrated as a matched set (probe + cable + driver). Changing length without recalibration impacts scaling and linearity.

Q6: What target materials are compatible?

Eddy-current probes require conductive metallic targets; for non-metallic targets consider capacitive or optical solutions.

Q7: What alignment tolerances matter?

Maintain normal incidence to the target and proper stand-off. Excessive angle or curvature reduces accuracy and linearity.

Q8: How do I handle high temperatures or harsh chemicals?

Specify extended temperature probes, high-temp cables, and chemical-resistant housings or sleeves. Verify IP rating and material compatibility.

Q9: How is calibration performed and documented?

Each set is factory-calibrated; you receive a calibration certificate with scaling, range, and linearity data. Field checks verify installation integrity.

Q10: Can these probes integrate with our condition monitoring system?

Yes. Outputs include buffered dynamic signals and/or process signals (4–20 mA / voltage) compatible with standard CMS/PLC/DCS inputs.

Q11: What are common failure modes and how to prevent them?

Cable/connector damage, tip contamination, excessive heat, or EMI. Use strain relief, proper routing, filters, and periodic inspections.

Q12: How often should probes be inspected or recalibrated?

Follow OEM intervals or plant standards (e.g., annually or outage-based). Re-verify after major overhauls or cable replacements.

Q13: How do I replace a probe while keeping trending continuity?

Install a matched probe/cable/driver, document new scaling, and align phase references so the trend remains comparable.

Q14: Can one probe type cover speed, displacement, and vibration?

Eddy-current proximity probes primarily measure displacement; vibration derives from the dynamic component. For speed, use magnetic/gear sensors.

Q15: What documentation is provided?

Wiring diagrams, mounting drawings, calibration/traceability, recommended clearances, and safety/compliance information.
