Comprehensive Technical Analysis of Industrial I/O Module Architectures: ABB, Honeywell, B&R, GE, and Yokogawa
The operational backbone of modern industrial automation is the Input/Output (I/O) module, a critical component that bridges the gap between the physical field environment and the digital logic of control systems. In the context of Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC), I/O modules facilitate the bidirectional flow of information, converting real-world variables such as temperature, pressure, and flow into digital data strings, while simultaneously translating complex control algorithms into physical actions via actuators and valves.
As industrial environments evolve toward the Fourth Industrial Revolution (Industry 4.0), the requirements for these modules have expanded beyond simple signal conversion to include high-speed deterministic communication, integrated safety (SIL ratings), hazardous area compatibility, and advanced edge-based diagnostics. This report provides an exhaustive evaluation of the primary I/O ecosystems provided by leading manufacturers—ABB, Honeywell, B&R, GE (Emerson), and Yokogawa—analyzing their architectural distinctiveness, performance benchmarks, and strategic utility in global manufacturing and process industries.
Strategic Overview of the I/O Module Category
The category of industrial I/O modules encompasses a vast array of hardware designed to interface with the sensory and motor organs of an industrial facility. At the most fundamental level, these devices are categorized by signal type: discrete (digital) and analog. Discrete I/O modules manage binary states—on/off, open/closed, or true/false—typically found in proximity switches, limit switches, and solenoid valves.
Analog I/O modules, conversely, handle continuous signals representing variable quantities, such as the 4-20 mA current loops or 0-10 V signals characteristic of pressure transmitters and flow meters. The sophistication of these modules has progressed from simple rack-based components to intelligent, distributed systems that can reside directly in the field, even within explosive atmospheres (Zone 0/1/2), thereby reducing the "marshalling" costs associated with traditional centralized wiring.

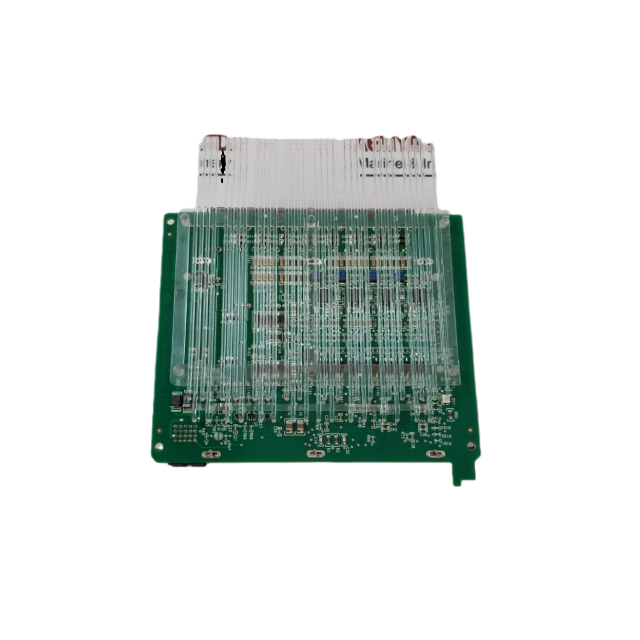

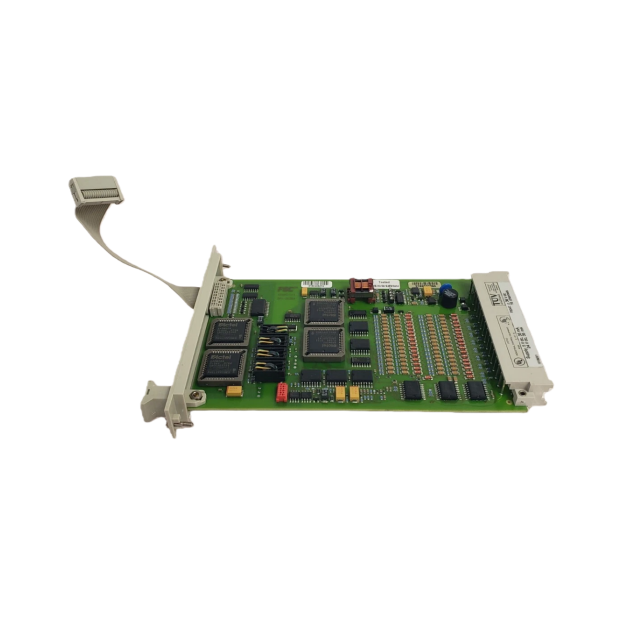

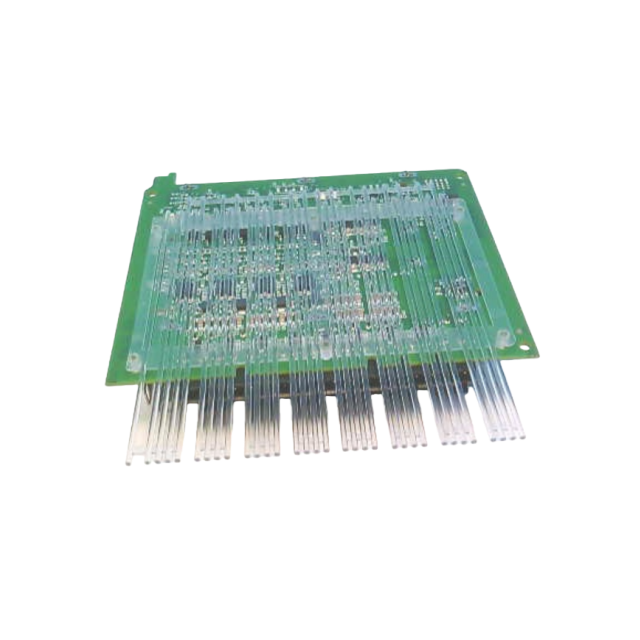

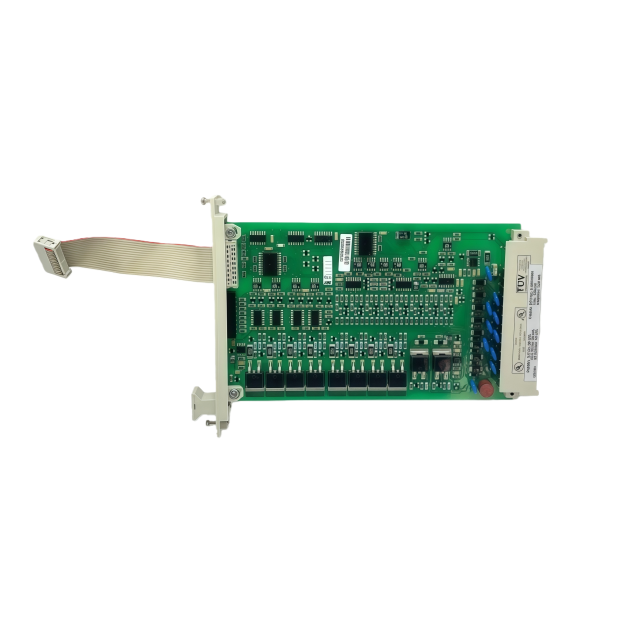

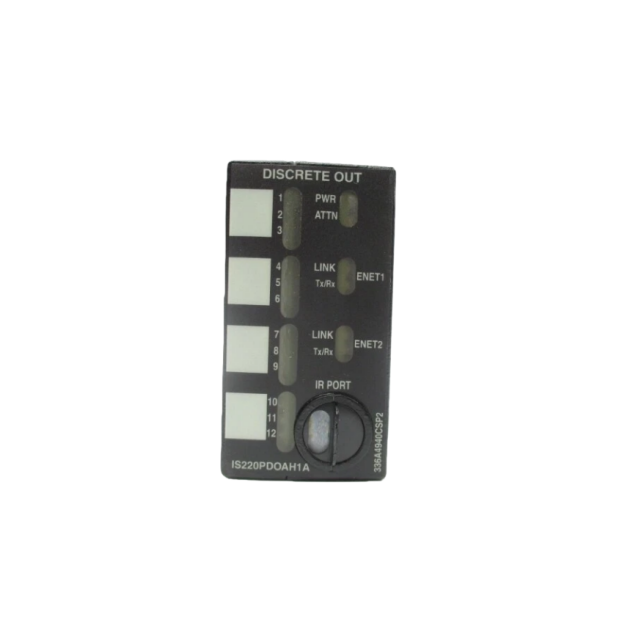

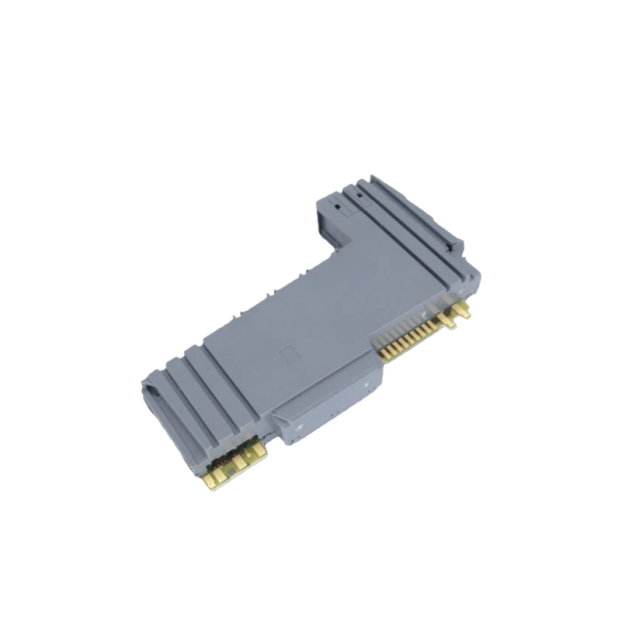

Contemporary market leaders like ABB, Honeywell, B&R, GE (now Emerson), and Yokogawa have each developed proprietary architectures to solve specific industrial pain points. ABB’s S800 and S900 series focus on modularity and hazardous area safety, while Honeywell’s Series C emphasizes high-density heat management and "Universal I/O" configuration. B&R’s X20 system pushes the boundaries of channel density and real-time responsiveness through POWERLINK, while GE’s RX3i platform provides a bridge for legacy migration.

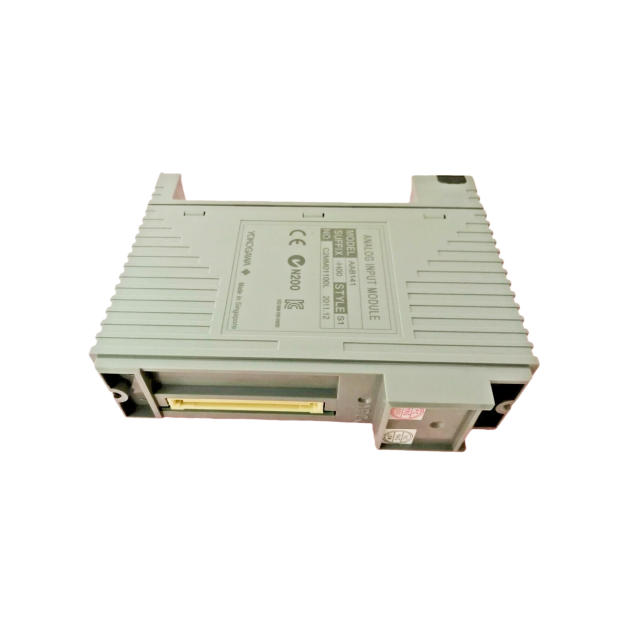

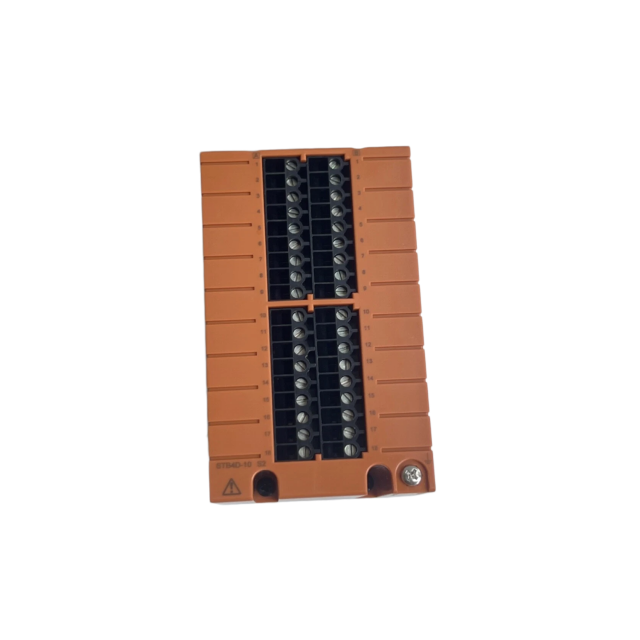

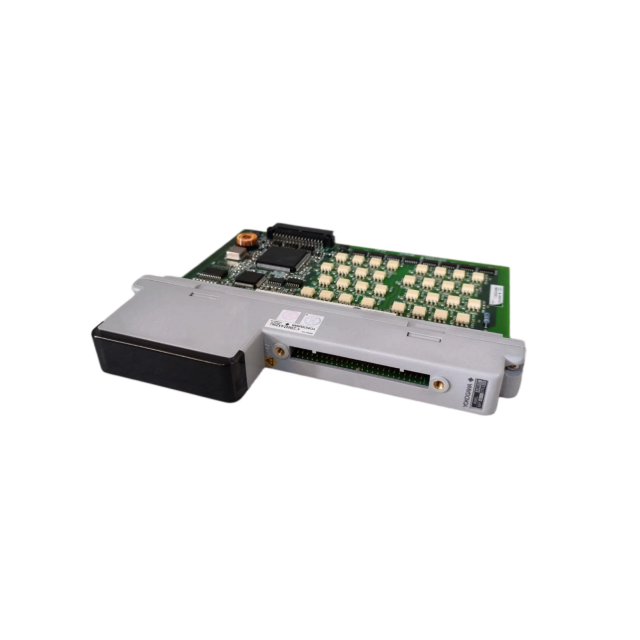

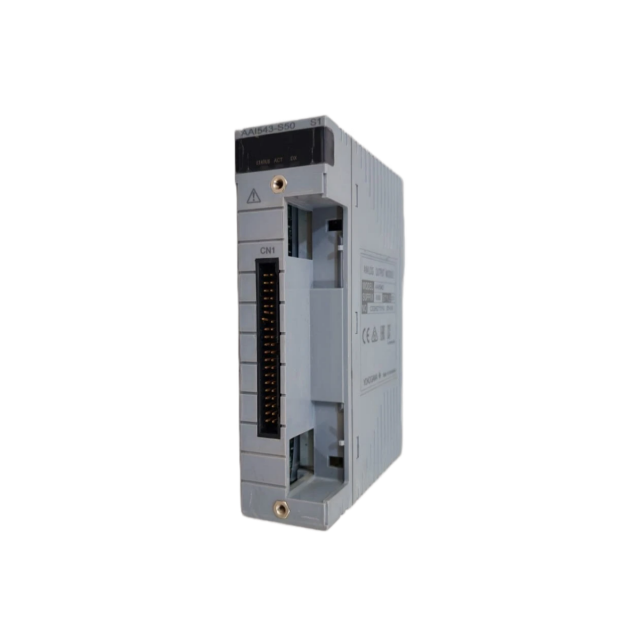

Yokogawa’s Centum VP architecture remains the benchmark for high availability, utilizing a "Pair and Spare" redundant processor model to ensure nearly zero unplanned downtime. The move toward software-configurable I/O represents the most significant trend in the category, allowing engineers to define a channel's function (Input/Output, Analog/Digital) via software late in the project lifecycle, which effectively decouples physical construction from logical design.

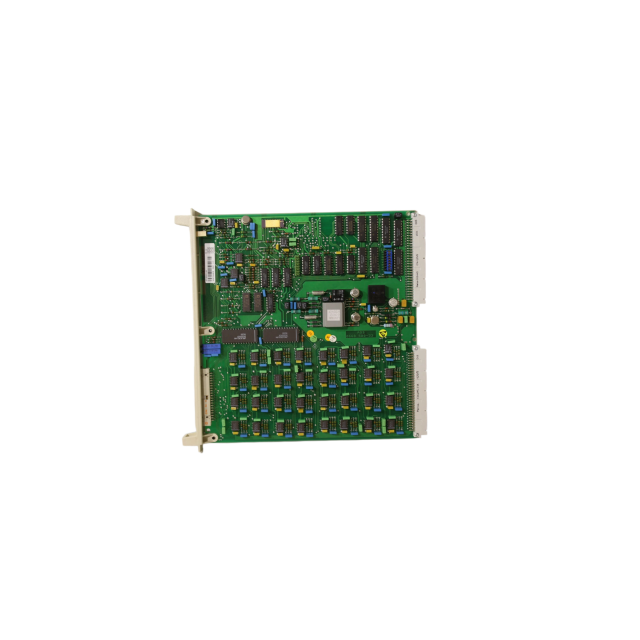

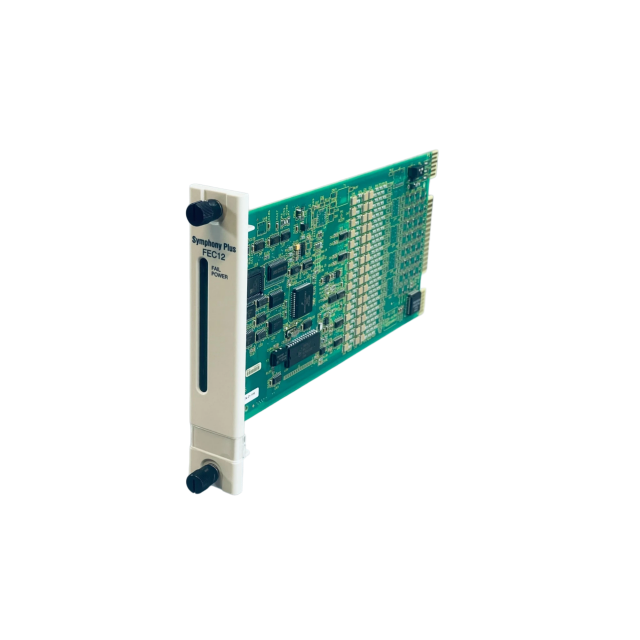

ABB I/O Systems: Modular Distributed Architecture and Hazardous Area Excellence

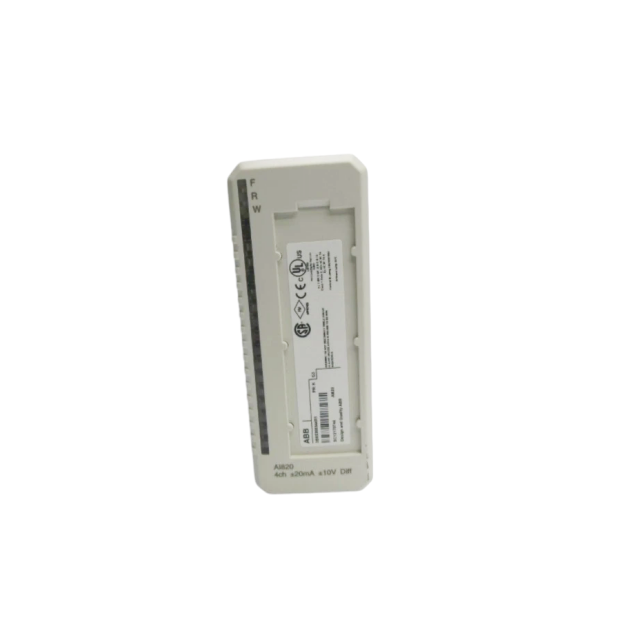

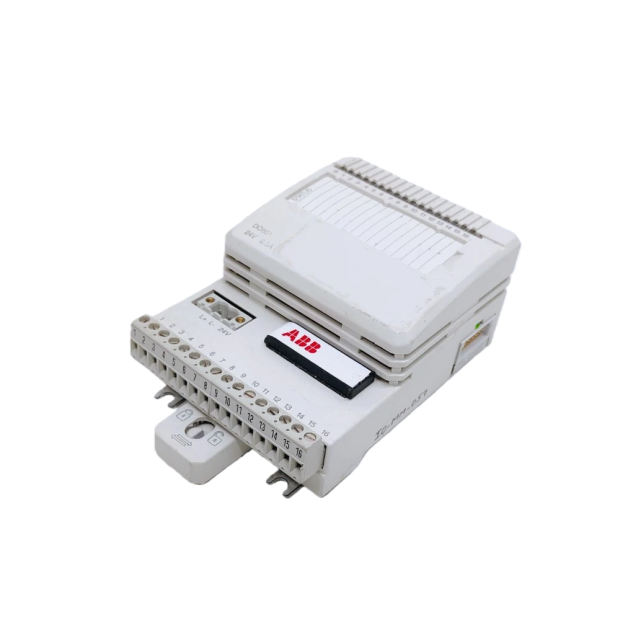

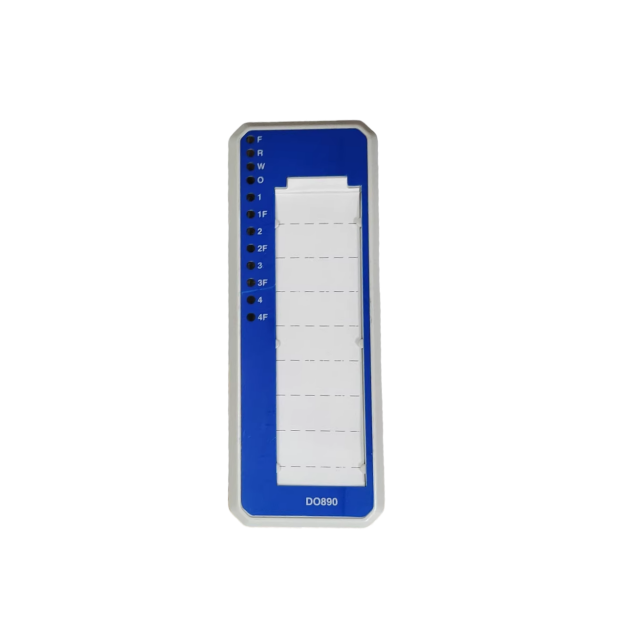

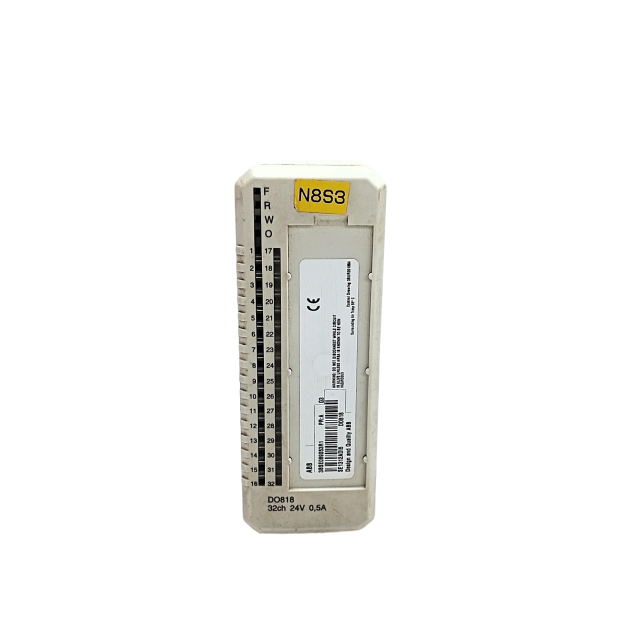

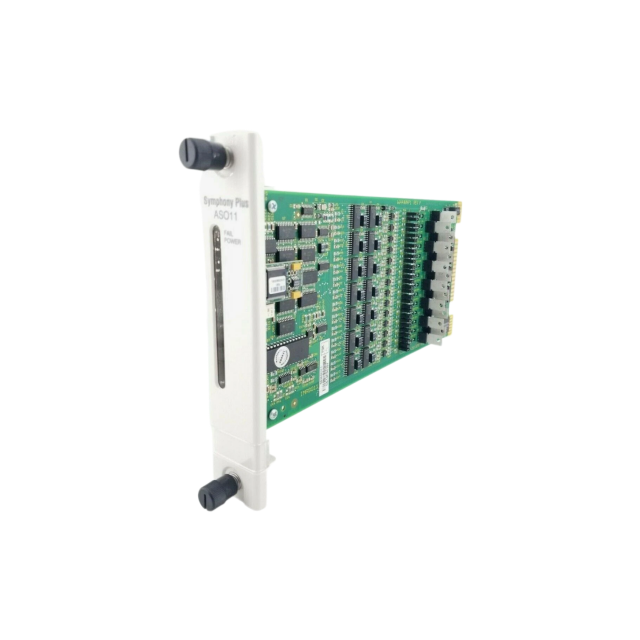

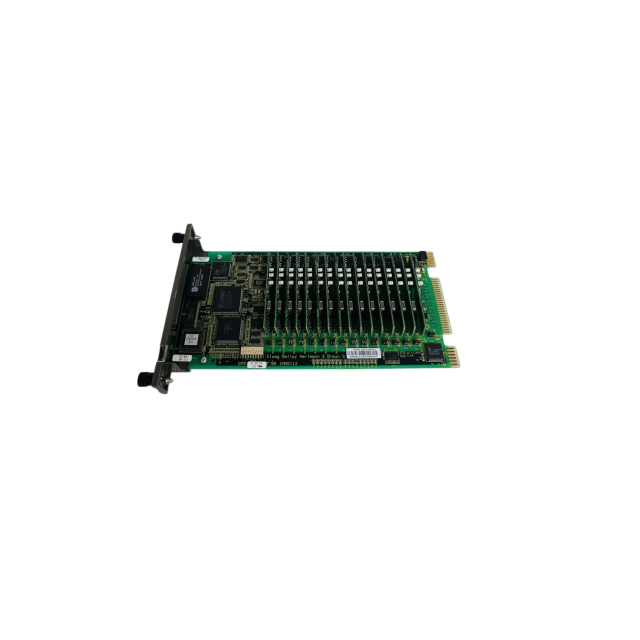

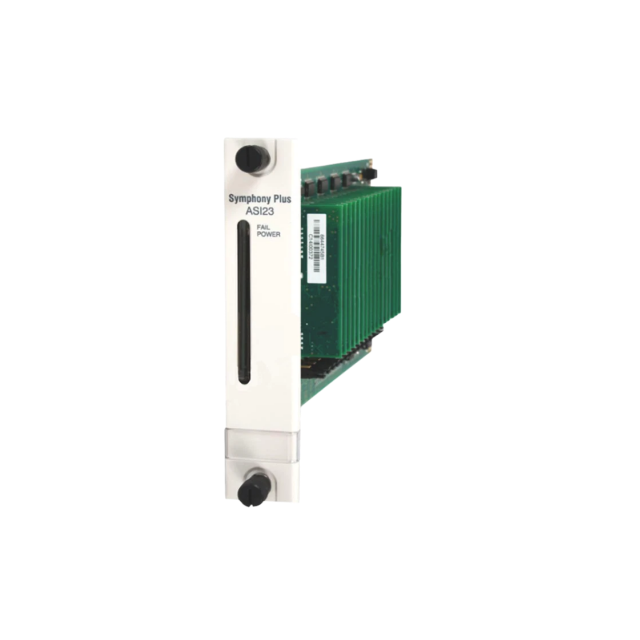

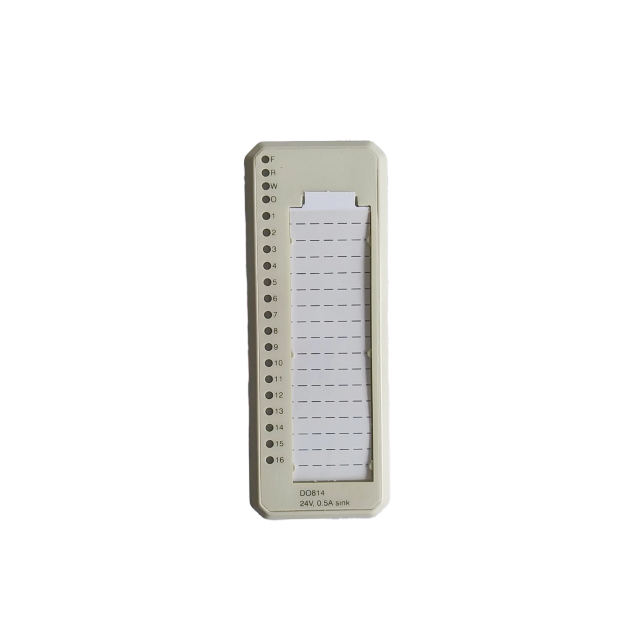

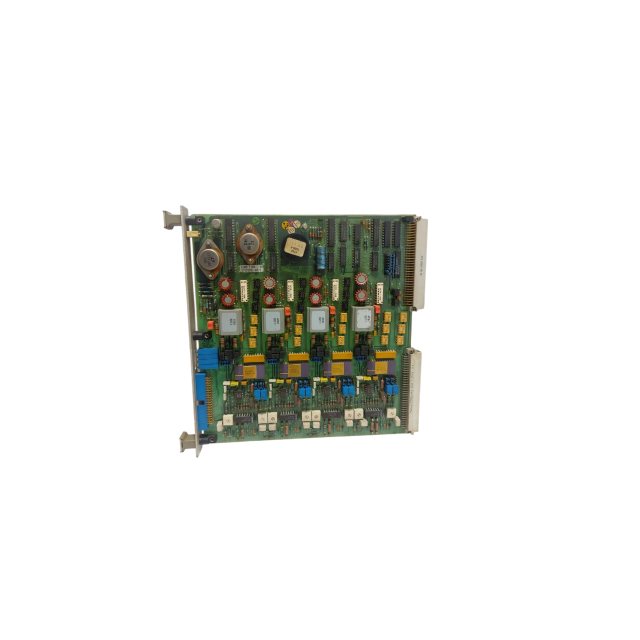

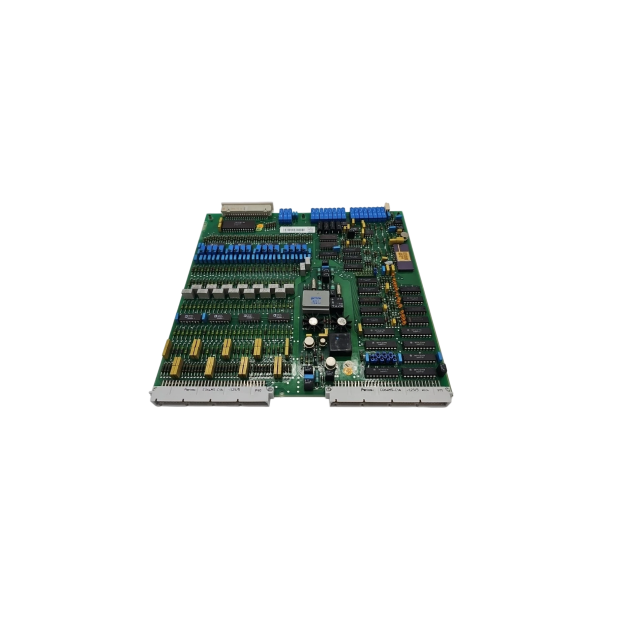

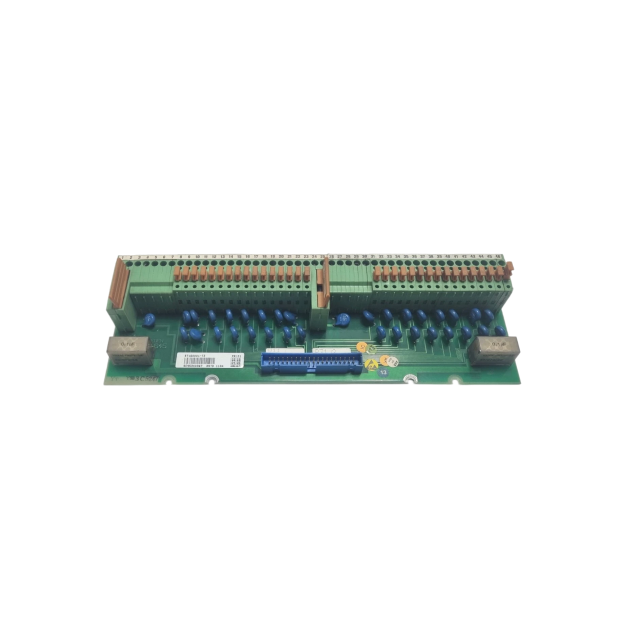

ABB’s approach to I/O is centered on its flagship System 800xA and the Freelance DCS platform, utilizing the S800 and S900 distributed I/O families to provide a scalable and robust interface for complex process control. The S800 I/O is designed as an open, distributed system that communicates with controllers via industry-standard fieldbuses, most notably PROFIBUS DP and Advant Fieldbus 100.
This openness allows the S800 series to fit into a wide variety of process controllers, not limited to ABB’s own product line. The modularity of the S800 system permits configurations ranging from highly centralized rack-based setups to highly distributed field-mounted nodes, significantly reducing the cost of cabling by permitting installation closer to the actual sensors and actuators.

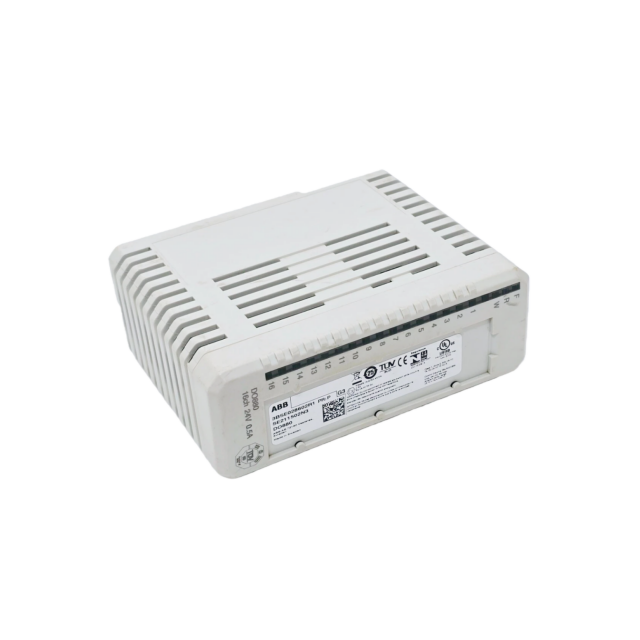

The technical specifications of the S800 system highlight its high-end performance capabilities. Modules such as the AI845 support HART (Highway Addressable Remote Transducer) interfaces, allowing for digital communication over 4-20 mA analog signals to retrieve diagnostic data from smart field instruments. The S800 series also includes "High Integrity" variants (e.g., S800 High Integrity) which are modularized, distributed, and SIL-3 rated for safety-critical applications. These modules operate within a standard climatic range of +5 °C to +55 °C and provide IP20 protection, ensuring reliability in standard industrial control rooms or cabinets.

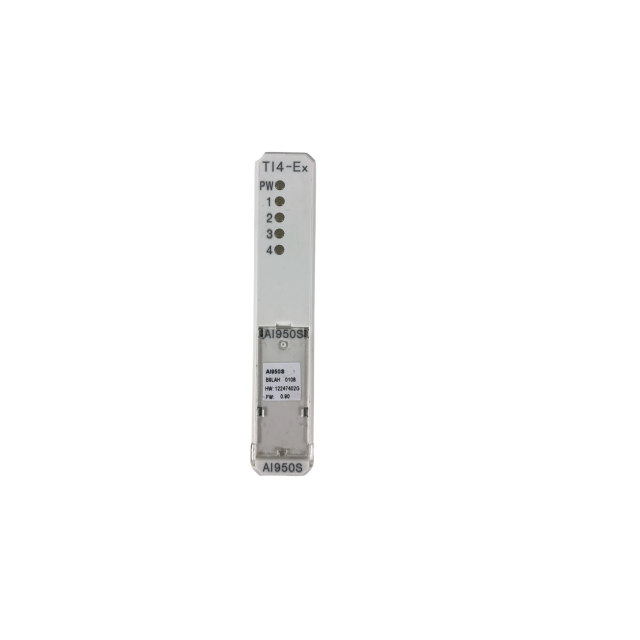

For environments with higher risks, ABB’s S900 series is specifically engineered for hazardous area mounting. The S900 system can be installed directly in ATEX Zone 1 or Zone 2 areas, eliminating the need for external galvanic isolation barriers which traditionally occupy significant cabinet space. The S900 functional modules, such as the AI930 (Analog Input, HART) and the DX910 (Digital Input/Output), provide intrinsically safe (IS) signal connections.
These modules are hot-swappable, meaning they can be replaced during operation without interrupting the primary voltage or the communication of remaining modules, even in hazardous areas. This hot-swap capability is facilitated by integrated encapsulated switch-off mechanisms. The S900 system's communication interface (CI920) converts digitized field signals to the PROFIBUS DP-V1 protocol for integration with supervisory DCS or SCADA systems.
Business Frequently Asked Questions
1. How does software-configurable Universal I/O reduce the overall total cost of ownership (TCO) for a production facility?
Universal I/O significantly lowers TCO by streamlining both the initial capital expenditure (CAPEX) and the ongoing operational expenditure (OPEX). During the project phase, "Software Marshalling" allows engineers to decouple the physical wiring from the control logic, which enables parallel workstreams and reduces the risk of expensive late-stage design changes. Operationally, facilities only need to stock one type of universal module as a spare for analog-in, analog-out, digital-in, and digital-out signals, drastically reducing inventory holding costs and simplifying technician training.
2. What are the most common technical causes of "communication loss" in remote I/O racks, and how can they be mitigated?
Communication loss in remote I/O is often a multi-layered problem. At the physical layer, issues frequently arise from poor grounding, loose connections due to vibration, or improper cable segregation where power and signal cables are run in parallel, causing electromagnetic interference (EMI). Mitigation involves using shielded twisted-pair (STP) cables, ensuring single-point grounding to avoid ground loops, and maintaining a $100\,mm$ separation between high-voltage and signal lines. At the network layer, loss can be caused by firmware incompatibilities or network congestion; these are addressed by using deterministic protocols like PROFINET or Vnet/IP and maintaining strict version control of module firmware.
3. Under what conditions should a facility prioritize ABB’s S900 I/O over the more common S800 I/O?
The S900 I/O should be prioritized when the installation must reside directly within or adjacent to hazardous areas (Zone 1 or Zone 2). The S900 is engineered for ATEX Zone 1/2 mounting and features integrated intrinsic safety barriers, which eliminates the need for external barriers and the associated "marshalling" cabinet space. If the facility is a standard manufacturing environment without explosive atmosphere risks (safe areas), the S800 I/O is typically the preferred choice due to its lower cost and broader modularity for standard PLC and DCS applications.
4. What are the specific safety implications of "Hot-Swapping" modules in a SIL-rated safety instrumented system (SIS)?
Hot-swapping in a Safety Instrumented System (SIS) requires rigorous adherence to the manufacturer's safety manual and certification (e.g., SIL-3). While many modern systems like ABB’s High Integrity S800 or Yokogawa’s ProSafe-RS allow for hot-swapping to ensure continuous protection, the procedure must not compromise the "Safety Function" of the loop. During the swap, the system may briefly enter a degraded state or rely on a redundant partner. If the module is not redundant and is part of a 1oo1 (one-out-of-one) logic, swapping it will likely trigger the safety state (trip) unless a bypass is safely implemented and documented.
5. How does the integration of IIoT-enabled I/O modules impact cybersecurity in the factory environment?
Integrating IIoT-enabled I/O modules expands the "attack surface" of a factory by adding more nodes with Ethernet/IP connectivity that may eventually connect to higher-level business networks or the cloud. To mitigate this, modern I/O systems must follow "defense-in-depth" principles, including the use of modules with secure boot functionality, firmware encryption, and digital certificates to ensure that only authorized components can communicate on the control network. Physical measures, such as deploying industrial firewalls and disabling unused ports, remain critical to maintaining operational continuity.
