Architecting Zero-Downtime Triple Modular Redundancy (TMR)
In the critical sectors of global energy, petrochemicals, and heavy manufacturing, process safety is non-negotiable. The Invensys Triconex system is globally recognized as the premier standard for Safety Instrumented Systems (SIS), providing unparalleled protection against catastrophic mechanical and operational failures.

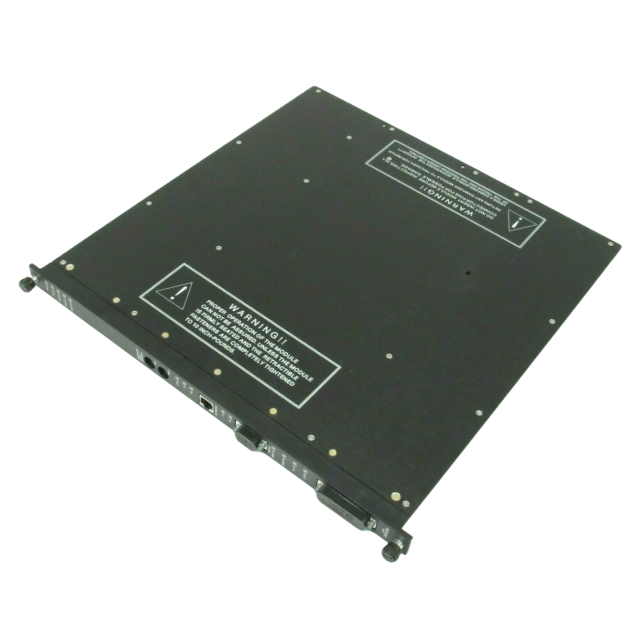

At the core of this robust architecture is the MP Processor Module (Main Processor), which executes the critical safety logic required to maintain strict compliance with European and American safety directives (such as IEC 61508). As a specialized global manufacturer and supplier of high-reliability automation components, we provide verified Triconex hardware to ensure your facility operates with absolute SIL 3 confidence and uninterrupted productivity.
The Intelligence Behind TMR Architecture
The defining feature of the Triconex platform is its sophisticated Two-out-of-Three (2oo3) voting architecture. Every standard Tricon chassis relies on exactly three identically configured MP Processor Modules to govern the system.
Continuous Voting: At the end of every scan cycle, the processors compare their results across a proprietary, high-speed internal bus. If one processor calculates a different result due to a transient error or physical fault, the system instantly outvotes the anomaly. The process continues without a bump, false trip, or loss of control.
Strategic Procurement for Critical Safety Assets
Securing authentic, rigorously tested Invensys Triconex modules is a strategic imperative for reliability engineers and procurement managers navigating complex international supply chains. We specialize in supplying factory-verified MP Processor Modules that meet exact OEM specifications, bridging the gap between legacy system maintenance and modern plant safety requirements.
By integrating our high-availability hardware into your Foxboro DCS or independent safety networks, you mitigate the risks of technical obsolescence, protect your capital equipment, and eliminate the threat of costly unplanned outages.
Invensys Triconex MP Processor Module Technical FAQs
1. What is the fundamental advantage of Triconex TMR over standard dual-redundant safety PLCs?
Standard dual-redundant systems (1oo2) often default to a safe shutdown upon detecting a discrepancy between the two processors, causing a costly plant trip. Triconex TMR (2oo3) utilizes a third processor to act as a "tie-breaker." It outvotes the single fault, allowing the system to continue running safely while alerting maintenance personnel to replace the degraded module.
2. Can an Invensys Triconex MP module be hot-swapped during active production?
Yes. Because of the fault-tolerant TMR architecture, if a single MP module fails, the remaining two seamlessly maintain full SIL 3 protection. A technician can physically slide out the faulted module and insert a replacement while the chassis remains fully powered and actively controls the process.
3. Why is a newly inserted MP Processor Module indicating a "Load" or "Sync" fault?
A synchronization fault typically indicates a discrepancy between the control program actively running in the two healthy processors and the blank or outdated program residing in the newly inserted module. The system requires a manual re-synchronization command, typically initiated via the TriStation engineering software or the chassis key switch, to copy the active logic over to the new module.
4. How do the MP modules communicate securely with the field I/O cards?
Each Main Processor communicates with the Input/Output modules via three independent, isolated I/O bus channels integrated directly into the chassis backplane. This triplication ensures that no single communication bus failure can sever the processors' link to the critical field sensors and actuators.
5. Are Invensys Triconex processors capable of integrating with modern Foxboro DCS environments?
Absolutely. Triconex was engineered for seamless peer-to-peer integration. Through dedicated communication interfaces (like the Tricon Communication Module or TCM), the MP modules can pass critical safety data, bypass statuses, and diagnostic alarms directly to a Foxboro DCS or other supervisory systems via standard protocols (Modbus TCP, OPC), all while maintaining strict air-gapped separation between the control and safety layers.
