Extending the Lifecycle of the Industry’s Most Enduring Control Architecture
For over three decades, the PLC-5 platform and its accompanying Allen Bradley 1771 I/O system have served as the undisputed workhorses of global heavy industry. From automotive assembly lines and steel mills to municipal water treatment facilities, the 1771 architecture was over-engineered for survival in the harshest manufacturing environments.
Today, while original equipment manufacturer (OEM) support has transitioned to newer platforms, the physical infrastructure of thousands of plants remains deeply reliant on this proven technology.
As a specialized global supplier of legacy automation hardware, we provide procurement officers and plant engineers with direct access to fully verified, industrial-grade Allen Bradley 1771 components, ensuring your facility can operate safely and profitably without the immediate burden of a multi-million dollar system migration.
The Engineering Foundation of the 1771 System
The Allen Bradley 1771 platform is defined by its robust, universal chassis design, which houses the power supply, the PLC-5 processor, and a highly versatile array of input and output modules.

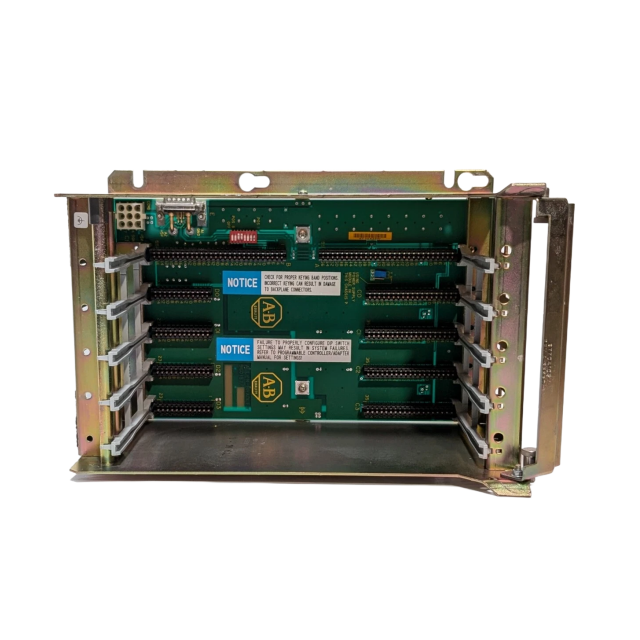

Universal Modular Chassis: Available in sizes ranging from 4 to 16 slots, the 1771 chassis features a rugged backplane designed to withstand extreme vibration and thermal stress. The universal design allows any I/O module to be placed in any slot, providing ultimate flexibility for machine builders and maintenance teams.
Comprehensive I/O Capabilities: The platform supports a massive ecosystem of modules, including high-density discrete inputs (AC and DC), precision analog processing with block transfer capabilities, and specialized modules for PID control, high-speed counting, and motion processing.
Resilient Remote I/O (RIO): A defining feature of the 1771 system is its robust "Blue Hose" Remote I/O network. This proprietary communication protocol allows the main PLC-5 processor to control distant 1771 chassis located hundreds of meters away on the factory floor, highly resistant to electromagnetic interference (EMI).
Strategic Obsolescence Management
For western manufacturing facilities, forced obsolescence presents a significant risk to capital expenditure (CAPEX) budgets. Tearing out a perfectly functional PLC-5 system simply because of OEM lifecycle policies can introduce unnecessary risk and prolonged downtime. We serve as your strategic partner in lifecycle management.
Every Allen Bradley 1771 module we supply undergoes rigorous diagnostic testing, verifying backplane communication, channel integrity, and thermal stability. By securing your supply chain through our inventory, you maintain a predictable Mean Time to Repair (MTTR) and gain the crucial runway needed to plan future Logix migrations on your own terms.
Allen Bradley 1771 Technical & Operational FAQs
1. Can I integrate my existing Allen Bradley 1771 I/O with a modern ControlLogix processor?
Yes. Rockwell Automation provides a migration pathway that allows you to keep your existing 1771 I/O chassis wired and in place while upgrading the central processor to a 1756 ControlLogix. This is typically achieved using a 1756-RIO scanner module in the new rack, which communicates with a 1771-ASB adapter module placed in the legacy chassis.
2. Is it safe to hot-swap a 1771 I/O module while the chassis is powered?
No. Unlike the modern 1756 ControlLogix platform, the Allen Bradley 1771 architecture does not support Removal and Insertion Under Power (RIUP). Pulling a module from a live chassis can cause a backplane surge, potentially damaging the module, the processor, or the chassis backplane itself. You must always remove power from the chassis before replacing components.
3. What is the difference between 1-slot, 2-slot, and 1/2-slot addressing?
This is a critical configuration concept in the 1771 system, determined by dip switches on the chassis backplane. "2-slot addressing" assigns one full 16-bit word to an even/odd slot pair. "1-slot addressing" assigns a full 16-bit word to every single physical slot. "1/2-slot addressing" assigns two 16-bit words to a single slot, which is required when using high-density 32-point I/O modules.
4. How do I troubleshoot a flashing red "Fault" LED on my 1771-ASB Remote I/O Adapter?
A flashing red fault light on an ASB module usually indicates a communication breakdown on the RIO network. First, verify the physical integrity of the twinaxial "Blue Hose" cable and ensure the 82-ohm or 150-ohm termination resistors are properly seated at both ends of the line. Next, confirm that the baud rate dip switches on the ASB perfectly match the configuration of the master scanner.
5. How do I ensure I don't overload the power supply in a fully populated 1771 chassis?
Every module in the Allen Bradley 1771 family draws a specific amount of current from the 5V DC backplane. Before commissioning a chassis, you must add up the backplane current draw of the processor, the adapter, and every I/O module. The total sum must not exceed the output rating of your selected power supply (e.g., the 1771-P7 is rated for 16 Amps).
