In the highly regulated environments of chemical processing, power generation, and global refining, the Foxboro I/A Series and modern EcoStruxure Distributed Control Systems (DCS) are the bedrock of plant stability. The 200 Series Fieldbus Modules (FBMs) serve as the critical, real-time interface between your central control network and rugged field instrumentation. As a dedicated global supplier, we provide a comprehensive inventory of essential Foxboro modules—including the Foxboro FBM201, FBM204, FBM207b, FBM207C, FBM219, and FBM242—ensuring plant managers and procurement officers have immediate access to the reliable, rigorously tested components required to maintain continuous production.

Technical Capabilities of the 200 Series FBMs

Our inventory covers the full spectrum of analog and discrete control requirements, engineered to meet the strict technical standards of Western industrial facilities:

Analog Precision (FBM201 & FBM204): The Foxboro FBM201 is a dedicated 8-channel analog input module, optimized for capturing highly accurate 0–20 mA or 4–20 mA signals from pressure, temperature, and flow transmitters. For loops that require both monitoring and active control, the FBM204 delivers a streamlined solution with 4 analog inputs and 4 analog outputs, maximizing cabinet efficiency.
Discrete State Monitoring (FBM207b & FBM207C): Safely managing discrete logic is critical for plant safety. The Foxboro FBM207b and FBM207C operate as 16-channel voltage monitor/discrete input modules. They feature robust galvanic isolation, making them the standard for reading switch states, valve limits, and motor control center (MCC) feedback without risk of signal degradation or ground loops.

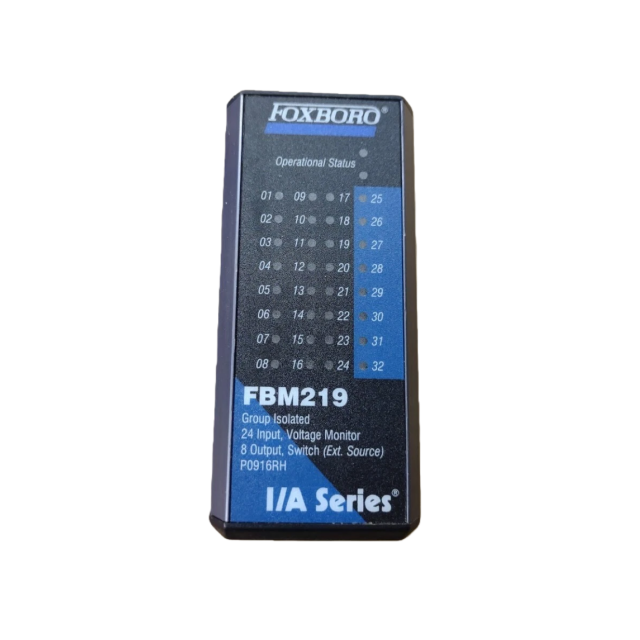

High-Density Control (FBM219 & FBM242): For complex sequencing and batch logic, the Foxboro FBM219 acts as a high-density workhorse, offering 24 discrete inputs and 8 discrete outputs. Conversely, the Foxboro FBM242 is an externally sourced discrete output module. It is specifically designed to provide the robust switching power necessary to drive field solenoids, relays, and heavy-duty contactors.

Strategic Global Supply Chain

Managing the lifecycle of a comprehensive DCS architecture requires a supply chain immune to extended OEM lead times. We leverage our extensive global network of distributors to deliver fully vetted, factory-calibrated Foxboro FBMs. Every module undergoes stringent communication verification and load testing prior to dispatch. By partnering with us, you secure a dependable pipeline of replacement parts, drastically reducing Mean Time to Repair (MTTR) and protecting your capital infrastructure from forced obsolescence.

Foxboro FBM Technical & Operational FAQs

1. What is the fundamental difference between the FBM201 and the FBM204?

The Foxboro FBM201 is strictly an input module, featuring 8 analog input channels for reading sensor data. The Foxboro FBM204 is a hybrid I/O module, containing 4 analog inputs and 4 analog outputs. The FBM204 is ideal for closed-loop control applications where you need to read a process variable and drive a control valve from the same module.

2. Are the FBM207b and FBM207C interchangeable?

While both are 16-channel discrete input modules, they handle different voltage thresholds and contact wetting requirements. The Foxboro FBM207b is typically configured for 24 V DC contact sensing, whereas the Foxboro FBM207C is often utilized for higher voltage states (such as 48 V DC or specific 120 V AC applications, depending on the termination assembly). Always match the module suffix to your specific field voltage design.

3. Can I hot-swap a Foxboro FBM219 while the system is running?

Yes. The Foxboro 200 Series FBMs, including the Foxboro FBM219, are designed for hot-swapping under live power. You can safely remove and replace a module on the baseplate without disrupting the power or communication to adjacent modules. However, you must first ensure that the process loop is placed in manual or safely bypassed in the DCS to prevent a nuisance trip when the outputs drop.

4. Why does the FBM242 require an external power source?

The Foxboro FBM242 is an "externally sourced" discrete output module. This means the DCS backplane provides the logic to open or close the circuit, but the actual power driving the field device (like a heavy solenoid) comes from a separate, external power supply wired to the termination assembly. This protects the sensitive DCS backplane from high electrical loads and potential field short-circuits.

5. How do I clear a "Red LED" communication fault on a newly installed FBM201?

A solid red LED indicates a communication failure with the Fieldbus Communications Module (FCM). First, ensure the module is fully seated on the baseplate. If the physical connection is secure, check your control system software (Foxboro System Manager); the new module may need to be "commissioned" or have its equipment control block (ECB) downloaded to synchronize it with the active control station.
