Optimizing Space and Reducing Infrastructure Costs
In the pursuit of leaner, more efficient manufacturing environments, the physical layout of a control system is as critical as the logic it executes. The Allen Bradley 1794 series, popularly known as FLEX I/O, is a highly versatile, distributed I/O system that allows engineers to move I/O modules away from the central control cabinet and closer to the field sensors and actuators.
This decentralized approach significantly reduces wiring costs, simplifies troubleshooting, and minimizes cabinet footprints. As a specialized global supplier, we provide the complete Allen Bradley 1794 ecosystem—from network adapters to high-density analog modules—ensuring that your facility in 2026 can maintain its competitive edge through scalable and reliable automation.
The Architecture of FLEX I/O
The Allen Bradley 1794 system is built on a three-piece modular design: the Network Adapter, the Terminal Base, and the I/O Module. This configuration allows for maximum flexibility during both the initial installation and long-term maintenance.

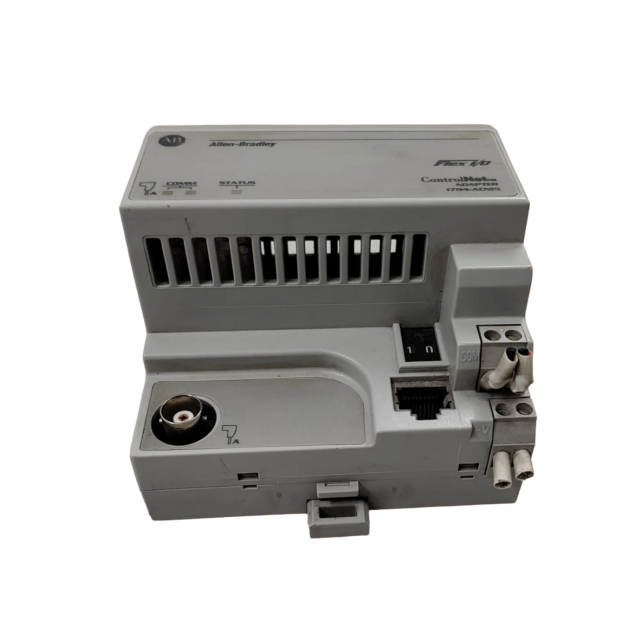

The Network Adapter: This module serves as the communication gateway for the entire FLEX I/O bank. Whether your facility utilizes modern EtherNet/IP (1794-AENTR), legacy Remote I/O (1794-ASB), or ControlNet (1794-ACN15), the adapter ensures deterministic data exchange between the field devices and the central Logix or PLC-5 controller.
The I/O Modules: The 1794 family offers an expansive range of digital, analog, and specialty modules. High-density options such as the 1794-IB16 (16-point digital input) or precision modules like the 1794-IE8 (8-channel analog input) allow for granular control over a wide variety of process variables.
Strategic Reliability for Critical Operations
For procurement managers and maintenance leads, the Allen Bradley 1794 series represents a "life-cycle proof" investment. Its ability to bridge the gap between legacy and modern networks makes it an ideal choice for phased plant upgrades.
We specialize in providing fully tested and verified FLEX I/O components that meet original OEM specifications for vibration resistance and thermal performance. By maintaining a robust global inventory, we help you reduce Mean Time to Repair (MTTR) and protect your production lines from the risks of component obsolescence.
Allen Bradley 1794 Technical & Operational FAQs
1. Does the Allen Bradley 1794 system support Removal and Insertion Under Power (RIUP)?
Yes. One of the primary advantages of the Allen Bradley 1794 series is that it supports RIUP. This allows maintenance teams to replace a faulty I/O module while the rest of the FLEX I/O bank remains powered and communicating. This feature is essential for continuous process industries where shutting down a whole rack for a single module failure is not an option.
2. How do I choose the correct Terminal Base for my 1794 module?
The choice of terminal base depends on the module type and wiring requirements. For example, a 1794-TB3 is a standard 3-wire base often used for digital modules, while a 1794-TBN might be used for modules requiring a fused power source. Always cross-reference the module’s technical data sheet to ensure the base provides the necessary common and power terminals.
3. Can I mix different types of I/O modules on the same FLEX I/O backplane?
Absolutely. You can mix digital, analog, and specialty modules (like thermocouple or high-speed counter modules) on the same communication adapter. The only constraint is the total power draw from the backplane and the maximum number of modules supported by the network adapter (typically up to 8 modules per adapter).
4. Why is my 1794-AENTR adapter reporting a "module configuration" fault?
This error often occurs if the "electronic keying" in the controller software (Studio 5000 or RSLogix) does not exactly match the hardware revision or series of the physical module. To resolve this, verify the series (e.g., Series A vs. Series B) on the module’s label and update the module profile in your project tree accordingly.
5. Is the 1794 FLEX I/O system rated for use in hazardous areas?
Many Allen Bradley 1794 modules are rated for Class I, Division 2 hazardous locations (Groups A, B, C, and D). However, you must ensure that the entire assembly—including the terminal base and any external power supplies—is installed according to the specific environmental and safety guidelines for your region.
