In the demanding world of high-speed rotating equipment—such as steam and gas turbines, hydro-generators, and large-scale centrifugal compressors—even the slightest mechanical deviation can lead to catastrophic failure.

The Epro System, originally developed under the Philips brand and now a vital part of the Emerson machinery health portfolio, is recognized globally as a leader in non-contact displacement and vibration measurement. As a dedicated manufacturer and global supplier, we provide the full spectrum of Epro System hardware, specifically the industry-leading Epro Eddy Current Sensor series, ensuring that your facility maintains the highest levels of operational safety and API 670 compliance.

The Science of the Epro Eddy Current Sensor

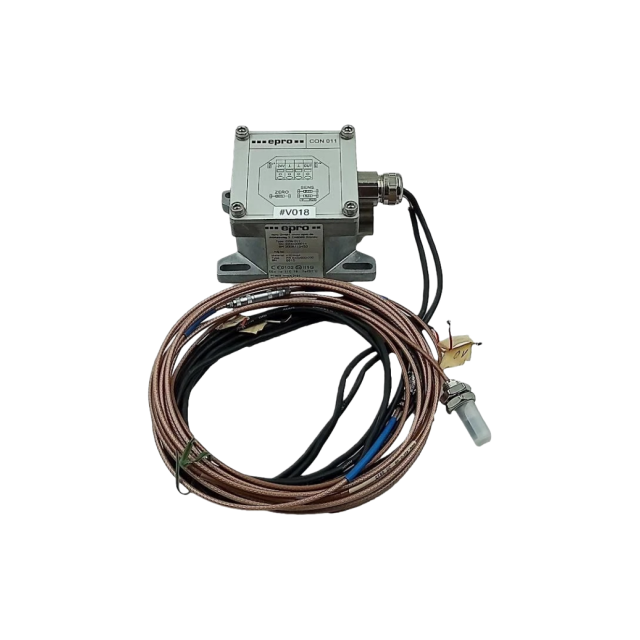

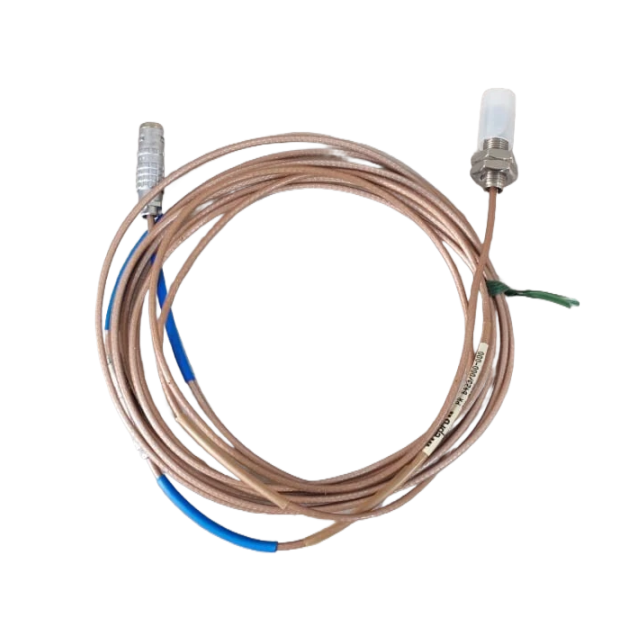

The Epro Eddy Current Sensor (notably the PR6422, PR6423, PR6424, and PR6426 series) is the fundamental tool for measuring shaft vibration and axial position without physical contact. These sensors operate on the inductive eddy current principle, where an electromagnetic field is generated at the sensor tip. As the conductive target (the machine shaft) moves, it creates eddy currents that change the amplitude of the oscillations in the sensor’s driver circuit.

Ruggedized for Extremes: Epro sensors are built to withstand the "hot-end" environments of turbines, featuring hermetically sealed tips and stainless-steel housings that resist high pressure and chemical exposure.
Interchangeability: The "MMS" architecture allows for easy sensor replacement and calibration, ensuring that maintenance teams can swap components without re-engineering the entire monitoring loop.

The MMS 6000: A Comprehensive Monitoring Solution

An Epro System is rarely just a sensor; it is an integrated diagnostic environment. The MMS 6000 (Machine Monitoring System) is the rack-based architecture that processes signals from these sensors. It provides real-time data on:

Relative Shaft Vibration: Monitoring the orbital path of the shaft within its bearings.
Axial Thrust Position: Ensuring the shaft does not migrate longitudinally, which could lead to internal contact.
Eccentricity and Speed: Critical measurements during the startup and "slow-roll" phases of turbine operation.

Strategic Supply for Industrial Longevity

For plant managers in the European and American energy and manufacturing sectors, the Epro System represents a legacy of reliability. However, as original equipment manufacturers consolidate, finding high-quality, fully compatible replacement parts for the MMS 6000 or MMS 3000 systems can become a procurement bottleneck.

We act as your strategic partner, maintaining an extensive inventory of Epro Eddy Current Sensors and monitoring modules. Every component undergoes rigorous diagnostic testing to verify its frequency response and thermal stability, ensuring your machinery protection remains uninterrupted and your asset lifecycle is maximized.

Epro System & Sensor Technical FAQs

1. What is the difference between the PR6423 and PR6424 eddy current sensors?

The primary difference lies in the measuring range and sensitivity. The PR6423 typically features an 8mm tip diameter and is optimized for a 2 mm measuring range with a sensitivity of 8 V/mm. The PR6424 has a 12mm tip, providing a larger measuring range (up to 4 mm) with a lower sensitivity (4 V/mm), making it ideal for machines with higher expected shaft displacement.

2. How do I calibrate the "Gap Voltage" for an Epro Eddy Current Sensor?

The gap voltage is the DC voltage output that represents the physical distance between the sensor tip and the shaft. For a standard 8 V/mm system, the center of the linear range is usually around 10 VDC. Using a voltmeter at the driver (converter) output, you should adjust the sensor position until the voltage matches the manufacturer’s specified "null" point for that specific target material.

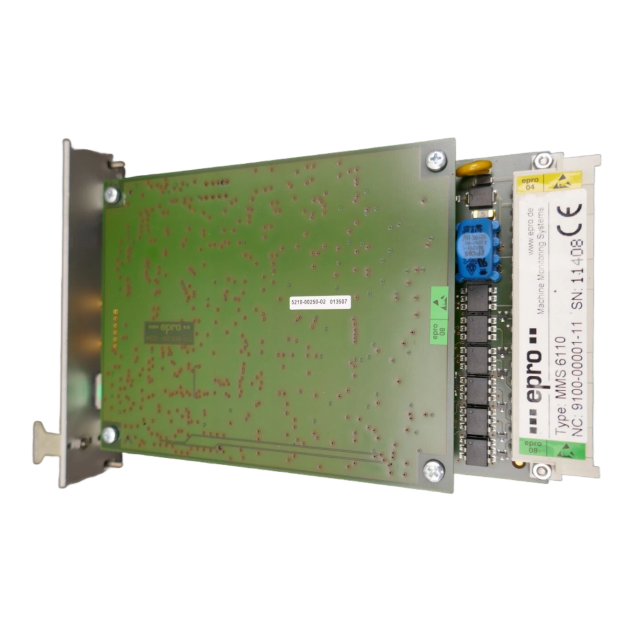

3. Why is the "Channel Fault" LED active on my MMS 6110 monitor?

On an Epro System, a channel fault usually indicates a "Sensor OK" violation. This means the DC bias voltage has moved outside the expected window (typically 2 V to 18 V). This is often caused by a broken cable, a loose connector at the signal converter, or the sensor being physically backed out of the bearing housing.

4. Can Epro sensors be used with non-standard target materials like stainless steel?

While Epro sensors are calibrated for standard 4140 steel, they can be used with other conductive materials. However, because different metals have different electrical conductivities, the sensitivity (V/mm) will change. If using non-standard materials, the system must be re-calibrated using a "micrometer spindel" to ensure the linear curve is accurately mapped in the monitor.

5. How does the Epro system handle signal interference in high-voltage environments?

Epro utilizes a "double-shielded" cable design and differential signal processing to reject electromagnetic interference (EMI). To ensure this protection works, the shield must be grounded at only one point (usually the rack end) to prevent ground loops that could introduce "ghost" vibration signals into your data.
