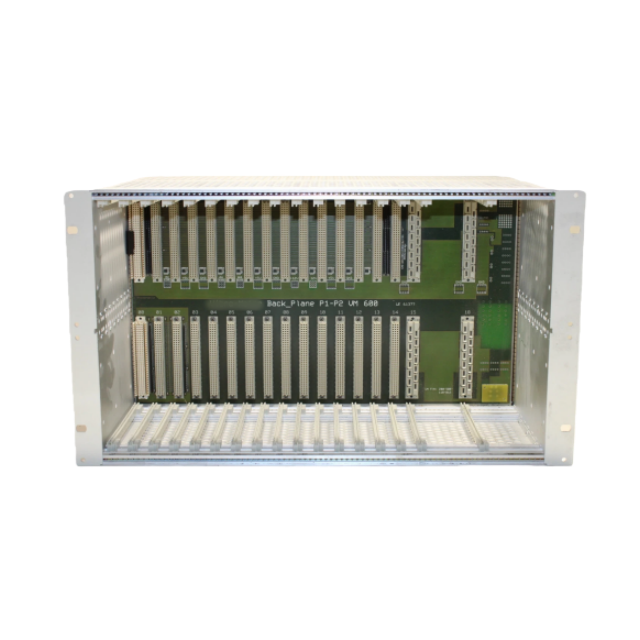

204-040-100-011 Rack Guide Wear: Fixing Module Insertion

When modules start resisting insertion into a VM600 rack, the assumption is often a bent pin or backplane fault. In my experience supporting vibration monitoring systems globally, the less obvious cause is guide rail wear on the 204-040-100-011 rack. This wear throws off alignment just enough to prevent proper seating, yet many teams miss it during inspection. Instead of replacing expensive modules or the entire rack, a systematic diagnosis of the guide surface and slot position can pinpoint the real failure and lead to a targeted, lower‑cost repair. This article explains how to identify rack guide wear, diagnose insertion failures, choose between repair and replacement, and source the exact guide component without extended downtime.

Spotting Rack Guide Wear Before Modules Fail

I inspect the guide rails first when a module does not seat cleanly. Look for bright metal where the anodized coating has worn away. That polished strip is the wear track. In one paper mill, the track was 0.15 mm deep and the CPUM card tilted just enough to lose contact with the backplane. The operators blamed the card. The real culprit was the worn guide.

Other signs: a scraping sound when sliding the module in, the module catching near the final 5 mm of travel, and uneven resistance between the top and bottom guides. If you see shiny edges on the module carrier frame, the rack guide is already transferring metal. A flashlight and a feeler gauge are all you need for a first check. Run the gauge along the guide surface. A step deeper than 0.1 mm is enough to cause insertion issues for precision connectors.

Step‑by‑Step Module Insertion Failure Diagnosis for the 204‑040‑100‑011 Rack

Diagnose the failure in three steps before ordering parts. This process works for any VM600 module — CPUM, MPC4, IOC4T, or the vibration cards.

First, remove all modules and shine a light into each slot. Look for debris, foreign material, or uneven wear on the plastic guide rails. Pay attention to the bottom rail; it carries more load and wears faster. Second, measure the insertion force. Use a spring scale attached to the module handle and pull it in slowly. A healthy rack requires 40–60 N. If you need more than 80 N and the connector pins are straight, the guide is binding. Third, verify the rack slot position by inserting a known‑good module — a spare CPUM 200-595-067-114 works well — and checking if it fully latches. If the module sits proud by even 0.5 mm, the guide geometry is off.

I have diagnosed racks where the wear had shifted the module alignment by only 0.3 mm, but that was enough to break the spring contact on the 96‑pin connector. The system showed intermittent communication faults. After swapping cards twice, the plant finally let me inspect the rack. The fix took an hour.

When to Repair vs. Replace the Rack Guide

A guide rail can be repaired if the wear depth is under 0.2 mm and the plastic insert is intact. I recondition rails by lightly sanding the high spots with 600‑grit paper and applying a thin PTFE dry lubricant. That brings the surface back to spec for a low‑cost repair. This works when the anodizing has worn but the aluminum substrate is still flat.

Replace the guide if you feel a ridge that catches a fingernail, or if the module wobbles side‑to‑side after full insertion. Severe wear often indicates a bent guide rail or deformed slot. In those cases, installing a new 204‑040‑100‑011 guide component is the only safe path. Do not try to file down a deep groove; you will oversize the channel and the module will shift under vibration.

If the rack body itself is twisted or the mounting holes are elongated, replace the entire rack. A bent rack will wear new guides quickly. Joyoung stocks both the guide rail and the complete 204‑040‑100‑011 rack. We can ship from inventory to keep your downtime under a week.

If your rack runs in a high‑vibration environment or near a gearbox, the wear cycle may be shorter. It is worth confirming the correct replacement part number and lead time before an unexpected failure stops your process — contact chen@htechplc.com for a stock check on the guide component for your rack serial number.

Sourcing the Right 204‑040‑100‑011 Guide Component and Compatible Modules

The 204‑040‑100‑011 rack matches the 204‑040‑100‑012 backplane and a range of VM600 modules. When sourcing a replacement guide, you need the exact part that fits your rack version. Some early racks use a slightly different guide clip design. We cross‑reference your rack serial number to ensure correct fit.

Below are the modules that most often seat in this rack. If you need any of these together with the guide component, we can supply them from one shipment.

Ordering a full kit — rack, guide, and the most common cards — reduces freight cost and arrival time. For users maintaining a spare rack on standby, I recommend keeping two extra guide rails. They are small, inexpensive, and the most common failure point in the entire mounting system.

Preventing Future Rack Guide Wear in VM600 Systems

Prevention starts with module handling. Never force a card that does not slide in smoothly. I teach our clients to insert modules with two hands, pressing evenly on both handles until the latch clicks. Twisting the card during insertion puts lateral load on the plastic guides and accelerates wear.

Schedule a guide inspection every 12 months or 8,000 operating hours — whichever comes first. In dusty environments, clean the rails with a dry cloth and compressed air every quarter. Grease is not recommended; it traps dirt and forms a grinding paste. If you need lubrication, a dry PTFE film works without attracting contaminants.

Control cabinet vibration levels. Excess vibration shakes the module, and the guide rails see cyclic loading that speeds up fretting wear. I have seen guide rails fail in under two years on a diesel generator skid where the cabinet was hard‑mounted. Simple rubber isolators under the rack mounting feet extended guide life threefold.

Finally, stock a replacement guide in your critical spares inventory. The part is far cheaper than an emergency module replacement. Joyoung can help you build a VM600‑specific spares list based on your installed base.

Common Questions About 204‑040‑100‑011 Rack Guide Wear

What is the most common cause of module insertion failure in a VM600 rack?
Guide rail wear causes more insertion failures than backplane damage or connector faults. In my inspections, worn guides account for roughly 70% of cases where a module does not seat fully. The plastic guide surface erodes over hundreds of insertion cycles, and the module loses its pre‑aligned path. Before suspecting a pin or backplane issue, always examine the guide rails first.

Can I swap a 204‑040‑100‑011 rack from another system without re‑alignment?
Not reliably. Even if the rack looks identical, manufacturing tolerances stack differently. I always check the slot depth and guide parallelism with a simple gauge block when moving a rack. If the rack came from a system that ran a lighter module set, the wear pattern will differ. A quick check with a known‑good module saves hours of troubleshooting later.

How fast can Joyoung supply a replacement guide component?
Most guide components and 204‑040‑100‑011 racks ship within 24 hours of order confirmation from our stocked inventory. Express delivery to Asia, Europe, and the Americas typically takes 3–5 business days. For critical line‑down situations, we can arrange dedicated freight. Email your part number and delivery deadline to chen@htechplc.com, and we will confirm the exact shipment schedule.

Is it safe to reinstall a module that was difficult to insert?
Do not reinstall it until you inspect the rack guide and the module connector. A card that required excessive force may have stressed solder joints on the backplane or damaged the guide rail enough to misalign the next card you insert. Pull the module, check for scuff marks on the carrier frame, and run a feeler gauge along the guide. If the guide is worn, replace it before installing any module. If you are unsure about your rack condition, send us a photo of the guide surface and we will help assess the wear before you order parts — reach out at chen@htechplc.com or +86‑181‑5013‑7565.
