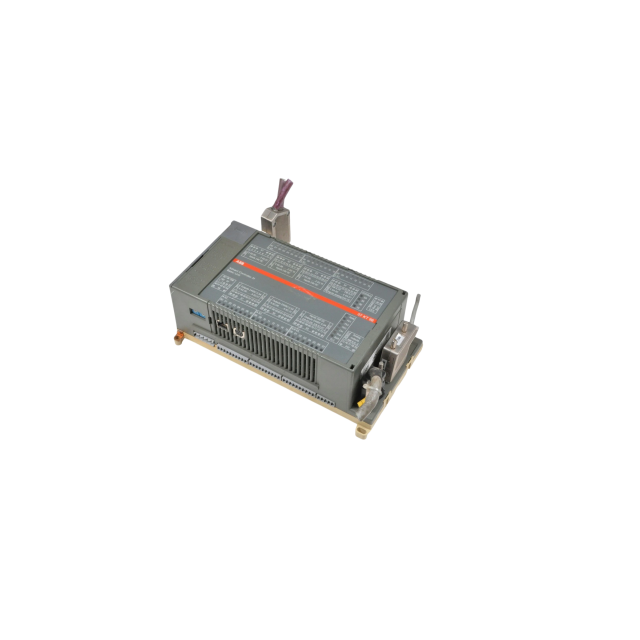

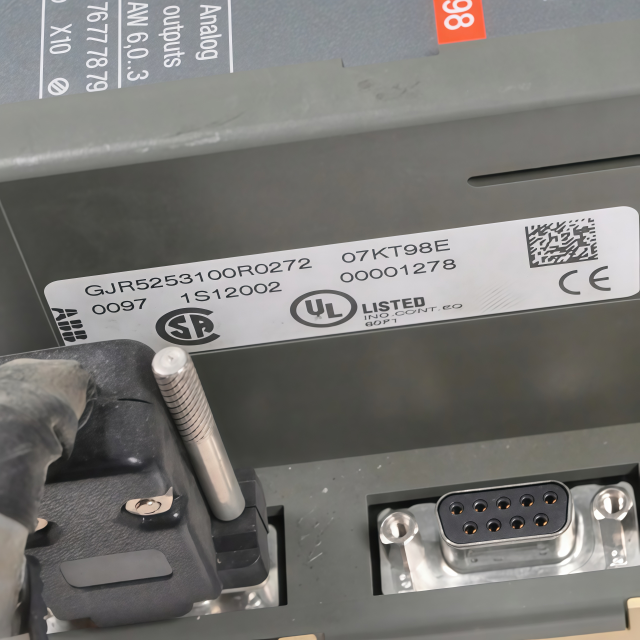

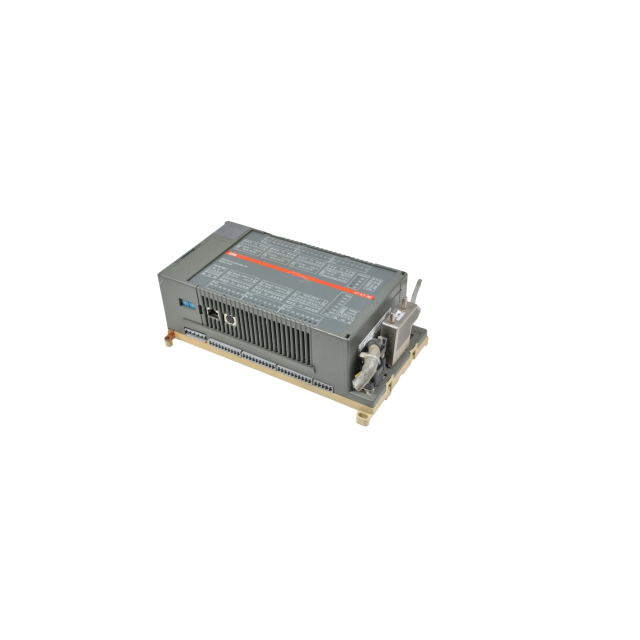

07KT98 GJR5253100R0272 Advantages
The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module has multiple prominent advantages compared with conventional AC31 controllers plus external Profibus coupler hardware. Software‑selectable Profibus‑DP master / slave dual‑mode function. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module allows users to switch between Profibus‑DP master station for driving DP slaves or DP slave station for linking to upper‑level DP master via parameter configuration, adapting to diverse Profibus network architecture requirements without hardware modification. Integrated all‑in‑one hardware design. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module integrates CPU, mixed I/O circuits and galvanically isolated Profibus‑DP transceiver within single unit, saving cabinet installation space and reducing additional spare‑part inventory costs. Rich native signal processing channels. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module carries complete digital and analog terminals compatible with transmitters and Pt100 temperature sensors, together with dual high‑speed counter channels for encoder positioning applications. Multi‑interface collaborative communication capability. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module is equipped with Profibus‑DP port, CS31 fieldbus and dual RS232 serial ports simultaneously, supporting interconnection with remote AC31 I/O, HMI, inverters and third‑party Profibus‑DP automation devices. Full‑link real‑time hardware self‑diagnosis. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module features front‑panel LED indicators for power, run status, I/O channel faults and Profibus‑DP bus errors, rapidly locating bus short‑circuit, station loss and channel failure faults to shorten on‑site maintenance downtime. Native Procontic AC31 system matching design. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module is factory original supporting hardware, seamlessly docking all AC31 ECZ base units and expansion I/O modules without extra signal conversion adapters.
07KT98 GJR5253100R0272 Applications
Power Industry. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module acts as auxiliary control station controller for thermal power plants, running as Profibus‑DP master to collect field device signals or DP slave exchanging data with plant main DCS system, completing pump and valve interlock control logic. Chemical Plants. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module is deployed on reaction kettle and pipeline automation stations, realizing closed‑loop regulation of liquid level, pressure and concentration, and exchanging process data with Profibus‑DP field instruments and drive equipment. Papermaking Workshops. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module controls drying and calendering section auxiliary equipment, processing roller pressure analog signals and encoder pulse data, conducting high‑speed data interaction with Profibus‑DP inverters for production line speed adjustment. Metallurgy Sites. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module undertakes cooling water station automatic control, monitoring furnace Pt100 temperature signals and executing pump‑group interlock protection, realizing data upload to central control system via Profibus‑DP bus. Water Treatment Projects. The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module forms decentralized monitoring stations for sewage pools, collecting PH and liquid level analog data, adjusting dosing valves and drainage pumps, and interconnecting with Profibus‑DP remote I/O stations.
07KT98 GJR5253100R0272 Certifications & Compliance
The ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module passes the following international industrial electrical safety and compliance certifications:
• CE Certification — European industrial equipment safety and electromagnetic compatibility approval.
• RoHS Certification — Restriction of hazardous substances standard for electronic and electrical hardware.
• IEC 61131 Series — International unified standard for industrial programmable control equipment.
• EN 50170 — Profibus‑DP fieldbus standard compliance.
All ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module we supply are 100% new original ABB factory parts. Every ABB 07KT98 GJR5253100R0272 Profibus DP Master Or Slave Module undergoes full I/O, CS31 bus and Profibus‑DP master/slave functional testing before delivery, packed with professional anti‑static, shockproof and dustproof packaging, and enjoys a one‑year global warranty starting from delivery date.
