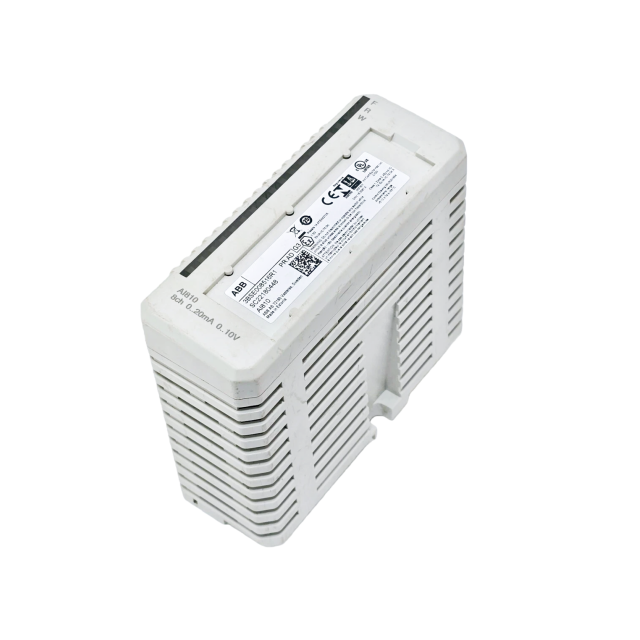

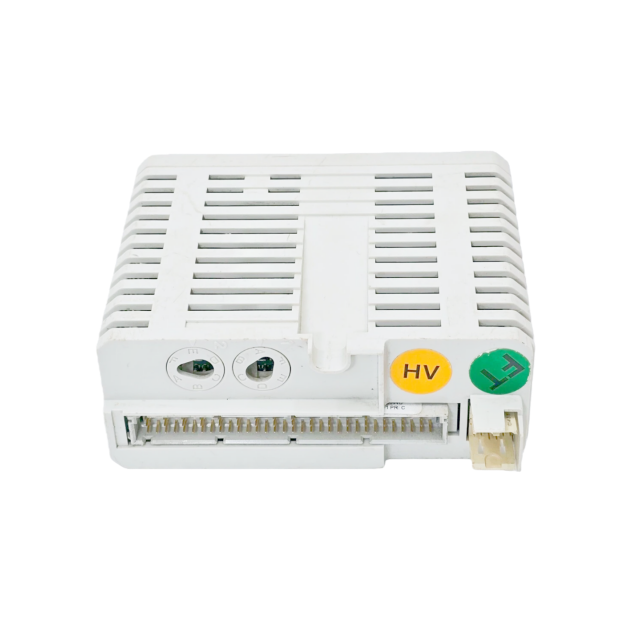

Basic Product Information
Product Classification: I-O_Module (Analog Input Module)

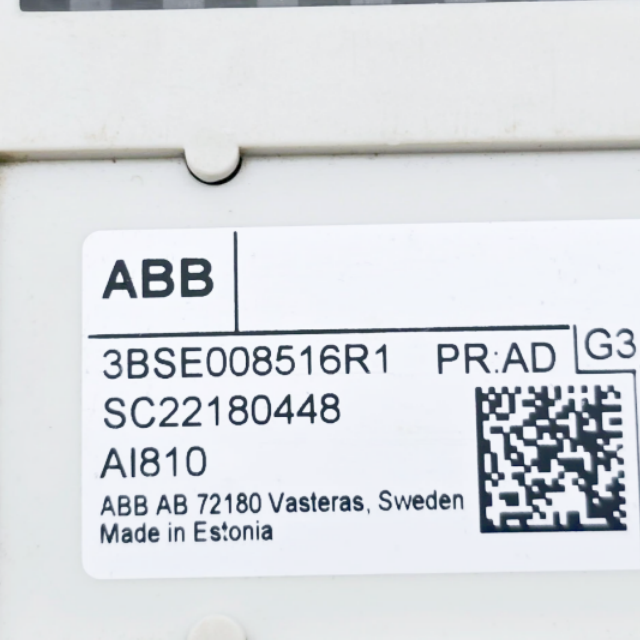

ABB Type Designation: AI810
Product ID: 3BSE008516R1
Catalog Description: AI810 Analog Input 8 ch; 0(4)..20mA, 0..10V, 12Bit, single ended
Key Compatibility Note: Must be used with specified Module Termination Units (MTUs), including TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, and TU850 (for proper wiring, signal termination, and system integration)
Product Categories:
Control System Products ￫ I/O Products ￫ S800 I/O ￫ S800 I/O - Modules ￫ AI810 Analog Inputs ￫ AI810 Analog Input
Control Systems ￫ 800xA ￫ I/Os ￫ S800 I/O (supports versions 4.0, 4.1, 5.0, 5.1, and 800xA 6.0 System)
Control Systems ￫ Advant OCS (with Master SW/MOD 300 SW) ￫ I/Os ￫ S800 I/O ￫ I/O Modules
Control Systems ￫ Compact Product Suite ￫ I/Os ￫ S800 I/O (supports versions 4.1, 5.0, 5.1)
Measurement and Analytics ￫ Force Measurement ￫ Thickness Gauging (for PMG100* series systems, paired with PMGA11*/PMGA12* control units and PMGG123 gauge heads)
Core Specifications
1.I/O Channel Configuration
Channel Type: Analog Input (AI)
Number of Input Channels: 8 (independent channels for simultaneous signal acquisition)
Number of Output Channels: 0 (dedicated analog input module, no output functionality)
Supported Input Signals:
Current signals: 0–20 mA DC, 4–20 mA DC (standard industrial current ranges for transmitters)
Voltage signals: 0–10 V DC (common voltage range for sensors and transducers)
Signal Configuration: Single-ended (simplified wiring, suitable for most industrial applications)
Resolution: 12-bit (ensures sufficient precision for general-purpose analog measurement tasks)
2.Physical Dimensions & Weight
Product Net Depth/Length: 102 mm
Product Net Height: 119 mm
Product Net Width: 45 mm (compact form factor for high-density installation in S800 I/O racks)
Product Net Weight: 0.2 kg (lightweight design reduces rack load and eases handling during installation)
3.Customs & Regulatory Compliance
HS Code: 853890 (classified as "Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37 - Other")
Customs Tariff Number: 85389099
RoHS Status: Compliant with EU Directive 2011/65/EU (restricts use of hazardous substances, ensuring environmental safety)
WEEE Category: 5 (Small Equipment, defined as equipment with no external dimension exceeding 50 cm, facilitating proper waste recycling)
Number of Batteries: 0 (no internal batteries required; operates via system power, reducing maintenance needs)
Key Application & Functional Notes
System Integration: Designed specifically for ABB’s S800 I/O platform, enabling plug-and-play compatibility with 800xA, Advant OCS, and Compact Product Suite control systems. It leverages the S800 I/O backplane for data transmission and power, eliminating the need for external wiring between the module and controller.
Termination Requirement: The mandatory use of specified MTUs (e.g., TU810, TU830) ensures proper signal grounding, noise suppression, and wiring management—critical for maintaining signal integrity in industrial environments with electromagnetic interference (EMI).
Industrial Suitability: Ideal for general-purpose analog measurement tasks, such as monitoring pressure, level, flow, or temperature (via compatible transmitters), and supports integration into thickness gauging systems for quality control in manufacturing processes.
