Basic Product Identification

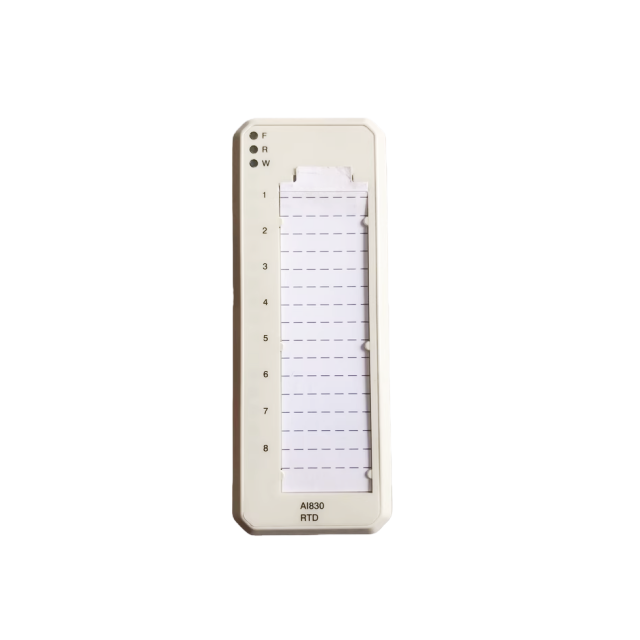

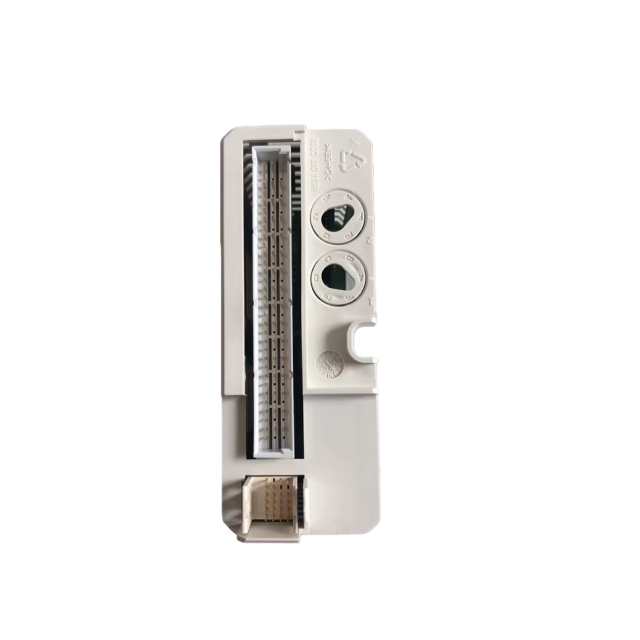

The AI830 (Product ID: 3BSE008518R1) is an analog input module developed by ABB, typically
categorized under the brand’s S800 I/O or AC 800M control system product lines. It is designed to
acquire and process analog signals from industrial field devices (such as sensors, transmitters),
converting continuous physical quantities (e.g., temperature, pressure, flow) into digital signals for
transmission to upper-level controllers, supporting precise monitoring and control of industrial
processes.
Key Technical & Operational Specifications
Input Signal Type: Likely supports standard industrial analog input signals, such as 4–20 mA DC
(current) or 0–10 V DC (voltage), with compatibility for 2-wire or 4-wire transmitters to adapt to
diverse field sensor configurations.
Number of Channels: Common configurations for AI-series modules include 4 or 8 independent
analog input channels, enabling simultaneous acquisition of multiple analog signals to reduce system
hardware footprint.
Accuracy & Resolution: Typically features high measurement accuracy (e.g., ±0.1% of full scale) and
16-bit or higher ADC resolution, ensuring precise capture of small signal variations for reliable
process monitoring.
Isolation: May incorporate galvanic isolation between channels and between the module and
backplane (e.g., 500 V DC isolation voltage) to prevent ground loops, electromagnetic interference
(EMI), and signal crosstalk, enhancing system stability.
Environmental Adaptability: Designed for harsh industrial environments, with an operating
temperature range of -40°C to +70°C (-40°F to +158°F), resistance to vibration (compliant with IEC
60068-2-6) and shock (compliant with IEC 60068-2-27), and protection against dust and moisture
(typically IP20 for rack-mounted installation).
Compatibility: Expected to integrate with ABB’s AC 800M controllers and 800xA control system,
supporting seamless communication via the system backplane. It may also be compatible with ABB’s
configuration software (e.g., Control Builder M) for easy parameter setting, calibration, and diagnostic
monitoring.
Diagnostic Features: Likely includes built-in diagnostic functions, such as open-circuit detection for
input loops, over-range/under-range alerts, and module self-checks, with status LEDs (per channel or
module-level) to facilitate quick identification of fault causes and reduce maintenance time.
