Basic Product Information

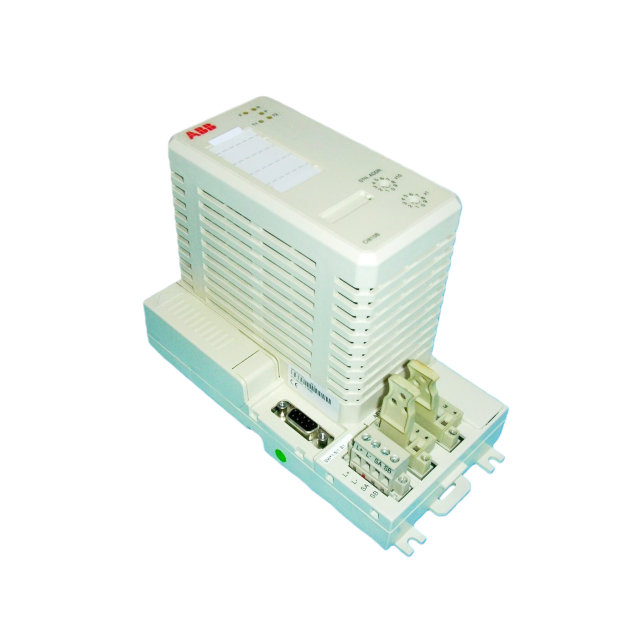

Product Classification: Communication_Module (AF 100 Fieldbus Communication Interface)

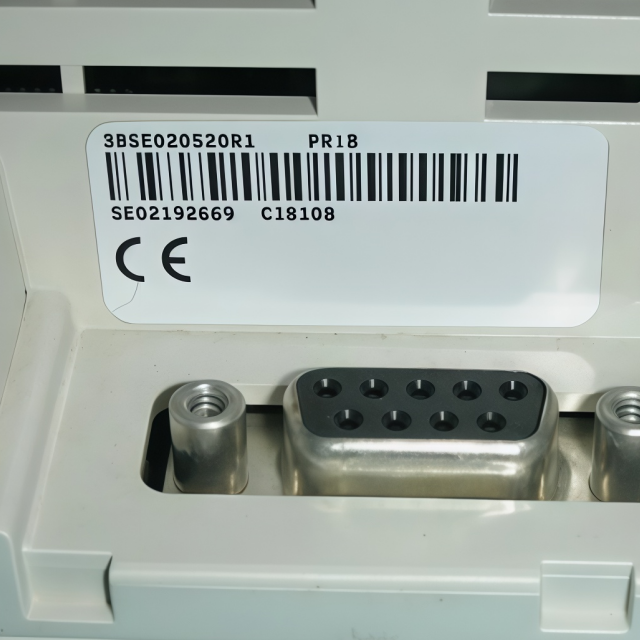

ABB Type Designation: CI810B
Product ID: 3BSE020520R1
Catalog Description: CI810B AF 100 Fieldbus Comm. Interface
Long Description: AF100 Fieldbus Communication Interface with 2×AF100 Twisted Pair Modems; includes 1 power supply connector (3BSC840098R1), 1 TB807 ModuleBus Terminator (3BSE008538R1), 2 terminal blocks (3BSC840098R1), 1 AF100 connector (3BSC840105R1), and basic system software version 1.5 preloaded.
Exchange Number: EXC3BSE020520R1 (for replacement/upgrade purposes).
Battery Requirement: 0 (no internal batteries; operates via external power supply).
Product Categories:
Control System Products ￫ Control & Communication ￫ Advant Common Hardware ￫ Advant Common - Communication Modules ￫ CI810B Advant Fieldbus 100 Interfaces ￫ CI810B Advant Fieldbus 100 Interface
Control Systems ￫ 800xA ￫ I/Os ￫ S800 I/O (supports versions 4.0, 4.1, 5.0, 5.1) ￫ Communication Modules
Control Systems ￫ Advant OCS (with Master SW/MOD 300 SW) ￫ I/Os ￫ S800 I/O ￫ Communication Modules
Control Systems ￫ Compact Product Suite ￫ I/Os ￫ S800 I/O (supports versions 4.1, 5.0, 5.1) ￫ Communication Modules
Core Specifications
1.Fieldbus & Communication Parameters
Fieldbus Protocol: Dedicated to Advant Fieldbus 100 (AF 100) — a proprietary industrial fieldbus standard optimized for process control data transmission.
Modems: 2×AF100 Twisted Pair (TP) Modems — enable communication over twisted-pair cabling, supporting long-distance signal transmission in industrial settings.
Software Preload: Basic system software version 1.5 preloaded — eliminates on-site software installation and ensures out-of-the-box compatibility with S800 I/O and 800xA systems.
ModuleBus Support: Integrates with the S800 I/O ModuleBus via the included TB807 ModuleBus Terminator — facilitates data exchange between the CI810B and connected I/O modules, enabling centralized control and monitoring.
2.Physical & Mechanical Specifications
Dimensions:
Product Net Height: 250 mm
Product Net Width: 158 mm
(Depth not explicitly provided; form factor optimized for mounting in S800 I/O racks).
Product Net Weight: 0.5 kg (lightweight design for easy installation and reduced rack load).
Included Components:
1×Power Supply Connector (3BSC840098R1) — for external power connection.
1×TB807 ModuleBus Terminator (3BSE008538R1) — ensures proper ModuleBus signal termination.
2×Terminal Blocks (3BSC840098R1) — for field wiring termination.
1×AF100 Connector (3BSC840105R1) — for AF 100 fieldbus connection.
3.Origin & Regulatory Compliance
Country of Origin: Estonia (EE)
HS Code: 851762 (Classified as "Other apparatus for transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network").
Customs Tariff Number: 85389091 (Consistent with industrial control system component classification).
WEEE Category: 5 (Small Equipment) — defined as equipment with no external dimension exceeding 50 cm, ensuring compliance with waste electrical and electronic equipment recycling regulations.
Key Functional Features
Plug-and-Play Integration: Preloaded software (version 1.5) and included hardware components (modems, connectors, terminator) enable quick setup — no additional software installation or hardware modifications required for compatibility with S800 I/O and 800xA systems.
Dual Modem Redundancy (Optional): The 2×AF100 TP Modems support redundant fieldbus configurations (when paired with additional AF 100 components) — minimizing downtime by switching to a backup modem if the primary one fails.
Centralized Wiring Management: Included terminal blocks and power supply connector organize field wiring and power connections, reducing installation complexity and the risk of wiring errors.
Advant Fieldbus 100 Optimization: Tailored for Advant Fieldbus 100 networks, ensuring high-speed, low-latency data transmission between field devices and the control system — critical for real-time process control.
