Basic Product Information
Product Classification: I-O_Module (Digital Output Module)

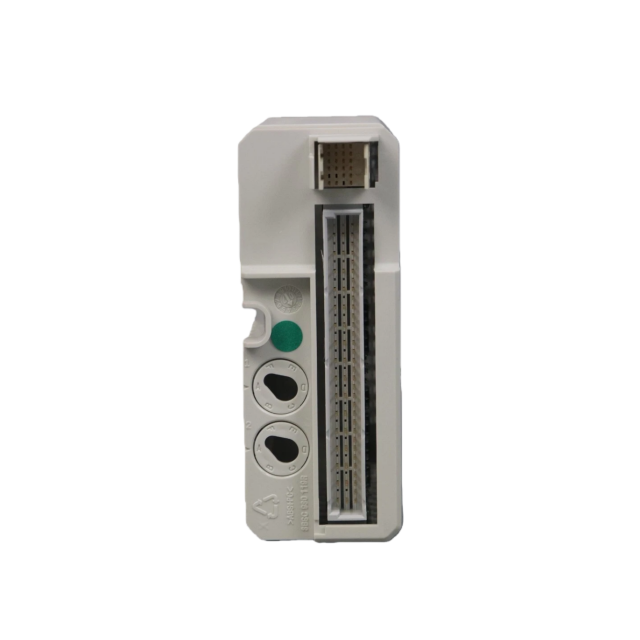

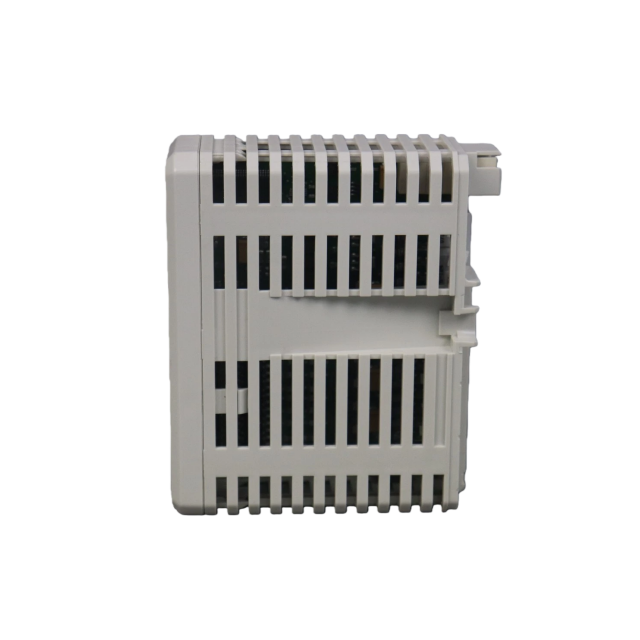

ABB Type Designation: DO810

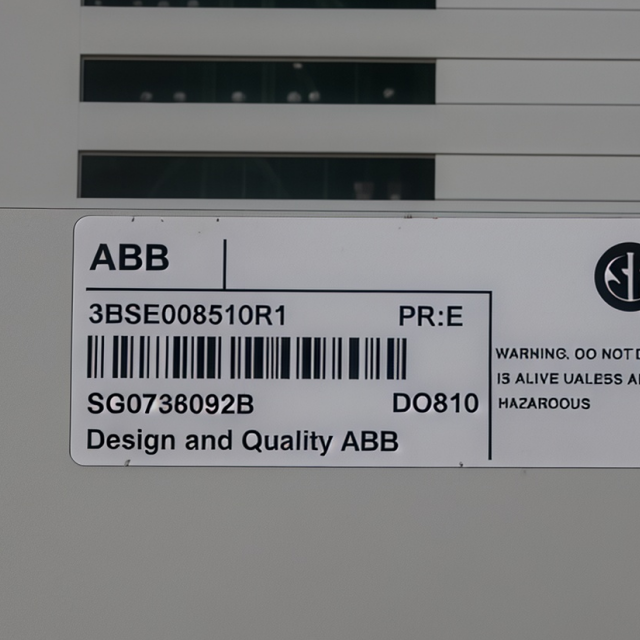

Product ID: 3BSE008510R1
Catalog Description: DO810 Digital Output 24V 16 ch
Medium Description: 24 V DC digital output module with 2 groups of 8 channels (total 16 channels), 0.5 A per channel, short-circuit proof, rated insulation voltage 50 V; must be used with specified Module Termination Units (MTUs) including TU810, TU812, TU814, and TU830
Exchange Number: EXC3BSE008510R1 (for replacement/upgrade purposes)
Product Categories:
Control Systems ￫ 800xA ￫ I/Os ￫ S800 I/O (supports versions 4.0, 4.1, 5.0, 5.1, and 800xA 6.0 System) ￫ I/O Modules
Control Systems ￫ Advant OCS (with Master SW/MOD 300 SW) ￫ I/Os ￫ S800 I/O ￫ I/O Modules
Control Systems ￫ Compact Product Suite ￫ I/Os ￫ S800 I/O (supports versions 4.1, 5.0, 5.1) ￫ I/O Modules
Measurement and Analytics ￫ Force Measurement ￫ Thickness Gauging ￫ Thickness Gauging PMG100* 3.1 ￫ Thickness Gauging Gauge Heads ￫ PMGG123 Gauge Head (for integration with thickness measurement systems)
Core Specifications
1.I/O Channel Configuration
Channel Type: Digital Output (DO)
Number of Output Channels: 16 (divided into 2 groups of 8 channels each for organized wiring and isolation)
Number of Input Channels: N/A (dedicated digital output module, no input functionality)
Output Voltage: 24 V DC (standard industrial voltage for actuators and switching devices)
Per-Channel Current Rating: 0.5 A (sufficient to power most low-to-medium current industrial actuators)
Key Protection Feature: Short-circuit proof design (prevents module damage if output channels are shorted to ground or other circuits)
Rated Insulation Voltage: 50 V (ensures electrical safety and isolation between channels and system components)
2.Physical Dimensions & Weight
Product Net Length: 150 mm
Product Net Height: 150 mm
Product Net Width: 75 mm (compact form factor optimized for high-density installation in S800 I/O racks)
Product Net Weight: 0.26 kg (lightweight design reduces rack load and simplifies handling during installation or replacement)
3.Origin & Regulatory Compliance
Countries of Origin: China (CN) and India (IN)
Customs Tariff Number: 85389091
RoHS Status: Compliant with EU Directive 2011/65/EU (restricts hazardous substances such as lead, mercury, and cadmium, ensuring environmental safety and sustainability)
WEEE Category: 5 (Small Equipment, defined as equipment with no external dimension exceeding 50 cm, facilitating proper waste sorting and recycling per WEEE regulations)
Number of Batteries: 0 (no internal batteries required; operates via system power, eliminating battery replacement maintenance)
Key Application & Functional Notes
System Integration: Designed exclusively for ABB’s S800 I/O platform, leveraging the S800 I/O backplane for power and data transmission. It enables plug-and-play compatibility with 800xA, Advant OCS, and Compact Product Suite control systems, reducing integration time and complexity.
Termination Requirement: Mandatory use of specified MTUs (TU810, TU812, TU814, TU830) ensures proper wiring management, signal grounding, and compatibility with field devices. MTUs also support additional features like power distribution for actuators.
Industrial Suitability: Ideal for controlling discrete actuators in process automation (e.g., solenoid valves for fluid control, relays for motor starters) and machine automation (e.g., indicator lights, small pumps). The short-circuit proof design enhances reliability in harsh industrial environments where wiring faults may occur.
Scalability: With 16 channels (split into 2 groups), the module supports scalable control setups—multiple DO810 modules can be installed in S800 I/O racks to meet the needs of large-scale automation systems.
