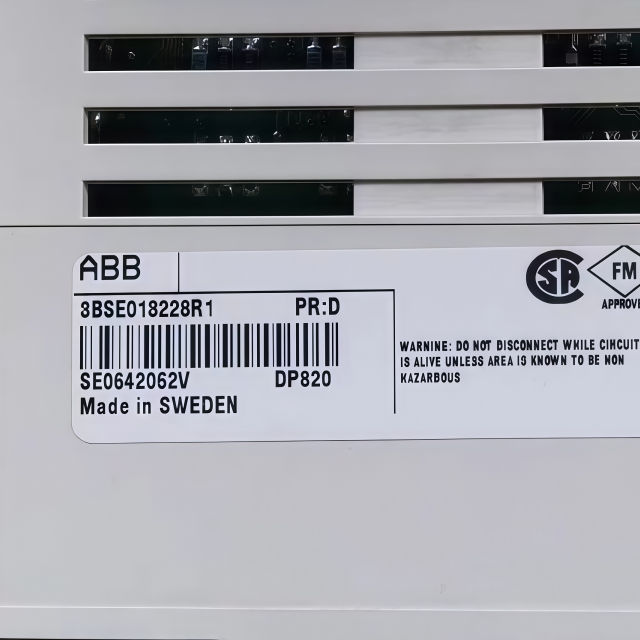

3BSE013228R1 DP820 Pulse Counting Module: Technical Overview
The 3BSE013228R1 DP820 is a high-performance two-channel pulse counting module designed for
ABB Compact Product Suite, specialized in processing signals from incremental pulse transmitters. It
enables simultaneous position/length measurement and speed/frequency detection, making it ideal
for industrial applications like motion control, material handling, and process monitoring.
Core Features & Benefits
Two independent channels, supporting pulse transmitters with RS422, +5 V, +12 V, +24 V, and 13 mA
interfaces.
Dual measurement capabilities: Bidirectional 29-bit counters for position/length accumulation, and
frequency/speed measurement ranging from 0.25 Hz to 1.5 MHz.
Per-channel hardware: Three balanced inputs for pulse transmitters, one digital input, and one digital
output, plus configurable sensor power current limiting via compatible MTUs.
Full galvanic isolation: Channels are isolated from each other and the circuit common to prevent
electrical interference and ensure measurement accuracy.
Wide compatibility with ABB Module Termination Units (TU810V1, TU812V1, TU814V1, TU830V1,
TU833) for flexible installation.
Technical Specifications
Electrical Parameters
Signal Specification: 24 V DC (12 – 32 V DC) supply; input impedance 2.5 kΩ (digital input).
Measurement Performance: Maximum frequency 1.5 MHz; frequency measurement error includes
relative error [320/(MEASTIMEx in ms)] ppm and absolute error [(320/(MEASTIMEx in ms) + 100] ppm
(temperature drift included).
Isolation: Individually isolated channels; rated insulation voltage 50 V; dielectric test voltage 500 V AC.
Power Consumption: Power dissipation 2.5 W; +5 V ModuleBus current consumption 120 mA; no
external +24 V current draw.
Field Cable Length: Maximum 200 meters (218 yards) for reliable signal transmission.
Environmental & Certification
Operating Temperature: 0 to +55 °C (+32 to +131 °F); approvals valid for +5 to +55 °C.
Storage Temperature: -40 to +70 °C (-40 to +158 °F).
Humidity: 5 to 95% non-condensing; Pollution Degree 2 (IEC 60664-1); Corrosion Protection ISA-
S71.04: G3.
Certifications: CE marked; Electrical safety (EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-
201); Hazardous Location (C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2); Marine certifications (ABS,
BV, DNV, LR); RoHS (DIRECTIVE/2011/65/EU) and WEEE (DIRECTIVE/2012/19/EU) compliant.

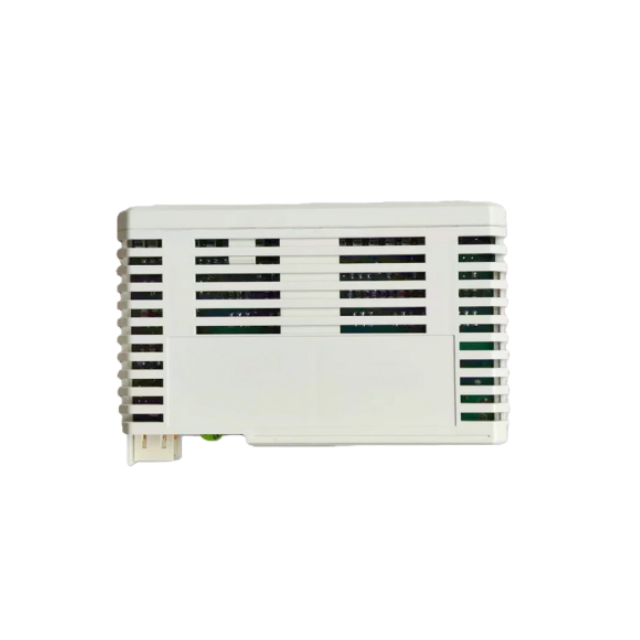

Mechanical Details
Dimensions: Width 45 mm (1.77”), Depth 102 mm (4.01”) (111 mm / 4.37” including connector),
Height 119 mm (4.7”).
Weight: 0.15 kg (0.33 lbs.).
Protection Class: IP20 (IEC 60529); Keying Code: CB.
Diagnostics & Supervision

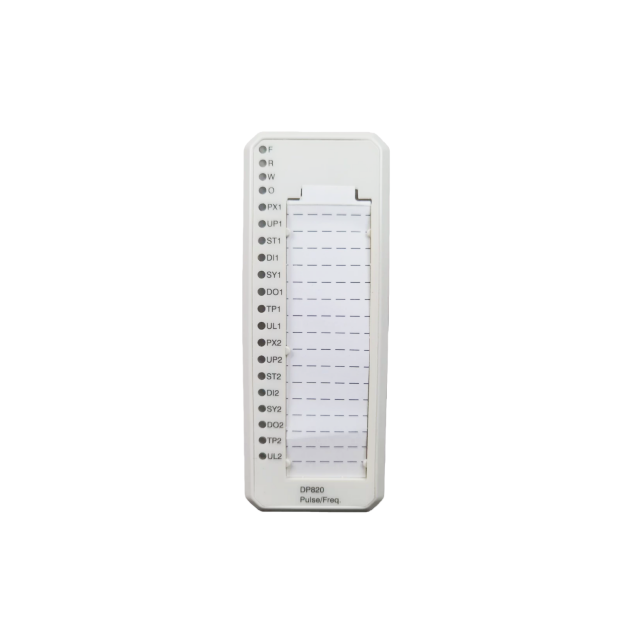

Front-Panel LEDs: Per-channel indicators for Pulse (PX), Direction (UP), Strobe (ST), Digital Input (DI),
Sync (SY), Digital Output (DO), and Transmitter Power OK (TP).
Supervision: Process voltage monitoring per channel; status indications for Module Error, Module
Warning, and Channel Error.
