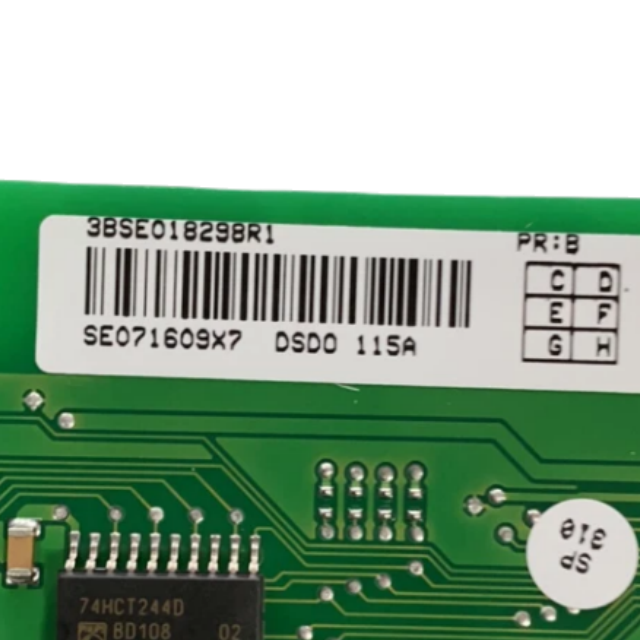

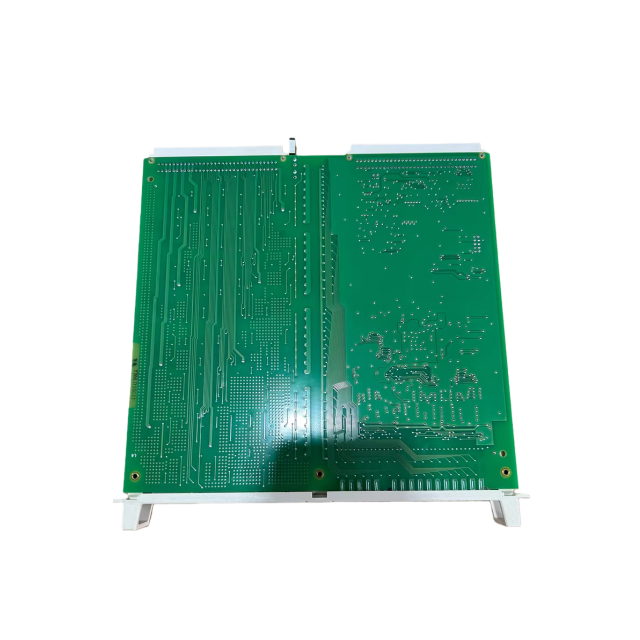

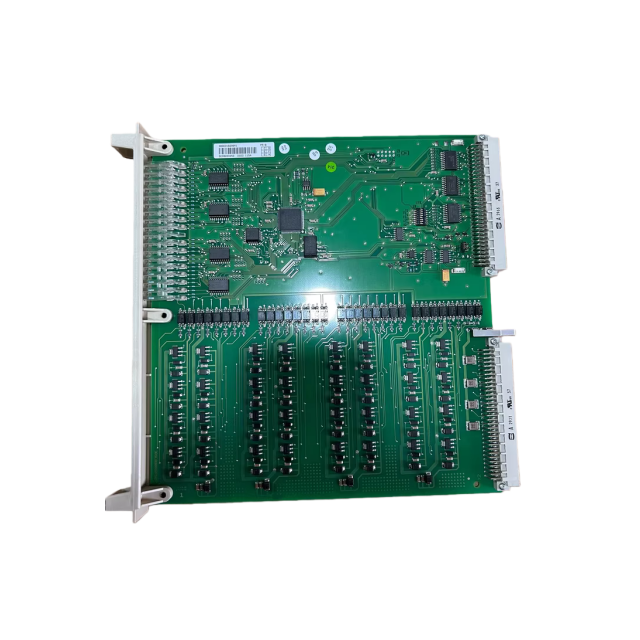

ABB DSDO 115A (3BSE018298R1) is a Digital Output Board for ABB systems, with 16 channels, 24VDC output, and isolation. It drives field actuators, ensures stable switching, meets standards, supporting reliable automation control.
Technical Description of DSDO 115A (Part Number: 3BSE018298R1)
1. Product Overview and Core Identity
The DSDO 115A (part number: 3BSE018298R1) is a 32-Channel Digital Output Board designed by ABB, belonging to the S100 I/O module family. It serves as a critical component in industrial control systems, converting digital control signals from upper-level controllers (e.g., ABB Advant Controller 450, MasterPiece 200) into electrical outputs to drive field devices such as relays, contactors, solenoids, or indicator lamps. Operating at 24 VDC with a maximum current rating of 0.5 A per channel, this board is optimized for low-to-medium power industrial applications, ensuring reliable signal transmission and device control in sectors like manufacturing, energy, and process automation.
Notably, the DSDO 115A is exempt from the RoHS Directive (2011/65/EU) under Article 2(4)(c), (e), (f), and (j), as specified in ABB’s EU Declaration of Conformity (document: 3BSE088609). This exemption applies to equipment used in industrial process control systems, aligning with its role in critical automation infrastructure.
2. Key Notes for Installation and Use
Mounting: Designed for rack mounting within ABB S100 I/O enclosures; follow ABB’s S100 I/O Installation Manual for proper alignment and wiring to avoid electrical faults.
Load Compatibility: Ensure connected field devices do not exceed the 0.5 A per channel current rating to prevent damage to the board or loads.
Exemption Documentation: Retain ABB’s EU Declaration of Conformity (3BSE088609) for regulatory compliance audits, as the product is RoHS-exempt.
WEEE Compliance: When decommissioned, dispose of the board in accordance with local WEEE regulations for electronic waste, as it falls under Category 5 (Small Equipment).
Physical & Environmental Tolerance
Dimensions: 216mm × 18mm × 225mm (255mm as alternative; compact form factor for dense rack installations, fitting standard industrial control cabinet layouts)
Weight: 0.35kg (0.12kg as alternative; lightweight design reduces rack load and simplifies on-site handling)
Installation: 35mm DIN rail (tool-less mounting for rapid deployment and module replacement)
Environmental Ratings:
Operating temperature: -25°C to +60°C
Storage temperature: -40°C to +85°C
Relative humidity: 5–95% (non-condensing)
Protection class: IP20 (suitable for control cabinets, preventing solid particle intrusion and direct water splashing)
Compliance: Meets EU directives 2014/30/EU (EMC) and 2014/35/EU (LVD); exempt from EU Directive 2011/65/EU (RoHS) per Article 2(4); electromagnetic immunity compliant with industrial-grade IEC 61000-6-2 standards.
▲Benefits
Fast Quotation & Quick Shipping
We offer full pre-sale and after-sale support to quickly address your needs.
Our staff works diligently to provide timely responses to all inquiries.
▲Warranty Service
One-year Warranty
Goods return is accepted for a hassle-free experience.
We keep our promises, ensuring customer satisfaction.
▲Our Advantages
Professional Service
Our experienced technical team provides expert sales support and maintenance services, backed by long-term warranty coverage to ensure the reliable operation of your equipment.
Extensive Inventory
We maintain a broad range of products in stock, including discontinued and rare items, to fulfill customer requirements in a timely manner.
Superior Market Insight
Through comprehensive global market analysis, we operate both physical and online stores, offering clients quality products at competitive prices in a short time frame.
Win-Win Business Philosophy
We uphold a win-win philosophy, fostering long-term and stable partnerships with clients for mutual growth.
Channel Configuration & Load Compatibility
Equipped with 16 independent digital output channels, grouped into 4 sets of 4 channels for organized load management, supporting simultaneous control of actuators like relays, solenoid valves, and indicator lights.
Compatible with 24V DC load voltage, with a maximum load current of 2A per channel—matching most low-voltage industrial control device requirements
Anti-Interference & Isolation Performance
Adopts optical isolation technology between output circuits and the main control unit, effectively blocking back electromotive force (EMF) from inductive loads and electrical noise.
Features ±8 kV contact discharge and ±15 kV air discharge electrostatic protection, avoiding component damage during installation, maintenance, or load switching.
Complies with IEC 61000-6-2 electromagnetic compatibility (EMC) standards, resisting interference from on-site frequency converters and high-voltage equipment.
Compact Design & Easy Installation
Slim 18mm height optimized for dense DIN rail mounting, saving space in control cabinets for multi-module configurations.
Tool-less 35mm DIN rail installation reduces on-site setup time, enabling quick module replacement during maintenance.
Lightweight design (0.35kg standard) minimizes rack load, suitable for large-scale control system layouts with multiple modules
