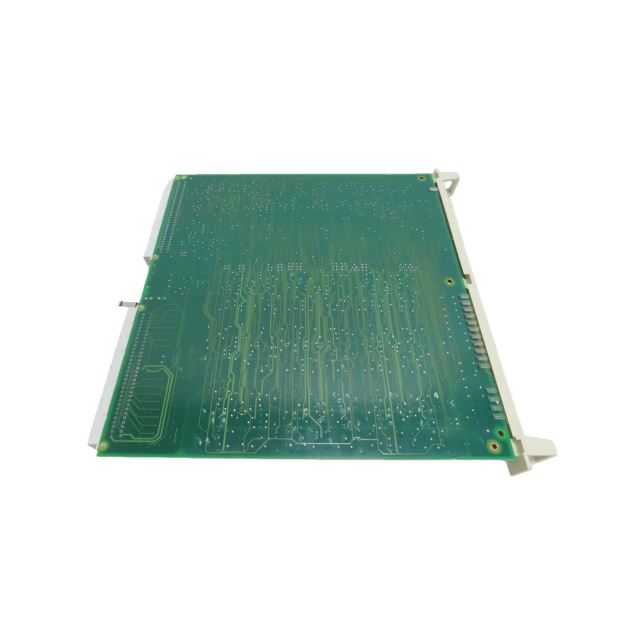

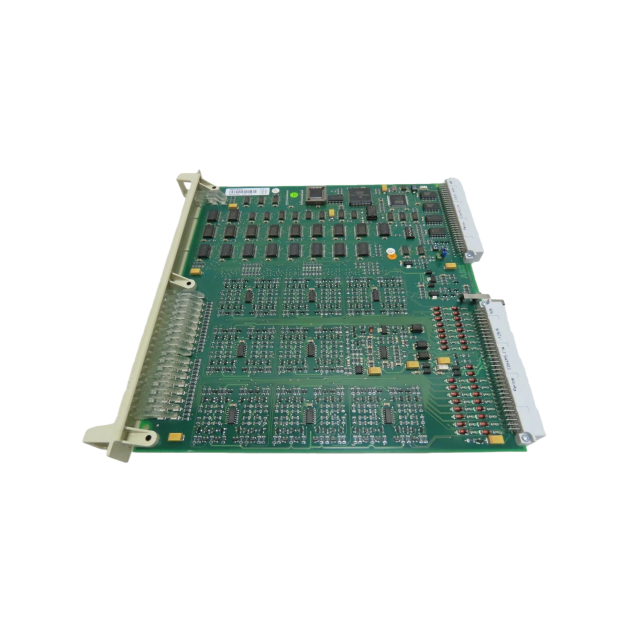

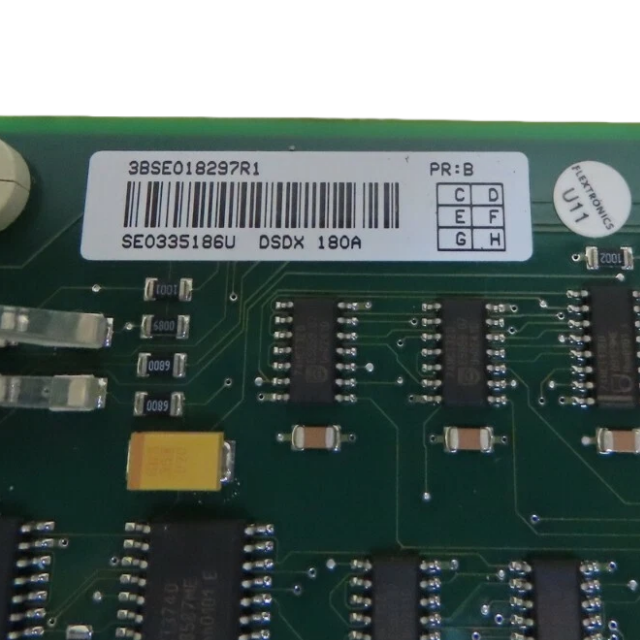

ABB DSDX 180 is a Digital Input/Output Board for ABB systems, combining input/output functions. It has multiple channels, 24VDC, isolation, enabling bidirectional signal handling, ensuring stable industrial automation control.
Dimensions: 225mm × 22mm × 235mm (compact form factor optimized for dense rack installations, fitting standard industrial control cabinet layouts without wasting space)
Weight: 0.45kg (lightweight design reduces overall rack load, simplifying on-site handling and reducing stress on mounting structures)
Installation: 35mm DIN rail (tool-less snap-on mounting enables rapid deployment, easy module replacement, and flexible system expansion)
Environmental Ratings:
Operating temperature: -25°C to +60°C (maintains stable performance in low-temperature industrial workshops and high-heat areas near production equipment)
Storage temperature: -40°C to +85°C (suitable for long-term storage in extreme climate warehouses without component degradation)
Relative humidity: 5–95% (non-condensing) (adapts to humid environments like chemical plants and water treatment facilities)
Protection class: IP20 (suitable for indoor control cabinets, preventing intrusion of solid particles larger than 12.5mm and direct water splashing)
Compliance: Meets EU directives 2014/30/EU (EMC) and 2014/35/EU (LVD); exempt from EU Directive 2011/65/EU (RoHS) per Article 2(4) (for industrial control components); electromagnetic immunity compliant with industrial-grade IEC 61000-6-2 standards.
Key Functional Features (Inferred from S100 I/O Family & Dual I/O Role)
Combined I/O Efficiency: Integrates digital input and output channels in one module, reducing the number of I/O units needed in S100 racks. This saves cabinet space and simplifies wiring (e.g., sharing power supplies for input and output circuits).
Industrial Reliability: Built to ABB S100 I/O standards, with tolerance for harsh industrial conditions—expected to operate in temperatures ranging from -20 °C to +60 °C (32 °F to 140 °F) and relative humidity of 5–95% (non-condensing). It likely complies with ISA-S71.04 G3 for corrosion resistance and EN 61000-6-2/4 for EMI immunity.
Spare Part Compatibility: Classified as a spare part, it is fully interchangeable with original DSDX 180 modules in existing S100 I/O installations. This ensures minimal downtime during maintenance or module replacement, as it requires no reconfiguration of the control system.
Diagnostic Support: Expected to include basic diagnostics (e.g., open/short circuit detection for outputs, signal loss detection for inputs) accessible via the connected ABB control system (e.g., 800xA), enabling technicians to quickly identify wiring or device faults.
