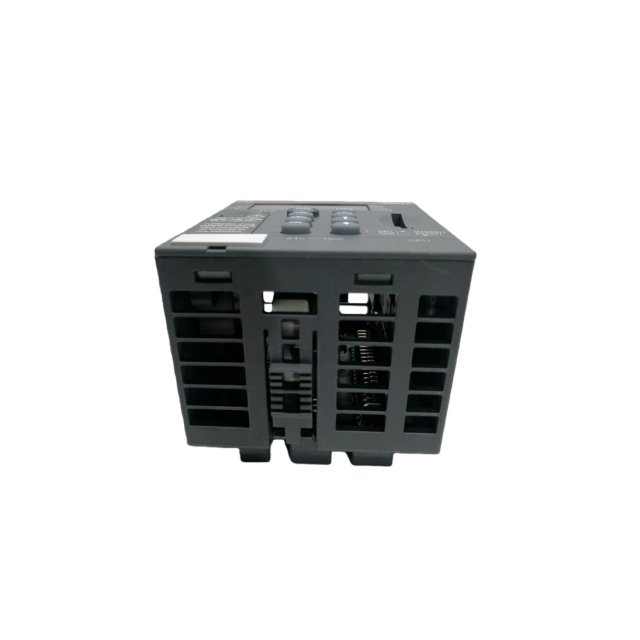

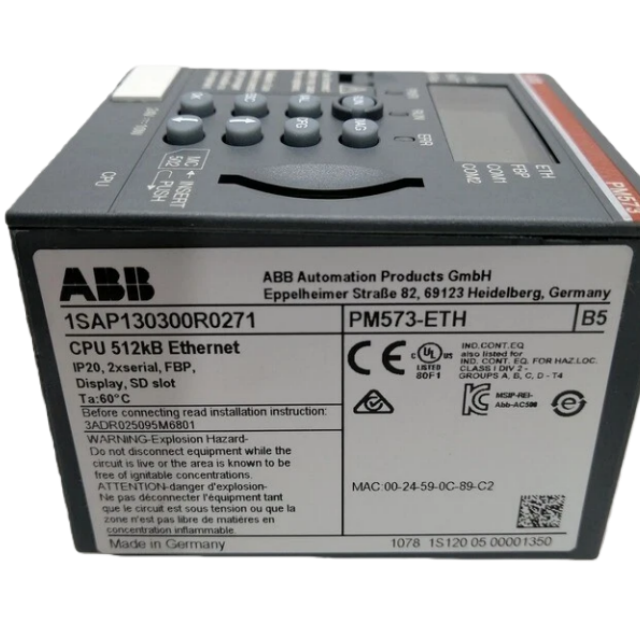

ABB PM573-ETH Processor module

ABB PM573-ETH Processor module

Manufacturers: ABB

Part number:PM573-ETH

Description:Processor module

Catalog Description: AC500, Programmable Logic Controller 512kB

Original from: Sweden

Part Type: New

Customs Tariff: 8537101190

Shipping from: Xiamen, Fujian

MAQ: 1 PC

Core Specifications

1. Power Supply

Supply Voltage: 24 V DC

Secondary Current: 0.2 A

2.Memory

User Program Memory: 512 kB (Flash EPROM, non-volatile RAM, SD Card support)

User Data Memory: 512 kB (Flash EPROM)

Additional Storage: SD-Card Slot (onboard)

3. Communication Interfaces

Ethernet: Onboard Ethernet TCP/IP (for communication and programming)

Serial Ports: 2 x configurable RS232/RS485 ports

Port 1: Supports Programming, Modbus Master/Slave, ASCII, CS31 Master

Port 2: Supports Programming, Modbus Master/Slave, ASCII

Fieldbus: CS31-Bus (1 channel)

4. Performance

Logic Instruction Speed: 0.05–0.06 ms per 1000 instructions

Word Instruction Speed: 0.05–0.09 ms per 1000 instructions

Floating-Point Instruction Speed: 0.5–0.70 ms per 1000 instructions

Real-time Clock: Included

5. I/O Capacity

Analog I/Os: Maximum 160 AI + 160 AO (local, up to 10 extension modules)

Digital I/Os: Maximum 320 DI + 240 DO (DC, local, up to 10 extension modules)

I/O Bus Support: CPU with Local I/O on I/O-Bus
