SDCS-CON-1 3BSE006196R1 Advantages

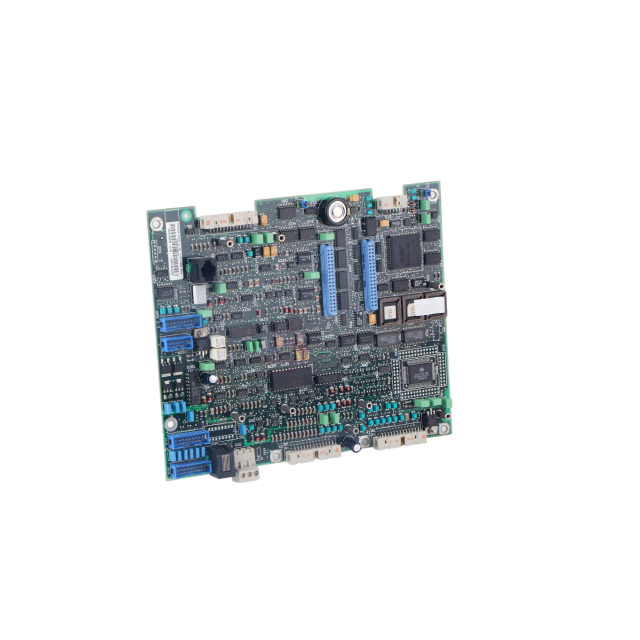

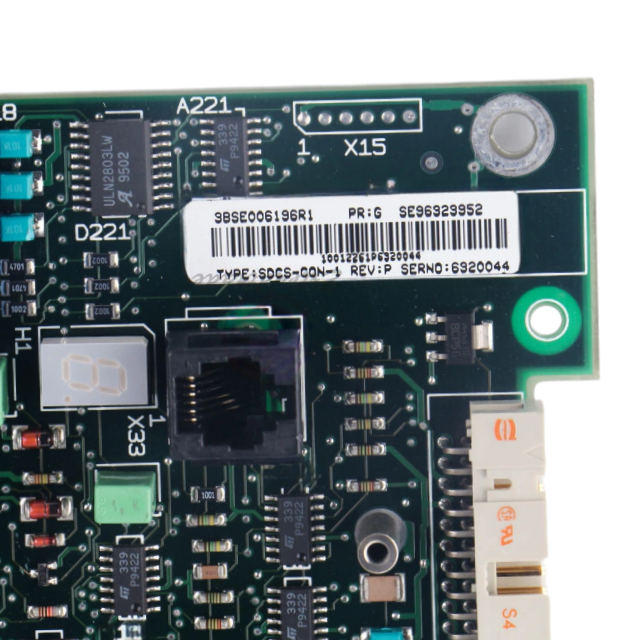

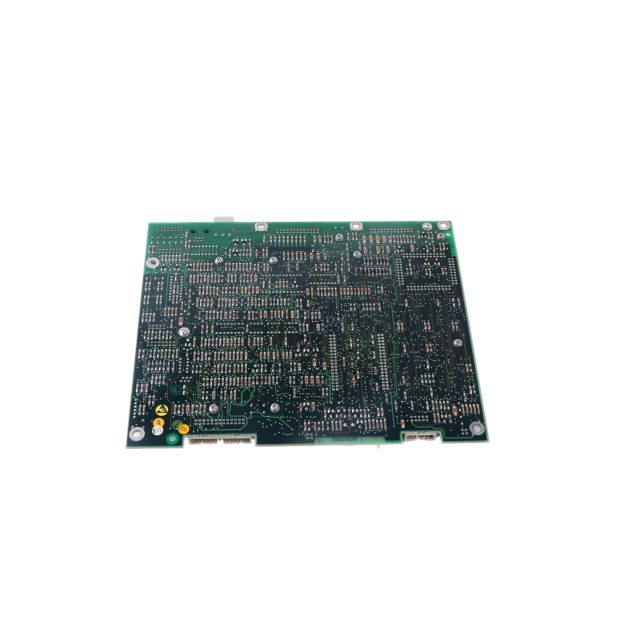

The ABB SDCS‑CON‑1 3BSE006196R1 Control Board stands out from comparable DC‑drive control boards in several key areas.
Dual closed‑loop PID regulation for DC motor. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board implements independent current‑loop and speed‑loop PID algorithm — critical for stable torque‑speed performance of rolling mills, wire‑drawers and hoist DC‑motor loads.
Multi‑type speed‑feedback support. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board accepts feedback signals from both analog tachometer generators and digital pulse encoders. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board adapts to diverse field‑sensor configurations without extra signal‑conversion modules.
Accurate thyristor firing‑pulse generation. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board outputs synchronized trigger pulses for the DC‑drive thyristor power bridge. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board realizes four‑quadrant reversible operation of DC‑motor units.
Comprehensive multi‑condition fault‑diagnosis system. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board continuously monitors drive current, voltage, excitation status and external interlock signals. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board stores historical fault‑codes and triggers hardware protection action to avoid secondary component damage.
Standard plug‑in drive‑board form factor. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board follows ABB VFD Spares standard mechanical dimension. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board fits dedicated internal slot of matched DCS500 / DCS600 DC‑drive unit. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board supports convenient spare‑part replacement and on‑site commissioning.
Wide operating temperature (-20 °C to +60 °C). The ABB SDCS‑CON‑1 3BSE006196R1 Control Board performs reliably from cold control‑room environments to high‑heat drive‑cabinet conditions without additional heating or cooling thermal protection.
Native ABB VFD Spares integration. As a factory‑original ABB component, the ABB SDCS‑CON‑1 3BSE006196R1 Control Board plugs directly into matched ABB DCS500 / DCS600 DC‑drive unit. The ABB SDCS‑CON‑1 3BSE006196R1 Control Board exchanges trigger signals and status data via drive internal backplane with no extra adapters or custom modification.
SDCS-CON-1 3BSE006196R1 Applications
Papermaking Industry. Core DC‑drive main‑control spare board within ABB VFD Spares series, undertaking DC motor speed‑torque closed‑loop control for paper‑machine unwinding, reeling and calender DC‑drive units.
Metal Rolling & Wire‑Drawing Plants. Supports hot‑rolling, cold‑rolling and wire‑production DC‑drive cabinets, executing double‑closed‑loop control for process DC motors to guarantee stable material‑processing quality.
Textile & Lifting‑Equipment Manufacturing. Delivers high‑response DC‑motor regulating capability for heavy‑duty hoist and textile‑processing DC‑drive systems, cooperating with thyristor power units to realize four‑quadrant reversible motor operation.
Oil, Gas & Petrochemical Facilities. Harsh‑environment EMC‑compliant design makes the ABB SDCS‑CON‑1 3BSE006196R1 Control Board the preferred DC‑drive control spare part for large‑auxiliary‑motor DC‑drive assemblies inside petrochemical‑plant workshops.
Industrial DC‑Drive Automation Systems. Contributes to critical DC‑motor control loops requiring traceable, high‑integrity closed‑loop regulation and multi‑fault‑detection function that meets stringent industrial regulatory and reliability standards.
SDCS-CON-1 3BSE006196R1 Certifications & Compliance
The ABB SDCS‑CON‑1 3BSE006196R1 Control Board holds the following international safety and compliance approvals:
• CE certification for industrial DC‑drive spare components.
• Industrial EMC compliance for ABB VFD Spares series automation assemblies.
All units supplied are 100% new original ABB parts. Every ABB SDCS‑CON‑1 3BSE006196R1 Control Board unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
