Basic Product Information
Product Classification: I-O_Module (Compact Module Termination Unit, MTU)

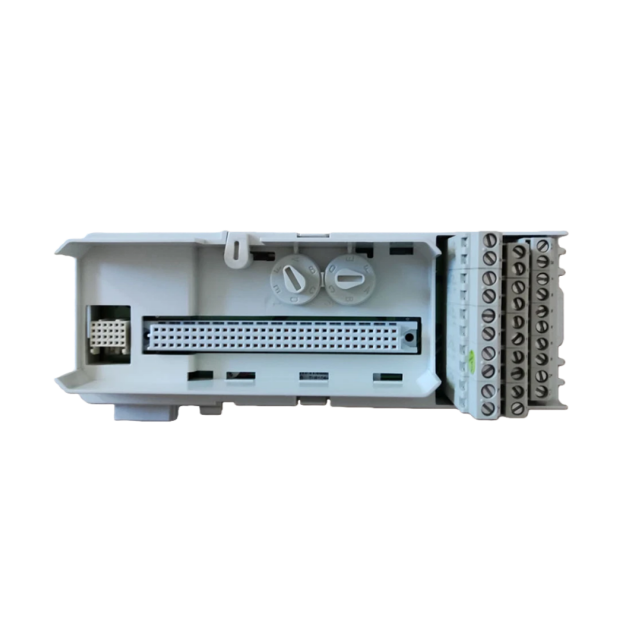

ABB Type Designation: TU810V1
Product ID: 3BSE013230R1
Catalog Description: TU810V1 Compact Module Termination Unit, MTU, 50V
Key Function: Serves as a centralized termination point for field signals, facilitating wiring between S800 I/O modules and field devices; provides mechanical stability and electrical isolation for signal integrity.
Battery Requirement: 0 (no internal batteries; operates without power—functions as a passive termination unit).
Product Categories:
Control Systems ￫ 800xA ￫ I/Os ￫ S800 I/O (supports versions 4.0, 4.1, 5.0, 5.1, and 800xA 6.0 System) ￫ I/O Modules
Control Systems ￫ Advant OCS (with Master SW/MOD 300 SW) ￫ I/Os ￫ S800 I/O ￫ I/O Modules
Control Systems ￫ Compact Product Suite ￫ I/Os ￫ S800 I/O (supports versions 4.1, 5.0, 5.1, 6.0) ￫ I/O Modules
Measurement and Analytics ￫ Force Measurement ￫ Thickness Gauging ￫ Thickness Gauging PMG100* 3.1 ￫ Thickness Gauging Gauge Heads ￫ PMGG123 Gauge Head (for integration with thickness measurement systems)
Core Specifications
1.Electrical & Signal Termination
Rated Voltage: 50 V DC (optimized for low-voltage industrial I/O signals; compatible with standard 24 V DC field devices and S800 I/O module outputs/inputs).
Signal Terminals: 2 groups of 8 terminals (total 16 terminals) — designed for 2-wire or 3-wire field device connections. Terminals accommodate solid, stranded, or ferrule-terminated wires (conductor cross-section typically 0.08–2.5 mm²) for versatile wiring.
Intrinsic Safety: No (not rated for intrinsic safety; intended for use in non-hazardous areas or with intrinsically safe barriers for hazardous location deployments).
Isolation: Provides passive electrical separation between field wiring and I/O modules (supports the S800 I/O system’s built-in isolation features to suppress electromagnetic interference (EMI) and prevent ground loops).
2.Physical & Mechanical Specifications
Product Net Weight: 0.2 kg (lightweight design for easy mounting and reduced rack load).
Gross Volume: 0.001 m³ (compact form factor: dimensions optimized to fit ABB S800 I/O racks, saving cabinet space).
Mounting: DIN rail mounting (compliant with EN 50022 standards) — enables tool-free installation alongside S800 I/O modules in standard industrial control cabinets.
Terminal Type: Screw-type terminals (secure wire retention with a recommended fastening torque of 0.6 Nm) — ensures reliable connections even in vibrating industrial environments.
3.Origin & Regulatory Compliance
Country of Origin: Bulgaria (BG)
Customs Tariff Number: 85389091 (classified as "Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37 - Other" under global customs standards).
System Compatibility: Exclusively compatible with ABB S800 I/O modules (e.g., AI810, DI810, DO810) and control systems (800xA, Advant OCS, Compact Product Suite). It is not compatible with non-ABB I/O systems.
Key Functional Features
Simplified Wiring Management: The 2×8 terminal configuration organizes field wiring into logical groups, reducing wiring complexity and minimizing the risk of connection errors during installation or maintenance. This is particularly valuable for high-density I/O racks with multiple modules.
Signal Integrity Support: Acts as a passive interface to maintain signal quality—terminates field cables to prevent signal reflection and EMI interference, ensuring accurate data transmission between field devices and S800 I/O modules (critical for analog signals like 4-20 mA or RTD measurements).
Mechanical Protection: Shields I/O module connectors from direct field wiring stress; the robust plastic housing (UL 94 V0 flame-retardant material) protects terminals from dust, moisture, and accidental contact, complying with IP20 protection class (per IEC 60529).
Maintenance Convenience: Screw-type terminals allow easy wire removal and reconnection during device replacement or troubleshooting. No specialized tools are required for terminal access, reducing maintenance downtime.
