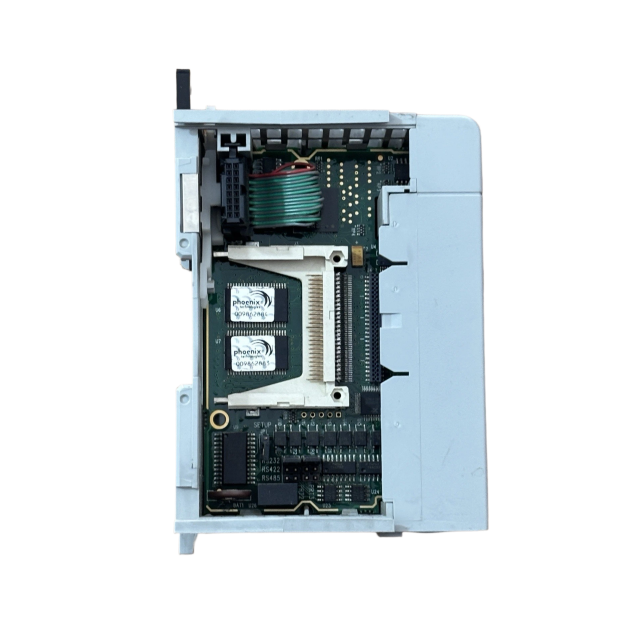

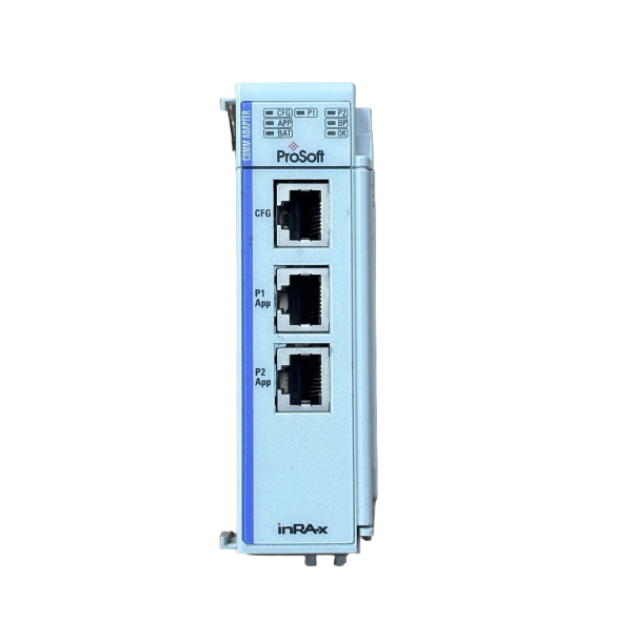

Allen Bradley MVI69-MCM Modbus Communication Module
The Allen Bradley MVI69-MCM is a Modbus communication module for industrial controllers. It enables seamless Modbus data exchange, supports serial communication, integrates with automation systems, ensuring reliable connectivity in industrial control setups.

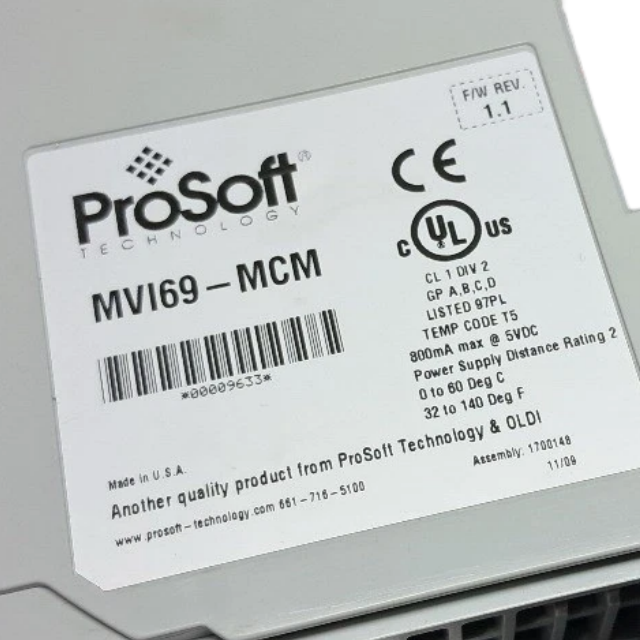

Details:The MVI69-MCM module has a power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus). Important: For 1769-L23x processors, please make note of the following limitations. 1769-L23-QBFC1B = 800 mA at 5 Vdc (One MVI69-MCM will use all 800 mA of available power. No other modules can be used with an MVI69 module connected to this processor.) 1769-L23E-QB1B = 1000 mA at 5 Vdc (One MVI69-MCM will use 800 mA of available power. One other module can be used on this rack provided it consumes less than 200 mA at 5 Vdc.) 1769-L23E-QBFC1B = 450 mA at 5 Vdc (No MVI69 module can be used with this processor.)
