Proximity Probe and Extension Cable
The 3300 XL probe and its extension cable build on and enhance previous designs through innovative
engineering features: a patented TipLoc molding process creates a far more robust bond between the
probe tip and body, while the probe cable integrates a proprietary CableLoc design that delivers an
impressive 330 N (75 lbf) pull strength—ensuring a secure, reliable connection between the cable and
probe tip. Additionally, 3300 XL 8 mm probes and extension cables are available with an optional
FluidLoc cable feature, which effectively prevents oil and other liquids from leaking out of the
machine through the cable’s interior, safeguarding both equipment integrity and operational safety.
![330103-00-06-10-02-00(1)]()
![330103-00-06-10-02-00(2)]()
![330103-00-06-10-02-00(3)]()

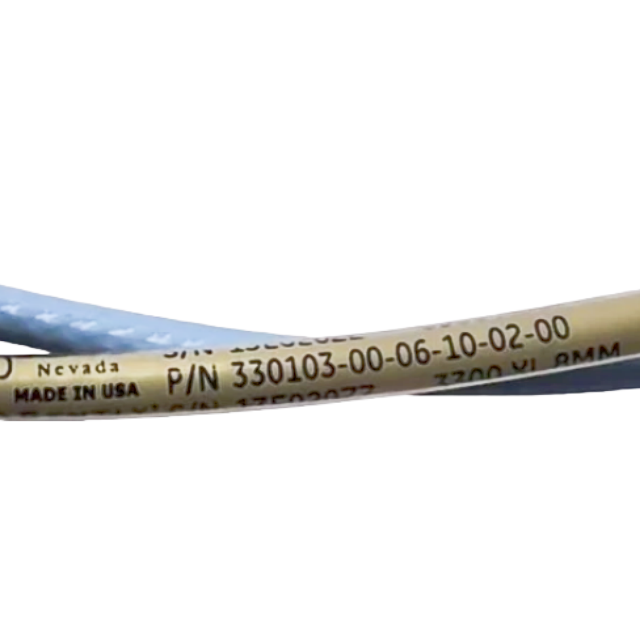

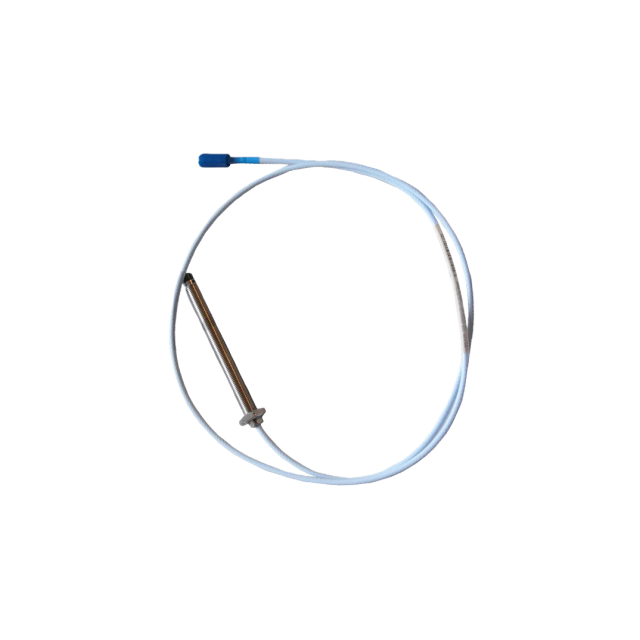

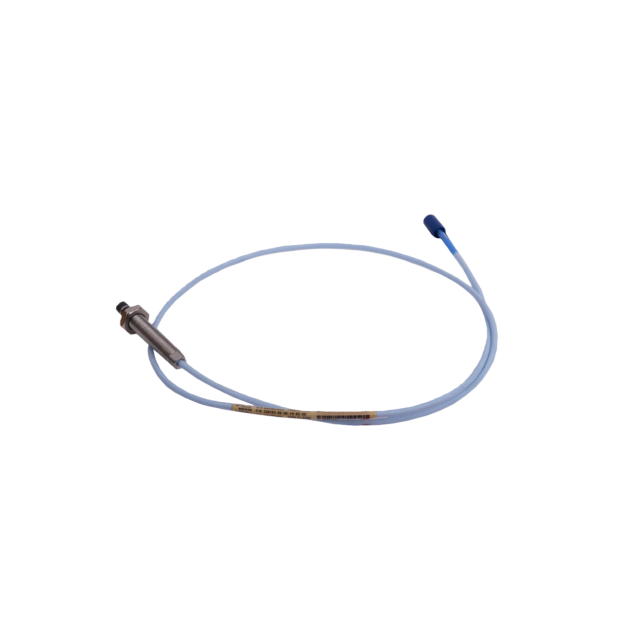

Overview of 330103-00-06-10-02-00

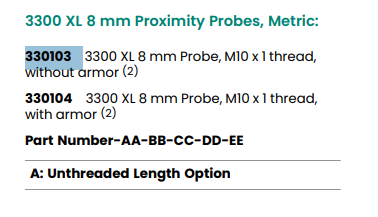

The 330103-00-06-10-02-00 is a high-performance metric proximity probe belonging to Baker
Hughes’ 3300 XL 8 mm Proximity Transducer System, engineered for precision measurement of
static position and dynamic vibration in industrial machinery. As a core component of the system—
paired with a 3300 XL Proximitor Sensor and optional extension cable—the 330103-00-06-10-02-00
delivers reliable eddy current-based sensing, making it ideal for fluid-film bearing machines,
Keyphasor reference applications, and speed measurement tasks across oil and gas, power
generation, and manufacturing sectors.

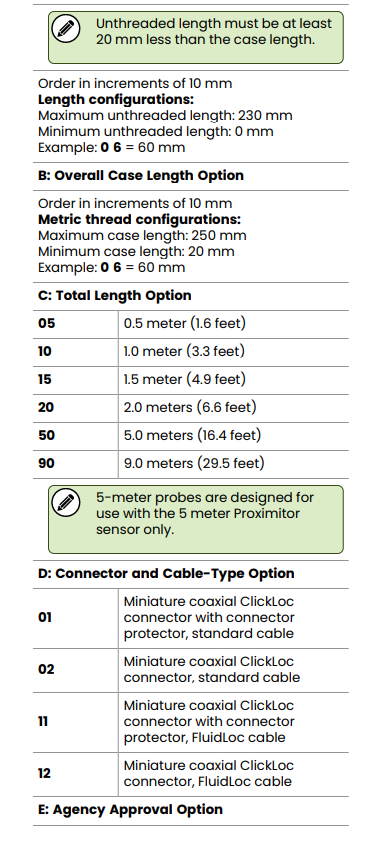

Designed with M10 x 1 metric threading and a 60 mm overall case length, the 330103-00-06-10-02-
00 features a 0 mm unthreaded section and a 1.0-meter integral cable with a corrosion-resistant gold-
plated ClickLoc connector, ensuring tool-free, secure installation. The 330103-00-06-10-02-00
incorporates patented TipLoc and CableLoc technologies: the former creates a robust bond between
the PPS plastic probe tip and stainless steel (AISI 303/304) case, while the latter provides 330 N (75
lbf) pull strength for enhanced durability against physical stress. Compliant with API 670 standards for
mechanical configuration, linear range, and temperature stability, the 330103-00-06-10-02-00
operates within a -52°C to +177°C (-62°F to +350°F) temperature range, with a linear measurement
span of 0.25 to 2.3 mm (10 to 90 mils) and an incremental scale factor of 7.87 V/mm (200 mV/mil)
±5%.
Backward compatible with non-XL 3300 series 5 mm and 8 mm components, the 330103-00-06-10-
02-00 supports complete interchangeability of probes, extension cables, and Proximitor Sensors,
eliminating the need for bench calibration. The 330103-00-06-10-02-00 offers strong resistance to
RFI/EMI interference and environmental factors, with a Viton® O-ring pressure seal and compatibility
with optional connector protectors for enhanced reliability in harsh industrial environments. Classified
as a commonly stocked part, the 330103-00-06-10-02-00 ensures short delivery times for critical
maintenance and new installation needs.
