The VM600 machinery protection system relies on precise module placement inside the 204-040-100-011 rack. If the CPUM 200-595-067-114 card is inserted into the wrong slot, the system will not boot, communication will fail, and you risk damaging the card or backplane. This guide explains the correct slot position, installation steps, and common errors — direct from our field experience maintaining and supplying VM600 parts globally.
Why Slot Position Matters in 204-040-100-011 Rack

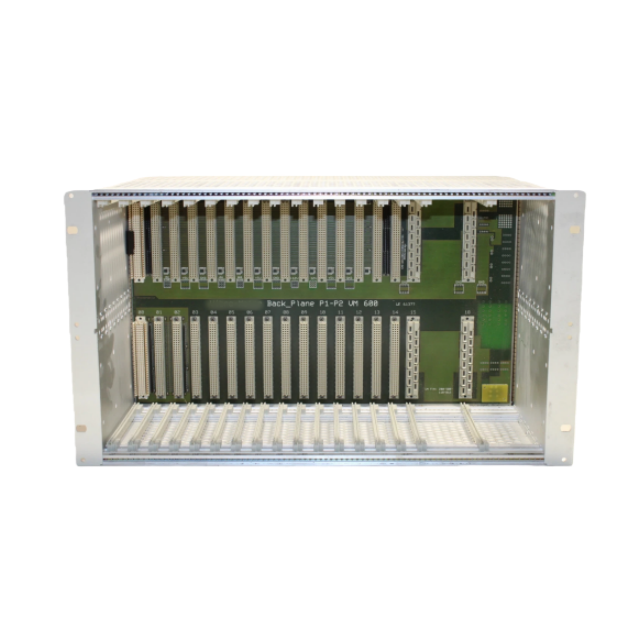

The 204-040-100-011 is a 19‑inch, 21‑slot subrack designed for Vibro‑Meter VM600 modules. Each slot has a dedicated address on the backplane bus. The CPUM central processing module uses preassigned communication lanes to talk to I/O cards (IOC4T, IOC16T) and gateway modules. Placing the CPUM in the wrong slot breaks the entire data flow.
From our repair and replacement work at Joyoung, roughly 40 % of VM600 no‑start issues trace back to incorrect slot insertion after service.
Exact CPUM 200-595-067-114 Slot Position
In the 204-040-100-011 rack, slots are numbered from left to right (visible on the card guide). Standard slot assignment is:
Slot 1 – System power supply (RPS6U or equivalent)
Slot 2 – Second power supply (optional, for redundancy)
Slot 3 – CPUM 200-595-067-114 (primary processor)
Slot 4 – Second CPUM (only if dual‑CPU redundancy is configured)
Slots 5‑21 – I/O cards, communication modules, or blanks
If your system has only one CPUM, it must occupy slot 3. For redundant CPU setups, the primary CPUM is in slot 3 and the secondary in slot 4. Never install a CPUM in slot 1, 2, or 5−21. The backplane power rails and bus addressing are not configured for it.
Important: Some earlier rack variants (e.g., 204‑040‑100‑012 backplane) may route signals differently. Always verify the silk‑screen marking on your rack. Slot‑3 assignment remains consistent for 204‑040‑100‑011, as confirmed in Vibro‑Meter system documentation.
Step‑by‑Step Installation
Power down the entire rack. Remove all power supply modules first. Check that all LEDs are off.
Inspect the card guide rails in slot 3. Bent or worn guides cause misalignment and bent connector pins. Replace the rack if the guide is damaged.
Align the CPUM module with the top and bottom card guides. The component side must face downward (standard VM600 orientation). The extractor handles should be at the front.
Slide the module in gently until the 48‑pin DIN connector contacts the backplane. Do not force. If you feel resistance, stop and check for obstructions.
Lock the module by pressing both extractor levers fully closed. You should hear a positive click. Do not rely on screw locks alone — the levers ensure proper mating depth.
Re‑insert power supplies. Power on and monitor the CPUM status LED. A steady green “Run” light indicates correct slot recognition and boot. A flashing red or no light means slot mis‑detection or hardware fault.
Common Mistakes and Troubleshooting
Inserting CPUM in slot 1 or 2: System will not start. Power supply voltages may conflict with CPU logic.
Placing CPUM in an I/O slot (5‑21): Backplane bus lines are not terminated correctly, causing communication loss with all I/O cards. In some cases, the 5 V backplane rail can be overloaded.
Forcing the module when rails are out of alignment: This damages connector pins on both the module and the backplane. We frequently sell replacement 204‑040‑100‑011 racks because of bent pins that cannot be straightened reliably in the field.
Using a CPUM with incompatible firmware in a mixed rack: If your rack includes newer CMC16 or IOC4T‑xxx versions, make sure the CPUM firmware revision supports them. A slot‑correct but firmware‑mismatched CPU will still cause boot failure. Our team can cross‑check your module serial numbers before you buy.
When Slot Correct Isn’t Enough — Spare Parts Readiness
We see many plants keep one or no spare CPUM because they assume “slot position fixes everything.” A failed CPUM in slot 3 means downtime until a replacement is sourced. Our stock for CPUM 200‑595‑067‑114 and the matching 204‑040‑100‑011 rack is kept at our main warehouse. Same‑day shipping for urgent orders avoids extended production loss.
If you are upgrading an older CPUM (e.g., 200‑595‑063‑314) to the 067‑114 version, slot position remains the same, but you must also check backplane power consumption limits. We can supply the updated rack backplane (204‑040‑100‑012) if needed.
Frequently Asked Questions
Can I install CPUM in slot 4 if slot 3 is occupied by a different card?
No. The only card allowed in slot 3 is the CPUM. If you need to install another module, move it to slot 5 or higher. The CPU hardware handshake lines are unique to that position.
Does the 204‑040‑100‑011 rack support horizontal mounting?
VM600 racks are designed for vertical orientation in a 19‑inch cabinet. Horizontal use may affect cooling and card retention. Rack guides rely on gravity‑assisted seating in vertical position.
How do I know if my rack guide is worn?
Excessive play when the module is inserted, scratches on the module PCB edges, or visible deformation of the plastic rails. Replace the rack immediately — poor connection leads to intermittent field data loss.
Where can I get a replacement CPUM 200‑595‑067‑114 or 204‑040‑100‑011 rack quickly?
We stock both items and ship globally. Contact us for pricing and same‑day dispatch. Our technical engineers can also verify your slot configuration via photo or video call before you order.
Reliable machine protection starts with correct hardware configuration. Slot 3 for your CPUM 200‑595‑067‑114 in 204‑040‑100‑011 rack is the non‑negotiable foundation. If you need spares or technical backup, our team at Joyoung is ready to support your operation. Reach out at chen@htechplc.com or +86‑181‑5013‑7565.
If you’re interested, check out these related articles:
Triconex 3700A Intelligent SAM Module for Industrial Safety
GE IS200AEPAH1A Mark VI Analog I O Module Sourcing Guide
Recommended Models
EA402 913-402-000-013 A1-E090-F0-G000
IQS450 204-450-000-001 A1-B21-H05-I0
IQS450 204-450-000-002 A1-B21-H10-I0
IQS450 204-450-000-001 A1-B23-H05-I0
IQS450 204-450-000-002 (A1-B21-H10-I1)
VM600 CPUM 200-595-067-114
VM600 CPUM 200-595-063-314
TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05-I0
TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0
TQ902 111-902-000-011 A1-B1-C70-D2-E1000-F0-G0-H10
TQ402 111-402-000-013
EA402 913-402-000-013
EA402 913-402-000-012

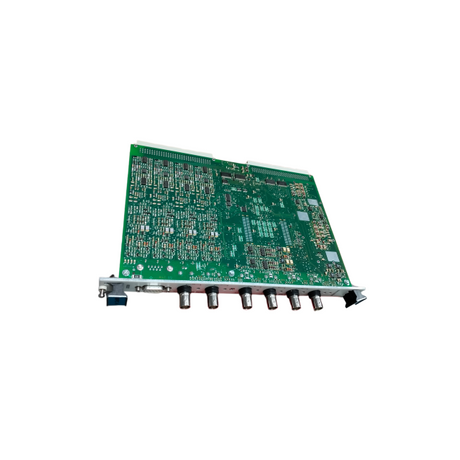

MPC4 200-510-071-113
MPC4 200-510-017-017
TQ412 111-412-000-012

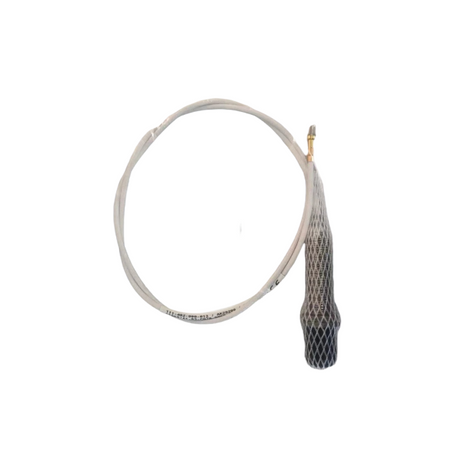

TQ402 111-402-000-012
