E94P050T4NEM Modbus PLC Communication Config & Commissioning

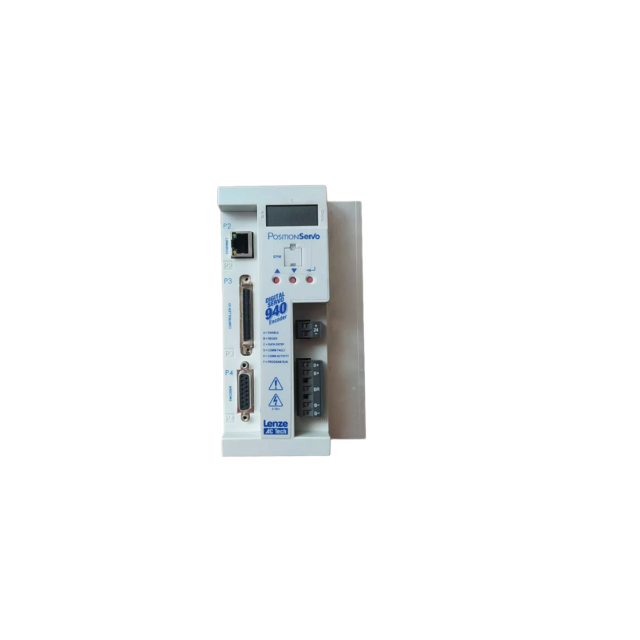

The Lenze E94P050T4NEM is a 400 V AC servo drive in the Lenze 9400 family, commonly used in packaging, textile, printing, and converting machinery. When the drive is integrated with a PLC over Modbus, most commissioning delays come from a small set of field issues: node address conflicts, baud rate mismatches, incorrect register mapping, or missing RS485 termination. This guide provides a practical commissioning sequence and troubleshooting checklist for maintenance and automation engineers.

Pre-Commissioning Checks

Before configuring Modbus communication, confirm the following on the drive and PLC side:

• Drive nameplate data: E94P050T4NEM, 3AC 400 V, rated current and firmware version

• Installed communication interface: native serial port, fieldbus module, or Modbus RTU/TCP gateway

• PLC master type: Modbus RTU over RS485 or Modbus TCP via gateway

• Control mode required: speed control, torque control, or positioning

• Safe torque off and hardware enable wiring status

• Engineering tool available: Lenze L-force Engineer, EASY Starter, or equivalent

Never start fieldbus testing until the drive is correctly powered, grounded, and the motor cable shield is terminated. A missing PE connection or motor cable run parallel to RS485 cable will create intermittent communication faults.

Modbus RTU Wiring and Termination

Use RS485 two-wire topology, not star wiring. Connect A/D+ and B/D- consistently across the PLC, gateway, and drive. The third wire should be the common ground reference if available.

Recommended physical setup:

Set the same communication parameters on the drive and PLC. Common stable values are 19200 or 38400 baud, 8 data bits, even parity, and 1 stop bit. Set a unique Modbus node address from 1 to 247. Duplicate addresses cause silent communication failure.

Register Mapping for Control and Status

Exact Modbus register addresses depend on the installed interface and drive firmware. Export the mapping from the engineering tool or gateway configuration. A typical mapping for speed control applications looks like this:

For 32-bit parameters, check whether the PLC and gateway use high word first or low word first. Word order mismatch causes setpoint values to appear correct in decimal but wrong in scaling, or actual speed jumps to extreme values.

PLC Configuration Sequence

1. Configure the PLC serial or Ethernet port to match the drive baud rate, parity, and stop bits.

2. Create Modbus read requests for status word, actual speed, and fault code.

3. Create write requests for control word and speed setpoint only after confirming stable reads.

4. If 32-bit values are used, test word swap before enabling the motor.

5. Add timeout logic for read and write errors. A drive that stops responding should trigger a controlled stop, not a frozen last command.

Drive Control Word and State Machine

The Lenze drive requires the correct control word sequence before the motor shaft rotates. In a typical speed control setup:

• First write zero or the drive-specific stop command

• Confirm status shows ready to switch on

• Write enable and run commands according to the drive state machine

• Monitor status word for operation enabled before applying speed

• If safe torque off is active, the drive will never enter operation enabled

Use the drive commissioning tool to observe state transitions. This makes it easier to distinguish a Modbus mapping issue from a drive state machine issue.

Step-by-Step Commissioning Sequence

1. Power off the main supply, but keep 24 V control supply available.

2. Wire RS485, terminate both ends, and verify A/B polarity.

3. Power on and set node address, baud rate, parity, and stop bits.

4. Connect the PLC and read holding registers. Confirm there is no timeout.

5. Compare read values with the drive engineering tool.

6. With the motor mechanically safe or uncoupled, write a zero speed setpoint.

7. Issue enable command and observe status word.

8. Run at low speed, such as 50–100 rpm, and verify direction and actual speed feedback.

9. Test controlled stop, quick stop, and fault reset.

10. Save all parameters to the drive non-volatile memory.

Common Modbus Commissioning Faults

If the Modbus network works with another drive but not with the E94P050T4NEM, test the drive with the manufacturer tool and a simple Modbus master. This isolates a damaged communication port, wrong firmware, or an incorrect module configuration.

Spare Parts and Replacement Support

When a drive or communication interface fails after repeated fault diagnosis, the fastest recovery path is to replace the confirmed faulty module. For E94P050T4NEM drives, Lenze communication modules, and related industrial automation spares, Joyoung International Trading Co., Limited supports global customers with part matching, OEM-compatible sourcing, and fast delivery. Engineers can confirm part numbers, firmware versions, and compatibility before ordering.

For assistance with Lenze drive spares, Modbus communication modules, or replacement planning, contact:

Email: chen@htechplc.com
Phone/WhatsApp: +86-181-5013-7565

FAQ

Can the E94P050T4NEM communicate directly with a PLC over Modbus RTU?
It depends on the installed interface. Some versions use a native RS485 port or communication module. If the drive does not support Modbus natively, a fieldbus gateway can be used to convert Modbus to the drive protocol. Check the part number and firmware before configuration.

What is the maximum number of Modbus nodes?
Modbus RTU supports addresses from 1 to 247. However, a standard RS485 segment without repeaters should stay at or below 32 nodes for reliable operation.

Which cable should be used for Modbus RS485?
Use a shielded twisted pair cable designed for RS485. Keep it separate from motor and power cables, and connect the shield at one central grounding point.

What are the typical register addresses for the E94P050T4NEM?
The exact mapping comes from the drive communication manual or gateway configuration. Typical values include control word, speed setpoint, status word, actual speed, and fault code.

Why does the motor not rotate even when Modbus communication is stable?
Check the safe torque off circuit, hardware enable, control word sequence, and drive state. Communication may be healthy while the drive remains in a non-enabled state.

Do I need terminating resistors?
Yes. A 120 ohm resistor at both ends of the RS485 line reduces reflections. Missing termination often causes intermittent timeout faults that appear only when the motor runs.
