In vibration monitoring systems, signal fidelity is not a luxury—it is a requirement for accurate machine protection. The EA402 extension cable (part number 913-402-000-013) and the TQ402 eddy current probe (111-402-000-013) work together to transmit the critical gap voltage and dynamic vibration signals from the measurement point to the signal conditioner. A single mistake in connector mating or shield termination can introduce noise, cause false trips, or mask real mechanical faults.
From years of supporting field engineers across power generation, oil & gas, and heavy industry, I’ve seen the same failures repeat: intermittent noise due to loose connectors, ground loops from double-ended shield connections, and slow signal drift from moisture ingress. This guide explains how to connect and shield these components correctly so that your VM600 or similar monitoring rack receives clean, reliable data.
Connector Identification and Mating

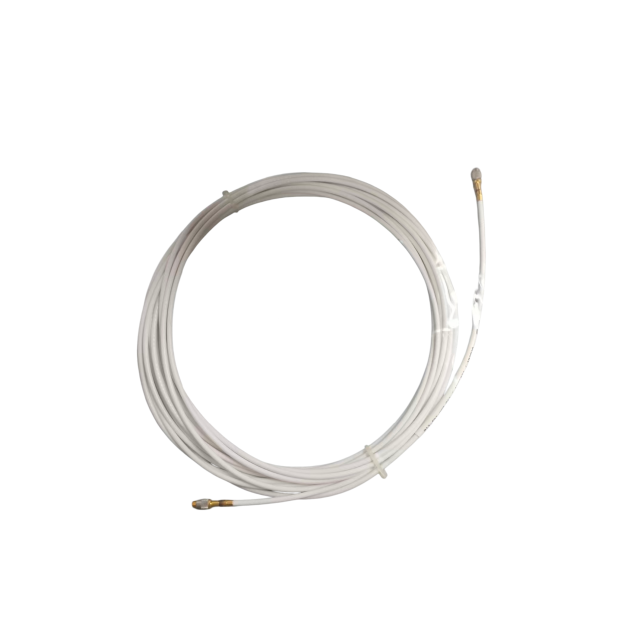

The TQ402 probe comes with a factory‑fitted connector that plugs directly into the EA402 extension cable. The EA402 913-402-000-013 is a specific length variant (E090 or E040 in the full ordering key), and its cable‑end connector is the matching counterpart. Both use a gold‑plated, multi‑pin circular connector with a threaded locking ring.
Before connecting, always inspect the pins for contamination or bending. Even a thin film of oil or dust can add contact resistance, which shifts the DC gap voltage and causes the monitor to think the probe position has changed. Use isopropyl alcohol and a lint‑free wipe to clean the connector faces. Do not use abrasive cleaners—they will remove the gold plating and accelerate corrosion.
Screw the locking ring by hand until it stops. Do not use tools to tighten; the design relies on a precise number of turns to seat the O‑ring that seals against moisture. Over‑tightening can crack the connector shell or compress the inner insulator and distort the pin alignment.
Shield Grounding: The Single‑Point Rule
The EA402 cable has a braided shield beneath the outer jacket. This shield must be connected at exactly one end, and that end must be the earth reference point of the signal conditioner—usually the IQS450 or IPC704 input channel ground terminal inside the control cabinet.
Connecting the shield at both ends (the probe head and the conditioner) creates a ground loop. In an industrial environment with high AC currents and magnetic fields, even a few millivolts of differential ground potential will inject noise directly into the sensor loop. The symptom is a wandering vibration amplitude or a spurious “high vibration” trip when electrical loads switch on.
If your installation uses an intermediate junction box (for example, at the machine skid), break the shield at that box. Terminate the incoming cable shield to a DIN‑rail insulated terminal, but do not bond it to the outgoing cable shield or to the junction box metal enclosure. Continue only the inner conductors to the extension cable heading to the instrumentation rack. This is a common mistake: technicians often “ground” everything to the machine frame, thinking it provides extra safety, but it creates multiple paths for common‑mode noise.
Cable Routing and Stress Relief
Route the EA402 cable away from high‑voltage power cables, VFD motor leads, and welding lines. Maintain a minimum 300 mm separation, and if crossing is unavoidable, cross at 90° angles to minimize inductive coupling. Use shielded cable trays or flexible metal conduits only if the conduit is bonded to the single‑point ground at the cabinet end and isolated from the machine.
At the probe, provide a drip loop so that any oil or condensate runs away from the connector, not into it. The EA402 jacket is oil‑resistant, but the connector O‑ring is the last line of defense. After installation, apply a small bead of silicone sealant around the connector backshell where the cable enters, to prevent wicking of moisture along the cable if it is submerged or washed down.
Signal Integrity for Long Cable Runs
The EA402 913-402-000-013 is available in defined lengths (the suffix after the part number indicates meters, e.g., E090 for 9 meters). Longer runs increase the risk of signal attenuation and capacitive loading, which can reduce the probe’s sensitivity at high frequencies. For the standard TQ402 probe driver, the total loop length (probe + extension cable + internal pigtail) should not exceed the maximum specified by the system designer, typically around 10–12 meters. If you require a longer reach, you must switch to a matched‑length system where the extension cable electrical length is factory‑tuned to the probe, or use a compatible signal conditioner that compensates for cable capacitance.
When replacing a failed EA402, never substitute a generic instrumentation cable. The impedance matching and dielectric material of the EA402 are part of the calibrated measurement chain. Using an off‑the‑shelf shielded twisted‑pair will alter the gap scaling and introduce non‑linearity, which can cause the monitoring system to under‑ or over‑estimate vibration amplitudes.
Common Failure Modes and Troubleshooting
Floating DC gap voltage: If the monitor shows a gap voltage that drifts slowly from -10 V toward 0 V or jumps to open‑circuit, first check the connector. A loose locking ring or a bent pin will behave like an intermittent open. Disconnect, clean, and re‑mate.
60 Hz or 50 Hz hum: This almost always points to a ground loop. Verify the shield continuity back to the single‑point ground. Use a multimeter in resistance mode: with the system powered off, measure between the shield pin at the conditioner and the conditioner chassis ground. You should see near‑zero resistance only at the conditioner end. If you also see continuity to the machine frame, you have a double‑grounded shield.
Spike noise at regular intervals: High‑energy interference from thyristor drives or plasma cutters can jump onto the cable if it runs parallel to unshielded power cables. Re‑route or add a ferrite clamp‑on core at the conditioner input as a temporary fix.
Moisture in connector: If the probe was installed outdoors without a proper weather boot, condensation inside the connector causes capacitive coupling, which manifests as random noise bursts. Replace the connector insert and O‑ring, and install a protective boot.
Industrial Application Context
We regularly supply TQ402 and EA402 sets to customers monitoring large steam turbine generator bearings, feedwater pump thrust positions, compressor rod‑drop, and gearbox axial movement. In a recent petrochemical plant, a ground‑loop noise issue on a critical gas compressor train was solved by isolating the EA402 shield at the local junction box—the very method described above. The false trips stopped immediately, saving the plant from unplanned shutdowns.
When you need to replace a damaged EA402 cable or purchase a complete TQ402 probe system, source genuine Vibro‑Meter‑compatible parts to maintain calibration accuracy and system certification. At Joyoung International, we stock new and factory‑sealed EA402 913-402-000-013 cables and TQ402 probes in various length options, along with IQS450 signal conditioners and VM600 rack components. We ship same‑day for urgent maintenance windows, and our engineers can help you verify part number compatibility.
Get in touch at chen@htechplc.com or +86-181-5013-7565 to confirm stock and pricing. For more information on Vibro‑Meter monitoring systems, visit our Vibro‑Meter Spare Parts section.
Frequently Asked Questions
Q: Can I extend an EA402 cable by splicing a second extension cable?
A: Not recommended. Splicing breaks the shield continuity unless carefully bonded, and adds a voltage drop imbalance. If you need a longer reach, order the correct length from the factory (E090, E040, etc.) or consult the manufacturer for a series‑to‑series patch. A splice will void the calibration.
Q: The connector on my old TQ402 probe looks clean, but the gap voltage is still off. What else?
A: The probe tip might have mechanical damage or heavy wear. Check the target surface for non‑homogeneous material or electrical runout. Also verify the probe driver (inside the probe body) hasn’t degraded. A driver failure can mimic a connection problem.
Q: Is the EA402 913-402-000-013 compatible with TQ412 probes?
A: Physically the connectors mate, but the electrical impedance and length compensation are different. TQ412 uses a different probe driver and requires its own matched extension cable (part series 111-412-000-0xx). Using EA402 with TQ412 will result in incorrect scaling. Always use the paired cable specified in the TQ probe part number.
Q: Can I ground the shield at the probe mounting bracket for safety?
A: No. The shield is a signal return path, not a safety ground. Any connection at the probe end creates a ground loop. Safety grounding must be provided by the machine frame and separate earth conductors according to local electrical codes; the sensor shield must remain isolated at the field end.
