Model Number: KJ1501X1-BC2
Product Type: System Dual DC Power Supply
ATEX Instruction Sheet Part Number: D803024X032
Publish Date of ATEX Instruction Sheet: October, 2008
Manufacturer: Emerson Process Management (Austin, Texas)

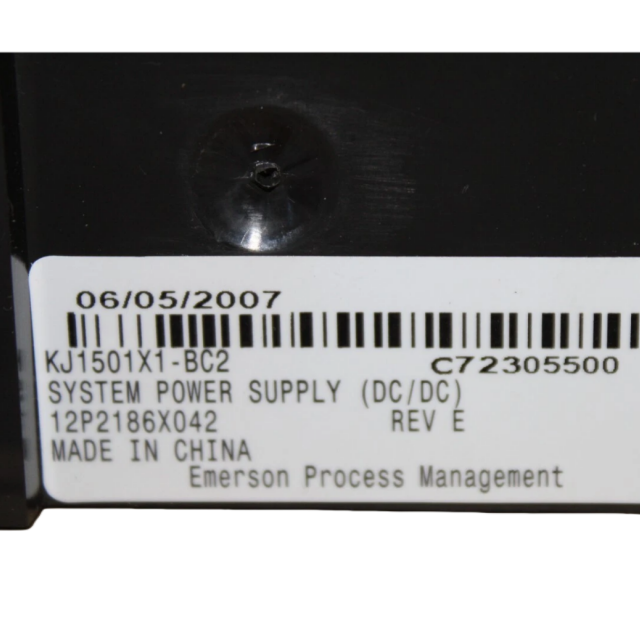

Serial Number & Manufacturing Details: Refer to the product label for serial number, manufacturing
location, and manufacturing date
Product Overview

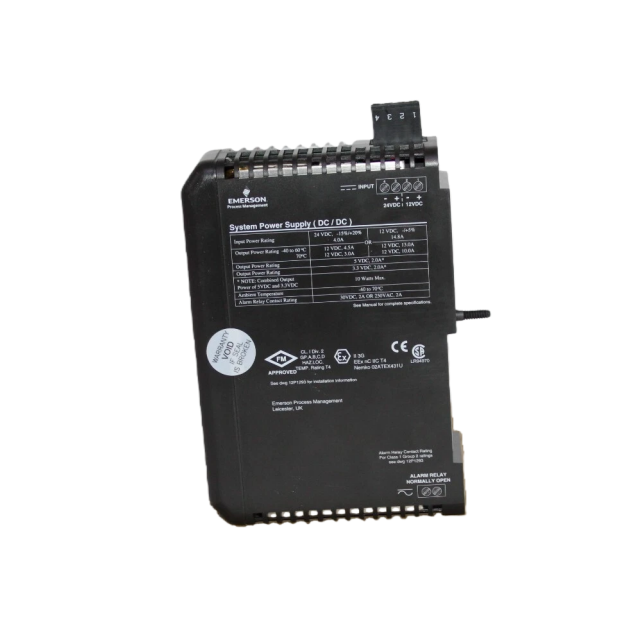

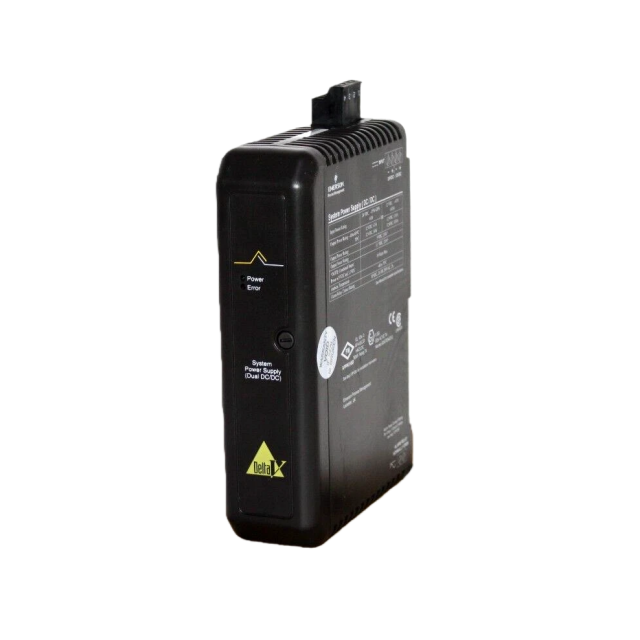

The KJ1501X1-BC2 is a dual DC power supply designed for use in hazardous atmospheres, providing stable power output to support industrial automation systems (e.g., DeltaV Scalable Process System). It features dual input voltage compatibility and multiple regulated output channels, ensuring reliable operation in critical process control scenarios.
| Environmental Parameter | Specification |
|---|---|
| Ambient Temperature | -40 to 70 °C |
| Shock | 10 G ½-sinewave for 11 ms |
| Vibration | 1 mm peak-to-peak from 5 Hz to 16 Hz, 0.5 g from 16 Hz to 150 Hz |
| Airborne Contaminants | ISA-S71.04 –1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5% to 95% non-condensing |
Installation & Operational Requirements
1.Safety-Critical Handling
Powered Removal/Insertion: Strictly prohibited—the unit cannot be removed or inserted while system power is energized. This prevents electrical arcing (a critical ignition hazard in explosive atmospheres) and avoids damage to the power supply or connected DeltaV components.
12 VDC Passthrough Limitations: When operating in 12 VDC passthrough mode, ensure the external voltage source does not exceed 12.6 VDC or supply more than 16 A. Exceeding these limits may cause overheating, component failure, or loss of hazardous area compliance.
2.System Integration
DeltaV Compatibility: Optimized for the DeltaV™ Scalable Process System; refer to Emerson’s DeltaV Scalable Process System Zone 2 Installation Instructions (Document 12P2046) and Installing Your DeltaV Automation System manual for detailed wiring, grounding, and mounting procedures.
Mounting: Intended for rack mounting within Emerson-approved control cabinets (compatible with standard 19-inch industrial racks). Ensure the cabinet provides adequate ventilation to maintain ambient temperature within -40°C to 70°C and prevent power supply overheating.
Maintenance & Service
No User-Serviceable Components: The KJ1501X1-BC2 contains no internal parts that can be serviced, adjusted, or replaced by the user. Disassembly is strictly prohibited, as it would void ATEX/FM certifications and compromise hazardous area safety.
Calibration: Factory-calibrated for optimal power regulation; no periodic calibration is required under normal operating conditions.
Traceability: Serial number, manufacturing location, and production date are printed on the product label for warranty tracking, regulatory compliance audits, and maintenance records.
Compliance & Documentation
Publisher: Emerson Process Management (Austin, Texas, USA).
Key Documentation:
ATEX Instruction Sheet (Part Number: D803024X032; Publish Date: October 2008).
DeltaV Scalable Process System Zone 2 Installation Instructions (Document 12P2046).
Installing Your DeltaV Automation System (for system integration and operational guidelines).
Target Applications: Ideal for powering DeltaV control system components in Zone 2/Division 2 hazardous
areas, including oil refineries, chemical processing plants, offshore drilling platforms, and natural gas
processing facilities.
Strictly adhere to voltage and current limitations in 12 VDC passthrough mode to avoid hazards .
Ensure compliance with all hazardous area safety standards during operation to prevent risks such as
electrical shock or arc formation.
