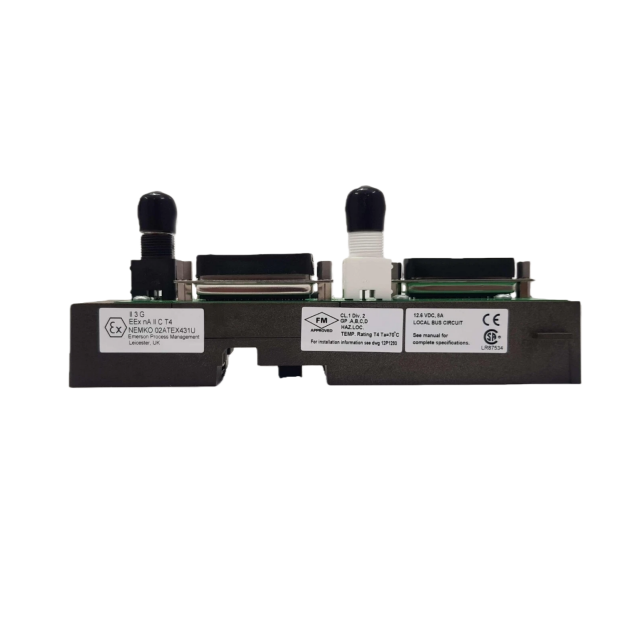

Emerson KJ4001X1-NA1(12P3373X012) DUAL RIGHT EXTENDER

Basic Product Identity:

Horizontal LocalBus Dual Right Cable Extender, compatible with Emerson’s DeltaV Automation

System and designed for hazardous atmosphere applications; 12P3373X012 is referenced as part of

the product-related documentation.

Certifications & Hazardous Location Compliance:

■ATEX certification: II 3 G, EEx nA IIC T4, Nemko No. 02ATEX431U.

■FM approval: Class I, Division 2, Groups A, B, C, D, Temperature Rating T4.

Electrical Specifications:

■LocalBus Power – 12 VDC at 8 A.

Environmental Specifications:

■Ambient temperature: -40 to 70 °C.

■Shock resistance: 10g ½ Sinewave for 11 msec.

■Vibration resistance: 1mm Peak to Peak (5 to 16Hz); 0.5g (16 to 150Hz).

■Airborne contaminants: ISA-S71.04 –1985 Class G3.

■Relative humidity: 5 to 95% Non-Condensing.

■Protection rating: IP 20.

Installation & Operation Requirements：

■Cannot be removed or inserted while system power is energized; power must be de-energized

before disconnecting carriers or LocalBus Extender cables.

■Must not be unplugged unless the system is de-energized or the area is confirmed safe.

■Total length of I/O carriers and LocalBus Extenders combination must not exceed 6.5 meters.

■Interconnecting cables between enclosures must be installed in conduit.

■Requires compliance with hazardous area installation/removal/operation instructions (refer to

document 12P2046 "DeltaV ™ Scalable Process System Zone 2 Installation Instructions" and

"Installing Your DeltaV Automation System" manual).

Maintenance & Service:

■Contains no user-serviceable parts; disassembly is prohibited for any reason.

■No calibration required.

Product Label & Documentation Information:

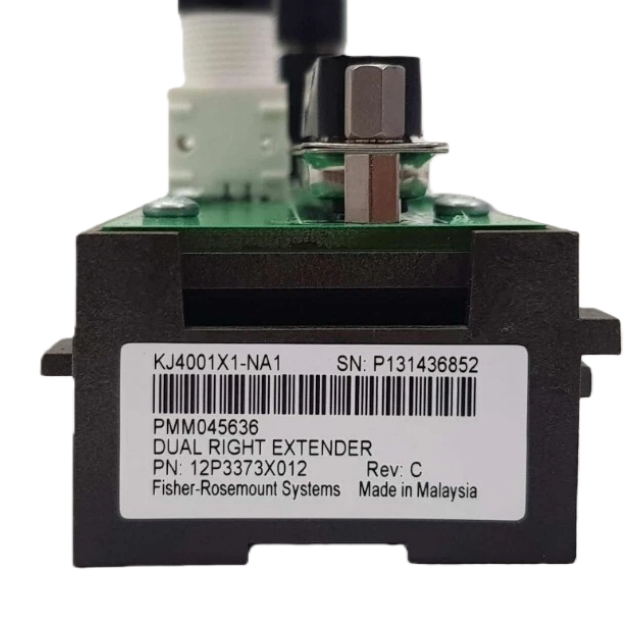

■Serial number, manufacturing location, and manufacturing date are indicated on the product label.

■ATEX Instruction Sheet part number: D803068X012; publish date: August, 2004; 12P3373X012 is

associated with the product’s documentation reference.
