CC-PAIM01 51405045-175
Honeywell
Sales manager : Cheryl Qi | |
Wechat/What's app/Phone | |
❏Part number :CC-PAIM01 51405045-175 ❏Product origin :USA ❏Availability: IN STOCK ❏Type: Low-Level Analog MUX Module ❏Payment term:T/T ❏Lead time:2-3days ❏Warranty:1 year ❏Product description:
|



Technical Data Sheet for Honeywell CC-PAIM01 (Part Number 51405045-175)
1. Product Overview and Core Function

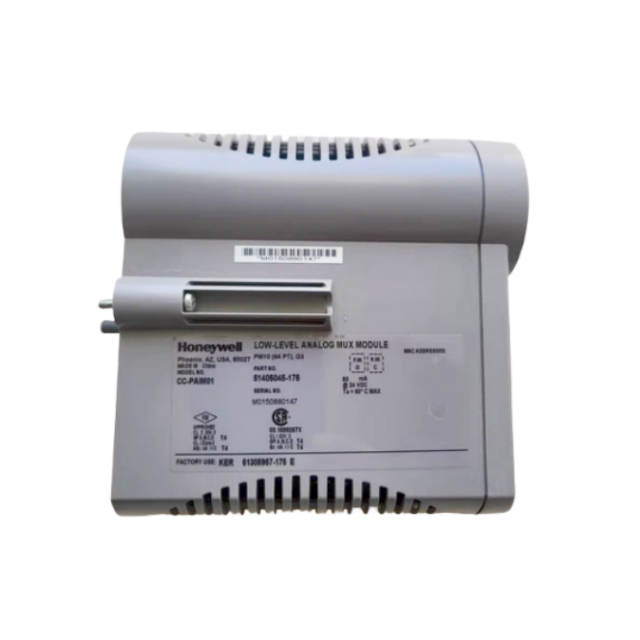

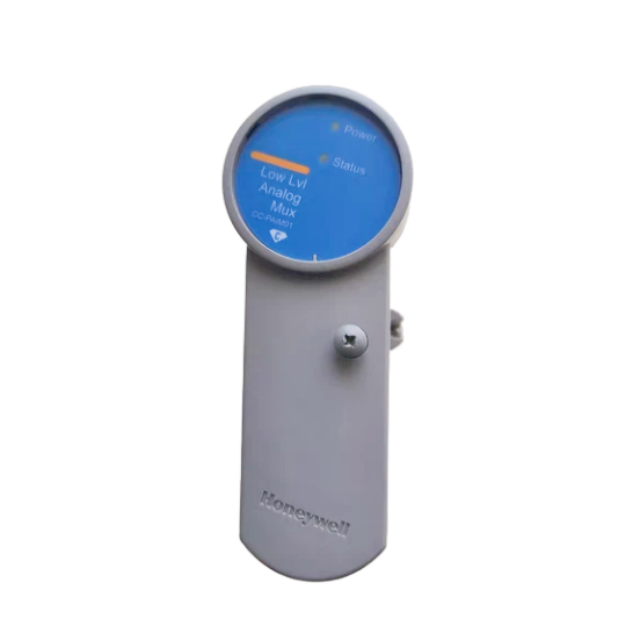

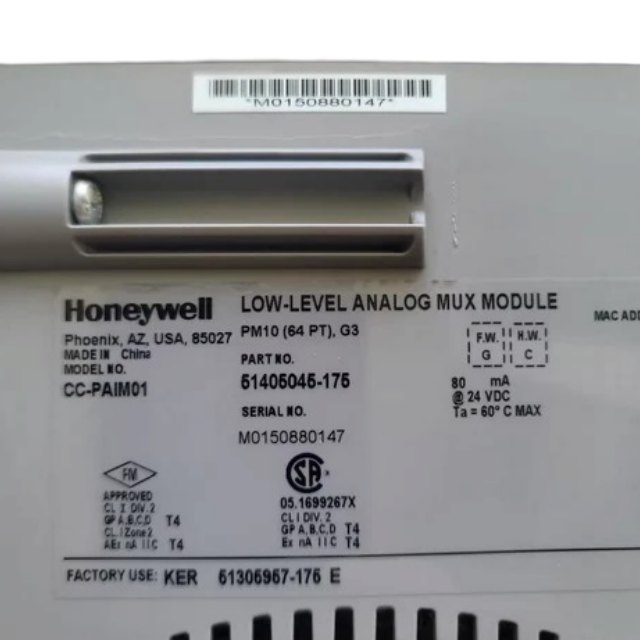

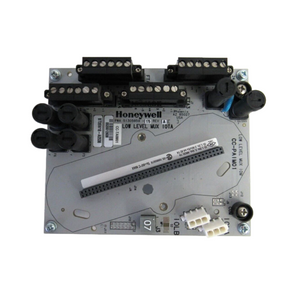

The Honeywell CC-PAIM01 (part number 51405045-175) is a Low Level Analog (Temperature) Input Multiplexer (LLMUX) module, part of the Experion Series-C I/O family. Its primary function is to support high-density temperature measurement by accepting up to 64 channels of low-level inputs from thermocouples (TC) and Resistance Temperature Devices (RTDs). It integrates with Honeywell’s Process Manager Input/Output (PMIO) Low-Level Multiplexer Field Terminal Assemblies (FTAs) to enable flexible configuration of temperature-sensing points, making it ideal for industrial applications such as chemical processing, power generation, and oil/gas refining where precise, multi-point temperature monitoring is critical.

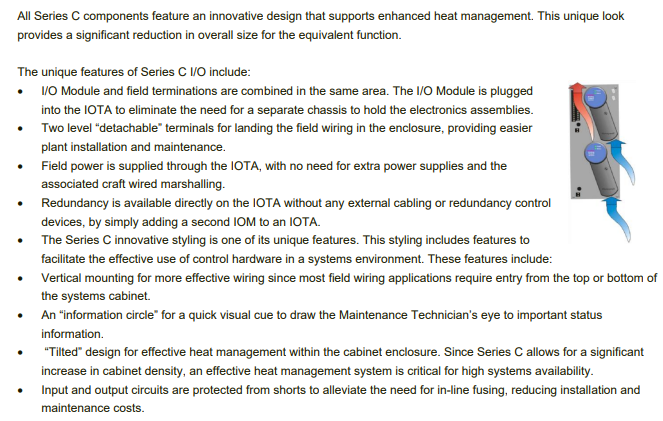

This module is designed to work with the Experion C300 Controller (released from Experion R300 onwards) and leverages Series-C I/O’s compact, heat-efficient design to minimize cabinet footprint while ensuring reliable performance in harsh industrial environments.
2. Key Features
2.1 High-Density Temperature Sensing

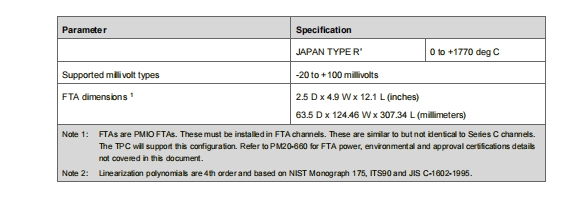

Channel Capacity: Supports up to 64 fully isolated temperature input channels, expandable in 16-channel increments via compatible PMIO FTAs. Each FTA (e.g., MU-TAMR04 for RTDs, MU-TAMT04 for TCs) provides 16 dedicated channels, allowing mixed configurations of TC, RTD, and millivolt inputs to match application requirements.
Isolation: Ensures channel-to-channel, channel-to-PM (Process Manager), and channel-to-power supply isolation to eliminate ground loops and electromagnetic interference (EMI), critical for accurate low-level signal measurement.
2.2 Advanced Temperature Measurement Capabilities

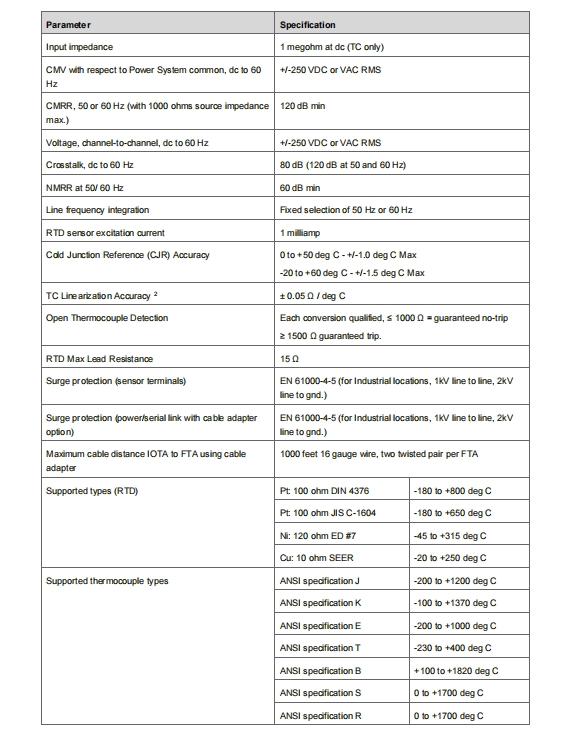

Dual Sensor Support: Compatible with a wide range of thermocouples (per ANSI and JIS standards) and RTDs, covering extreme temperature ranges from -230 °C (for T-type TCs) to +1820 °C (for B-type TCs).
Cold Junction Compensation (CJC): Integrates a precision CJC device to automatically compensate for ambient temperature variations at the FTA, ensuring accurate TC measurements. Optional remote CJC is supported via specific FTAs (e.g., MU-TAMT14).
Open Thermocouple Detection (OTD): Configurable OTD functionality validates each temperature conversion before propagating the process variable (PV). If an open sensor is detected (resistance ≥ 1500 Ω), the PV is set to “Not a Number (NAN)” and a channel soft failure is triggered, preventing incorrect control actions.
2.3 Performance and Reliability
Fixed Scan Rate: All 64 channels are scanned at a 1-second fixed rate (max 64 channels/sec), balancing measurement speed and accuracy for most industrial temperature monitoring use cases.
Signal Conditioning: Incorporates low-pass filtering (0 to 4.7 Hz, -3 dB) and high common-mode rejection ratio (CMRR) to suppress noise and ensure stable readings from low-level sensors.
Surge Protection: Complies with EN 61000-4-5 for industrial locations, providing 1 kV line-to-line and 2 kV line-to-ground surge protection on sensor terminals and power/serial links (with cable adapter), enhancing durability in harsh electrical environments.
