Why Sensitivity Calibration Matters for CA202 Accelerometers

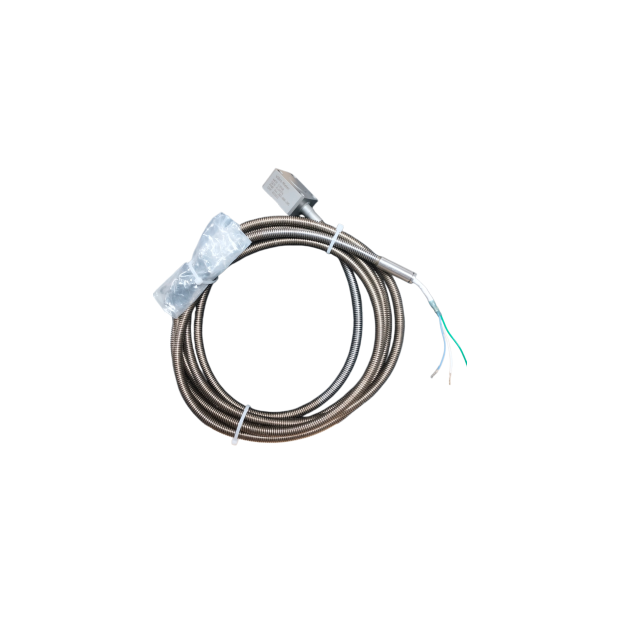

The CA202 144-202-000-205 piezoelectric accelerometer is a critical component in machinery protection and condition monitoring systems—especially within VM600 racks. Over time, sensor drift, environmental stress, or material fatigue can alter its sensitivity, leading to inaccurate vibration measurements. Even a 5% deviation in sensitivity can cause false alarms or, worse, fail to trigger a genuine trip condition.
For maintenance engineers and reliability specialists, regular sensitivity calibration is not optional. The 204-215-000-101 calibrator is the reference tool that ensures your CA202 accelerometer delivers the precise mV/g (or pC/g) output required by the monitoring chain.
This guide walks through the step‑by‑step procedure, critical precautions, and typical pitfalls when calibrating the CA202 144-202-000-205 with the 204-215-000-101 calibrator. Whether you are performing a routine bench check or troubleshooting a field sensor, the process below reflects real‑world industrial practice.
What You Need
Before starting, gather the following:
204-215-000-101 Calibrator (fully charged or mains‑powered)
CA202 144-202-000-205 sensor with intact connector and cable
Calibration adapter (if required by your calibrator revision)
Signal conditioner (e.g., IQS450 or IPC704) if you plan to verify through the whole signal path
Digital multimeter and/or oscilloscope
Test report sheet to record as‑found and as‑left sensitivity
Note: Always allow the calibrator and sensor to acclimatize to the ambient temperature for at least 30 minutes before beginning. Temperature gradient can introduce offsets.
Step‑by‑Step Sensitivity Calibration
1. Mechanical Setup
Secure the CA202 accelerometer to the calibrator’s shaker table using the manufacturer‑recommended mounting stud (typically an M5 or 10‑32 UNF thread). Tighten to the torque specified in the sensor datasheet—usually 2 Nm. Improper torque is a common cause of spurious readings.
2. Electrical Connection
Connect the sensor’s output to the calibrator’s input channel. If you are using a charge‑mode CA202 (output in pC/g), select the correct input coupling on the calibrator. For IEPE (voltage‑output) variants, enable the 4 mA constant current supply on the calibrator. Verify that the sensor powers up (typically 12–24 V DC across the pins).
3. Reference Sensitivity Entry
On the 204-215-000-101 panel, enter the nominal sensitivity printed on the CA202 calibration certificate (or the last known valid value). This becomes the reference for deviation calculation.
4. Start the Calibration Sequence
Select the Accelerometer – Sensitivity Check mode. The calibrator will generate a known reference vibration (often 100 Hz, 10 m/s² RMS). It then measures the sensor’s output and computes the actual sensitivity:
[
S_{actual} = \frac{V_{out}}{a_{ref}}
]
Compare ( S_{actual} ) with the nominal sensitivity. If the deviation exceeds ±5%, investigate the cause (mounting, cabling, or sensor aging) before attempting adjustment.
5. Adjust Sensitivity (if adjustable)
Some CA202 versions allow external sensitivity adjustment via a small potentiometer inside the connector housing. If yours has this feature, gently tweak until the measured sensitivity matches nominal. Lock the setting with thread‑locking varnish.
6. Verification
Repeat the measurement at two additional frequencies (e.g., 50 Hz and 500 Hz) to check linearity. The sensitivity should remain within ±2% across the operating range. A sudden drop‑off above a certain frequency often indicates end‑of‑life piezoelectric element fatigue.
7. As‑Left Certification
Document the final sensitivity, frequency response, and deviation in a calibration report. Affix a new calibration label to the sensor with the date and technician ID.
Common Problems and Solutions
Symptom | Likely Cause | Action |
|---|
Sensitivity reading fluctuates wildly | Loose mounting or worn connector pins | Re‑torque stud / replace connector |
Zero output | Power supply not reaching IEPE sensor | Check cable continuity and calibrator power settings |
Sensitivity drops >10% from nominal | Internal piezo element fatigue or moisture ingress | Re‑calibrate; if persistent, replace sensor |
Frequency response poor above 2 kHz | Sensor not mounted flush; air gap | Clean mounting surface, apply thin film of coupling fluid |
When to Recalibrate
In heavy‑industry environments (steel mills, power plants) we recommend checking sensitivity every 6 months. For less demanding settings, an annual verification is acceptable. Always recalibrate after any event where the accelerometer experienced shock beyond its rated limit.
The Business Case for In‑House Calibration
Many plants send their accelerometers to third‑party labs, resulting in weeks of downtime. With a Vibro Meter calibrator like the 204-215-000-101 and a small budget for Vibration Monitoring spares, you can perform calibration during a shift window. Maintaining a spare CA202 144-202-000-205 on the shelf (we keep them in stock) eliminates the risk of running an unmonitored machine.
Through our global supply chain, we support a complete range of VM600 cards, sensors, and calibrators. If your 204-215-000-101 calibrator needs a replacement transducer or your CA202 consistently fails calibration, contact us for a same‑day quote.
FAQ
Q: Can I use the 204-215-000-101 with other accelerometers besides the CA202?
A: Yes, the calibrator supports most IEPE and charge‑mode accelerometers. You only need to enter the correct nominal sensitivity and select the appropriate coupling.
Q: We have an older 204-215-000-101 with no firmware upgrade. Will it still work?
A: Functionality for basic sensitivity calibration remains valid. However, if you need advanced diagnostics or communication with a rack controller, a firmware upgrade may be required. Reach out to us for compatibility details.
Q: What if my CA202 144-202-000-205 fails calibration again after adjustment?
A: Send it to our inspection team. We can test the sensor against a known reference and confirm whether it is a defective element, cable issue, or connector seating. We stock immediate replacements for most VM600 sensor types.
