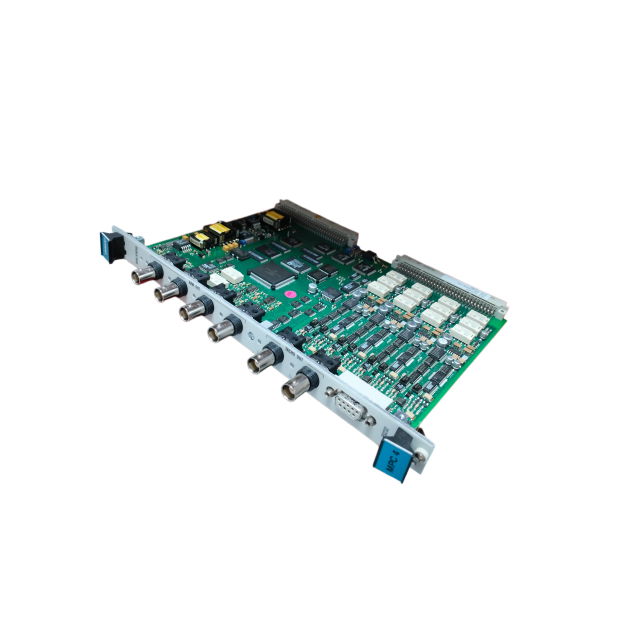

MPC4 200-510-017-017: How Machinery Protection Cards Work

Views: 0 Author: Site Editor Publish Time: 2026-09-04 Origin: Site

Inquire

MPC4 200-510-017-017: How Machinery Protection Cards Work

Machinery protection cards bridge raw sensor signals and shutdown decisions. The MPC4 200-510-017-017 does this job inside VM600 racks used in power generation, oil and gas, steel, and other rotating machinery applications. It continuously monitors vibration, displacement, speed, or pressure-related signals, compares them against configured limits, and activates alarm or trip relays before mechanical failure becomes worse.

What a Machinery Protection Card Does

A protection card is different from a condition monitoring display or a maintenance diagnostic tool. It works in real time and makes safety-related decisions without waiting for an operator.

The MPC4 200-510-017-017 performs three core functions:

Signal acquisition – receives signals from sensors such as eddy current proximity probes, accelerometers, or pressure transducers.
Signal processing – filters noise, extracts overall vibration values, gap voltage, or speed data.
Decision output – compares processed values to alarm and trip setpoints, then changes relay states to warn or shut down equipment.

This card is part of a larger VM600 rack architecture. It usually works with a rack backplane, a communication card such as IOC4T, and a processing card such as CPUM.

Signal Chain in MPC4 200-510-017-017

Knowing how the signal flows helps when diagnosing false alarms or channel faults.

1. Sensor Input Stage

Typical sensors connected to an MPC4 card include:

TQ402 or TQ412 eddy current proximity probes for shaft displacement and vibration.
CA202 piezoelectric accelerometers for bearing or gearbox vibration.
CP515 dynamic pressure sensors for process pulsation monitoring.
Speed sensors for rotating speed and phase reference.

Each sensor type needs correct supply voltage, cable length, shield termination, and gap or mount setting.

2. Conditioning and Filtering

The card removes sensor offset and high-frequency noise. For displacement probes, the card separates DC gap voltage from dynamic vibration. For accelerometers, it may integrate signals to velocity or apply band-pass filtering according to machine type.

Configured values include:

Low-pass and high-pass filter settings.
Full-scale range or sensitivity.
Integration mode.
Peak, RMS, or peak-to-peak measurement.

3. Threshold Comparison and Relay Output

After processing, the card continuously compares measured values with setpoints.

Typical protection levels:

Level	Action
Alert	Relay output for warning, no shutdown
Alarm	Relay output for immediate operator action
Trip	De-energized relay to shutdown the machine

The MPC4 card often supports normally energized relay logic. In fail-safe operation, the relay is energized during normal machine operation. If power is lost or a card fault occurs, the relay drops out and the system moves toward trip. This design prevents hidden failures.

Why MPC4 200-510-017-017 Is Used in VM600 Systems

The MPC4 series is designed for rotating machine protection in industrial environments. Users choose this card because:

It integrates multiple protection channels in a rack slot.
It supports direct relay outputs for hardwired shutdown circuits.
It works with VM600 communication and system rack accessories such as 204-040-100-011 and 204-040-100-012.
It allows local or remote alarm reset and configuration.

In a typical rotating machine protection loop:

TQ402 probe → EA402 extension cable → MPC4 signal input → threshold and relay logic → trip or alarm

The card is only one part of the loop. Sensor gap, cable shield, grounding, and connector quality directly affect output stability.

Installation and Grounding Standards

Poor installation causes more false trips than card failure. For MPC4 200-510-017-017, pay attention to:

Rack slot position – confirm the correct slot according to rack and backplane documentation.
DIN rail or rack mounting – use proper mechanical support; do not let the card bend or sit loose.
Grounding – connect cable shields at one end only unless otherwise specified. Avoid ground loops.
Signal separation – keep sensor cables away from motor power cables and VFD output wiring.
Connector seating – press connectors fully and use strain relief.

Common mistake: grounding both ends of a shield without a defined path. This can inject power frequency noise and cause intermittent vibration readings.

False Alarm Diagnosis: Sensor Loop vs Threshold

When an MPC4 200-510-017-017 triggers an alarm or trip, check the signal path before replacing the card.

Basic checks:

Read gap voltage – if gap voltage is unstable or out of range, check probe gap, cable continuity, and connector condition.
Check cable shield – damaged shield causes noise and false vibration spikes.
Verify setpoints – confirm alarm and trip thresholds have not been changed or misconfigured.
Confirm relay wiring – check load type and arc suppression if relays drive inductive loads.
Check power supply – unstable 24 V power can affect measurement accuracy.

If sensor and wiring are good, then test the card channel with a known simulator or replacement card.

Replacement and Compatibility

When ordering MPC4 200-510-017-017, do not replace by part number alone. Confirm:

Full part number including suffix: 200-510-017-017
Relay output configuration
Firmware version compatibility with the existing CPUM and IOC4T cards
Rack type and backplane version
Number of channels and signal types required

A mismatch may work electrically but fail in trip logic or communication. Always verify with the system vendor or a spare parts engineer familiar with VM600 architecture.

Common MPC4 Card Related Questions

What is MPC4 200-510-017-017?
It is a machinery protection card used in VM600 rack systems to process sensor signals and produce alarm or trip relay outputs for rotating equipment.

Which sensors work with this card?
It can accept eddy current proximity probes, piezoelectric accelerometers, velocity sensors, and some pressure or speed inputs depending on configuration.

Why does the card false trip?
False trips usually come from bad sensor gap, damaged cable shield, ground loops, incorrect setpoints, or relay wiring problems.

Can I swap MPC4 cards without configuration?
No. Protection cards contain channel settings, alarm thresholds, relay logic, and communication parameters. Upload or record settings before replacement.

Does grounding matter for this card?
Yes. Poor grounding directly affects measurement accuracy and relay stability.
