Why Tight‑Space M12 Installation Matters

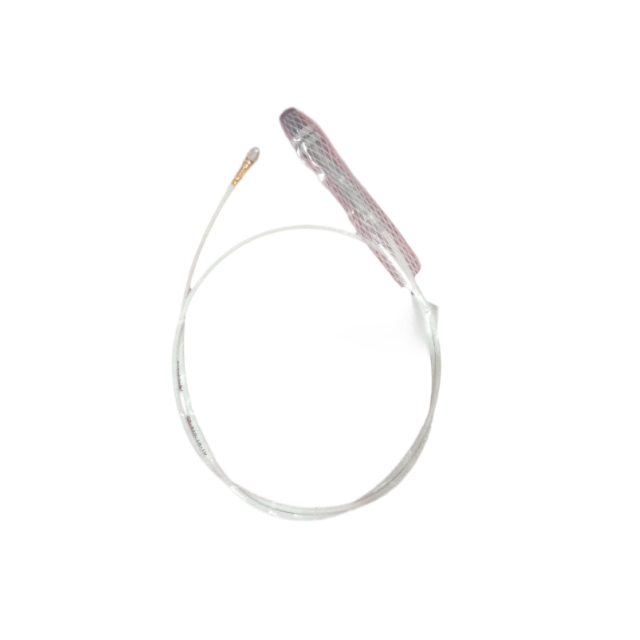

The TQ902 111-902-000-011 is a high‑temperature eddy‑current proximity probe used in VM600 vibration monitoring. Its M12×1 thread and 90‑degree connector cable often create a physical puzzle on cramped bearing housings, small turbine casings, or tightly packed machine frames. Getting the probe properly seated without cross‑threading or damaging the connector is what separates a reliable measurement chain from a call‑back.
What Causes the Installation Difficulty
Radial space around the mounting hole: the probe body is 12 mm diameter, but the connector shell needs 18‑19 mm clearance.
Standard M12 spanners clash with adjacent piping, brackets, or sensor bosses.
The pre‑mounted extension cable (E040 or E090 length) adds rotational drag.
In some retrofit jobs, the old probe hole is painted, corroded, or has thread remnants.
Thin‑wall M12 open‑end spanner (preferably 17 mm A/F, ground slim)
Crowfoot wrench 17 mm with ratchet extension
M12 thread chaser (clean‑up tap, not a blind plug tap)
Anti‑seize compound (nickel‑based for high‑temperature threads)
Small inspection mirror and LED work light
Cable strain‑relief sleeve (if cable exit is tight)
Step‑by‑Step Installation in Confined Spaces
1. Prepare the Mounting Thread
Run the thread chaser through the hole BY HAND to remove old sealant, rust, or burrs. Blow out debris with dry shop air. Check the thread with a new M12 bolt; if it binds, stop and repair the thread – cross‑threading a probe destroys the expensive tip.
2. Apply Anti‑Seize
Use only a thin smear on the first 3‑4 threads. Excess compound can act as a wedge and give false gap voltage readings.
3. Pre‑route the Cable
Before inserting the probe, route the connector‑end cable loosely away from moving parts. If the cable must pass through a tight gland or conduit entry, pull it through now – trying to twist the probe to relieve cable tension after seating will disturb the gap setting.
4. Start the Thread by Hand
Lower the probe tip into the hole and turn COUNTER‑CLOCKWISE until you feel the thread lead drop in, then turn clockwise. Never use a tool to start the thread. If you can’t get your fingers on the body, make a simple installation aid: wrap a rubber band around the probe shank to increase grip.
When hand‑tight, use a 17 mm crowfoot on a long extension to reach into the recess. A short‑swing ratchet or flex‑head extension will let you apply small angular turns where a straight spanner cannot swing. Tighten to 5‑6 N·m only. Over‑tightening can distort the sensing face and shift the probe’s linear range. If you don’t have a crowfoot, a ground‑down open‑end spanner with a cheater pipe may work but use extreme care to avoid rounding the flats.
After seating, connect to the IQS450 or IPC704 conditioner and rotate the shaft slowly by hand if possible. The gap voltage should settle at the target value (typically −10 V DC for standard setups). A shift of >0.5 V suggests thread contamination, incorrect torque, or a bent probe body.
Common Mistakes to Avoid
Forcing a tight thread with a wrench – the M12 aluminium or stainless steel thread galls easily under side load
Twisting the connector body to tighten the probe – always use the hex flats, never the connector shell
Leaving the cable looped around the wrench – a sudden slip can cut the cable jacket
Ignoring adjacent vibration sources – if the probe touches a nearby bracket, the measurement is invalid
When a Standard Wrench Cannot Work
Some installations have only 20 mm of lateral clearance. In these cases you have two options:
1. Use a modified 17 mm box spanner – grind a slot in the wall so the cable passes through. This works for final tightening when you can start the probe by hand.
2. Employ a M12‑to‑extender stud adapter – machine a short M12 male‑female adapter that brings the mating plane forward. Note: this alters the probe insertion depth and must be compensated during gap setting.
FAQ
Q: Can I install the TQ902 with Loctite?
A: Not recommended. Most high‑temperature threadlockers introduce dielectric material near the probe tip and can shift the gap voltage. Use anti‑seize and controlled torque.
Q: What if the cable exit is facing the wrong direction after tightening?
A: Do not back‑turn the probe. Use a thin M12 shim washer (typically 0.1 mm steel) to adjust angular orientation. The small gap change is within the conditioner’s adjustment range.
Q: Is a torque of 5 N·m enough for a high‑vibration machine?
A: Yes, when combined with thread anti‑seize and a clean thread. Locking wires or tack welds are not used on these probes – they should remain service‑replaceable.
Getting Replacement Probes and Support
When an installation requires a fresh probe or matching accessories (cable, conditioner, rack module), fast supply avoids extended downtime. Joyoung International Trading holds certified new‑original TQ902 111-902-000-011 probes and related Vibro Meter VM600 components. We can also provide correct‑length extension cables, crowfoot tooling advice, and gap‑setting technical notes. For rush orders or installation questions, contact our support team at chen@htechplc.com.
