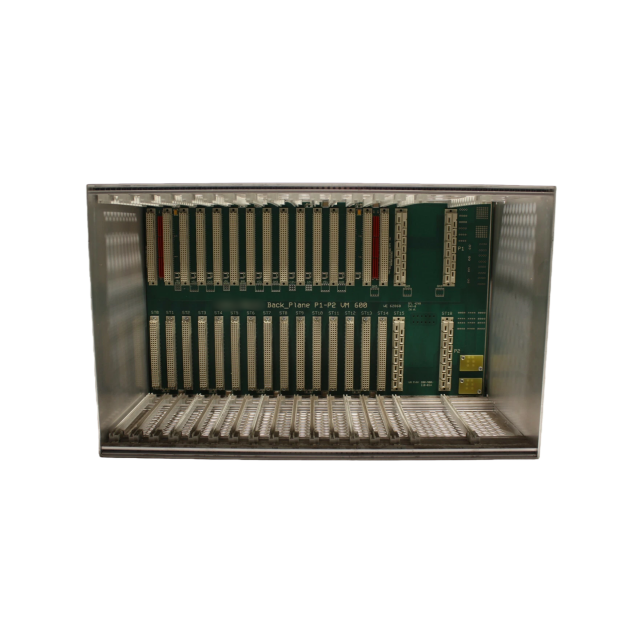

The 204-040-100-012 is the backplane assembly used in Vibro-Meter VM600 machinery protection racks. It is not a processor or I/O card. It is the passive card-cage backplane that provides module slots, power distribution, internal bus routing, and grounding for cards such as CPUM 200-595-067-114, MPC4, IQS450, IOC4T, CMC16, and RLC16.
For engineers and sourcing teams, this part must be ordered and maintained as a structural piece. A wrong backplane revision, a bent slot pin, or a poor cabinet ground can cause intermittent protection channel faults that are hard to trace.
What the 204-040-100-012 Backplane Does
The backplane performs four jobs:
Mechanical mounting. It holds each VM600 module in a fixed slot position.
Power distribution. It routes the 24 V DC power supply and reference ground to all installed cards.
Address and data bus. It gives each slot a fixed address that the CPUM reads for module identification.
Signal routing. It carries conditioned measurement data, status flags, and trip commands between protection and communication cards.
Because the backplane is passive, it has no firmware and no configuration file. Most field faults on this part are mechanical or electrical contact problems rather than logic failures.
Bus Topology: How Modules Communicate
The 204-040-100-012 uses an internal multi-drop backplane bus. The CPUM module operates as the master. IOC4T, CMC16, MPC4, IQS450, and RLC16 operate as slave or function modules.
Key topology characteristics:
Fixed slot addressing. Each connector position has hard-wired address lines. The CPUM identifies a module by the slot it occupies, not only by the module type code.
Deterministic data transfer. Protection data is exchanged over the internal bus in a fixed scan pattern. This avoids Ethernet or fieldbus timing jitter for critical vibration and trip signals.
Separate external communication. Modbus, Ethernet, CEX-Bus, or other plant-level networks are handled by CPUM or IOC4T ports. The backplane bus itself is not a fieldbus.
This topology is why swapping a known-good module into a different slot can change the rack address mapping. After a module move, the CPUM configuration must be checked.
Signal Routing: From Sensor to Trip Output
A typical VM600 signal chain crosses multiple modules connected through the backplane:
Step | Module | Role |
|---|
1 | TQ402 / TQ412 / CA202 / CP515 | Field sensor input |
2 | IQS450 / IPC704 | Signal conditioning or conversion |
3 | MPC4 | Vibration protection and threshold logic |
4 | RLC16 | Relay trip output |
5 | CPUM / IOC4T | System communication and data access |
The 204-040-100-012 backplane carries the conditioned signal from the conditioner to the protection card. It also carries the resulting alarm or trip status back to the CPUM and to the relay output card. If a slot contact is damaged, the protection chain can fail even though each module appears healthy when tested outside the rack.
204-040-100-011 Rack vs 204-040-100-012 Backplane
These two part numbers are often ordered together, but they are not the same item.
Part number | Function | Typical replacement concern |
|---|
204-040-100-011 | System rack or card cage | Mechanical damage, corrosion, mounting |
204-040-100-012 | Backplane PCB with bus connectors | Slot pin damage, power trace failure, broken connector |
When replacing only the backplane, verify the mounting hole positions and slot spacing against the existing 011 rack. A backplane from a different rack revision may fit mechanically but have a different slot count or bus termination layout. If in doubt, replace the 011 rack and 012 backplane as a matched set.
Cabinet Mounting and Ventilation Spacing
The 204-040-100-012 backplane rack must be installed inside a grounded industrial cabinet with adequate airflow.
Installation rules:
Maintain at least 50 mm of free space above and below the rack. If the cabinet has multiple racks or high ambient temperature, increase this clearance.
Bond the cabinet back panel to the plant protective earth. Use a dedicated earth conductor, not the cabinet door hinge or painted surface.
Route field cables from the side or bottom. Do not cover the front module face or the backplane ventilation slots.
Do not install the rack directly above a heat source such as a power transformer, drive, or braking resistor.
Keep spare slots closed with blank covers to maintain airflow direction.
Poor ventilation around the backplane leads to heat accumulation at the connector contacts. That can accelerate oxidation and increase contact resistance over time.
Field Fault Finding
Use this symptom table when the VM600 rack shows channel or communication errors:
Symptom | Likely cause | First check |
|---|
Module not recognized in one slot | Bent backplane pin or broken slot address line | Remove module, inspect pins, reseat |
Intermittent channel failure | Dirty or loose backplane contact | Clean with IPA and reseat |
CPUM communication loss on multiple cards | Rack power issue or bus termination problem | Check 24 V DC supply and backplane seating |
Module works in another slot | Slot-level backplane fault | Replace backplane or isolate slot |
False trip or trip failure | Wrong slot mapping or damaged trip path | Check configuration after module move |
Do not bend backplane pins to force a module. If a pin is damaged, replace the backplane. Field repair of individual pins is not reliable for safety-related protection systems.
Replacement and Sourcing Checklist
Before ordering a 204-040-100-012 backplane rack, prepare this information:
Installed module list and slot positions
Rack part number and revision from the label
Cabinet dimensions and available ventilation spacing
Any previous backplane modifications or wiring changes
Firmware version of CPUM if the full rack is being rebuilt
Target lead time and delivery region
The backplane should be shipped in anti-static packaging. If the packaging is damaged or the PCB is exposed to moisture, do not install it until it has been inspected and dried.
FAQ
Is the 204-040-100-012 compatible with the 204-040-100-011 rack?
Yes. The 011 is the outer rack or card cage. The 012 is the backplane that mounts inside it. Always verify revision compatibility before replacing only one part.
Can I replace the backplane without removing field wiring?
No. The backplane may contain terminal connections or ground returns. Shut down the rack, document all cable positions, and remove field wiring before replacing the backplane.
Why does a module work in one slot but not another?
This usually indicates slot-specific backplane damage, a bent connector pin, or incorrect slot address logic. Do not ignore it. The protection path cannot be verified through a damaged slot.
How do I prevent backplane contact failures?
Keep the cabinet sealed, control humidity, change door filters on schedule, and avoid touching backplane pins with bare hands. Inspect spare slots during scheduled shutdowns.
