Industrial I/O modules sit at the boundary where physical reality meets digital control. Every temperature reading, every valve position, every motor start command passes through these components. When they work well, nobody notices them. When they fail, entire production lines stop. That fundamental role shapes everything about how these modules are designed, selected, and deployed across manufacturing, process industries, and critical infrastructure.

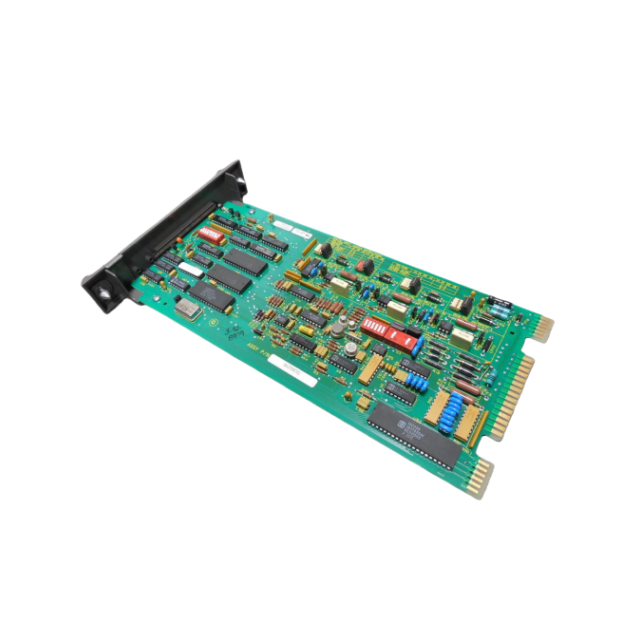

Digital I/O Modules Handle Binary States
Digital I/O modules process discrete signals. On or off. Open or closed. Present or absent. Nothing in between.
Digital input modules read signals from field devices. A limit switch trips when a conveyor reaches its endpoint. A push button signals an operator command. A proximity sensor detects a part in position. The module converts these physical states into binary data the controller can act on.
Digital output modules work in reverse. The controller decides a motor should start, and the output module energizes the contactor coil. A solenoid valve needs to open, so the module switches the appropriate circuit. These binary commands drive the physical actions that make processes run.
Characteristic
Digital Input Module
Digital Output Module
Signal Type
Discrete (On/Off)
Discrete (On/Off)
Function
Detects status/events
Controls actuators
Examples
Limit switches, push buttons
Solenoid valves, motor contactors
Voltage Levels
5V, 12V, 24V DC; 120V, 240V AC
5V, 12V, 24V DC; 120V, 240V AC
Isolation
Often optically isolated
Often optically isolated
Response Time
Typically fast
Typically fast
Where Digital I/O Modules Get Used
Packaging lines rely heavily on digital I/O. Conveyors start and stop based on product detection. Robotic arms receive go/no-go signals. Reject mechanisms fire when quality checks fail. The logic is straightforward, but the timing matters enormously.
Safety interlocks represent another major application. Emergency stops, guard door switches, light curtains. These signals must reach the controller reliably and quickly. Optical isolation in the modules helps prevent electrical noise from causing false readings. A spurious signal on a safety circuit can shut down production unnecessarily. A missed signal can allow someone to get hurt.
Machine automation sequences depend on digital feedback at every step. The cylinder extended. The clamp closed. The part seated. Each confirmation allows the next action to proceed. Miss one, and the sequence stalls or worse, continues when it should not.
Analog I/O Modules Measure and Control Continuous Variables
Analog I/O modules handle signals that vary continuously across a range. Temperature does not jump from cold to hot. Pressure builds gradually. Flow rates fluctuate. These physical realities require modules that can capture and reproduce that variation.
Analog input modules convert continuous measurements into digital values. A thermocouple generates millivolts proportional to temperature. A pressure transmitter outputs 4-20mA corresponding to its measurement range. The module samples these signals, converts them to numbers, and passes them to the controller.
Analog output modules do the opposite. The controller calculates that a valve should open to 67% position. The output module generates the corresponding 4-20mA signal to the valve positioner. A variable frequency drive needs a speed reference, so the module outputs the appropriate 0-10V signal.
PID control loops depend entirely on analog I/O. The input module reads the process variable. The controller compares it to setpoint and calculates an output. The output module sends that signal to the final control element. This cycle repeats continuously, adjusting the process to maintain desired conditions.
How Analog-to-Digital Conversion Works
The conversion from continuous analog signal to discrete digital value involves tradeoffs. ADC resolution determines how finely the module can distinguish between signal levels. A 12-bit converter divides the input range into 4,096 steps. A 16-bit converter provides 65,536 steps. For a 4-20mA input representing 0-100 PSI, that difference means measuring to 0.024 PSI versus 0.0015 PSI.
Sampling rate matters when signals change quickly. A temperature in a large tank changes slowly. Sampling once per second captures it adequately. Vibration signals oscillate rapidly. Capturing them accurately requires thousands of samples per second.
Noise presents constant challenges. Industrial environments generate electrical interference from motors, drives, welders, and countless other sources. Input filtering, shielding, and proper grounding help, but analog signals remain more vulnerable than digital ones. The 4-20mA current loop became an industry standard partly because current signals resist noise better than voltage signals over long cable runs.
Communication Cards Connect Everything Together
Modern industrial systems distribute intelligence across many devices. PLCs control local processes. DCS platforms coordinate entire plants. HMIs display information to operators. Drives, analyzers, and smart instruments all generate data worth collecting. Communication cards make these connections possible.
Fieldbus protocols emerged to replace point-to-point wiring with shared networks. PROFIBUS handles both process and factory automation, supporting hundreds of devices on a single cable. Modbus remains popular for its simplicity, especially in smaller systems and for connecting third-party devices.
Industrial Ethernet protocols brought higher speeds and greater flexibility. EtherNet/IP uses standard Ethernet hardware with the Common Industrial Protocol for real-time control. PROFINET offers similar capabilities with roots in the PROFIBUS ecosystem. Both support distributed I/O architectures where remote modules connect directly to the network rather than wiring back to a central rack.
Protocol
Type
Key Features
Typical Applications
Modbus
Serial/Ethernet
Simple, widely adopted, master/slave
Small to medium-scale control, device communication
PROFIBUS
Fieldbus
High speed, deterministic, complex architectures
Process automation, factory automation
EtherNet/IP
Industrial Ethernet
Standard Ethernet, CIP protocol, real-time control
High-speed data exchange, distributed I/O, motion control
The choice of protocol often depends on what already exists in a facility. Mixing protocols requires gateways that translate between them. These work, but add complexity and potential failure points. Standardizing on fewer protocols simplifies maintenance and spare parts inventory.
Selecting I/O Modules Requires Matching Specifications to Applications
The selection process starts with understanding what signals need handling. Count the digital inputs and outputs. Identify the analog measurements and control outputs. Determine the voltage levels, current ranges, and signal types involved.
Environmental conditions constrain choices. Modules rated for office environments will not survive in a steel mill. Temperature extremes, humidity, vibration, and corrosive atmospheres all affect reliability. Hazardous area classifications may require intrinsically safe or explosion-proof modules.
System architecture influences selection too. Centralized systems concentrate I/O in control room cabinets. Distributed systems place modules near the field devices they serve, reducing cable runs but requiring modules that tolerate harsher conditions. The communication protocol must match the existing network infrastructure.
Spare parts strategy deserves consideration. Standardizing on fewer module types simplifies inventory and training. But forcing a high-resolution analog module into an application that only needs digital I/O wastes money and may introduce unnecessary complexity.
Digital Versus Analog Selection Criteria
The fundamental question is whether the signal varies continuously or switches between discrete states. A temperature measurement is analog. A high-temperature alarm contact is digital. Sometimes both exist for the same process variable, serving different purposes in the control strategy.
Precision requirements drive analog module selection. Measuring flow to 0.1% accuracy requires different hardware than measuring to 1% accuracy. The sensor, the wiring, and the input module all contribute to overall system accuracy. Specifying a high-resolution module while using a low-accuracy sensor wastes capability.
Response time matters for both types but affects selection differently. Digital modules typically respond in milliseconds, fast enough for most applications. Analog modules with filtering may introduce delays that affect control loop performance. High-speed applications like vibration monitoring require modules specifically designed for rapid sampling.
Industrial I/O Technology Continues Advancing
Edge computing moves processing closer to the data source. Instead of sending raw measurements to a central controller for analysis, intelligent I/O modules perform calculations locally. This reduces network traffic and enables faster response to local conditions. A vibration monitoring module might detect bearing degradation and alert maintenance before the central system even sees the data.
Wireless I/O solutions eliminate cables in applications where wiring is difficult or expensive. Rotating equipment, mobile assets, and retrofit installations benefit most. Battery life, signal reliability, and cybersecurity remain concerns that limit adoption in critical applications. The technology improves steadily, expanding the range of suitable uses.
IIoT integration connects industrial I/O to enterprise systems and cloud platforms. Production data flows to business intelligence tools. Equipment condition information reaches maintenance management systems. This connectivity creates value but also creates vulnerability. Cybersecurity measures that seemed adequate for isolated control systems require strengthening when those systems connect to broader networks.
Smart sensors incorporate processing that once required separate modules. A pressure transmitter might include diagnostics that detect sensor degradation before it affects measurement accuracy. This intelligence enables predictive maintenance strategies that prevent failures rather than simply responding to them.
Working with Joyoung International
Industrial I/O modules form the foundation of automation systems. Digital modules handle discrete control and status monitoring. Analog modules enable precision measurement and continuous control. Communication cards tie everything together into coordinated systems.
Joyoung International Trading Co., Limited supplies the components that make these systems work. Our inventory includes PLC modules, DCS cards, ESD system components, vibration monitoring system cards, steam turbine control system modules, and gas generator spare parts. We understand that downtime costs money and that getting the right part quickly matters.
Common Questions About Industrial I/O Modules
How do industrial communication cards enhance PLC and DCS system performance?
Communication cards enable data to move between devices that would otherwise operate in isolation. A PLC controlling one process area can share information with PLCs in adjacent areas, coordinating handoffs and preventing conflicts. DCS platforms aggregate data from across entire facilities, giving operators visibility into overall system status. The cards support specific protocols that determine how fast data moves and how many devices can share a network. Distributed I/O configurations become possible, placing modules near field devices and connecting them over the network rather than running individual cables back to central cabinets. This reduces wiring costs and simplifies troubleshooting since the network provides diagnostic information about connected devices.
Which I/O module types are best suited for high-precision process control applications?
Analog input modules with high ADC resolution handle precision measurement requirements. A 16-bit or higher resolution module can distinguish smaller changes in the measured variable, enabling tighter control. Signal conditioning within the module filters noise and compensates for sensor characteristics. For temperature measurement, modules designed for specific sensor types like thermocouples or RTDs provide better accuracy than general-purpose voltage inputs. The module selection must match the sensor capability. Pairing a high-resolution module with a low-accuracy sensor does not improve overall measurement quality. Process control applications in pharmaceuticals, semiconductors, and specialty chemicals often require this level of precision to maintain product quality and regulatory compliance.
What are the common challenges in integrating different types of industrial I/O modules?
Protocol mismatches create immediate problems. A Modbus device cannot communicate directly with a PROFINET network without a gateway. These protocol converters work but add cost, complexity, and potential failure points. Configuration tools vary between manufacturers, requiring maintenance personnel to learn multiple software packages. Wiring practices differ too. Some modules expect sinking inputs while others expect sourcing. Connecting them incorrectly can damage equipment or simply fail to work without obvious indication of the problem. Electrical noise in industrial environments affects analog signals more than digital ones, requiring attention to cable routing, shielding, and grounding. Addressing these challenges during system design prevents problems during commissioning and operation.
