DATX 100 3ASC25H208 Advantages

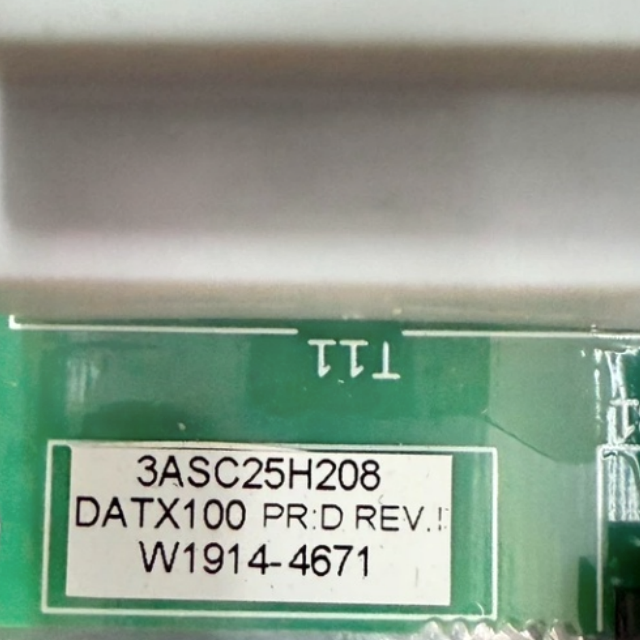

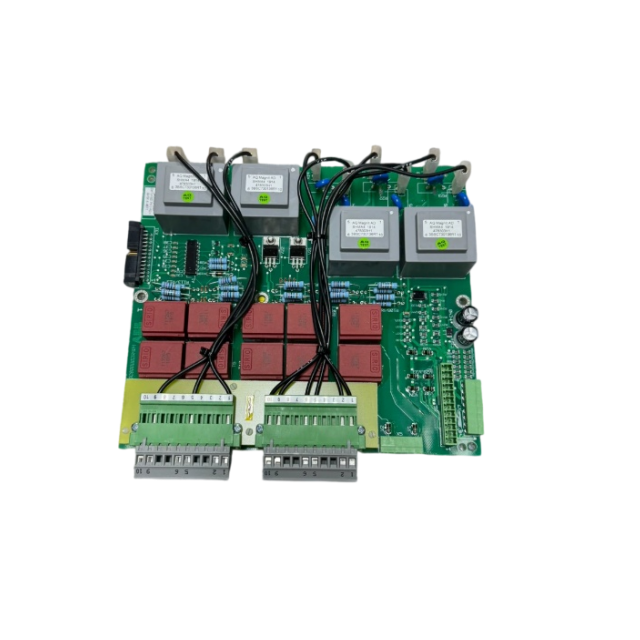

The ABB DATX 100 3ASC25H208 Pulse transformer board stands out from comparable pulse‑trigger interface boards in several key areas.
Multi‑channel integrated pulse‑transformer isolation design. The ABB DATX 100 3ASC25H208 Pulse transformer board integrates multiple independent pulse‑transformer units — critical for providing galvanic isolation for each thyristor gate trigger channel and blocking high‑voltage surge from power bridge feeding back into sensitive low‑voltage main‑control hardware.
Trigger‑pulse amplification and waveform conditioning. The ABB DATX 100 3ASC25H208 Pulse transformer board amplifies weak control‑level trigger signals to meet thyristor gate driving requirements. The ABB DATX 100 3ASC25H208 Pulse transformer board optimizes pulse waveform to guarantee reliable thyristor turn‑on performance under full‑load operating conditions.
Built‑in surge‑suppression and noise‑filtering network. The ABB DATX 100 3ASC25H208 Pulse transformer board is equipped with on‑board clamping and filtering components. The ABB DATX 100 3ASC25H208 Pulse transformer board restrains high‑frequency switching interference inside power‑electronics cabinets and improves trigger‑signal stability.
Standard plug‑in rack‑mount mechanical form factor. The ABB DATX 100 3ASC25H208 Pulse transformer board follows ABB VFD Spares standard mechanical dimension. The ABB DATX 100 3ASC25H208 Pulse transformer board fits dedicated installation slot of matched power‑conversion system rack. The ABB DATX 100 3ASC25H208 Pulse transformer board supports convenient spare‑part replacement and on‑site trigger‑loop troubleshooting.
Wide operating temperature (-20 °C to +60 °C). The ABB DATX 100 3ASC25H208 Pulse transformer board performs reliably from cold control‑room environments to high‑heat power‑conversion‑cabinet conditions without additional heating or cooling thermal protection.
Native ABB VFD Spares integration. As a factory‑original ABB component, the ABB DATX 100 3ASC25H208 Pulse transformer board plugs directly into matched system rack. The ABB DATX 100 3ASC25H208 Pulse transformer board receives control pulses from main‑control board and outputs isolated gate‑trigger pulses to thyristor units with no extra adapters or custom modification.
DATX 100 3ASC25H208 Applications
Power Generation Industry. Key pulse‑trigger‑interface spare board within ABB VFD Spares series, providing isolated thyristor gate‑trigger pulses for generator‑excitation power‑conversion units in thermal‑power and hydro‑power plants.
DC‑Drive & Power‑Conversion Installations. Supports industrial thyristor‑rectifier DC‑drive cabinets, undertaking pulse isolation and amplification for DCS‑series DC‑drive power‑bridge units.
Metal‑Rolling & Heavy‑Manufacturing Facilities. Delivers reliable isolated trigger‑pulse output for rolling‑mill main‑drive rectifier assemblies, enduring frequent heavy‑load impact operating conditions of production‑line power‑conversion equipment.
Oil, Gas & Petrochemical Facilities. Harsh‑environment EMC‑compliant design makes the ABB DATX 100 3ASC25H208 Pulse transformer board the preferred pulse‑trigger‑interface spare part for large‑auxiliary‑motor DC‑drive and excitation assemblies inside petrochemical‑plant workshops.
Industrial Power‑Conversion Automation Control Systems. Contributes to critical thyristor‑based power‑conversion control loops requiring traceable, high‑integrity isolated gate‑pulse transmission and low‑voltage‑circuit‑protection that meets stringent industrial regulatory and reliability standards.
DATX 100 3ASC25H208 Certifications & Compliance
The ABB DATX 100 3ASC25H208 Pulse transformer board holds the following international safety and compliance approvals:
• CE certification for industrial power‑electronics spare components.
• Industrial EMC compliance for ABB VFD Spares series automation assemblies.
All units supplied are 100% new original ABB parts. Every ABB DATX 100 3ASC25H208 Pulse transformer board unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
