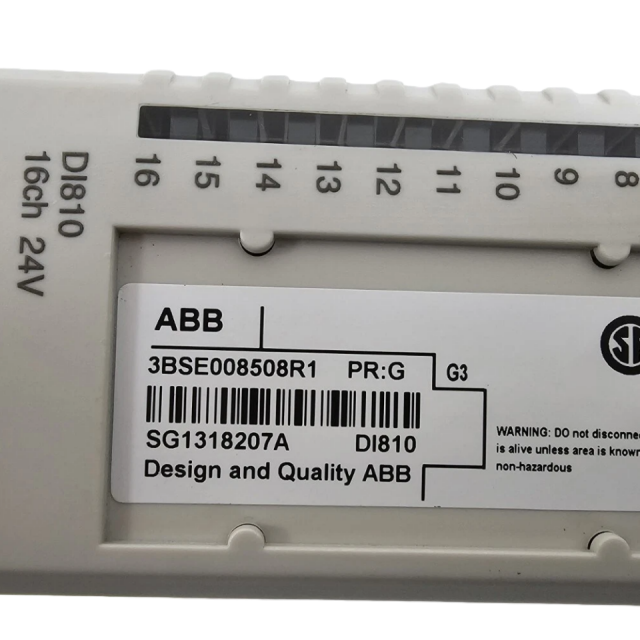

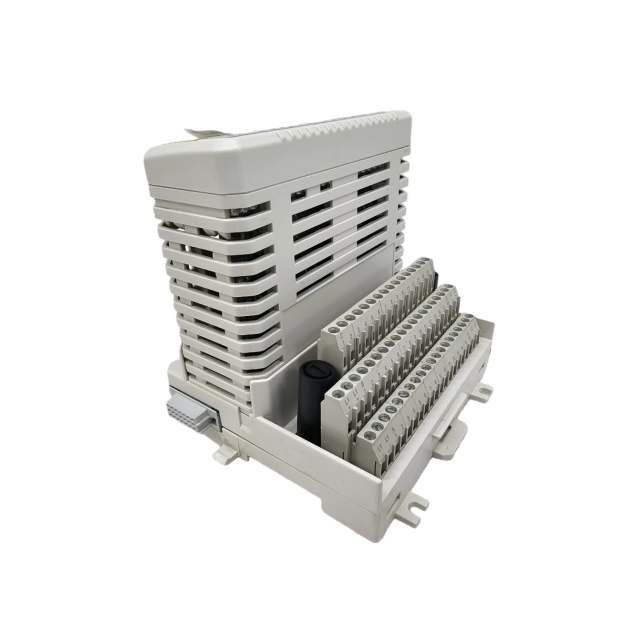

Basic Product Information
Product Type: Digital Input Module
ABB Type Designation: DI810
Product ID (Article Number): 3BSE008508R1
Core Function: Acquires 24 V DC digital signals via current-sinking input configuration
Key Features: 16 input channels, 2 isolated groups (8 channels/group) with voltage supervision, per-channel status LEDs, and selectable digital filtering
Non-Supported Functions: No HART communication, no Sequence of Events (SOE) recording, no redundancy, no high-integrity or intrinsic safety capabilities

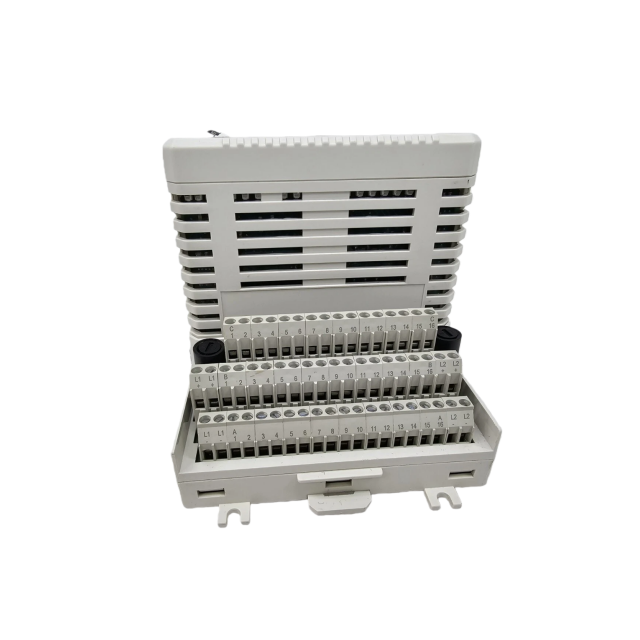

Compatibility: Must be used with specified Module Termination Units (MTUs) including TU810, TU812, TU814, TU818, TU830, TU833, TU838, and TU850; features "AA" keying code for proper rack alignment
Core Specifications
1.Electrical & Signal Parameters
Input Voltage Requirements:
"0" (Logic Low) State: -30 V DC to +5 V DC
"1" (Logic High) State: 15 V DC to 30 V DC (optimized for 24 V DC industrial standard)
Input Current: 6 mA at 24 V DC (current-sinking design)
Input Impedance: 3.5 kΩ
Isolation: Groupwise isolation from ground (2 independent groups of 8 channels each); rated insulation voltage = 50 V DC/AC; dielectric test voltage = 500 V AC
Filter Times: Selectable digital filtering (2 ms, 4 ms, 8 ms, 16 ms) to suppress noise from field wiring or electromagnetic interference (EMI)
Maximum Field Cable Length: 600 meters (656 yards) – supports long-distance signal transmission in large industrial facilities
Current Limiting: Sensor power can be current-limited via compatible MTUs (prevents damage from overcurrent)
2.Power Consumption
Power Dissipation: Typical 1.8 W
ModuleBus Current Consumption:
+5 V DC: 50 mA
+24 V DC: 0 mA (no power draw from ModuleBus +24 V)
External +24 V DC Consumption: 0 mA (relies on ModuleBus power for internal operations)
3.Physical Dimensions & Weight
Width: 45 mm (1.77 inches)
Depth: 102 mm (4.01 inches) (111 mm / 4.37 inches including connector)
Height: 119 mm (4.7 inches)
Net Weight: 0.15 kg (0.33 lbs.) – compact and lightweight for high-density installation in S800 I/O racks
4.Diagnostics & Status Indication
Front-Panel LEDs:
System LEDs: F (Fault), R (Run), W (Warning)
Channel LEDs: 16 individual LEDs (one per channel) to indicate "0" (logic low) or "1" (logic high) state
Supervision: 1 process voltage supervision input per group – triggers channel error signals if the field voltage disappears
Error Reporting: Errors (module fault, module warning, channel error) are transmissible via ModuleBus for remote monitoring
Key Application Notes
System Integration: Designed for ABB’s Compact Product Suite and S800 I/O platform, enabling
plug-and-play integration with control systems like 800xA. The ModuleBus facilitates fast data
transmission between the module and controller.
Noise Immunity: Selectable filter times and groupwise isolation minimize the impact of EMI from
nearby motors, variable-frequency drives (VFDs), or power cables – ensuring reliable signal detection.
Marine & Hazardous Use: Approved for marine environments (via ABS/BV/DNV/LR certifications) and
non-incendive hazardous locations (ATEX Zone 2, C1 Div 2), expanding its use in offshore, oil & gas,
and marine industries.
