DI820 3BSE008512R1
ABB
Freely contact Cheryl Qi
Cheryl Qi➪ Email : chen@htechplc.com
Cheryl Qi➪ WhatsApp : +8618150137565
Cheryl Qi➪ Wechat : +8618150137565
Cheryl Qi➪Phone :+8618150137565
Know more information below
➪Brand/Manufacturer: ABB
➪Part number:DI820 3BSE008512R1
➪Country of origin: Sweden
➪Condition:New with 1 year warranty
➪About shipping:DHL,UPS,FedEx,and TNT
➪Payment:100% T/T for stock items before shipping
Basic Product Identification

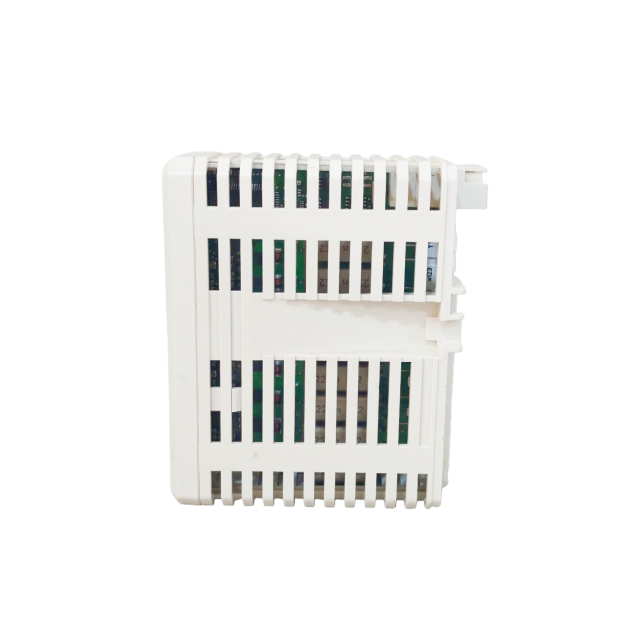

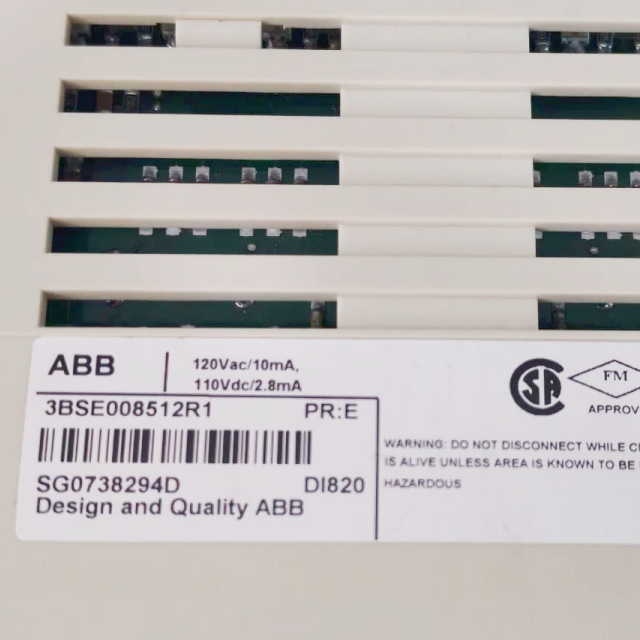

Model & Article Number: Model DI820, article number 3BSE008512R1.
Product Category: Digital input module, part of ABB’s Compact Product Suite, designed for the S800
mechanical platform.
Core Purpose: Used to collect 120 V AC/110 V DC digital signals from field devices in industrial
control systems.
Core Functional Characteristics
Channel Configuration: 8 digital input channels, with current sinking signal type.
Isolation Performance: Channels are individually isolated, ensuring no cross-interference between
signals.
Voltage Supervision: Channel 1 can supervise the power supply of channels 2–4; channel 8 can
supervise channels 5–7. If the supervision voltage disappears, a warning signal is triggered (Warning
LED lights up) and can be read via ModuleBus.
Signal Processing: Equipped with EMC protection components and current limiting components;
supports selectable digital filter times (2/4/8/16 ms) and analog filtering (On/Off delay 5/18 ms) to
enhance signal stability.

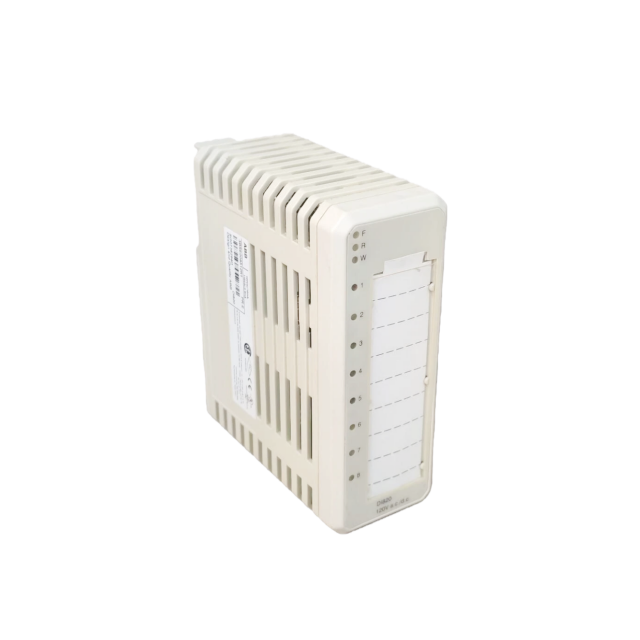

Status Indication: Front-panel LEDs include Fault (F), Run (R), Warning (W), and Channel 1–8 status
indicators for intuitive on-site monitoring.
Key Limitations: No HART protocol support, no SOE (Sequence of Events) function, no redundancy
design, no high integrity or intrinsic safety features.
Technical Specifications
Input Voltage Range:
"0" state: 0–30 V AC / 0–20 V DC.
"1" state: 77–130 V AC / 75–145 V DC.
Input Parameters:
Input current: 10 mA @ 120 V AC / 2.8 mA @ 110 V DC.
Input impedance: 12 kΩ (AC) / 39 kΩ (DC).
Input frequency range: 47–63 Hz.
Insulation & Protection: Rated insulation voltage 250 V; dielectric test voltage 2000 V AC.
Cable Length: Maximum 200 m (AC, 100 pF/m) / 600 m (DC).
Power Consumption: Typical 2.8 W; current consumption 50 mA @ +5 V ModuleBus, 0 mA for +24 V
ModuleBus and external +24 V.
Mechanical Dimensions: Width 45 mm (1.77”), depth 102 mm (4.01”) (111 mm/4.37” including
connector), height 119 mm (4.7”); weight 0.18 kg (0.4 lbs.).
Environmental Adaptability
Temperature Range: Operating 0–+55 °C (+32–+131 °F, approvals apply to +5–+55 °C); storage -40–
+70 °C (-40–+158 °F).
Humidity & Pollution: 5–95% relative humidity (non-condensing); pollution degree 2 (per IEC 60664-
1).
Special Adaptability: Corrosion protection compliant with ISA-S71.04: G3; maximum ambient
temperature 55 °C (131 °F) for vertical mounting, 40 °C (104 °F) for compact MTU mounting.
Protection Class: IP20 (per IEC 60529).
