➪Brand/Manufacturer: ABB
➪Part number:CI854AK01 3BSE030220R1
➪Country of origin: Sweden
➪Condition:New with 1 year warranty
➪About shipping:DHL,UPS,FedEx,and TNT
➪Payment:100% T/T for stock items before shipping
Basic Product Identification

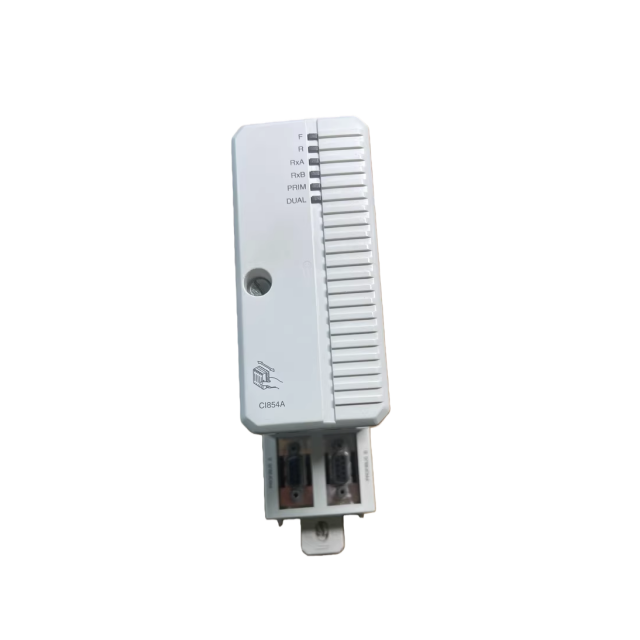

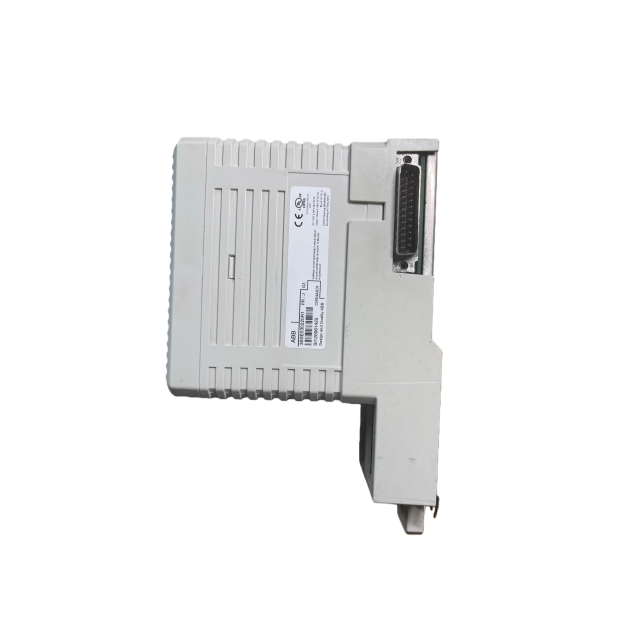

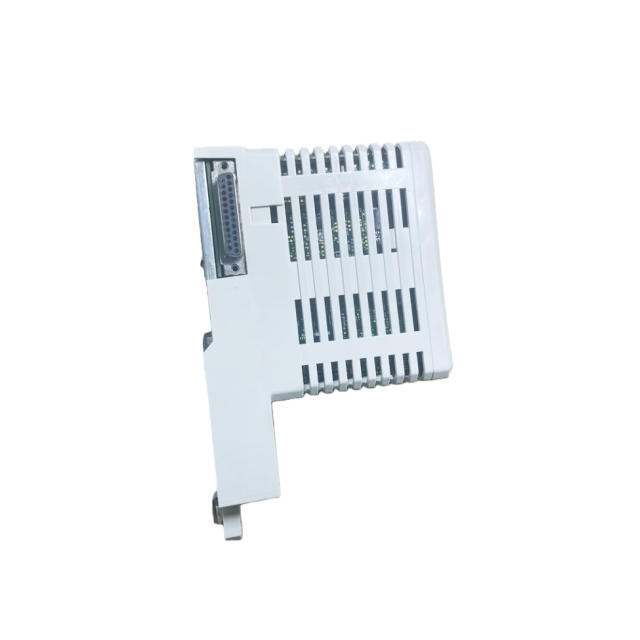

Model & Article Number: Model CI854AK01, corresponding article number 3BSE030220R1; belongs
to the CI854A series (Classic version).
Product Category: PROFIBUS DP communication interface module, designed for ABB’s 800xA Classic
System and AC 800M controller.
Lifecycle Status: Marked as "Classic" (mature product), with the CI854B as its replacement for new
installations.
Core Functional Characteristics
Protocol Support: Complies with PROFIBUS DP-V1, a high-speed multipurpose bus protocol for
connecting field devices.
Connectivity: Used to interconnect remote I/O, drives, low-voltage electrical equipment, controllers,
and other field devices; supports connection to PROFIBUS PA via the linking device LD 800P.
Redundancy Capabilities: Features 2 PROFIBUS ports for line redundancy; supports master
redundancy (achieved by using two CI854A modules), and can be combined with CPU redundancy
and CEXbus redundancy (BC810).
Compatibility: Interfaces directly with ABB’s S800 I/O system, as well as all PROFIBUS DP/DP-V1 and
FOUNDATION Fieldbus-compatible systems; usable with HI Controller.
Special Functions: Supports Hot Swap (hot-swappable) for maintenance without system downtime;
requires termination at the two outermost nodes of the PROFIBUS DP network (typically via
connectors with built-in termination, which needs to be plugged in and powered for proper
operation).
Technical Specifications
Transmission Performance: Transmission speed ranges from 9.6 kbit/s to 12,000 kbit/s (12 Mbit/s).
Physical Interface: Equipped with 2 DB female (9-pin) connectors.
Power Consumption: Typicall consumes 190 mA at 24 V.
Installation & Expansion: Mounted on a DIN rail; maximum 12 units can be connected to the CEX bus.
Dimensions: Height 185 mm (7.3 in.), width 59 mm (2.3 in.), depth 127.5 mm (5.0 in.).
Weight: 700 g (1.5 lbs) including the base.
Environmental Adaptability & Certifications
Temperature Range: Operating temperature +5 to +55 °C (+41 to +131 °F); storage temperature -40 to +70 °C (-40 to +158 °F).
Humidity Resistance: Tolerates 5% to 95% relative humidity (non-condensing).
Protection Class: IP20 (per EN60529/IEC 529).
Certifications: CE-marked; holds marine certificates from BV, DNV-GL, and LR; complies with WEEE
Directive (DIRECTIVE/2012/19/EU); RoHS compliance status not specified in the document.
