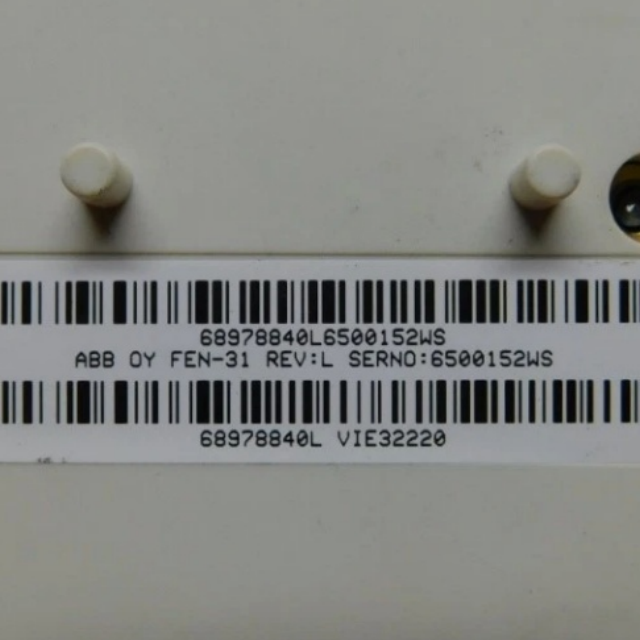

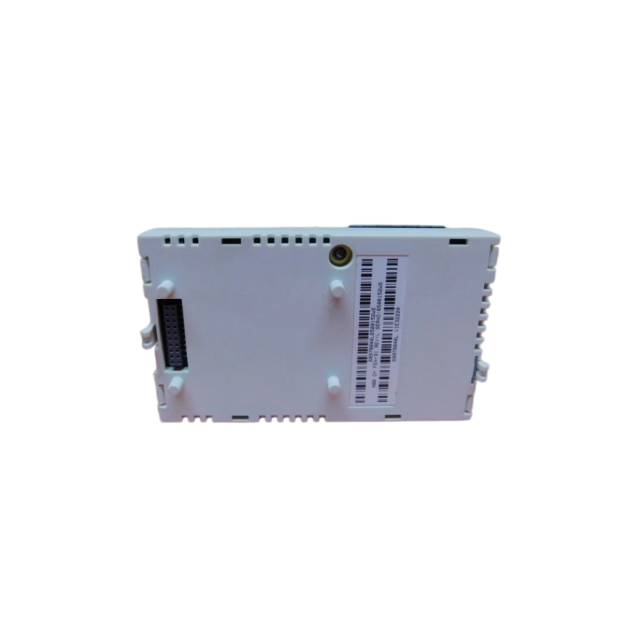

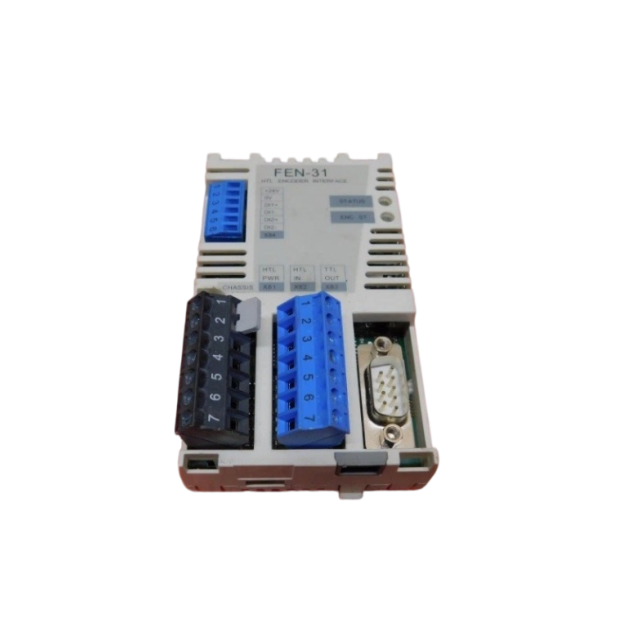

ABB FEN-31 HTL encoder interface

FEN-31 Advantages

The ABB FEN‑31 HTL encoder interface supports multiple mainstream HTL encoder signal formats including differential push‑pull, single‑ended push‑pull, open‑collector and open‑emitter types, removing the requirement for different dedicated interface boards for mixed HTL encoder hardware and reducing spare‑part inventory burden for production sites. The ABB FEN‑31 HTL encoder interface features jumper‑selectable encoder supply voltage output of 15 V or 24 V, and also supports external encoder power input to match diverse power‑supply requirements of field HTL encoders. The ABB FEN‑31 HTL encoder interface comes with integrated motor winding temperature‑sensor acquisition, the ABB FEN‑31 HTL encoder interface accepts PTC, Pt1000 and KTY thermal‑sensor signals directly from motor windings, delivering real‑time motor‑temperature data to the main drive controller for thermal protection without additional external signal‑acquisition hardware. The ABB FEN‑31 HTL encoder interface is equipped with dual position‑latch inputs and RS‑422 compliant isolated TTL emulation output, the ABB FEN‑31 HTL encoder interface provides dual position‑latch digital inputs for high‑precision position capture events and standard TTL encoder‑signal emulation output, supporting synchronous motion‑control linkage with secondary controllers or slave drive units on production lines. The ABB FEN‑31 HTL encoder interface adopts dedicated encoder cable‑fault detection together with continuous multi‑layer signal‑loop diagnostic functions, the ABB FEN‑31 HTL encoder interface continuously monitors HTL pulse signal integrity, cable connection status and temperature‑sensor‑loop health; the ABB FEN‑31 HTL encoder interface generates standardized drive fault codes and local LED alarm prompts upon signal abnormality, guiding maintenance personnel to rapidly locate feedback‑circuit failures and minimize unplanned production downtime. The ABB FEN‑31 HTL encoder interface maintains stable performance within a wide operating temperature range from -20 °C to +60 °C, working reliably both in cool control rooms and high‑heat drive cabinet interiors without extra auxiliary thermal protection. As factory‑original ABB component, the ABB FEN‑31 HTL encoder interface can be directly plugged into ACS880 drive expansion slots; the ABB FEN‑31 HTL encoder interface only requires parameter configuration for encoder type, pulse count and sensor setup after physical installation, no custom‑modified adapter hardware is necessary.

Get the ABB FEN-31 with fast worldwide delivery — in‑stock units ship within 2‑3 business days of payment confirmation.

• Email: chen@htechplc.com

• WhatsApp / Phone: +86-181-5013-7565

• Shipping carriers: DHL, FedEx, UPS, TNT

Why buy from us:

• 100% new and original ABB VFD Spares parts, including the ABB FEN‑31 HTL encoder interface

• Every product tested before shipment

• Professional anti-static packaging

• One‑year warranty on all units

• Free online quotes and 24/7 technical support

• Competitive pricing with fast global delivery

FEN-31 Applications

The ABB FEN‑31 HTL encoder interface serves as a key HTL incremental‑encoder feedback spare expansion module of ABB VFD Spares series, delivering motor position‑speed feedback and winding‑temperature monitoring for auxiliary‑equipment ACS880 drives in thermal‑power and hydro‑power plants. The ABB FEN‑31 HTL encoder interface supports ABB ACS880 high‑performance single‑drive and multidrive cabinets, acting as universal HTL encoder‑feedback interface for closed‑loop vector and general‑purpose motion‑control applications. The ABB FEN‑31 HTL encoder interface delivers stable pulse‑based position‑speed feedback for rolling‑mill main‑and‑auxiliary drive assemblies, adapting to heavy cyclic‑load shocks and severe electromagnetic‑interference working‑conditions on production lines. With harsh‑environment EMC‑compliant design, the ABB FEN‑31 HTL encoder interface is the preferred HTL encoder‑interface spare part for large‑motor closed‑loop ACS880 drive assemblies inside petrochemical‑plant workshops. The ABB FEN‑31 HTL encoder interface contributes to general‑purpose closed‑loop speed‑and‑position control loops requiring multi‑format HTL encoder compatibility and integrated motor‑temperature‑monitoring capability that meets stringent industrial regulatory and reliability standards.

FEN-31 Certifications & Compliance

The ABB FEN‑31 HTL encoder interface holds the following international safety and compliance approvals: • CE certification for industrial drive HTL‑encoder‑interface spare components. • Industrial EMC compliance for ABB VFD Spares series automation assemblies.

All modules supplied are 100% new original ABB parts. Every ABB FEN‑31 HTL encoder interface unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
