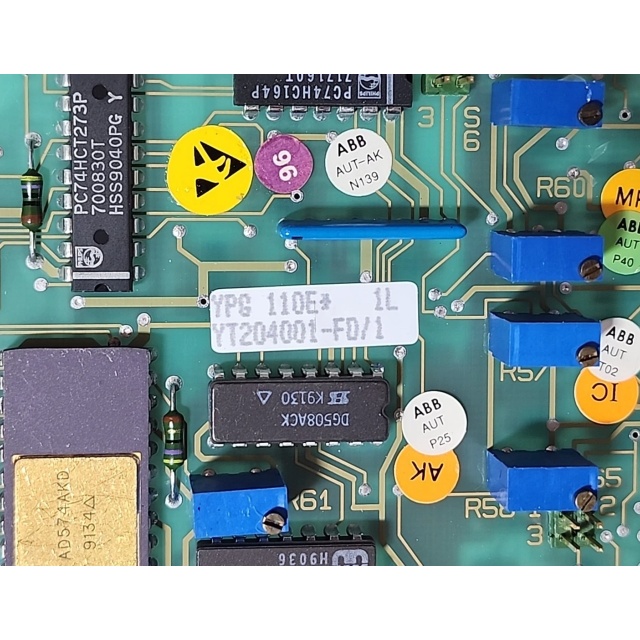

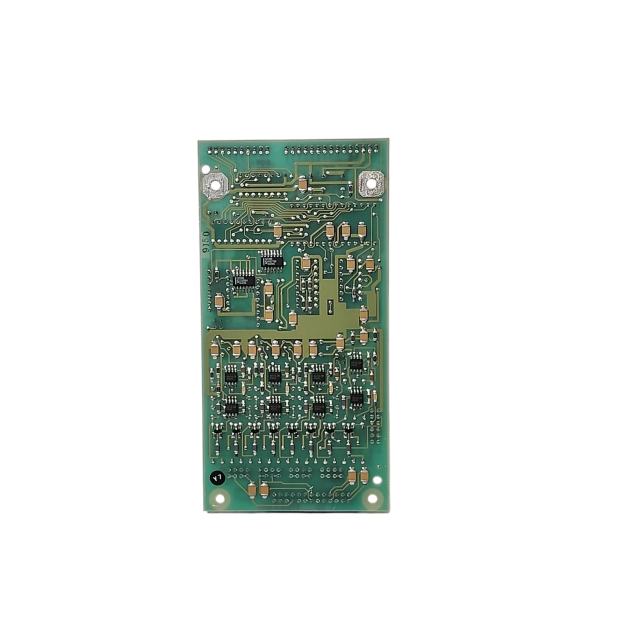

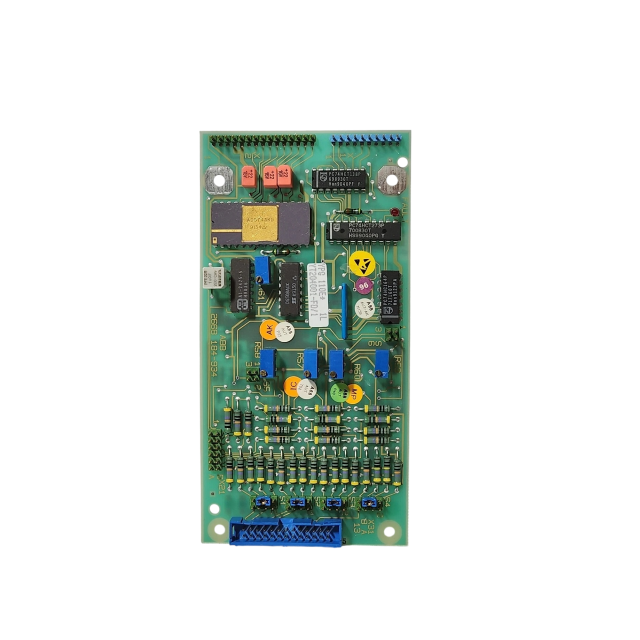

YPG110E YT204001-FD Advantages
The ABB YPG110E YT204001‑FD Control Board stands out from comparable signal‑conditioning auxiliary boards in several key areas.
Precision on‑board resistive signal‑matching network. The ABB YPG110E YT204001‑FD Control Board adopts high‑stability multi‑resistor array. The ABB YPG110E YT204001‑FD Control Board completes accurate impedance matching for field‑sensing signals to reduce signal reflection and measurement deviation in long‑cable industrial applications.
Multi‑stage built‑in noise and surge suppression. The ABB YPG110E YT204001‑FD Control Board integrates EMI‑filtering and surge‑clamping components. The ABB YPG110E YT204001‑FD Control Board mitigates high‑frequency interference induced on field cables and suppresses transient voltage spikes to protect upstream main‑control hardware.
Visual signal‑path status indication. The ABB YPG110E YT204001‑FD Control Board is equipped with dedicated LED status indicators. The ABB YPG110E YT204001‑FD Control Board allows maintenance personnel to quickly judge power‑on and signal‑path working state without extra measuring instruments.
Standard plug‑in rack‑mount mechanical form factor. The ABB YPG110E YT204001‑FD Control Board follows ABB VFD Spares standard mechanical dimension. The ABB YPG110E YT204001‑FD Control Board fits dedicated installation slot of matched drive‑system rack. The ABB YPG110E YT204001‑FD Control Board supports convenient spare‑part replacement and on‑site signal‑loop commissioning.
Wide operating temperature (-20 °C to +60 °C). The ABB YPG110E YT204001‑FD Control Board performs reliably from cold control‑room environments to high‑heat drive‑cabinet conditions without additional thermal protection.
Native ABB VFD Spares integration. As a factory‑original ABB component, the ABB YPG110E YT204001‑FD Control Board plugs directly into matched system‑rack backplane. The ABB YPG110E YT204001‑FD Control Board routes conditioned field signals to rack‑mounted processor boards with no extra adapters or custom modification.
YPG110E YT204001-FD Applications
Power Generation Industry. Key signal‑conditioning spare board within ABB VFD Spares series, processing field‑sensor signals for generator‑auxiliary control racks in thermal‑power and hydro‑power plants.
Drive & Process‑Control Installations. Supports industrial drive control cabinets, undertaking impedance matching and signal conditioning for field measuring and status‑feedback loops.
Metal‑Rolling & Heavy‑Manufacturing Facilities. Delivers stable signal‑adaptation capability for rolling‑mill drive control assemblies, adapting to production‑line vibration and high‑electromagnetic‑interference environments.
Oil, Gas & Petrochemical Facilities. Harsh‑environment EMC‑compliant design makes the ABB YPG110E YT204001‑FD Control Board the preferred signal‑conditioning spare part for large‑auxiliary‑motor drive assemblies inside petrochemical‑plant workshops.
Industrial Drive‑Automation Control Systems. Contributes to critical field‑signal acquisition loops requiring precise impedance matching and noise‑hardened signal transmission that meets stringent industrial regulatory and reliability standards.
YPG110E YT204001-FD Certifications & Compliance
The ABB YPG110E YT204001‑FD Control Board holds the following international safety and compliance approvals:
• CE certification for industrial signal‑conditioning spare components.
• Industrial EMC compliance for ABB VFD Spares series automation assemblies.
All units supplied are 100% new original ABB parts. Every ABB YPG110E YT204001‑FD Control Board unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
