Overview
The IMDSI14 is a dedicated digital input module belonging to the IMDSI1 series (alongside IMDSI12/13/15) for the ABB Bailey INFI 90® OPEN Strategic Process Management System. It is designed to acquire discrete digital signals from industrial field devices and transmit them to INFI 90 control modules (e.g., Multi-Function Processor/IMMFP01/02, Logic Master Module/IMLMM02) for process monitoring and control.
Unlike the multi-voltage IMDSI12 or AC/DC-compatible IMDSI15, the IMDSI14 has a fixed input configuration: it exclusively accepts 48 VDC digital signals, making it ideal for industrial scenarios standardized on 48 VDC field devices (e.g., contact closures, mechanical switches, solenoid status sensors). It features 16 independent input channels, with 12 fully isolated channels and 2 pairs of channels (Channels 7–8 in Group A/B) sharing common positive (+) terminals—optimizing connector pin usage while maintaining isolation from module logic circuitry.

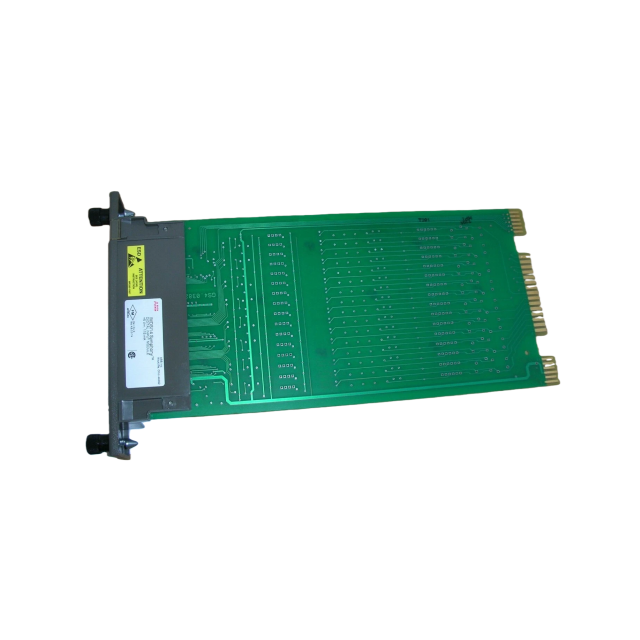

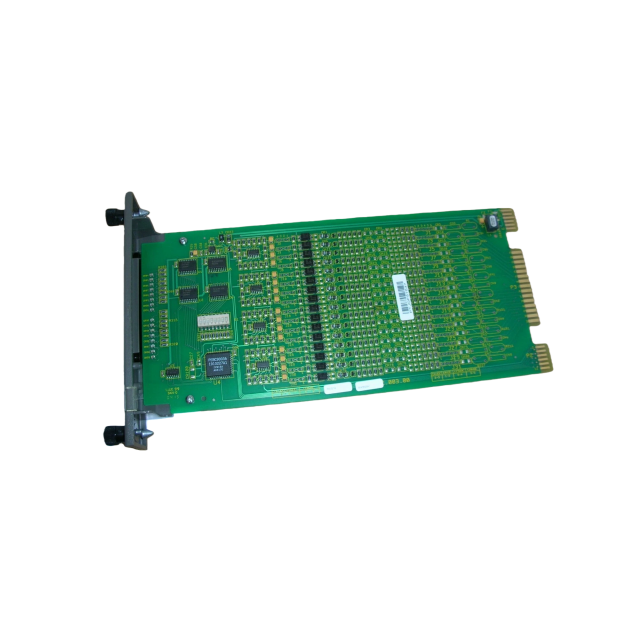

Physically, the IMDSI14 occupies one slot in a standard INFI 90 Module Mounting Unit (MMU) and includes a single printed circuit board (PCB) with front-panel status LEDs (16 red LEDs, divided into Group A/B) for real-time input state visualization (lit = energized/ON, unlit = de-energized/OFF). It supports hot-swapping (install/remove without system power-off) and integrates robust ESD protection (requires Bailey’s Field Static Kit for handling) and 1000 VDC isolation between inputs and logic circuits (CSA-certified), ensuring reliability in harsh industrial environments (0–70°C ambient temperature, 5–95% non-condensing humidity).
The module communicates with INFI 90 control modules via the I/O Expander Bus, using a unique 6-bit address (0–63, set via dipswitch S1) to ensure data routing accuracy. It relies on Function Code (FC) 84 in the control module configuration for signal access, and requires termination devices (NTDI01 Termination Unit or NIDI01 Termination Module) for field wiring connections—simplifying integration into existing INFI 90 systems.
Core Functionality
2.1 16-Channel 48 VDC Digital Signal Acquisition
The IMDSI14’s primary function is to reliably capture 48 VDC discrete signals from field devices and convert them into digital data for INFI 90 control modules. Key capabilities include:
Fixed 48 VDC Input: Optimized for 48 VDC field devices, with strict voltage thresholds to avoid false signals:
Minimum turn-on voltage: 32 VDC (ensures signals are sufficiently strong to register as ON).
Maximum turn-off voltage: 29 VDC (prevents intermittent ON/OFF states from weak signals).
Typical input current: 4.7 mA @ 48 VDC; maximum leakage current: 10 µA (minimizes power consumption and signal interference).

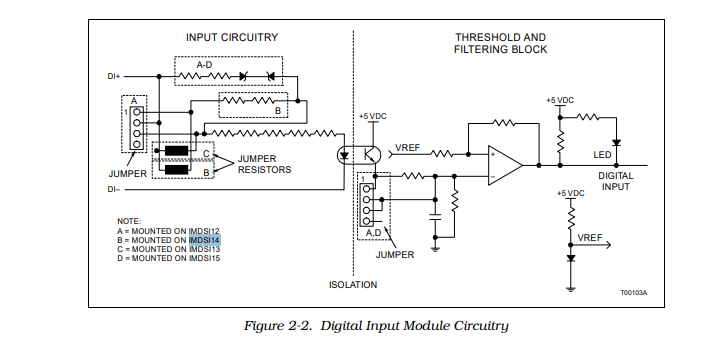

Channel Isolation & Protection: 1000 VDC dielectric isolation between input channels and between inputs and logic circuitry (per CSA C22.2 No. 1010.1-92), preventing fault propagation (e.g., field short-circuits affecting the INFI 90 system). Input circuits also include current limiters and optocouplers to filter noise and withstand transients, meeting IEC 61000-4 series EMC standards for industrial environments.
Fixed Debounce Filter: A 17-millisecond (slow) debounce filter is built into all channels—eliminating contact bounce from mechanical switches (a common cause of false signals) and ensuring stable input readings, which aligns with the majority of industrial digital input application requirements.
2.2 Control Module Communication & Data Handling
The IMDSI14 acts as a slave device on the INFI 90 I/O Expander Bus (12-line synchronous parallel bus), enabling seamless data exchange with control modules:
Address & Function Code Integration: A unique address (set via 8-position dipswitch S1, Positions 3–8 for 6-bit address; Positions 1–2 = closed) links the module to the control module. Control modules access the IMDSI14 via FC 84 (specification S1 = module address), reading two 8-bit “point data bytes” (one for Group A, one for Group B) that reflect each channel’s ON/OFF state (Logic 1 = ON, Logic 0 = OFF).
Status Verification: The module transmits a 8-bit “status byte” to the control module to confirm communication integrity. The control module compares this byte to an expected value; a mismatch flags an error and marks the affected input as “bad quality,” enabling proactive troubleshooting.
Bus Compatibility: The I/O Expander Bus interface uses a custom gate array to handle address detection, function code decoding, and data filtering—ensuring high-speed (synchronous) communication with control modules. The bus can be extended to 6 MMUs via cables, supporting system scalability.
2.3 Front-Panel Status Monitoring & Diagnostics
The IMDSI14 includes user-friendly indicators and built-in diagnostics to simplify system testing and fault identification:

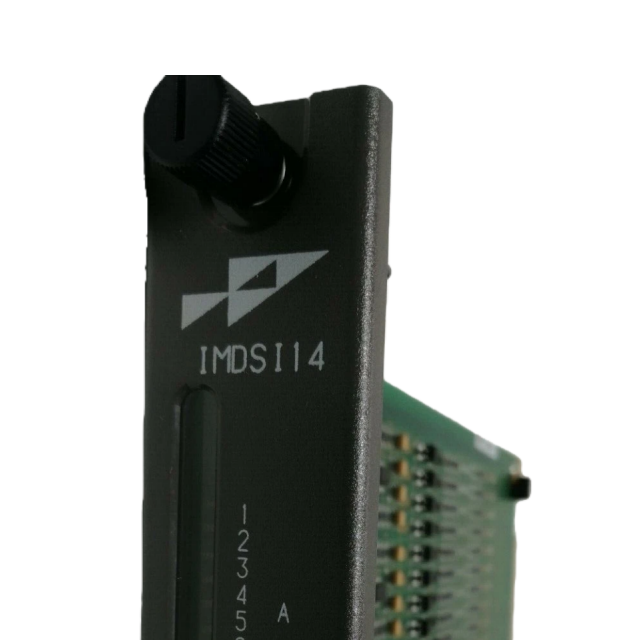

16 Input Status LEDs: Divided into two groups (A/B, 8 LEDs each) on the front panel. A lit red LED indicates an energized (ON) input, while an unlit LED indicates a de-energized (OFF) input—allowing technicians to quickly verify field signal reception at the module level (e.g., distinguishing between a failed switch and a module communication issue).
Control Module Error Reporting: If the IMDSI14’s address (S1) does not match FC 84 specification S1, or if the I/O Expander Bus dipshunt is missing, the control module generates a “MISSING SLAVE MODULE” error. FC 84 output block N (Logic 0 = good, Logic 1 = bad) provides a digital status flag for remote monitoring via INFI 90 operator interfaces (OIS, EWS, CTT).
2.4 Termination & Wiring Simplification
The IMDSI14 relies on INFI 90 termination devices to connect to field wiring, with no on-board jumpers required (fixed 48 VDC configuration):
Termination Device Support: Works with the NTDI01 Termination Unit (dipshunt-configured) and NIDI01 Termination Module (jumper-configured), both of which provide terminal blocks for field device wiring and ensure proper 48 VDC signal polarity.
Cabling: Uses dedicated cables (NKTU01/NKTU11 for NTDI01, NKTM01/NKTU02/NKTU12 for NIDI01) to connect the module’s P3 connector (input signals) to the termination device. Power (P1: +5 VDC logic power) and bus communication (P2: I/O Expander Bus) are automatically connected via the MMU backplane, requiring no additional wiring.
2.5 Hot-Swappable & Low-Maintenance Design
Hot-Swapping: The module can be installed or removed while the INFI 90 system is powered on, minimizing downtime for replacement or maintenance. No pre-operating adjustments are needed (fixed 48 VDC configuration eliminates jumper setup).
Preventive Maintenance: Requires only periodic cleaning (static-safe vacuum for dust removal from the PCB and MMU) and tightening of power/ground connections (every 6 months or plant shutdown). No on-board fuses or calibration are needed, reducing lifecycle costs.
ABB Bailey INFI 90 Series: System Structure & Key Components
The ABB Bailey INFI 90 series is a modular distributed process control system (DCS) tailored for
industrial automation and safety-critical scenarios, featuring a hierarchical architecture that connects
field equipment, slave modules, master controllers, and operator interfaces. At its core, the system
relies on master-slave communication to enable process monitoring and control: the Multi-Function
Processor (MFP: IMMFP01/02) and Network 90 Multi-Function Controllers serve as central master
units, while the IMASI02 (Analog Slave Input Module) acts as a dedicated slave component that
inputs 15 channels of analog signals from field devices (e.g., sensors, Bailey smart transmitters) to the
master controllers. Critical supporting components include termination devices (NTAI05 Termination
Unit, NIAI04 Termination Module) that configure and route field signals to the IMASI02 via specialized
cables (NKTU01, NKTM01), and the Slave Expander Bus (a backplane-mounted parallel bus in the
Module Mounting Unit/MMU) that enables real-time data exchange between the IMASI02 and MFP.
Operator interfaces like the Operator Interface Station (OIS), Configuration and Tuning Terminal (CTT),
and Smart Transmitter Terminal (STT) further integrate with the system—allowing users to configure
the MFP (via FC 132/133), send commands to smart transmitters through the IMASI02, and monitor
process status, while the Controlway and INFI-NET/Plant Loop provide redundant, plant-wide
communication for seamless scalability.
