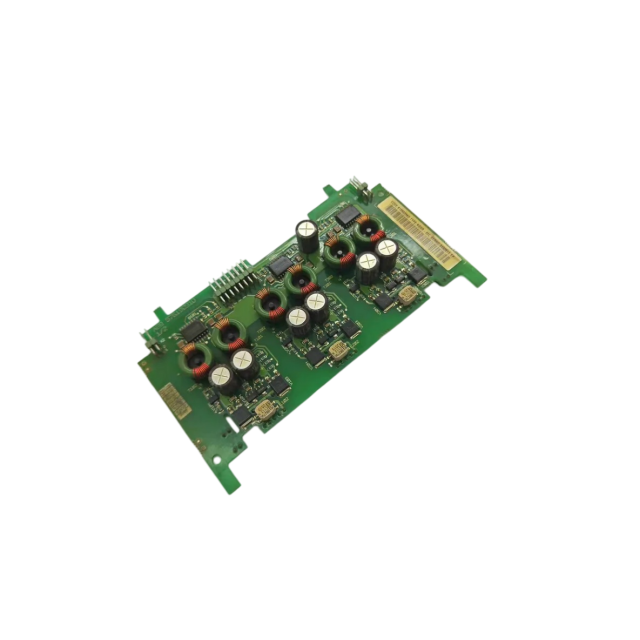

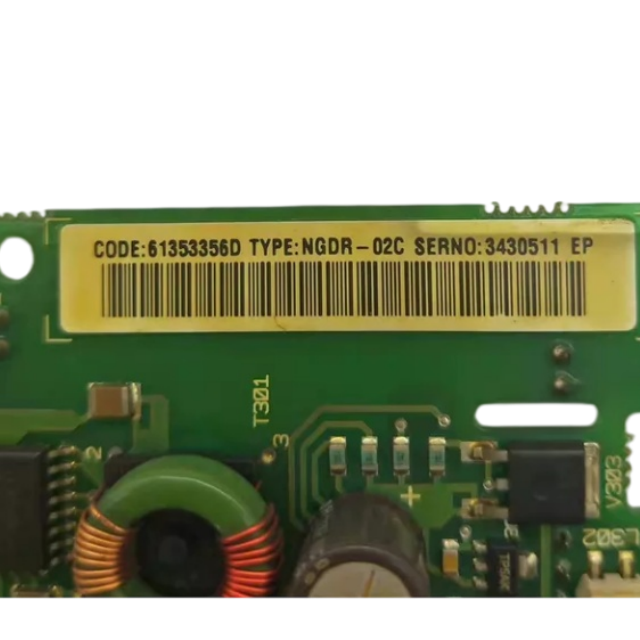

ABB NGDR-02 CIRCUIT BOARD

NGDR-02 Advantages

The ABB NGDR‑02 CIRCUIT BOARD adopts high‑reliability galvanic isolation design between low‑voltage control side and high‑power IGBT side, which effectively prevents high‑voltage reverse impact from power stage from damaging the main control hardware and improves the overall anti‑interference capability of the drive system under complex industrial electromagnetic environments. The ABB NGDR‑02 CIRCUIT BOARD provides accurate pulse amplification and shaping processing for control signals from main controller, outputting stable gate drive pulses to guarantee reliable turn‑on and turn‑off actions of IGBT modules and reduce the risk of power‑device mis‑triggering in variable‑frequency operation process. The ABB NGDR‑02 CIRCUIT BOARD is equipped with built‑in IGBT short‑circuit real‑time detection function, the ABB NGDR‑02 CIRCUIT BOARD can quickly capture power device abnormal signals and feed fault information back to drive main unit to trigger corresponding protection actions, avoiding further damage to power‑stage hardware. The ABB NGDR‑02 CIRCUIT BOARD adopts continuous signal‑loop diagnostic functions, the ABB NGDR‑02 CIRCUIT BOARD monitors drive‑pulse working state and internal circuit health condition in real‑time; the ABB NGDR‑02 CIRCUIT BOARD generates corresponding fault codes and local LED alarm prompts once abnormality occurs, guiding maintenance personnel to rapidly locate drive‑internal failures and minimize unplanned production downtime. The ABB NGDR‑02 CIRCUIT BOARD maintains stable performance within a wide operating temperature range from -20 °C to +60 °C, working reliably both in cool control rooms and high‑heat drive power cabinet interiors without extra auxiliary thermal protection. As factory‑original ABB component, the ABB NGDR‑02 CIRCUIT BOARD can be directly plugged into ACS600 multidrive internal slot positions; the ABB NGDR‑02 CIRCUIT BOARD only requires inspection of internal harness connection definition after physical installation, no custom‑modified adapter hardware is necessary.

Get the ABB NGDR-02 with fast worldwide delivery — in‑stock units ship within 2‑3 business days of payment confirmation.

• Email: chen@htechplc.com

• WhatsApp / Phone: +86-181-5013-7565

• Shipping carriers: DHL, FedEx, UPS, TNT

Why buy from us:

• 100% new and original ABB VFD Spares parts, including the ABB NGDR‑02 CIRCUIT BOARD

• Every product tested before shipment

• Professional anti-static packaging

• One‑year warranty on all units

• Free online quotes and 24/7 technical support

• Competitive pricing with fast global delivery

NGDR-02 Applications

The ABB NGDR‑02 CIRCUIT BOARD serves as a key IGBT gate‑drive spare circuit board of ABB VFD Spares series, providing isolated gate driving and fault‑monitoring functions for ACS600 multidrive power units of auxiliary equipment in thermal‑power and hydro‑power plants. The ABB NGDR‑02 CIRCUIT BOARD supports ABB ACS600 multidrive converter cabinets, acting as the critical signal‑conversion link between main control unit and high‑power IGBT power modules. The ABB NGDR‑02 CIRCUIT BOARD delivers dependable IGBT driving performance for rolling‑mill main‑and‑auxiliary drive assemblies, adapting to heavy cyclic‑load shocks and severe electromagnetic‑interference working‑conditions on production lines. With harsh‑environment EMC‑compliant design, the ABB NGDR‑02 CIRCUIT BOARD is the preferred gate‑drive‑board spare part for large‑power ACS600 multidrive assemblies inside petrochemical‑plant workshops. The ABB NGDR‑02 CIRCUIT BOARD contributes to high‑power variable‑frequency conversion loops requiring reliable isolated IGBT driving and real‑time power‑device fault‑detection capability that meets stringent industrial regulatory and reliability standards.

NGDR-02 Certifications & Compliance

The ABB NGDR‑02 CIRCUIT BOARD holds the following international safety and compliance approvals: • CE certification for industrial drive internal gate‑drive‑board spare components. • Industrial EMC compliance for ABB VFD Spares series automation assemblies.

All modules supplied are 100% new original ABB parts. Every ABB NGDR‑02 CIRCUIT BOARD unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
