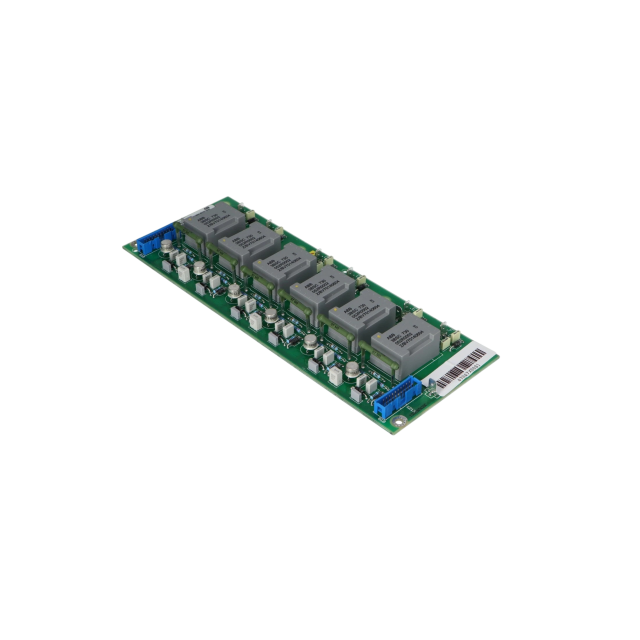

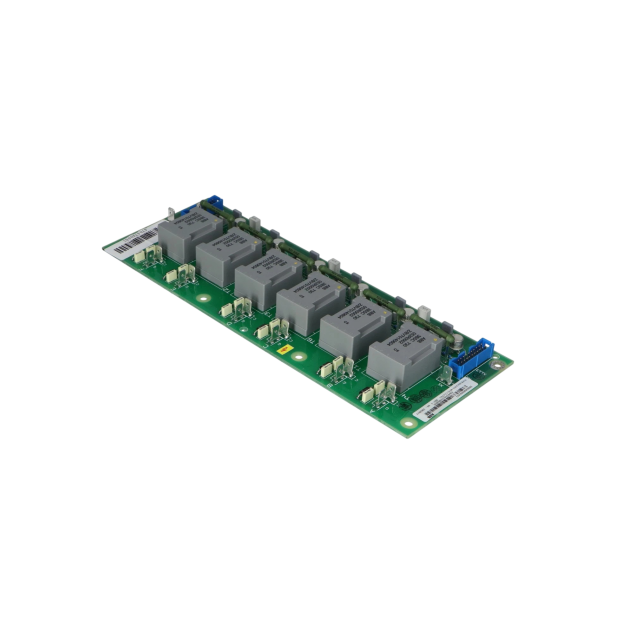

ABB SDCS-PIN-48-SD Pulse Transformer Board

SDCS-PIN-48-SD Advantages

The ABB SDCS‑PIN‑48‑SD Pulse Transformer Board stands out from comparable drive pulse interface boards in several key areas.

High‑voltage galvanic isolation via integrated pulse transformers. The ABB SDCS‑PIN‑48‑SD Pulse Transformer Board provides complete electrical separation between low‑voltage control circuits and high‑power thyristor main circuits, preventing high‑voltage back‑feed damage to expensive main‑controller hardware and improving overall drive‑system anti‑interference performance under heavy industrial electromagnetic disturbance.

Precise shaping and delivery of thyristor firing pulses. The ABB SDCS‑PIN‑48‑SD Pulse Transformer Board processes trigger commands from the main control unit and outputs well‑defined gate pulses, supporting stable thyristor turn‑on operation under heavy‑load and transient‑grid‑fluctuation conditions and reducing risks of mis‑fire or converter‑commutation failure.

Built‑in mains‑synchronization signal conditioning. The ABB SDCS‑PIN‑48‑SD Pulse Transformer Board handles AC line‑sync signal acquisition and conditioning, which forms the foundation for phase‑angle control of DC‑drive thyristor rectifier bridges and guarantees accurate speed‑torque closed‑loop regulation performance.

Per‑channel pulse‑fault monitoring capability. The ABB SDCS‑PIN‑48‑SD Pulse Transformer Board detects lost‑pulse and sync‑signal failure events, feeding diagnostic status back to the main controller for alarm generation, helping maintenance staff quickly locate firing‑circuit faults and minimize unplanned production downtime.

Wide operating temperature (-20 °C to +60 °C). The ABB SDCS‑PIN‑48‑SD Pulse Transformer Board performs reliably from cool control‑room environments up to high‑temperature drive‑power‑cabinet interiors without extra auxiliary thermal protection.

Native ABB VFD Spares integration. As factory‑original ABB hardware, the ABB SDCS‑PIN‑48‑SD Pulse Transformer Board directly mates with DCS‑series drive‑rack internal cabling, main‑controller boards and thyristor power stacks; the ABB SDCS‑PIN‑48‑SD Pulse Transformer Board only requires correct harness connection verification during replacement, no custom‑modified adapters are needed.

Get the ABB SDCS-PIN-48-SD with fast worldwide delivery — in‑stock units ship within 2‑3 business days of payment confirmation.

• Email: chen@htechplc.com

• WhatsApp / Phone: +86-181-5013-7565

• Shipping carriers: DHL, FedEx, UPS, TNT

Why buy from us:

• 100% new and original ABB VFD Spares parts, including the ABB SDCS‑PIN‑48‑SD Pulse Transformer Board

• Every product tested before shipment

• Professional anti-static packaging

• One‑year warranty on all units

• Free online quotes and 24/7 technical support

• Competitive pricing with fast global delivery

SDCS-PIN-48-SD Applications

Power Generation Industry. Critical firing‑pulse‑interface spare board within ABB VFD Spares series, providing isolated thyristor gate‑drive signals for auxiliary‑equipment DC converter drives inside thermal‑power and hydro‑power plants.

DC Drive & Power‑Conversion Installations. Supports ABB DCS500 / DCS600 / DCS800 DC‑drive converter cabinets, acting as the key pulse‑transmission link between main control boards and high‑power thyristor power stacks.

Metal‑Rolling & Heavy‑Manufacturing Facilities. Delivers stable thyristor‑firing control for rolling‑mill main and auxiliary DC drive assemblies, adapting to heavy cyclic load shocks and severe electromagnetic‑interference conditions on production lines.

Oil, Gas & Petrochemical Facilities. Harsh‑environment EMC‑compliant design makes the ABB SDCS‑PIN‑48‑SD Pulse Transformer Board the preferred pulse‑transformer‑board spare for large‑motor DC‑drive converter cabinets in petrochemical‑plant workshops.

Industrial DC‑Drive Automation Control Systems. Contributes to high‑power thyristor rectifier control loops requiring high‑isolation pulse transmission and real‑time firing‑channel fault‑diagnosis performance that meets stringent industrial regulatory and reliability standards.

SDCS-PIN-48-SD Certifications & Compliance

The ABB SDCS‑PIN‑48‑SD Pulse Transformer Board holds the following international safety and compliance approvals:

• CE certification for industrial DC‑drive pulse‑transformer interface spare components.

• Industrial EMC compliance for ABB VFD Spares series automation assemblies.

All modules supplied are 100% new original ABB parts. Every ABB SDCS‑PIN‑48‑SD Pulse Transformer Board unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
