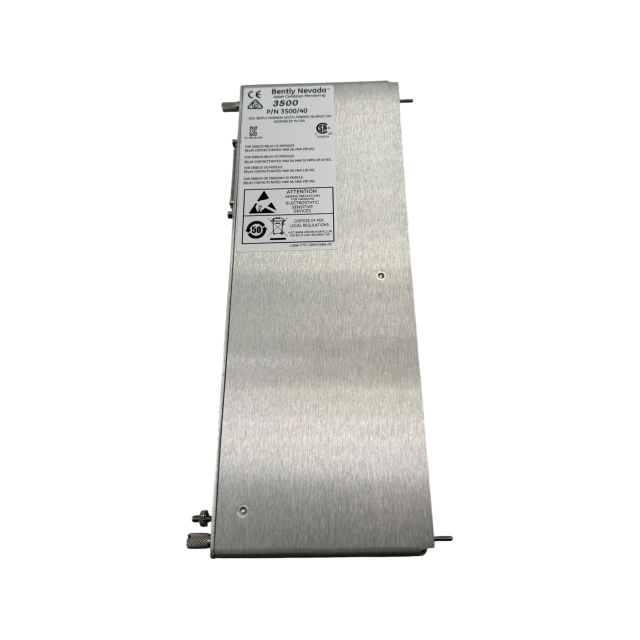

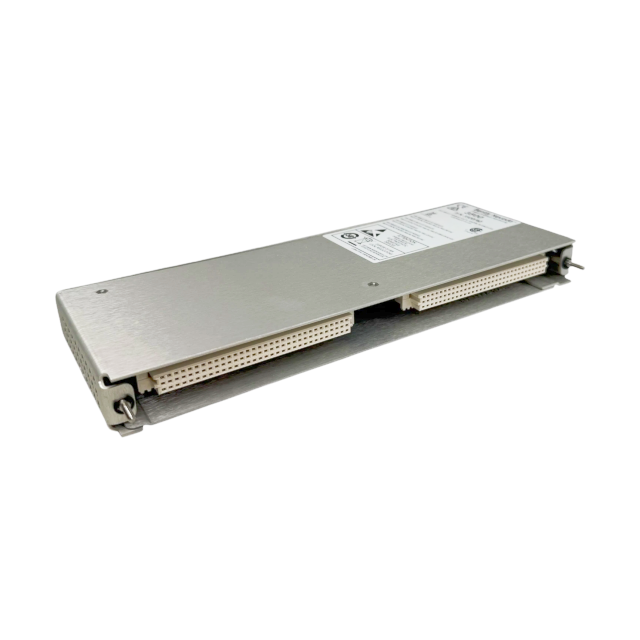

Bently Nevada 3500/40M-02-00 126615-01 Proximiotr I/O Module

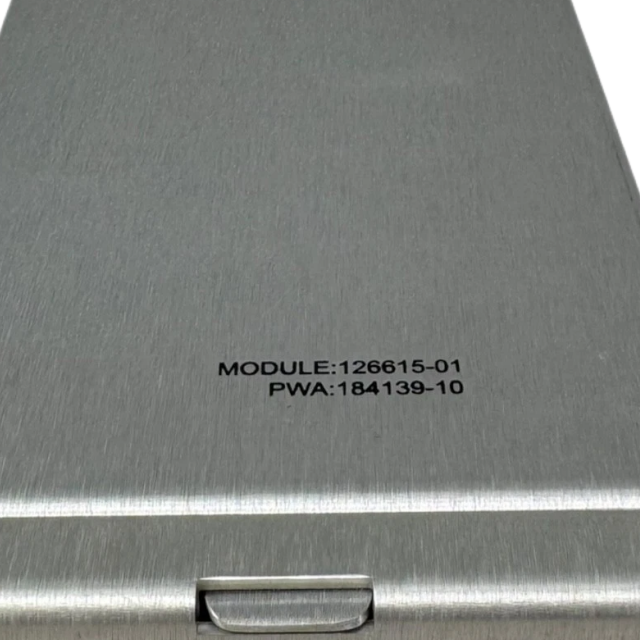

Bently Nevada 3500/40M-02-00 (Part Number: 126615-01): Description

The Bently Nevada™ 3500/40M-02-00 (part number 126615-01) is a four-channel Proximitor Monitor

designed for the 3500 Machinery Protection System, specialized in processing signals from Bently

Nevada proximity transducers. It conditions input signals to deliver critical machinery measurements,

including radial vibration, thrust position, eccentricity, differential expansion, and REBAM, while

enabling user-programmable alert and danger alarm setpoints for machinery protection and

operational monitoring.

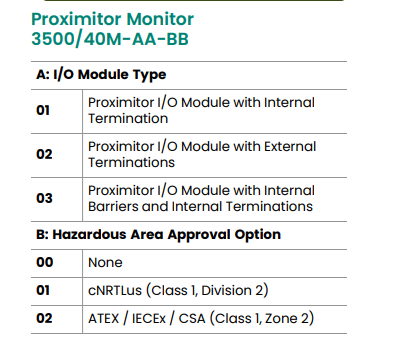

Configured with a Proximitor I/O Module with External Terminations (designated by the "02" in the

model), this monitor requires separate ordering of external termination blocks and signal cables for

complete installation. It operates with channel pairs—channels 1 and 2 can perform one

measurement function, while channels 3 and 4 handle another (or the same) function—supporting up

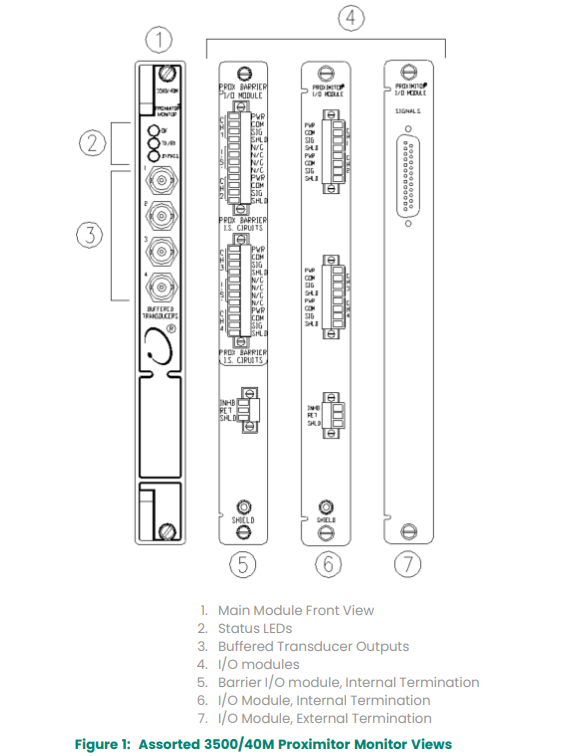

to two simultaneous functions. The monitor features front-panel LEDs (OK, TX/RX, Bypass) for real-

time status indication, including operational health, communication with other 3500 rack modules,

and bypass mode.

It provides short-circuit protected buffered transducer outputs and a -24 Vdc transducer power

supply, ensuring reliable signal transmission and sensor operation. Compliant with global industrial

standards, it adapts to harsh operating environments and supports hazardous area deployments

when paired with appropriate approvals. The monitor is configured via the 3500 Rack Configuration

Software, allowing customization of filters, alarm setpoints, and time delays to meet specific

machinery monitoring requirements.

Key Parameters

Model & Part Number: 3500/40M-02-00, 126615-01

I/O Module Type: Proximitor I/O Module with External Terminations (requires separate external

termination blocks and cables)

Hazardous Area Approval: None (designated by "00" in the model)

Channel Configuration: 4 channels, programmable in pairs (supports up to 2 simultaneous functions)

Supported Measurements: Radial vibration, thrust position, eccentricity, differential expansion, REBAM

Input Specifications: Accepts 1–4 proximity transducer signals; typical power consumption 7.7 Watts

Sensitivity:

Radial vibration, thrust, eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)

Differential expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil)

REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil)

Output Specifications: Buffered transducer outputs with 550 Ω output impedance; -24 Vdc transducer power supply

Frequency Response: User-programmable filters (varies by measurement function):

Radial vibration: Direct filter (4 Hz–4000 Hz or 1 Hz–600 Hz), Gap filter (-3 dB at 0.09 Hz), 1X/2X vector filters, Not 1X filter (60 cpm–15.8× running speed)

Eccentricity: Direct filter (-3 dB at 15.6 Hz), Gap filter (-3 dB at 0.41 Hz)

REBAM: Spike (0.152–8678 Hz), Element (0.139–3836 Hz), Rotor (0.108–2221 Hz) filters

Accuracy: Typically ±0.33% of full-scale, maximum ±1% (excluding filtering); phase error max 3 degrees

Alarm Functionality: Programmable alert/danger setpoints (0–100% of full-scale), setpoint accuracy

±0.13% of desired value; adjustable time delays (1–60 seconds for most measurements, 0.1 seconds–

60 seconds for danger setpoints)

Physical Dimensions:

Monitor module (main board): 241.3 mm × 24.4 mm × 241.8 mm (9.50 in × 0.96 in × 9.52 in), weight 0.91 kg (2.0 lb)

I/O module (non-barrier): 241.3 mm × 24.4 mm × 99.1 mm (9.50 in × 0.96 in × 3.90 in), weight 0.20

kg (0.44 lb)

Rack Space Requirements: 1 full-height front slot (monitor), 1 full-height rear slot (I/O module)

Environmental Limits: Operating temperature 0°C–65°C (32°F–150°F); storage temperature -40°C–

85°C (-40°F–185°F); humidity up to 95% (non-condensing)

Certifications & Compliance: FCC Part 15; EU EMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-

4); EU LV Directive 2014/35/EU (EN 61010-1); RoHS Directive 2011/65/EU; maritime certifications

(ABS, DNV GL)

Software & Firmware Requirements: Compatible with 3500/01 Software v2.50+, 3500/02 Software

v2.20+, 3500/03 Software v1.21+; REBAM function requires firmware v2.1+ and updated software

versions
